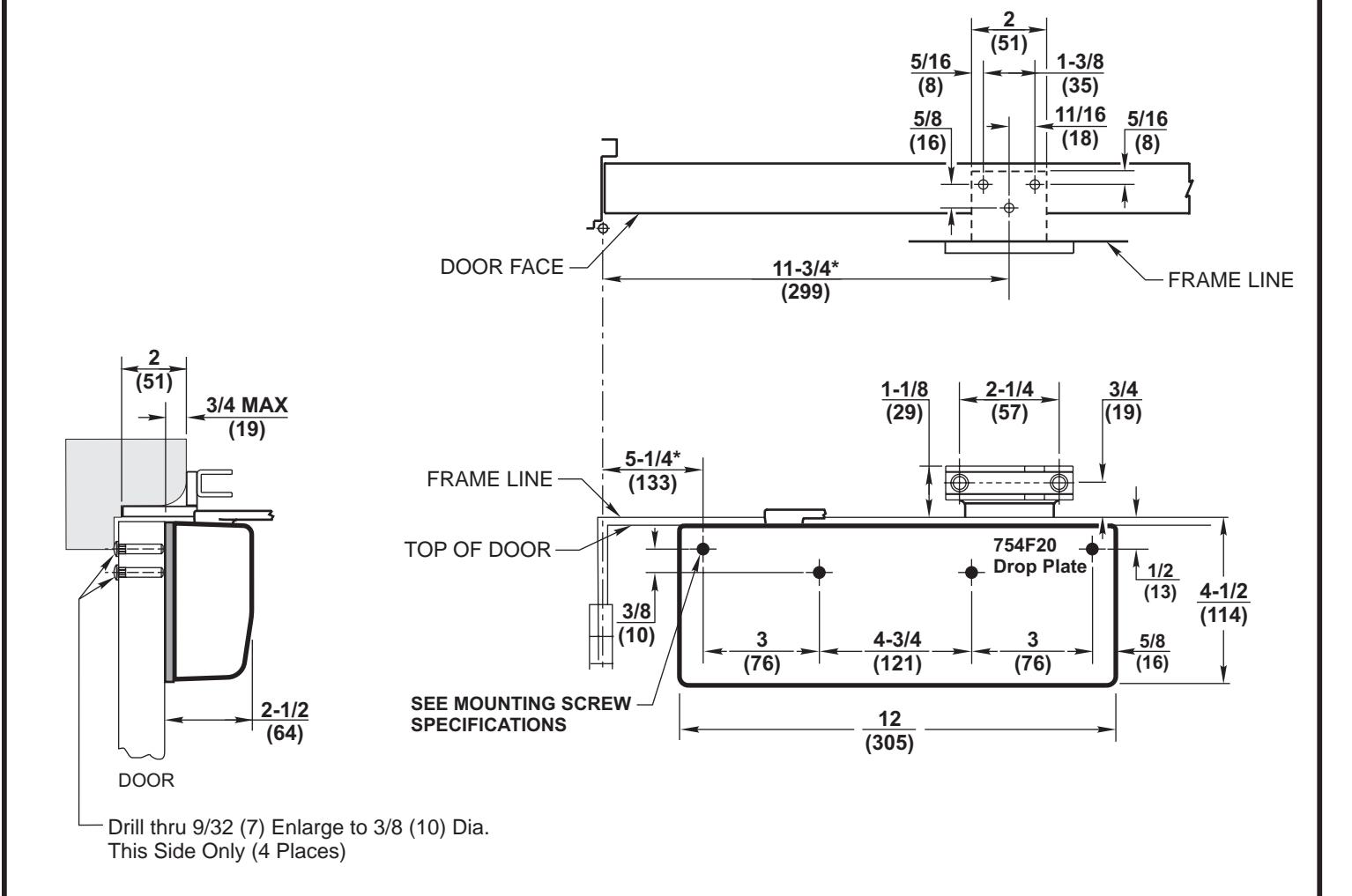

MOUNTING INFORMATION

Sex nuts or through bolts are required for wood and plastic covered composite doors, and any type of door without reinforcements and recommended for wood core and metal clad (Kalamein) type doors.

RH SHOWN LH OPPOSITE

CAUTION: Closer To Be Installed In A True Horizontal Position To Ensure Proper Closer Performance.

MOUNTING SCREW SPECIFICATIONS ARM AND QUIK-INSTALL™ BRACKET

#12-14 self-drilling screw. 1/8 (3) diameter pilot hole required for Wood Applications. Sex nuts, furnished when ordered 1-21/32

NOTES:

• 1. Dimensions given in inches and (mm).
• 2. Minimum Top Rail: 1-1/4 (32)
• 3. Auxiliary door stop required, by others.
• 4. Hold Open arms cannot be used on fire doors.
• To obtain extra closing force, add 3 (76) to dimensions marked by an asterisk (*). This will not meet ADA and limit degree of opening to 110° depending on arm adjustment.
• 6. Asterisk (*) dimensions apply to centerline of hinges, offset pivots, or center pivots.
• 7. Door silencers required when using sex nuts.

The Habitat for Humanity®

RESPONSIBILITY

Door and Frame Manufacturers are responsible for providing adequate construction or reinforcements for proper installation of hardware shown. All architectural builders hardware must be installed on properly reinforced doors and frames, regardless of the type, material, or method of construction.

DC8200 Series x M84 x 754F20

Regular Arm Mounted Surface Door Closer with M84 Mortise Arm Bracket and 754F20 Drop Plate

Corbin 72 Russwin 72 ASSA ABLOY

www.corbinrusswin.com Do Not Scale Drawing

Supersedes Dr. App Date 04-08 Template Number T31100
