DC6210 Series Multi-Sized 1 thru 6

DC6410 Series Half-Size 1 thru 6

Installation Instructions

ASSA ABLOY

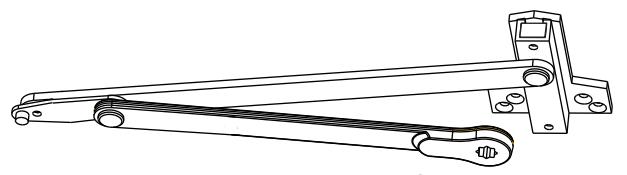

Universal Door Closers with Heavy Duty Spring Stop Parallel Arms

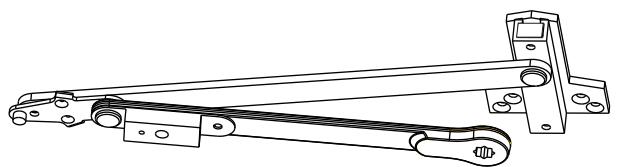

A11 - Non-Hold Open Arm

A12 - Hold Open Arm

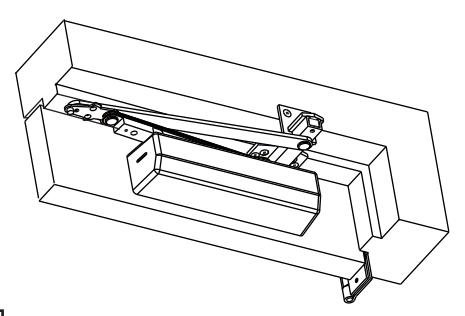

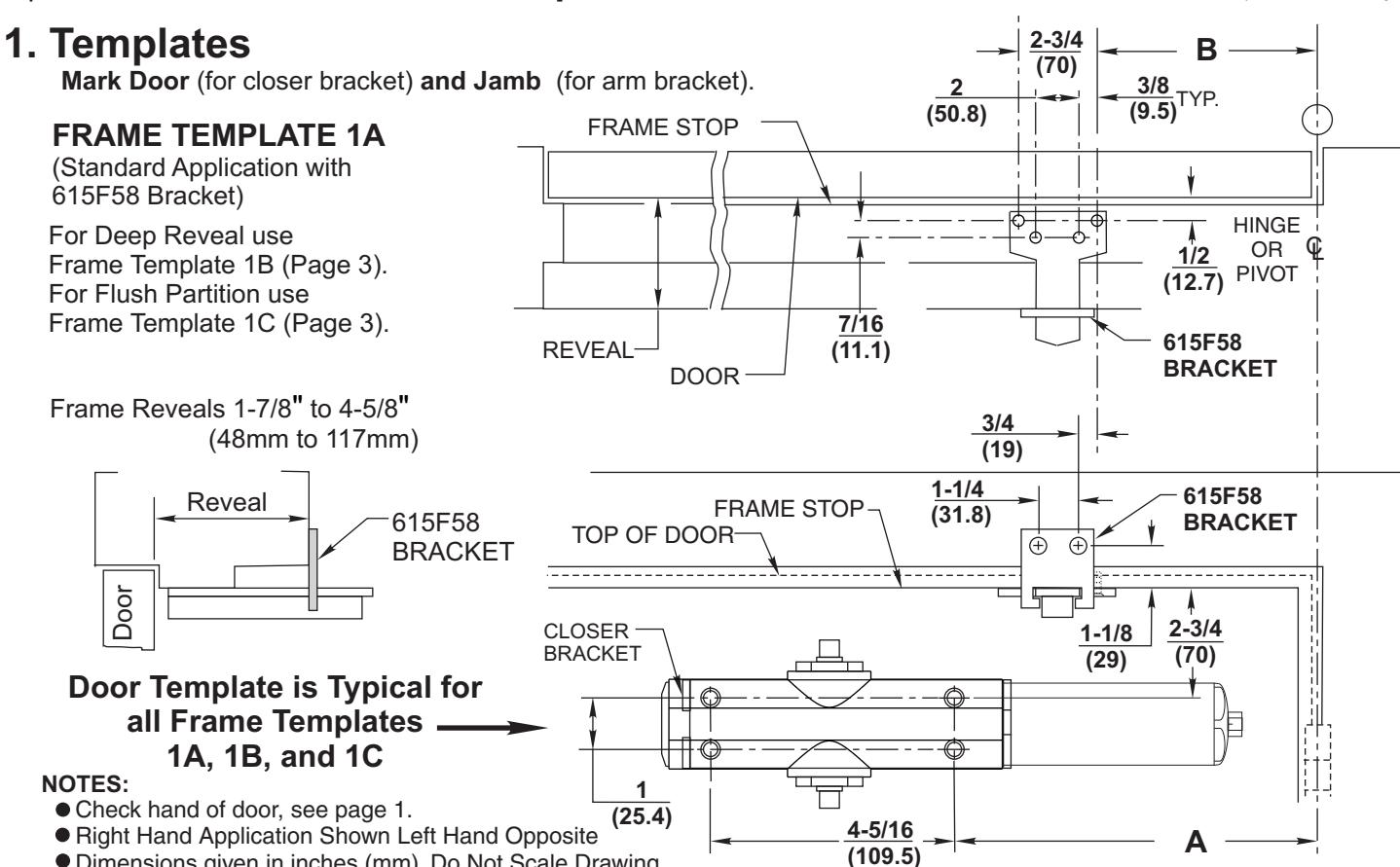

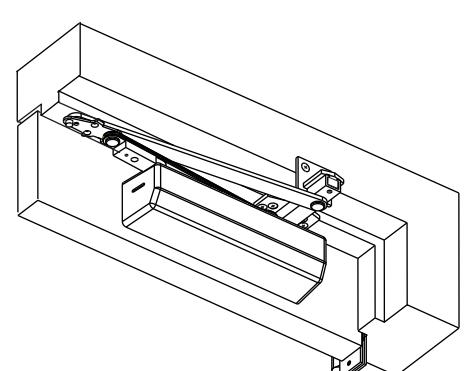

STANDARD APPLICATION WITH 615F58 BRACKET

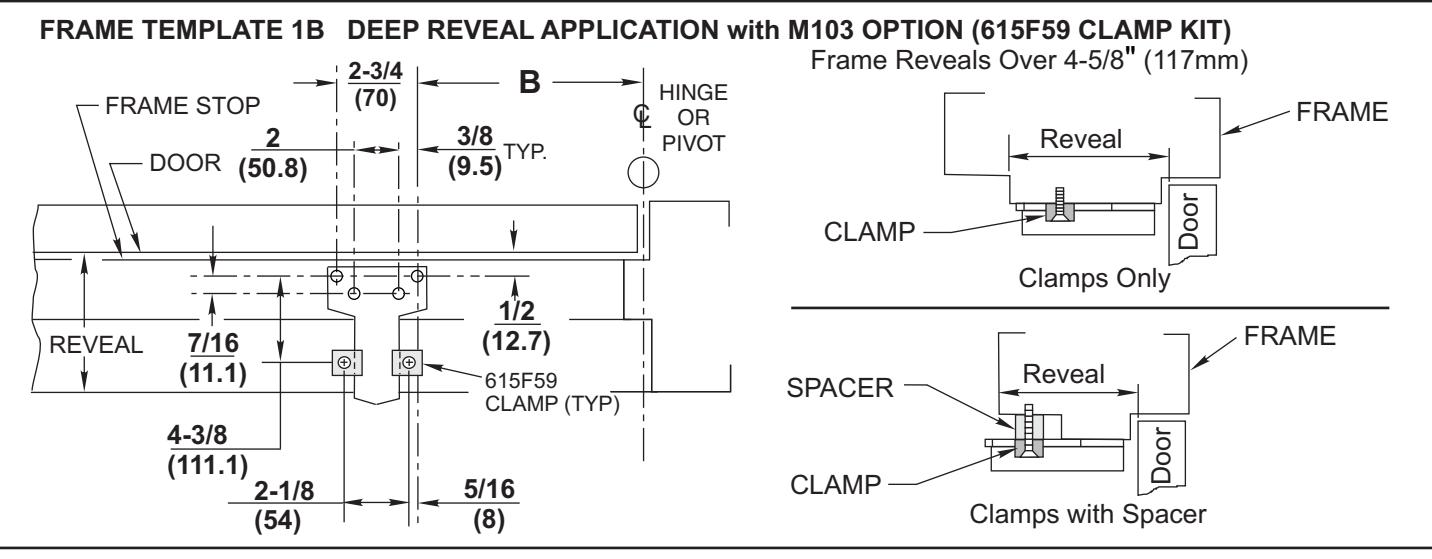

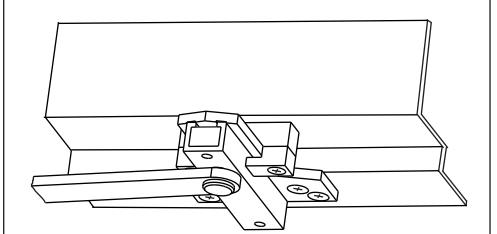

DEEP REVEAL APPLICATION WITH M103 OPTION(615F59 CLAMP KIT)

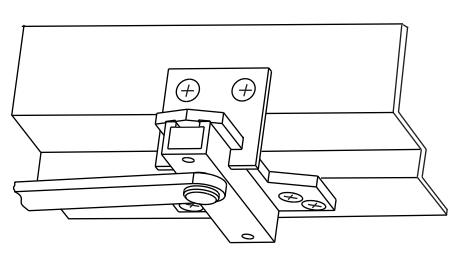

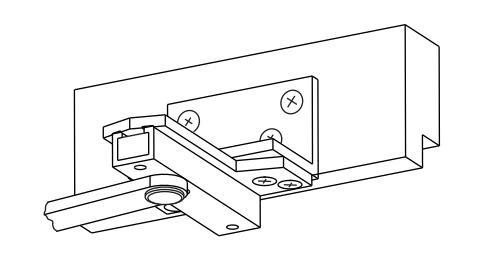

FLUSH PARTITION APPLICATION WITH M104 OPTION (615F60 BRACKET)

IMPORTANT:

• An improperly installed or incorrectly adjusted door closer may cause property damage or personal injury; and will void product warranty.
• To avoid personal injury, DO NOT DISASSEMBLE THIS DOOR CLOSER BODY.
• Door closers must be securely fastened to a properly reinforced door and frame with fasteners provided.
• Door closers with a HOLD OPEN ARM (A12) are not permitted to be installed in fire door assemblies.
• Door and frame must be specifically templated for 85°, 90°, 95°, 100°, 105° or 110° door swing.

Size of Door & Door Closer
Type of Installation	Interior	Exterior In -swinging	Exterior Out -swinging	Recommended Closer Size	**Max. Opening Force Ibs/f
Parallel Arm	2'4" 2'6" 3'0" 3'6" 4'0" 4'6"		2'6" 3'0" *3'6" *4'0"	1 2 3 4 5 6	8 14 16 22 24 26

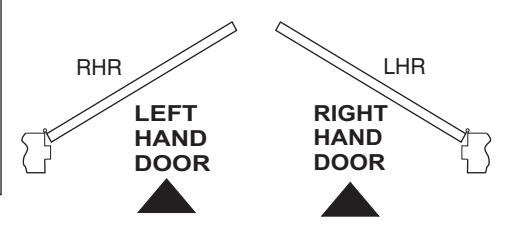

TO DETERMINE HAND OF YOUR DOOR:

*DC6410 Series Recommended

^** NOTE: These forces are for standard templating with bearing type hinges and do not account for pressure differentials and draft. Half size closers DC6410 are capable of being adjusted to next higher setting.

Installation Instructions

Parallel Arm Application A11 or A12 Arm

SEE CHART TO SELECT DEGREE OF DOOR OPENING AND DOOR WIDTH FOR YOUR DOOR. THEN, DETERMINE FRAME CONDITION: STANDARD & DEEP REVEAL (use Dim 's. A & B ) or FLUSH PARTITION (use Dim 's A & C )

*Dime	*Dimension "C" is only used for Flush Partition application (Frame Template 1C							emplate 1C).
Ope	ning	DOORS 28" TO 32" 615F52 NHO ARM (A11) 615F51 HO ARM (A12)		DOORS 33" TO 41" 615F54 NHO ARM (A11) 615F53 HO ARM (A12)			DOORS 42" TO 48" 615F56 NHO ARM (A11) 615F55 HO ARM (A12)
HOLD OPEN	DEAD STOP		im. A	Din	n. B	*Dim. C	D	im. A	Dim. B	*Dim. C	Dim. A	Dim. B	*Dim. C
85°	90°	11	(279)	10	(254)	10-1/8(257)	13-	-1/8(333)	12-1/4(311	12-3/8(314)	15-1/8(384)	14-3/8(365)	14-1/2(368)
90°	95°	10-	1/2(267)	9-1/2	(241)	9-5/8 (244)	12-	-5/8(321)	11-5/8(295	11-3/4(298)	14-1/2(368)	13-3/4(349)	13-7/8(352)
95°	100°	10	(254)	9	(229)	9-1/8 (232)	12	(305)	11-1/8(283	11-1/4(286)	13-7/8(352)	13-1/8(333)	13-1/4(337)
100°	105°	9-1	/2 (241)	8-1/2	(216)	8-5/8 (219)	11-	5/8(295)	10-5/8(270	) 10-3/4(273)	13-1/4(337)	12-1/2(318)	12-5/8(321)
105°	110°	9	(229)	8	(203)	8-1/8 (206)	11	(279)	10-1/8(257	) 10-1/4(260)	12-3/4(324)	12-1/8(308)	12-1/4(311)
110°	115°	8-1	/2 (216)	7-1/2	(191)	7-5/8 (194)	10-	-1/2(267)	9-1/2 (241	9-5/8 (244)	12-1/4(311)	11-1/2(292)	11-5/8(295)

proper closer performance. MOUNTING SCREW SPECIFICATIONS

Dimensions given in inches (mm). Do Not Scale Drawing. Closer must be installed in a true horizontal plane to ensure

ARM AND CLOSER BRACKET

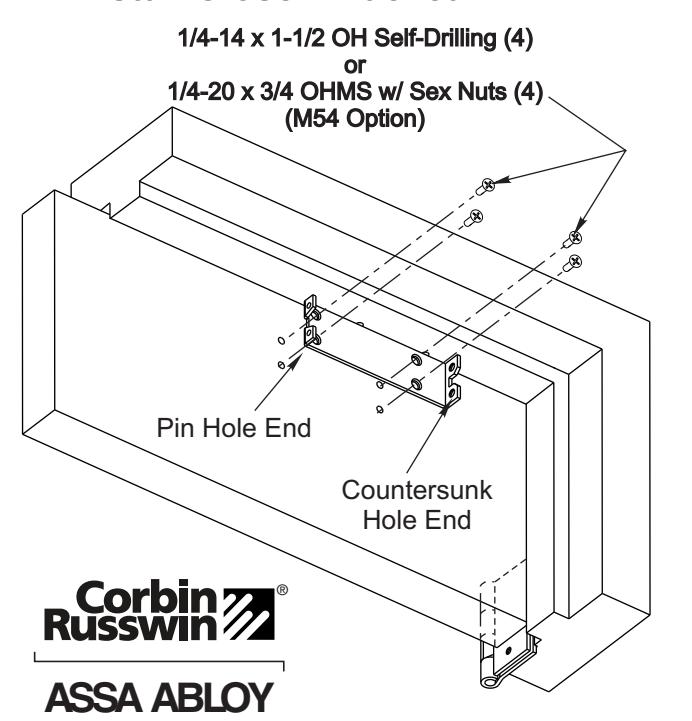

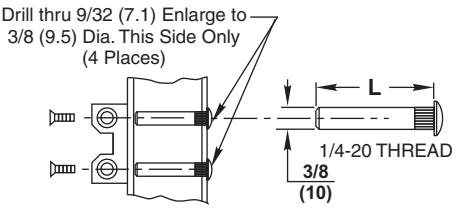

1/4-20 oval head machine screw or 1/4-14 self-drilling screw. 3/16 (4.8) diameter pilot hole required for Wood Applications.

DOOR THICKNESS	SEX NUT LENGTH "L"
1-3/8" (35mm)	1-9/32" (33mm)
1-3/4 " (44mm) & OVER	1-21/32 " (42mm)

Installation Instructions

Parallel Arm Application A11 or A12 Arm

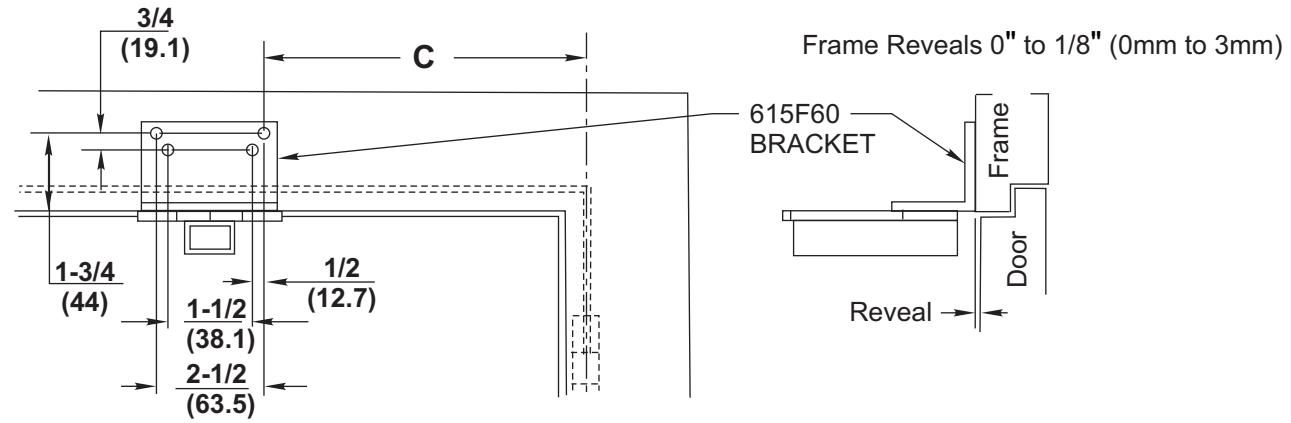

FRAME TEMPLATE 1C FLUSH PARTITION APPLICATION with M104 OPTION (615F60 BRACKET)

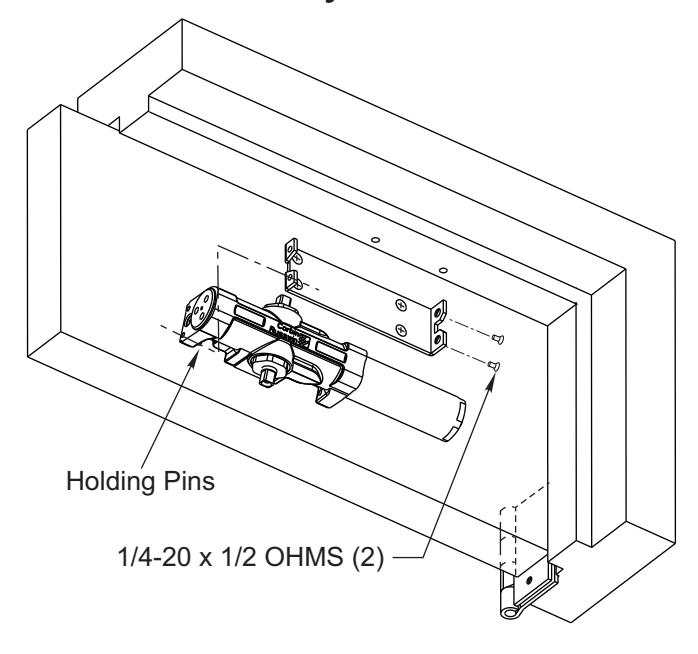

2. Install Closer Bracket 3. Mount Closer Body to Closer Bracket

Installation Instructions

Parallel Arm Application A11 or A12 Arm

4. Connect Arm To Closer

Using hex wrench provided, close (turn clockwise) CLOSING SPEED VALVE (see page 4 for location on closer). DO NOT OVER TIGHTEN.

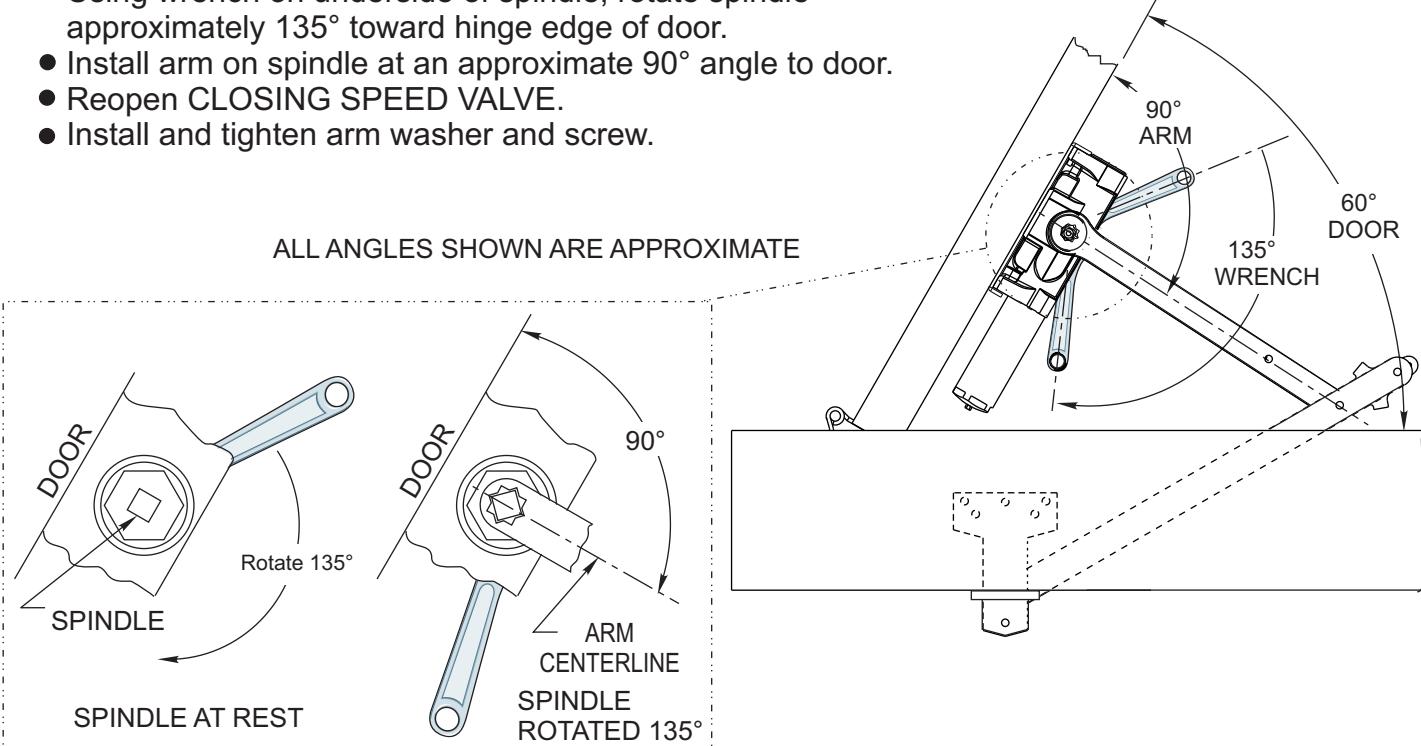

Open door to approximately 60° Using wrench on underside of spindle, rotate spindle approximately 135° toward hinge edge of door.

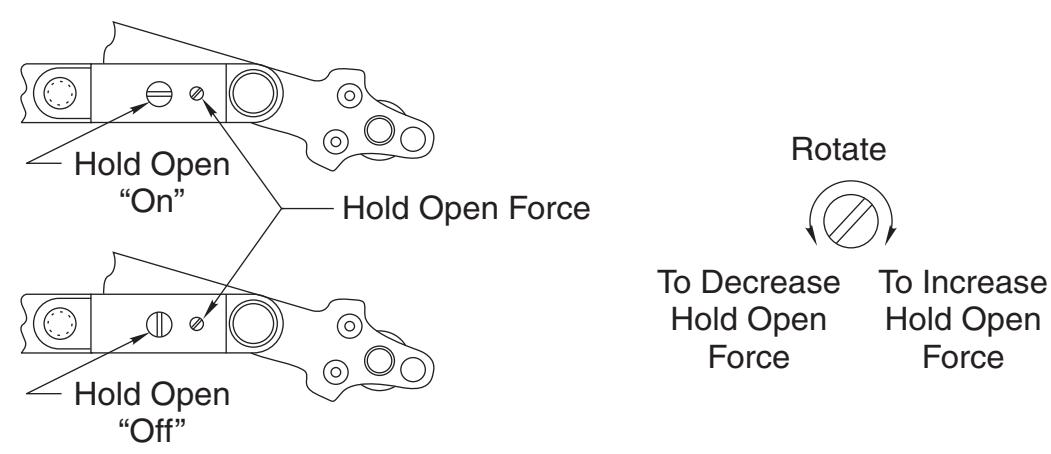

HOLD OPEN ADJUSTMENTS - A12 ARMS ONLY

Spring Power Adjustment

Locate spring power adjuster from Illustration below DC6400 Half Size Adjustment as Desired DC6200 Size 1 thru 6 Adjustment See Chart

DC6200 SPRING POWER ADJUSTMENT CHART

• All DC6200 closers are factory set at an approximate Size 3.
• Adjust closer as necessary for door size using this chart.
• Readjustment may be required to suit prevailing conditions.

	Size of D	No. of Full	Equivalent
Interior	Exterior In Swing	Exterior Out Swing	(360°) Turns Clockwise of Power Adjuster	Closer Size (Approx.)
2 ' 4 '' (712)	2 ' 6" (764)		4	2
2 ' 6 '' (764)	3 ' 0" (915)		8	3
3 ' 0 '' (915)	3 '6" (1067)	2 ' 6" (764)	12	4
3 ' 6 '' (1067)	4 ' 0" (1219)	3 ' 0" (915)	16	5

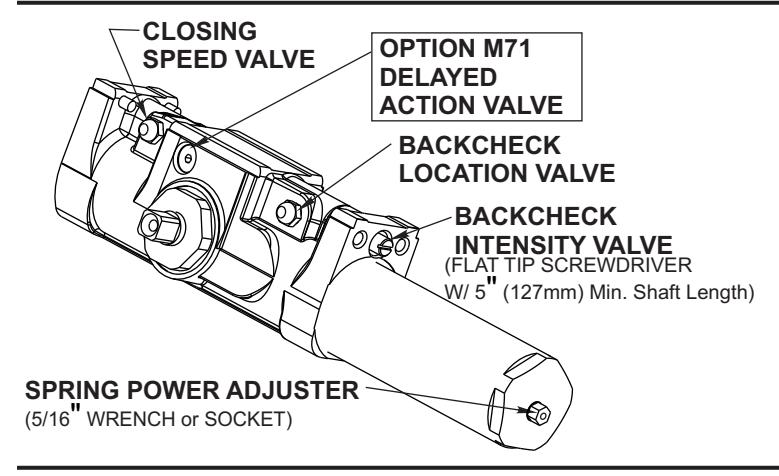

Closing Speed Valve (3/32 Allen Wrench Provided)

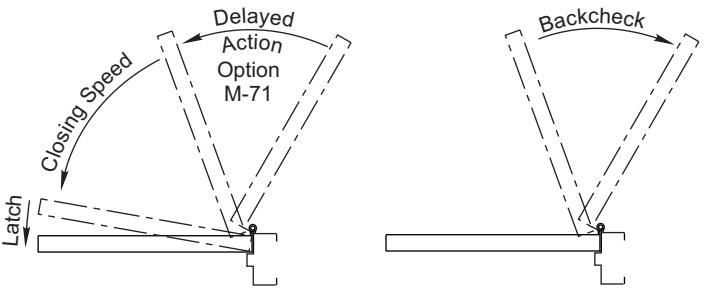

To adjust speed of door closing from fully open to a position 2" to 5" from closed, turn Closing Speed Valve CLOCKWISE to SLOW closing, COUNTER-CLOCKWISE to SPEED closing.

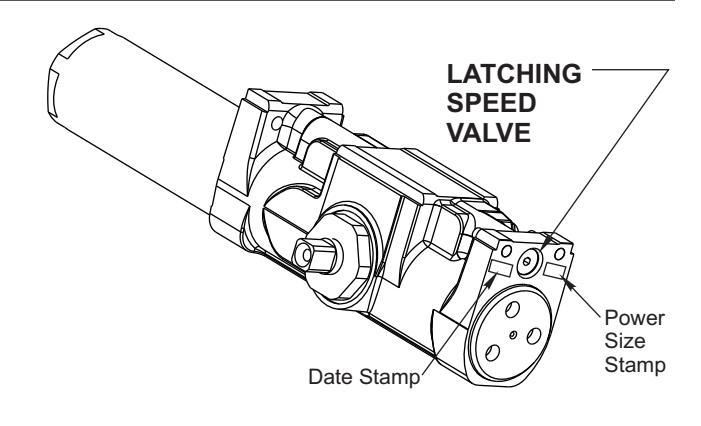

Latching Speed Valve (3/32 Allen Wrench Provided)

After closing speed has been obtained, turn latching speed valve CLOCKWISE to SLOW latching or COUNTER-CLOCKWISE to SPEED latching for last 2" to 5" of door travel.

NOTE: Set combination of CLOSING and LATCHING speeds to between 3 and 7 seconds Use of door by handicapped, elderly or small children, may require even greater closing time.

Delayed Action Valve (3/32 Allen Wrench Provided)

Turn valve CLOCKWISE to SLOW closing, COUNTER-CLOCKWISE to SPEED closing. Delayed action may be adjusted from 20 seconds to 90 seconds, depending on degree of door swing. Delay occurs at the beginning of the door closing cycle from fully open down to 70°, where the closing speed valve then begins its control.

Backcheck Location Valve (3/32 Allen Wrench Provided) Valve is closed, as shipped, from factory. To increase the degree of door opening where backcheck takes effect, turn valve counter-clockwise.

VALVE	OCCURS AT
CLOSED	65°-70°
OPEN	95°-100°

Degrees shown are approximate

Backcheck Intensity Valve

Turn valve COUNTER- CLOCKWISE to reduce backcheck or CLOCKWISE to increase backcheck. (Backcheck should be set to give a soft cushioning action, not a sudden stop).

Installing Cover

Slip cover over closer. Hold tightly against closer mounting surface. Secure on each side with 6-32 x 1/4" PBHMS screws.
