MOUNTING INFORMATION

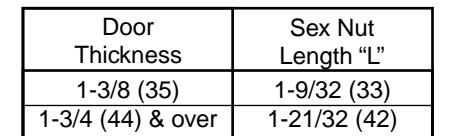

Sex nuts or through bolts are required for wood and plastic covered composite doors, and any type of door without reinforcements and recommended for wood core and metal clad (Kalamein) type doors.

RH SHOWN LH OPPOSITE

CAUTION: Closer To Be Installed In A True Horizontal Position To Ensure Proper Closer Performance.

NOTES:

  • 1. Dimensions given in inches and (mm).
  • 2. 1" (25.4) minimum top jamb required for mounting plate.
  • 3. Degree of opening: 85° through 110°
  • 4. Minimum Top Rail: 4-1/2 (114.3)
  • 5. Dimensions marked (*) apply to centerline of hinge/pivot for butt or swing clear hinges; offset or center pivots.

RESPONSIBILITY

Door and Frame Manufacturers are responsible for providing adequate construction or reinforcements for proper installation of hardware shown. All architectural builders hardware must be installed on properly reinforced doors and frames, regardless of the type, material, or method of construction.

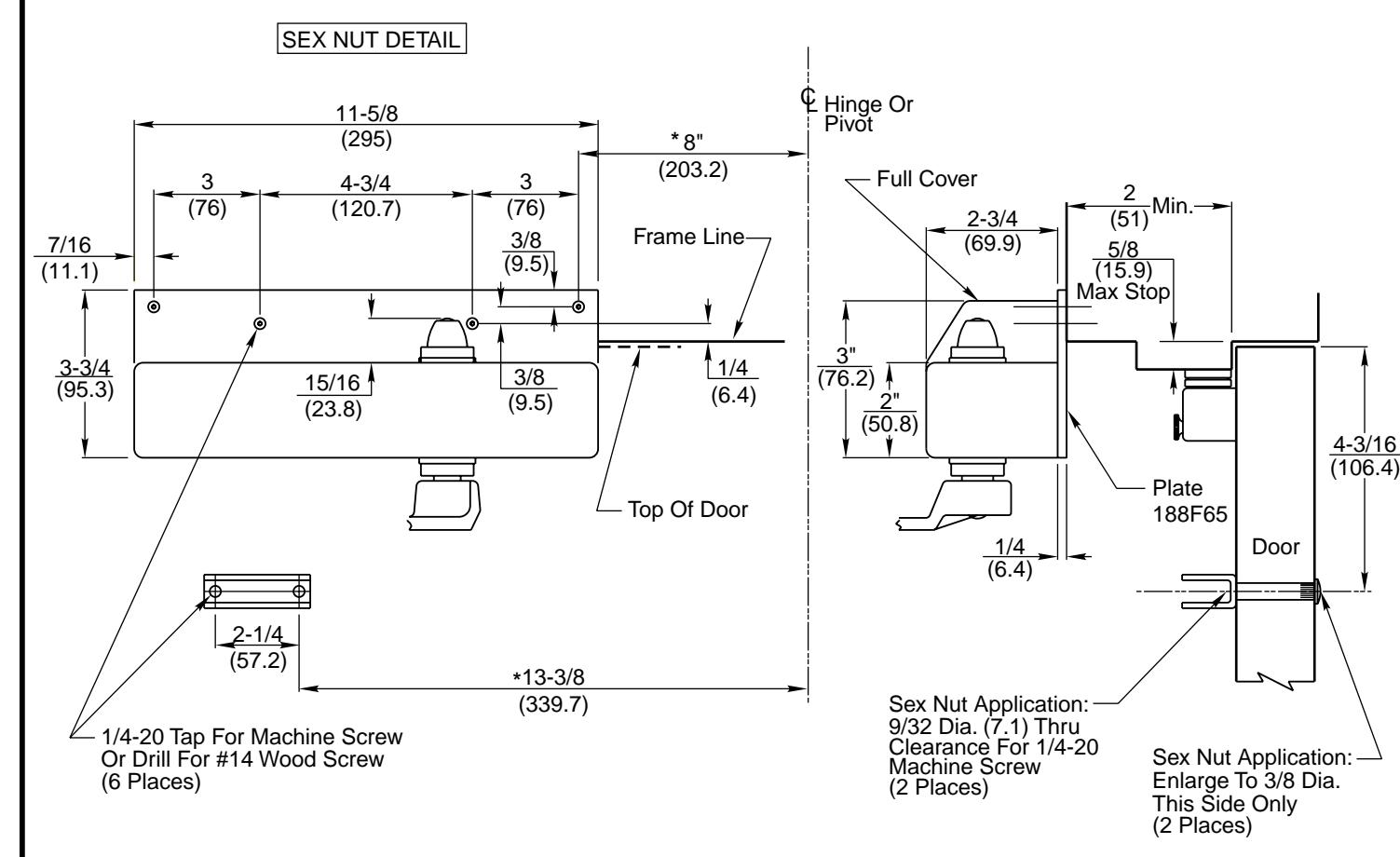

DC6220 Series By 188F65 DC6420 Series By 188F65

Surface Door Closer Top Jamb Mounting for Extra Drop to Clear Overhead Holder (with or without A1, A6, or A8)
