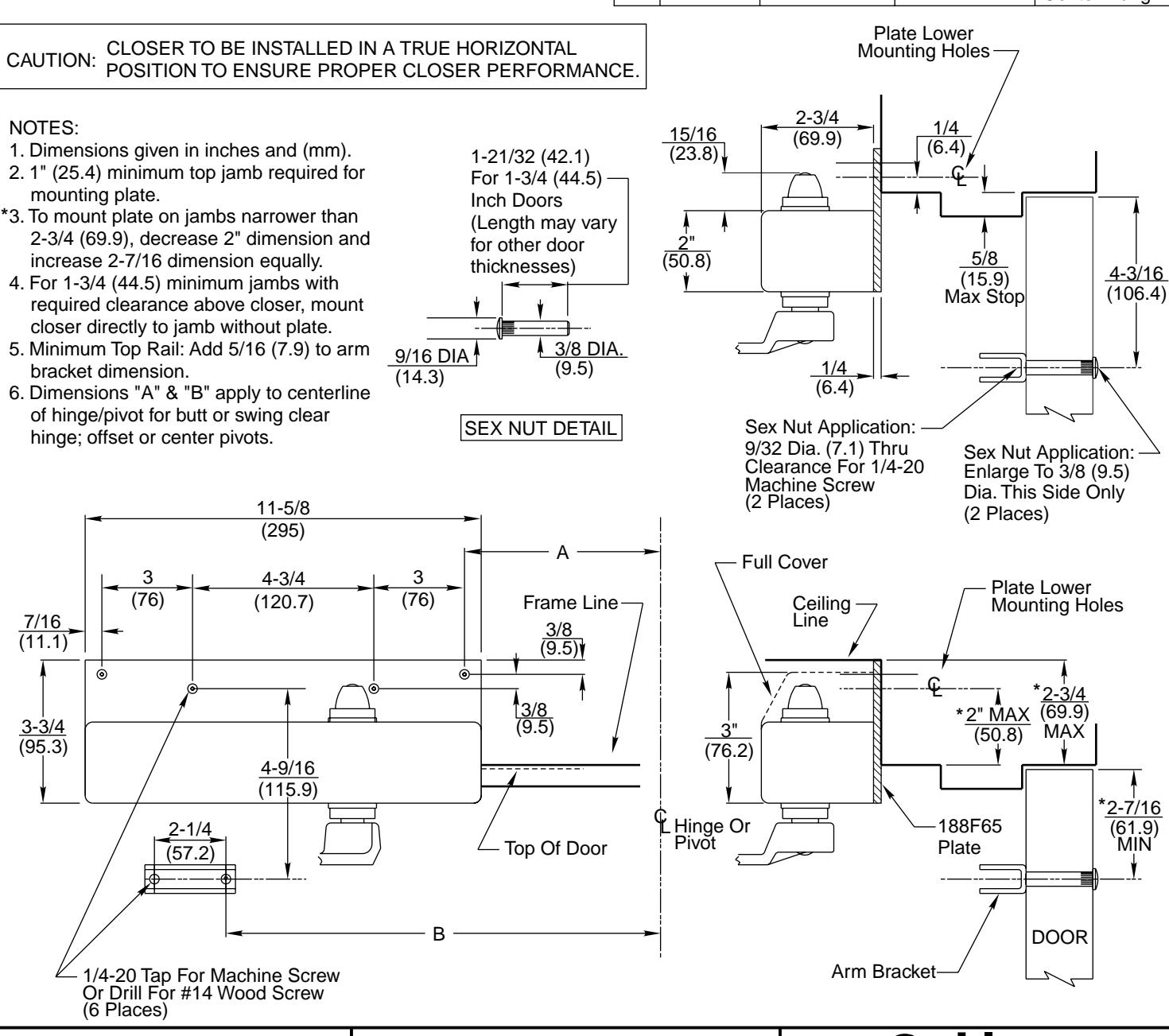

View PDFMOUNTING INFORMATION
Sex nuts or through bolts are required for wood and plastic covered composite doors, and any type of door without reinforcements and recommended for wood core and metal clad (Kalamein) type doors.
RH SHOWN LH OPPOSITE
|
Opening
Maximum |
А | В |
Hinge
Condition |
|
|---|---|---|---|---|
| 110° | 8" (203.2) | 13-3/8 (339.7) |
Butts, Offset
Pivots, And |
|
| 180° | 5" (127) | 10-3/8 (263.5) |
Swing Clear
Hinges |
|
| F | 140° | 6-1/2 (165.1) | 11-7/8 (301.6) | |
| Center Hung |
RESPONSIBILITY
Door and Frame Manufacturers are responsible for providing adequate construction or reinforcements for proper installation of hardware shown. All architectural builders hardware must be installed on properly reinforced doors and frames, regardless of the type, material, or method of construction.
DC6220 Series By 188F65 DC6420 Series By 188F65 Surface Door Closer Top Jamb Mounting By Plate (with or without A1, A6, or A8)
