Corbin Russwin DC6000 Series DC6210 Surface Door Closer with A11, A12 Arms Push Side Mounting 615F59 Kit and 615…_T30730
Open the original PDF document
View PDFMOUNTING INFORMATION
Sex nuts or through bolts are required for wood and plastic covered composite doors, and any type of door without reinforcements and recommended for wood core and metal clad (Kalamein) type doors.
RH SHOWN LH OPPOSITE
Closer To Be Installed In A True Horizontal Position To Ensure Proper Closer Performance.
| For Doors 28" To 32" Wide | For Doors 33" To 41" Wide | For Doors 42" To 48" Wide | |||||
|---|---|---|---|---|---|---|---|
| Hold-open | Stop | Α | В | А | В | А | В |
| 85° | 90° | 11 (279.4) | 10 (254) | 13-1/8 (333.4) | 12-1/4 (311.2) | 15-1/8 (384.2) | 14-3/8 (365.1) |
| 90° | 95° | 10-1/2 (266.7) | 9-1/2 (241.3) | 12-5/8 (320.7) | 11-5/8 (295.3) | 14-1/2 (368.3) | 13-3/4 (349.3) |
| 95° | 100° | 10 (254) | 9 (228.6) | 12 (304.8) | 11-1/8 (282.6) | 13-7/8 (352.4) | 13-1/8 (333.4) |
| 100° | 105° | 9-1/2 (241.3) | 8-1/2 (215.9) | 11-5/8 (295.3) | 10-5/8 (269.9) | 13-1/4 (336.6) | 12-1/2 (317.5) |
| 105° | 110° | 9 (228.6) | 8 (203.2) | 11 (279.4) | 10-1/8 (257.2) | 12-3/4 (323.9) | 12-1/8 (308) |
| 110° | 115° | 8-1/2 (215.9) | 7-1/2 (190.5) | 10-1/2 (266.7) | 9-1/2 (241.3) | 12-1/4 (311.2) | 11-1/2 (292.1) |
RESPONSIBILITY
Door and Frame Manufacturers are responsible for providing adequate construction or reinforcements for proper installation of hardware shown. All architectural builders hardware must be installed on properly reinforced doors and frames, regardless of the type, material, or method of construction.

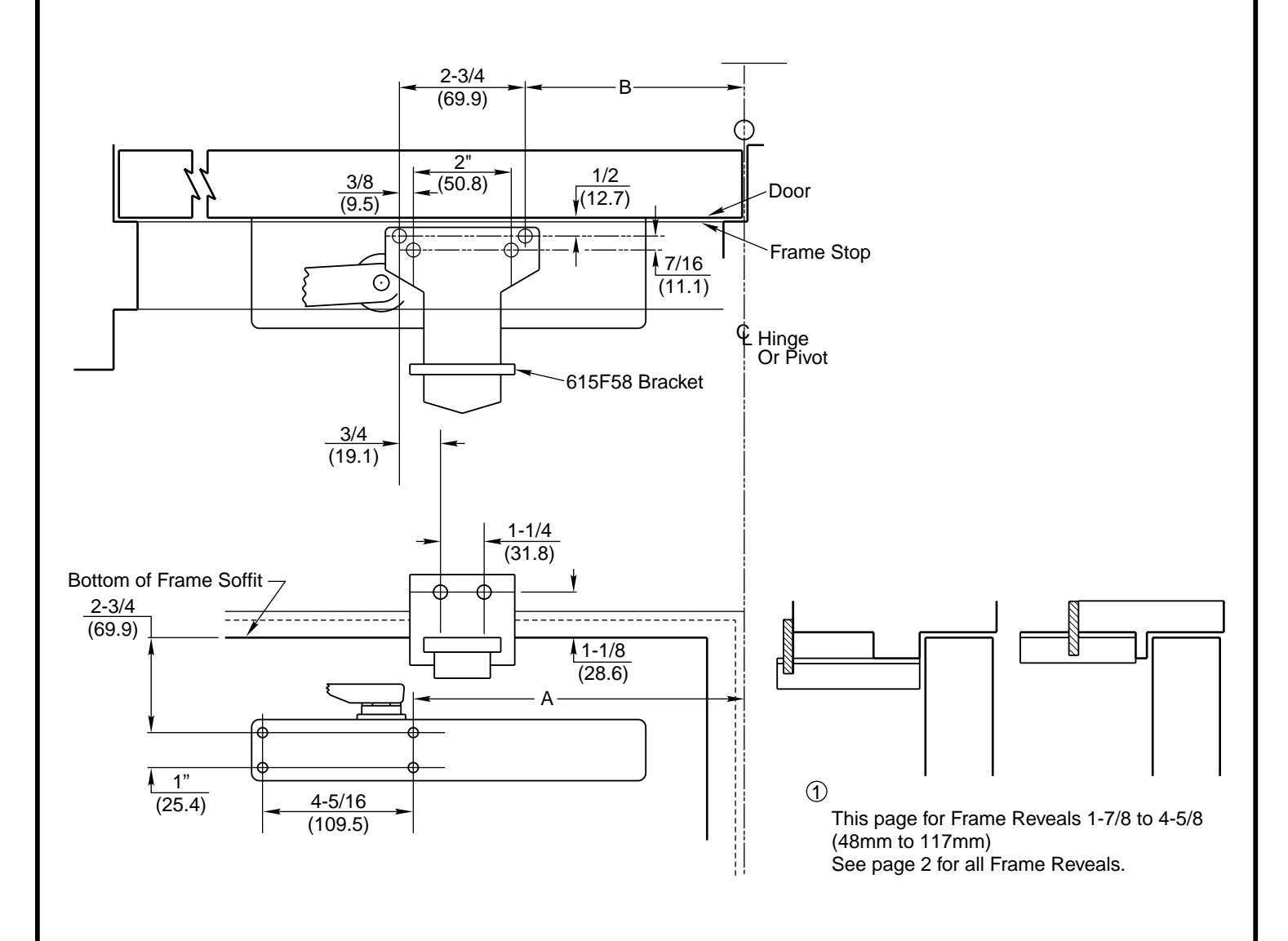

DC6210 With Spring Stop Arm A11 or A12 Push Side Mounting Standard Reinforcing Bracket 615F58
Page 1 of 2
www.corbinrusswin.com Do Not Scale Drawing
Supersedes T30730 Dr.
Template T30730-1 Page 1 of 2
Door and Frame Manufacturers are responsible for providing adequate construction or reinforcements for proper installation of hardware shown. All architectural builders hardware must be installed on properly reinforced doors and frames, regardless of the type, material, or method of construction.

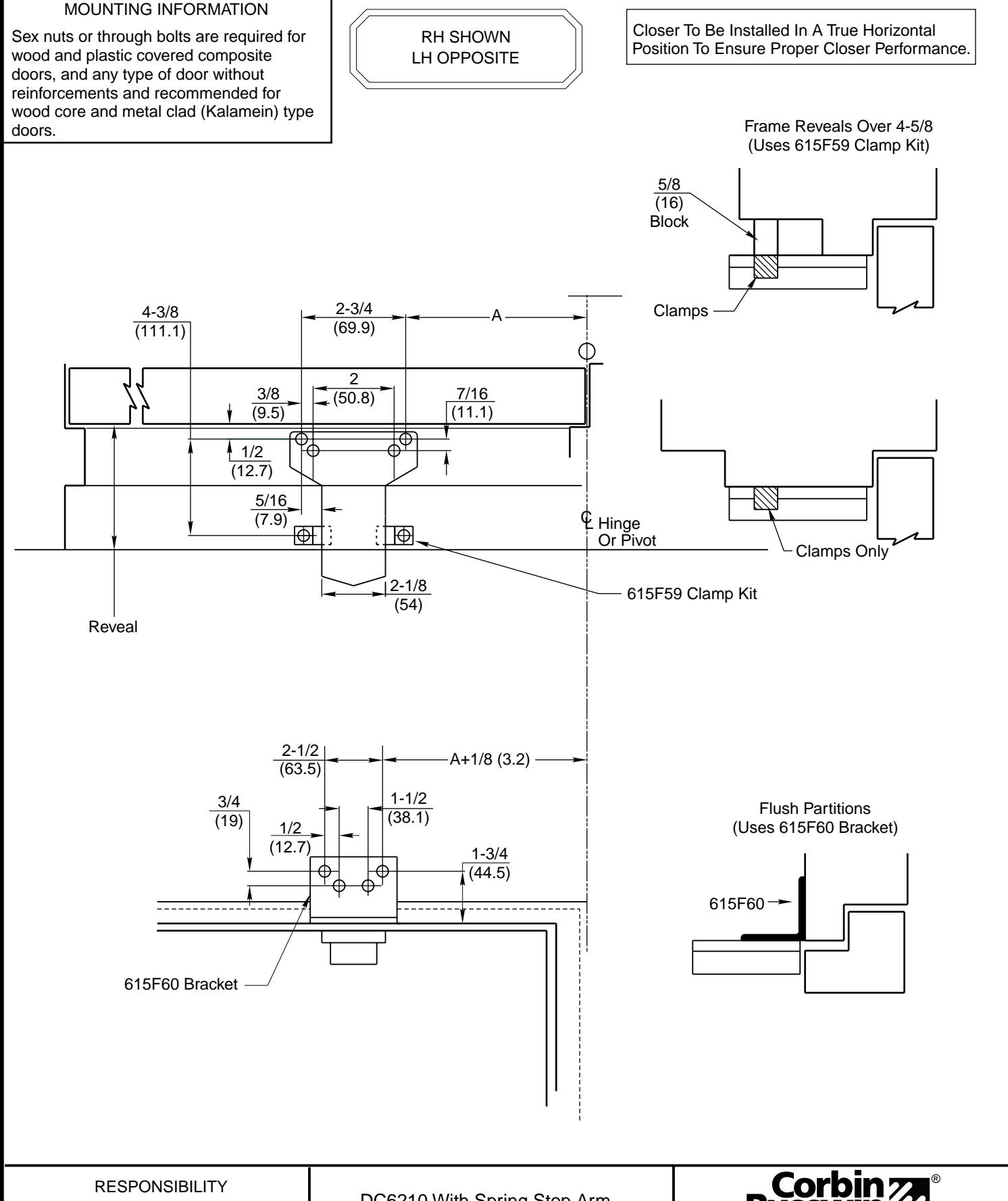

DC6210 With Spring Stop Arm A11 or A12 Push Side Mounting Optional Brackets 615F59 or 615F60
Page 2 of 2
www.corbinrusswin.com
Do Not Scale Drawing
Supersedes T30730 Dr.
09-04 Template T30730-1 Page 2 of 2
