Corbin Russwin DC6000 Series DC6210, DC6410 Surface Door Closer with or without A1 Arm Parallel Arm Mounting 597…_T30708

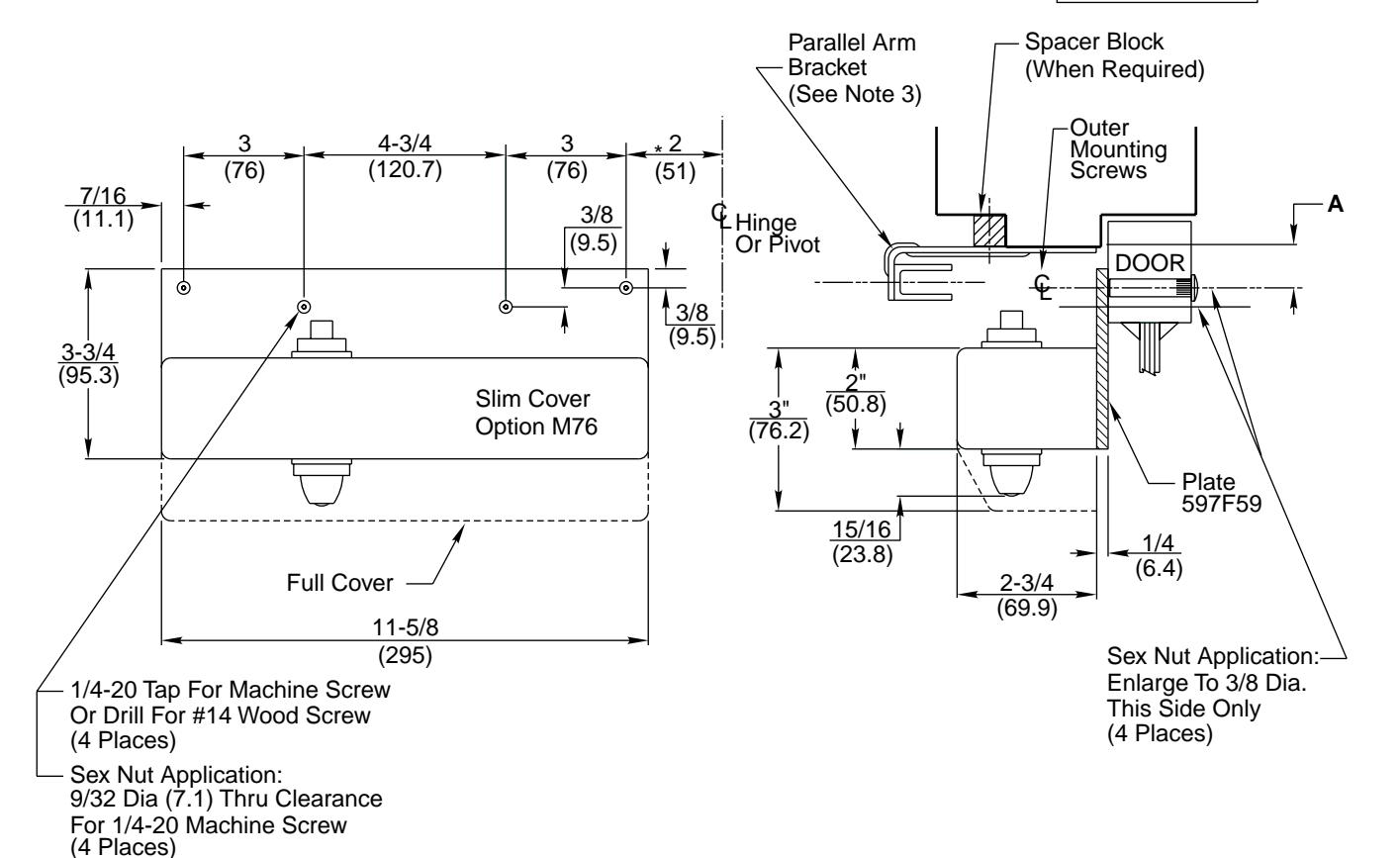

MOUNTING INFORMATION

Sex nuts or through bolts are required for wood and plastic covered composite doors, and any type of door without reinforcements and recommended for wood core and metal clad (Kalamein) type doors.

NOTES:

• 1. Dimensions given in inches and (mm).
• To obtain extra closing force, add 3" (76.2) to dimensions marked by asterisk (*). This will limit degree of door opening to 110°.
• 3. Parallel arm bracket may be mounted on stop as shown or rabbet, refer to template T30713 for mounting dimensions.
• Dimensions marked (*) apply to centerline of hinge/pivot for butt, swing clear, offset and center hung pivots.

RH SHOWN LH OPPOSITE

CAUTION: CLOSER TO BE INSTALLED IN A TRUE HORIZONTAL POSITION TO ENSURE PROPER CLOSER PERFORMANCE.

COVER	PLATE	"A" Dim.
Full (Std.)	597F58	1-1/4 (32)
Slim (Opt. M76)	188F65	13/16 (21)

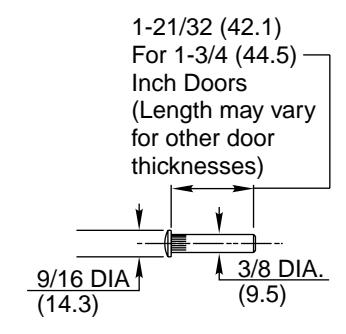

SEX NUT DETAIL

RESPONSIBILITY

Door and Frame Manufacturers are responsible for providing adequate construction or reinforcements for proper installation of hardware shown. All architectural builders hardware must be installed on properly reinforced doors and frames, regardless of the type, material, or method of construction.

DC6210 Series with 597F58/188F65 DC6410 Series with 597F58/188F65 Surface Door Closer Parallel Arm Mounting By Plate (with or without A1)
