Corbin Russwin DC6000 Series DC6210, DC6410 Surface Door Closer with A2, A4, A5 Arms Parallel Arm Mounting Templ…_T30715

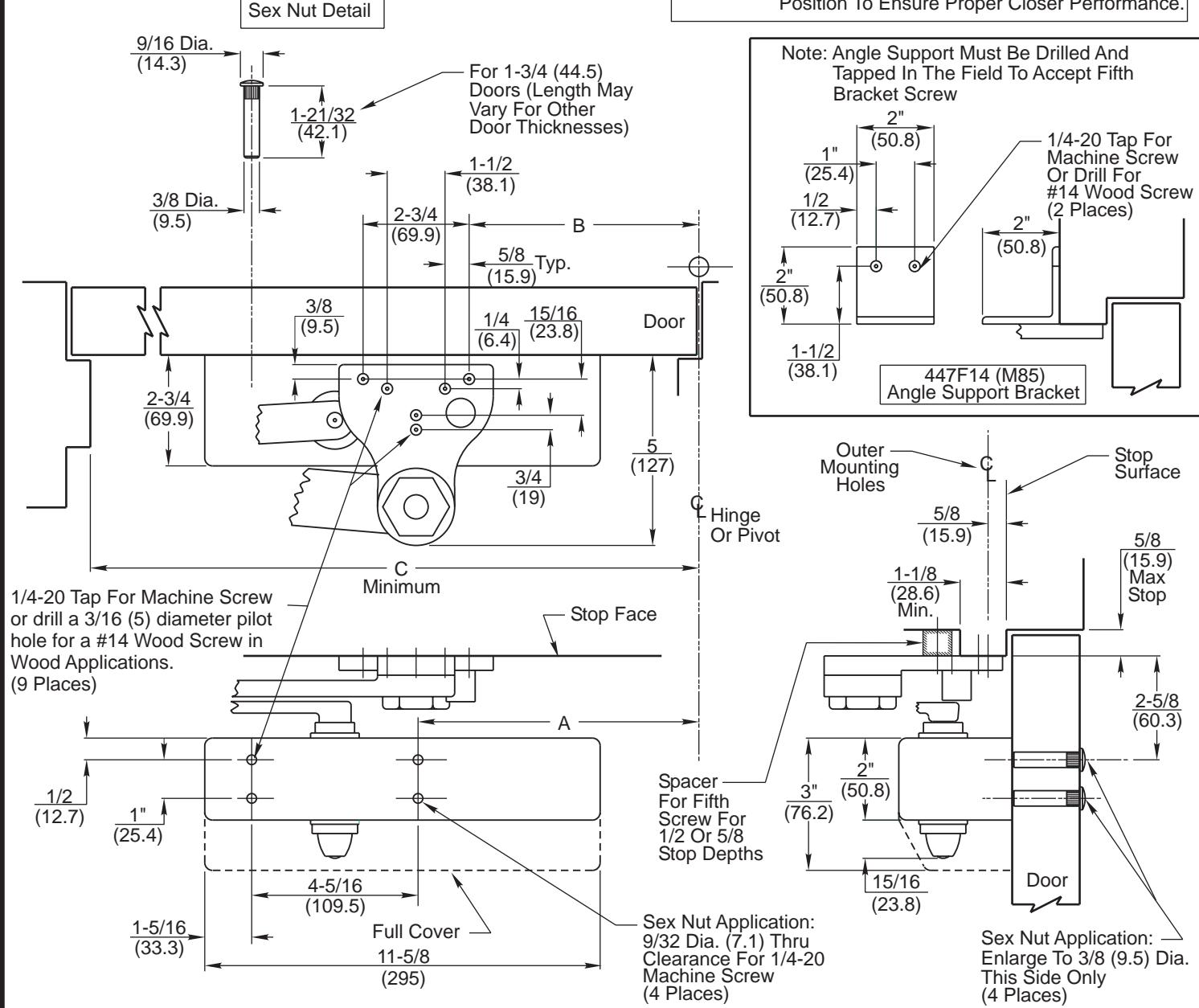

MOUNTING INFORMATION

Sex nuts or through bolts are required for wood and plastic covered composite doors, and any type of door without reinforcements and recommended for wood core and metal clad (Kalamein) type doors.

RH SHOWN LH OPPOSITE

NOTES:

• 1. Dimensions given in inches and (mm).
• 2. Minimum Top Rail: 4-3/16 (106.4)
• Dimensions marked "A" & "B" apply to centerline of hinge/pivot for butt or swing clear hinges; or offset pivots.

Opening Maximum С Α В Minimum 13-3/4 (349) 12-9/16 (319) 28-3/4 (730) 85° 27-7/8 (708) 90° 12-13/16 (325) 11-5/8 (295) 100° 11-1/4 (286) 10-1/16 (256) 26-1/4 (667) 9-15/16 (252) 8-3/4 (222) 25 (635) 110°

CAUTION: Closer To Be Installed In A True Horizontal Position To Ensure Proper Closer Performance.

RESPONSIBILITY

Door and Frame Manufacturers are responsible for providing adequate construction or reinforcements for proper installation of hardware shown. All architectural builders hardware must be installed on properly reinforced doors and frames, regardless of the type, material, or method of construction.

DC6210 Series x A2, A4, or A5 DC6410 Series x A2, A4, or A5

Surface Door Closer Parallel Arm Mounting By Backstop Arm

Corbin 78 Russwin 78

www.corbinrusswin.com
