MOUNTING INFORMATION

Sex nuts or through bolts are required for wood and plastic covered composite doors, and any type of door without reinforcements and recommended for wood core and metal clad (Kalamein) type doors.

offset pivots, or center pivots. 2. Dimensions given in inches and (mm).

4. Auxiliary door stop required, by others.

3. Minimum Top Rail: 2 (51)

NOTES:

RH SHOWN LH OPPOSITE

Closer To Be Installed In A True Horizontal CAUTION: Position To Ensure Proper Closer Performance.

MOUNTING SCREW SPECIFICATIONS

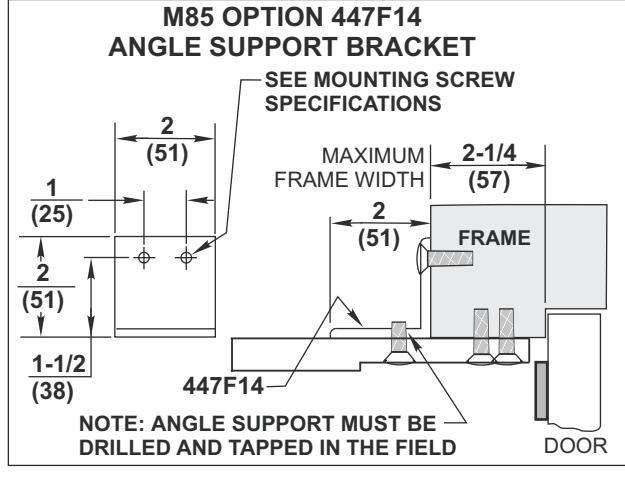

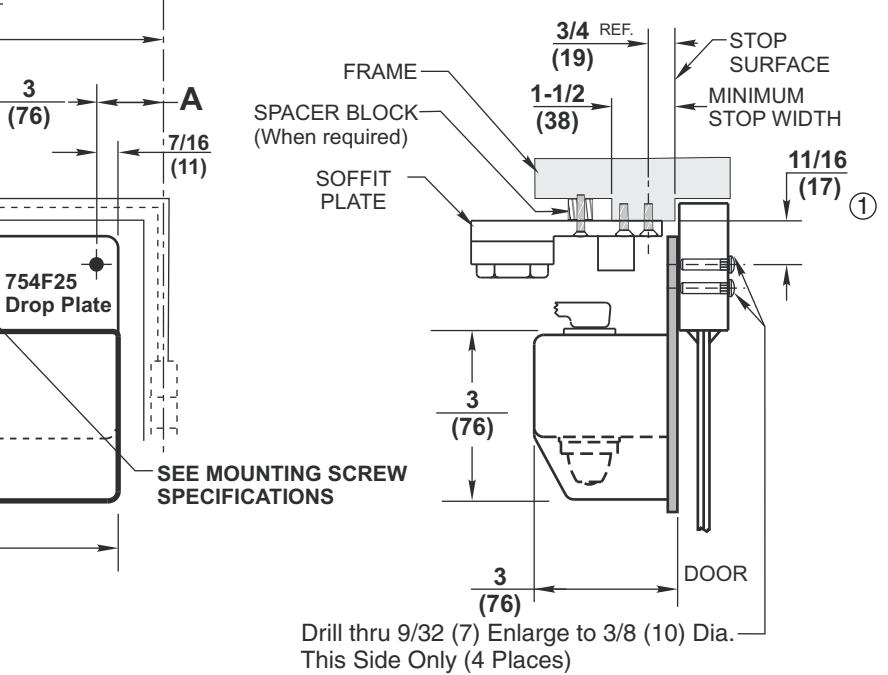

ARM AND QUIK-INSTALL™ BRACKET #1/4-14 self-drilling screw. 1/8 (3) diameter pilot hole Sex nuts, furnished required for Wood when ordered Applications. 1-21/32 (42)1/4-20 THREAD 3/8 9/16 DIA.

(10)(14)

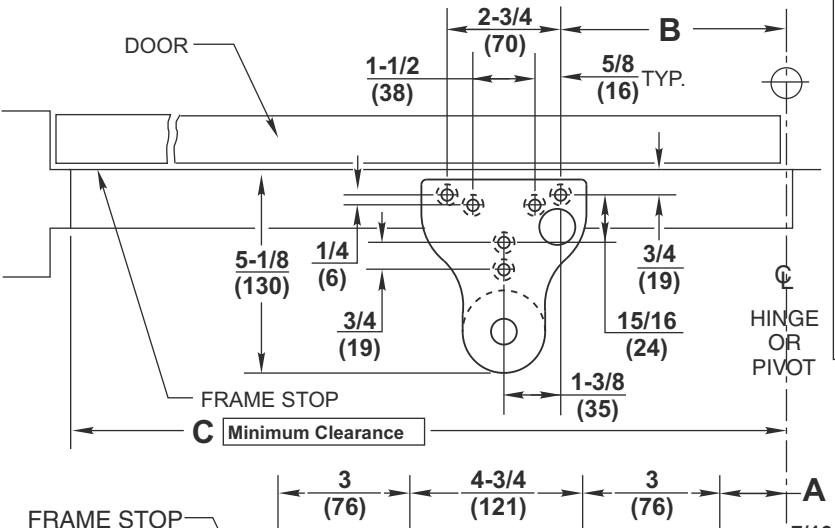

MAXIMUM C В Α OPENING Drop Plate Soffit Bracket Clearance 85° 8-3/16 (208) 12-9/16 (319) 28-3/8 (721)90° (184) 11-5/8 (295) 27-1/2 7-1/4 (699)100 5-11/16 (144) 10-1/16 (256) 26 (660)110° 4-3/8 (111) 8-3/4 (222) 25-5/8 (651)

1. Dimensions "A" & "B" apply to centerline of hinge/pivot for butt hinges,

11-5/8 (295)

RESPONSIBILITY

TOP OF DOOR

5-1/8

(130)

3/8

(10)

DOOR AND FRAME MANUFACTURERS ARE RESPONSIBLE FOR PROVIDING ADEQUATE CONSTRUCTION OR REINFORCEMENTS FOR PROPER INSTALLATION OF HARDWARE SHOWN. ALL ARCHITECTURAL BUILDERS HARDWARE MUST BE INSTALLED ON PROPERLY REINFORCED DOORS AND FRAMES, REGARDLESS OF TYPE, MATERIAL OR METHOD OF CONSTRUCTION

DC6210 Series x A2/A4/A5 DC6410 Series x A2/A4/A5 and Plate 597F58/188F65

Heavy Duty Parallel Arm Mounted Surface Door Closer with Backstop and Drop Plate
