Corbin Russwin DC6000 Series DC6200, DC6400 Surface Door Closer with or without A1 Arm Regular Mounting M84 Brac…_T30721

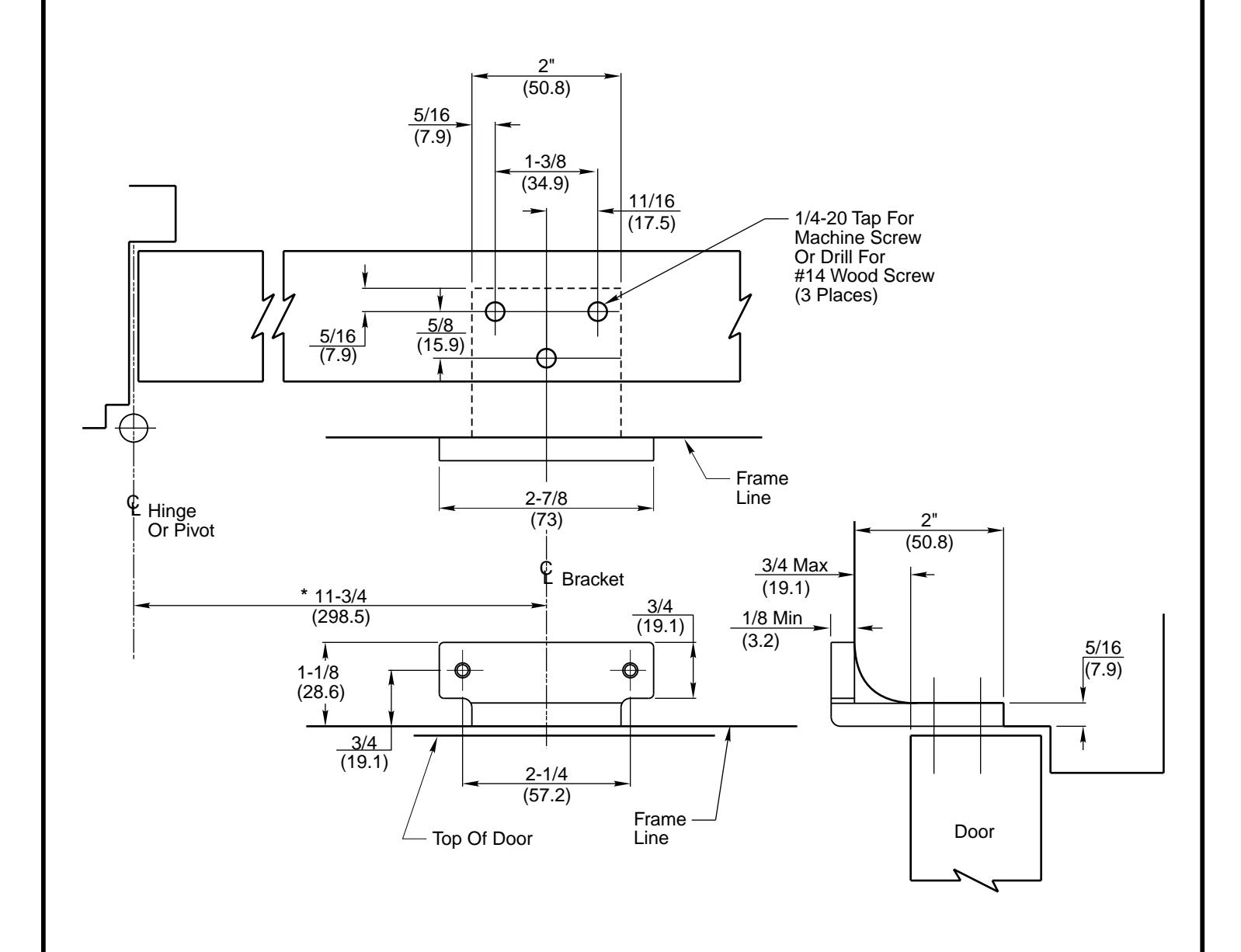

MOUNTING INFORMATION

Sex nuts or through bolts are required for wood and plastic covered composite doors, and any type of door without reinforcements and recommended for wood core and metal clad (Kalamein) type doors.

RH SHOWN LH OPPOSITE

NOTES:

• 1. See template T30703 for positioning of door closer body on door.
• To obtain extra closing force, add 3" (76.2) to this dimension marked by asterisk (*). This will limit degree of door opening to 110°.
• 3. Dimensions given in inches and (mm).

RESPONSIBILITY

Door and Frame Manufacturers are responsible for providing adequate construction or reinforcements for proper installation of hardware shown. All architectural builders hardware must be installed on properly reinforced doors and frames, regardless of the type, material, or method of construction.

DC6200 Series x M84 DC6400 Series x M84

Surface Door Closer Regular Mounting (with or without A1)

Do Not Scale Drawing
Supersedes		Dr.		Арр.
Date 06-04	Templa Numb	ate er	T30721
