Corbin Russwin DC6000 Series DC6200, DC6400 Surface Door Closer with A10 Arm Regular Mounting Template_T30724
Open the original PDF document
View PDFMOUNTING INFORMATION

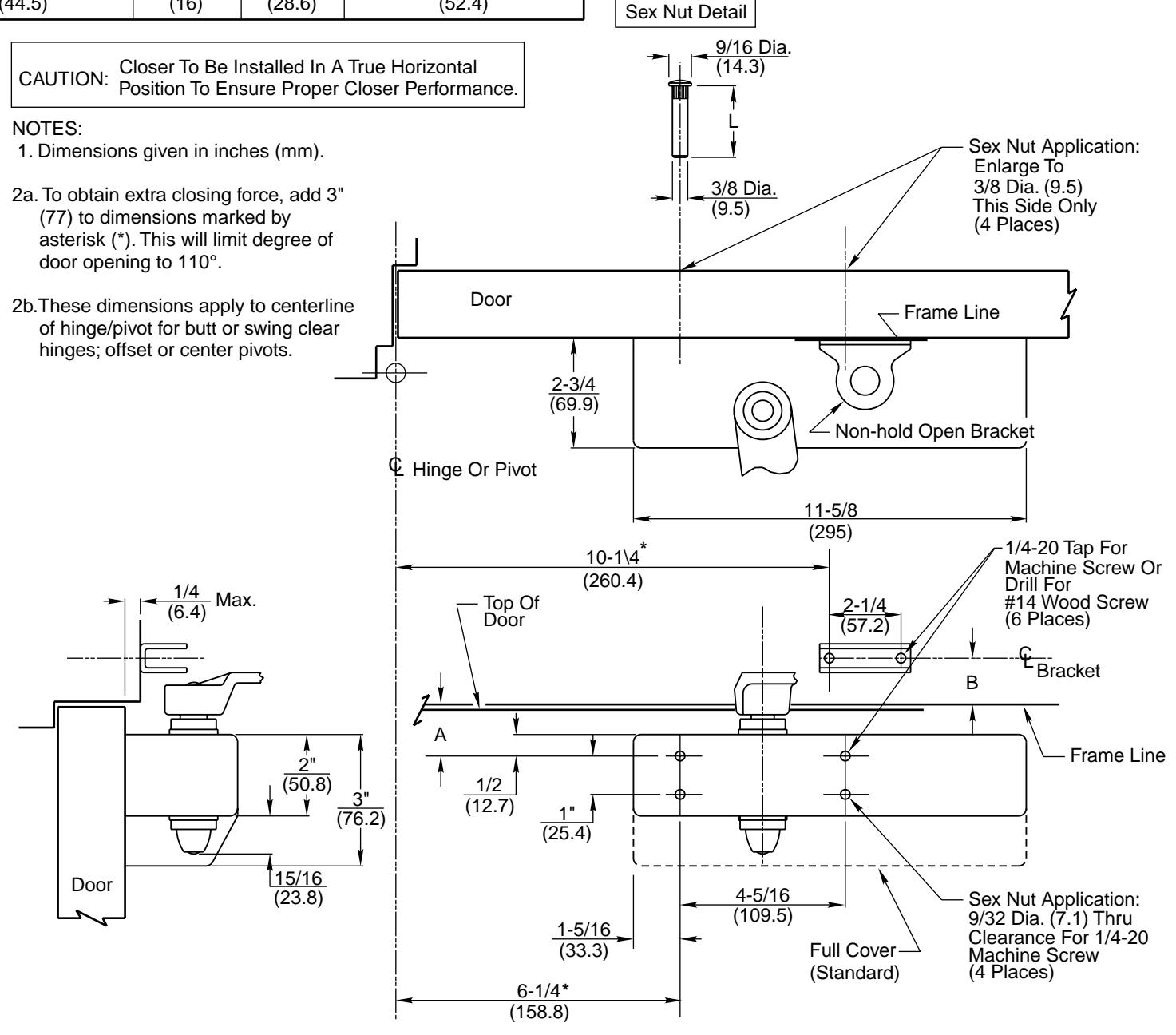

Sex nuts or through bolts are required for wood and plastic covered composite doors, and any type of door without reinforcements and recommended for wood core and metal clad (Kalamein) type doors.
RH SHOWN LH OPPOSITE
| Top Rail | А | В |
Minimum Clearance
Required Over Door |
|
| Non Hold-open | ||||
| 2-1/2 & Over (63.5) | _1"_ | _3/4_ | 1-11/16 | |
| (63.5) | (25.4) | (19.1) | (42.9) | |
| 1-3/4 Min. | _5/8_ | 1-1/8 | 2-1/16 | |
| (44.5) | (16) | (28.6) | (52.4) | |
| Door | Sex Nut |
|---|---|
| Thickness | Length "L" |
| 1-3/8 (35) | 1-9/32 (33) |
| 1-3/4 (44) & over | 1-21/32 (42) |
RESPONSIBILITY
Door and Frame Manufacturers are responsible for providing adequate construction or reinforcements for proper installation of hardware shown. All architectural builders hardware must be installed on properly reinforced doors and frames, regardless of the type, material, or method of construction.
DC6200 Series x A10 DC6400 Series x A10
Heavy Duty Regular Arm Surface Door Closer Regular Mounting
Corbin Russwin
WWW.corbinrusswin.com Do Not Scale Drawing Supersedes | Dr. | App
Date 06-04 Template Number T30724
