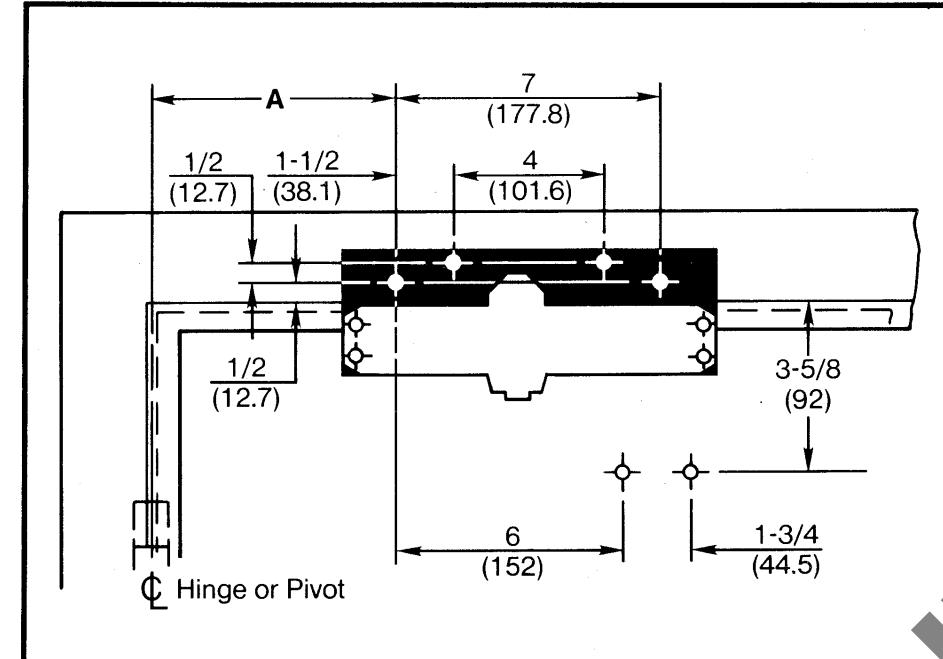

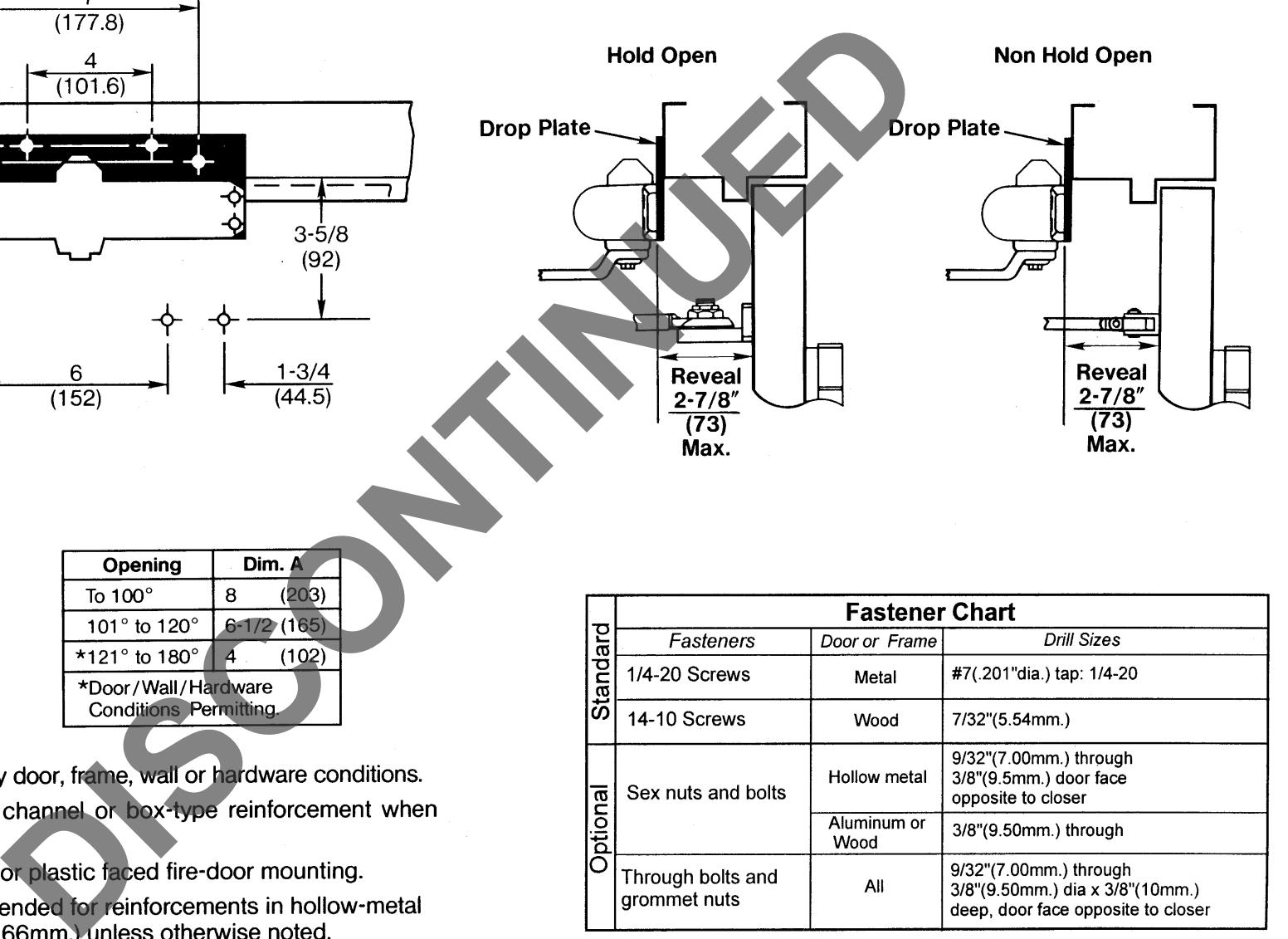

Corbin Russwin DC4600 Series Plate Mounting Template_T30669
Open the original PDF document
View PDF
| Opening | Dim. A | |
|---|---|---|
| To 100° | 8 | (203) |
| 101° to 120° | 6-1/ | 2 (165) |
| *121° to 180° | 4 . | (102) |
|
*Door/Wall/Hardware
Conditions Permitting |
||
| Fastener Chart | ||||
|---|---|---|---|---|
|
l
E |
Fasteners | Door or Frame | Drill Sizes | |
| Standard | 1/4-20 Screws | Metal | #7(.201"dia.) tap: 1/4-20 | |
| 14-10 Screws | Wood | 7/32"(5.54mm.) | ||
| Optional | Sex nuts and bolts | Hollow metal |
9/32"(7.00mm.) through
3/8"(9.5mm.) door face opposite to closer |
|
| · |
Aluminum or
Wood |
3/8"(9.50mm.) through | ||
| Through bolts and grommet nuts | All |
9/32"(7.00mm.) through
3/8"(9.50mm.) dia x 3/8"(10mm.) deep, door face opposite to closer |
||
