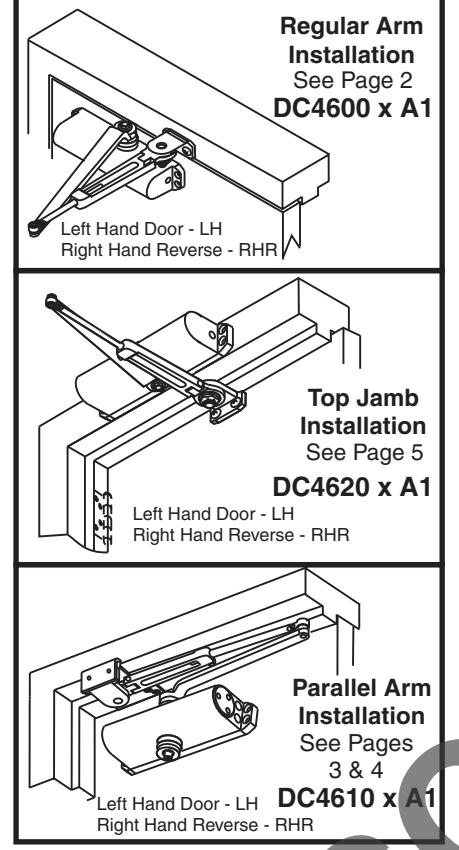

DC4600 x A1

Non Handed Door Closer

Installation Instructions

80-9340-1002-152 (02-09)

An Incorrectly installed or improperly adjusted door closer can cause property damage or personal injury. These installation instructions should be followed to avoid the possibility of misapplication or misadjustment.

NOTE: For special applications a separate door and frame preparation template is packed with these instructions. Use this instruction sheet for installation sequence and closer adjustments only.

• Doors should be hung on ball bearing or anti-friction hinges.
• A separate door stop is recommended.
• Door and frame must be properly reinforced.
• Adjust closing time speed between 3 and 7 seconds from 90° to 0°.
• These door closers should NOT be installed on the exposed side (weather side) of exterior doors.

Hold Open Models

( * Sizes 2,3,4,5)

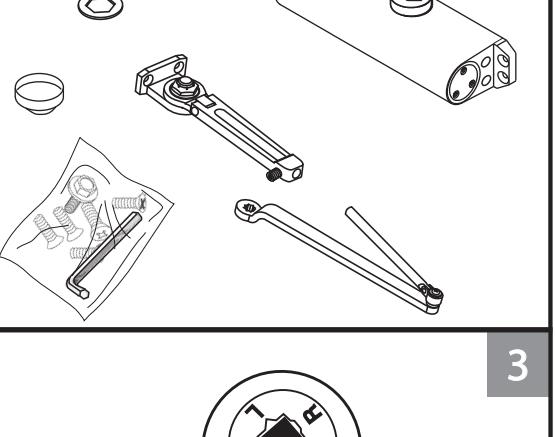

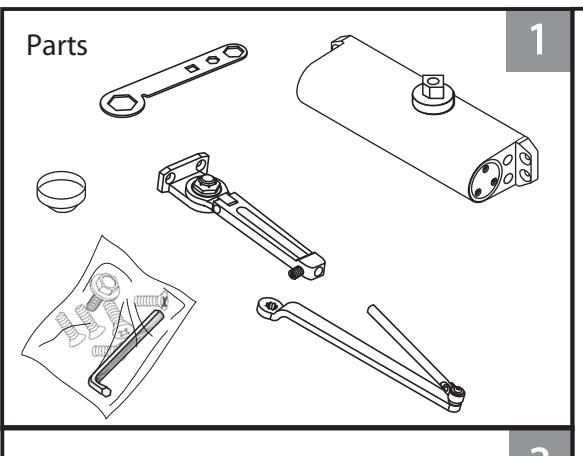

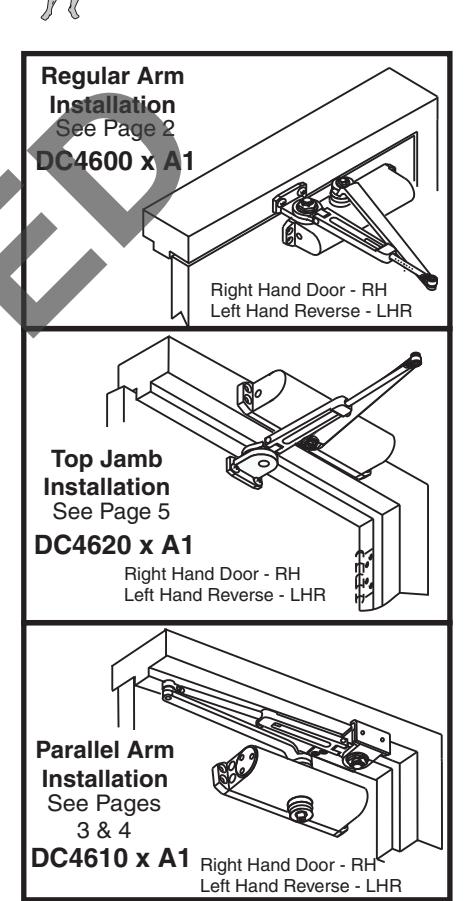

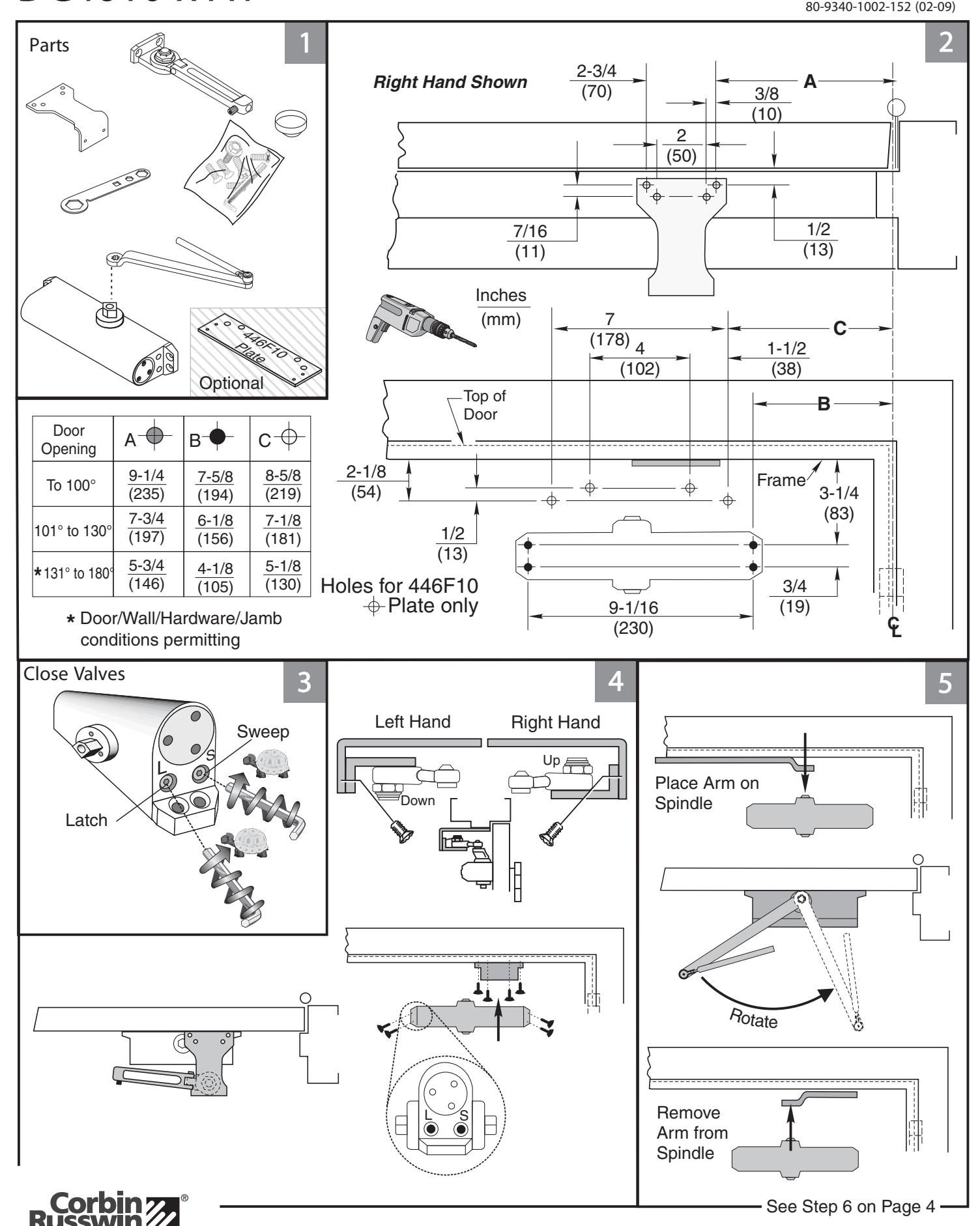

DC460* x A1 DC461* x A1 DC462* x A1

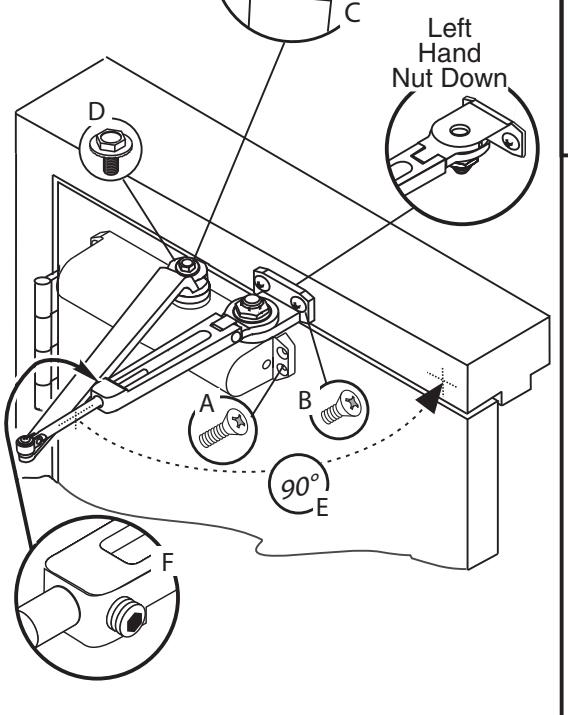

Right Hand Shown

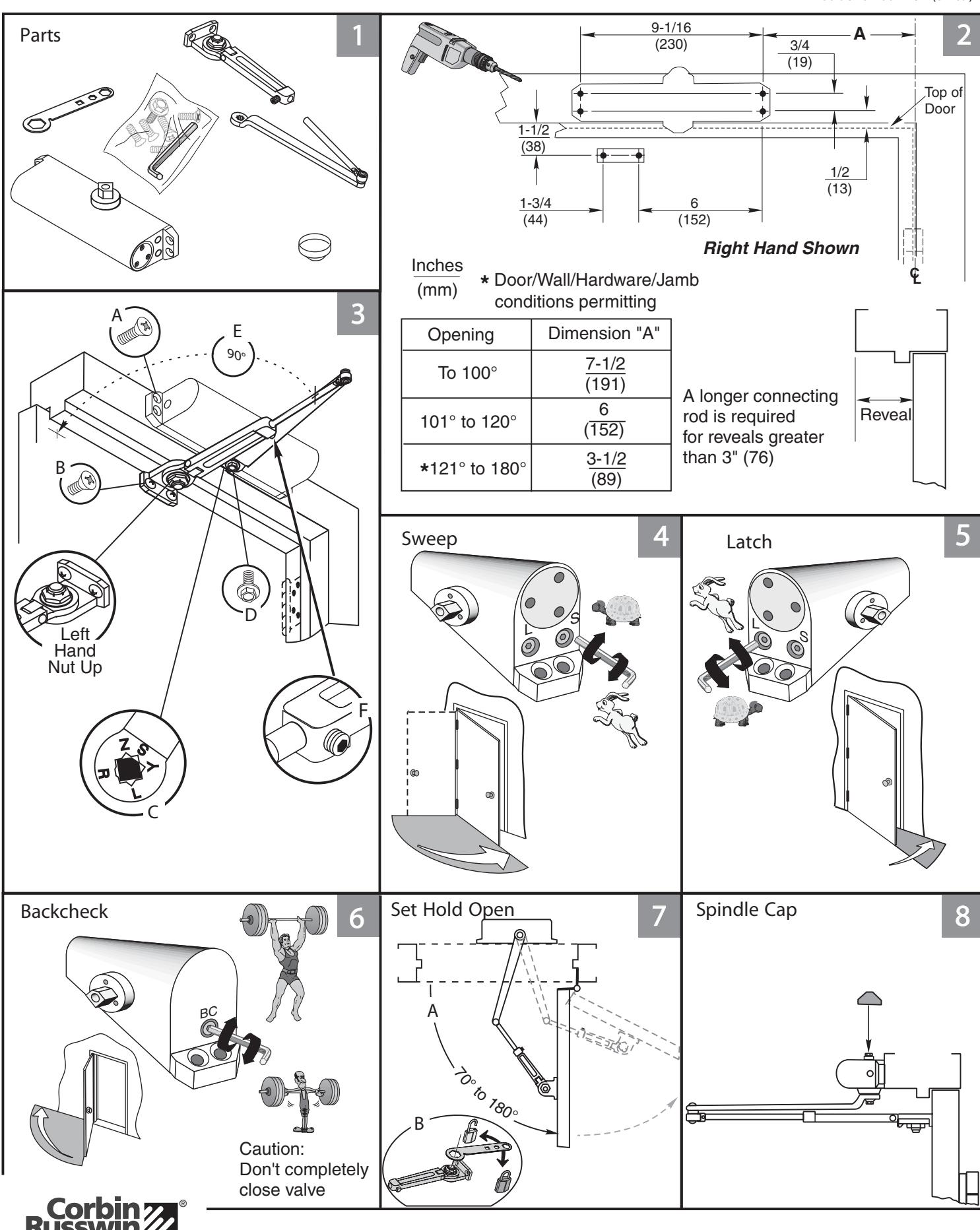

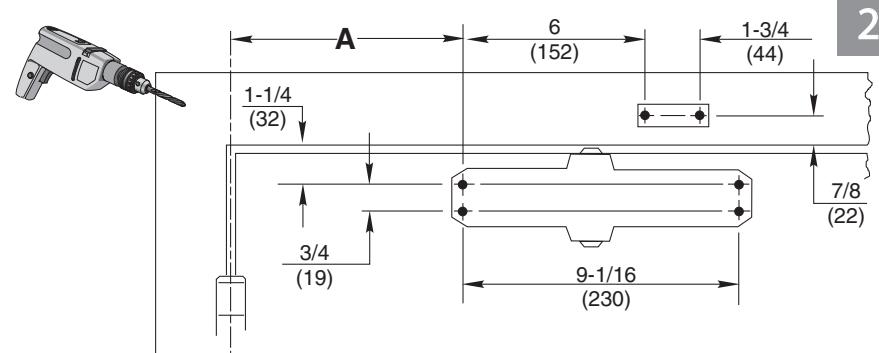

Opening	Dimension "A"
To 100°	7 (178)
101° to 120°	6 (152)
*121° to 180°	3-1/2 (89)

Inches (mm)

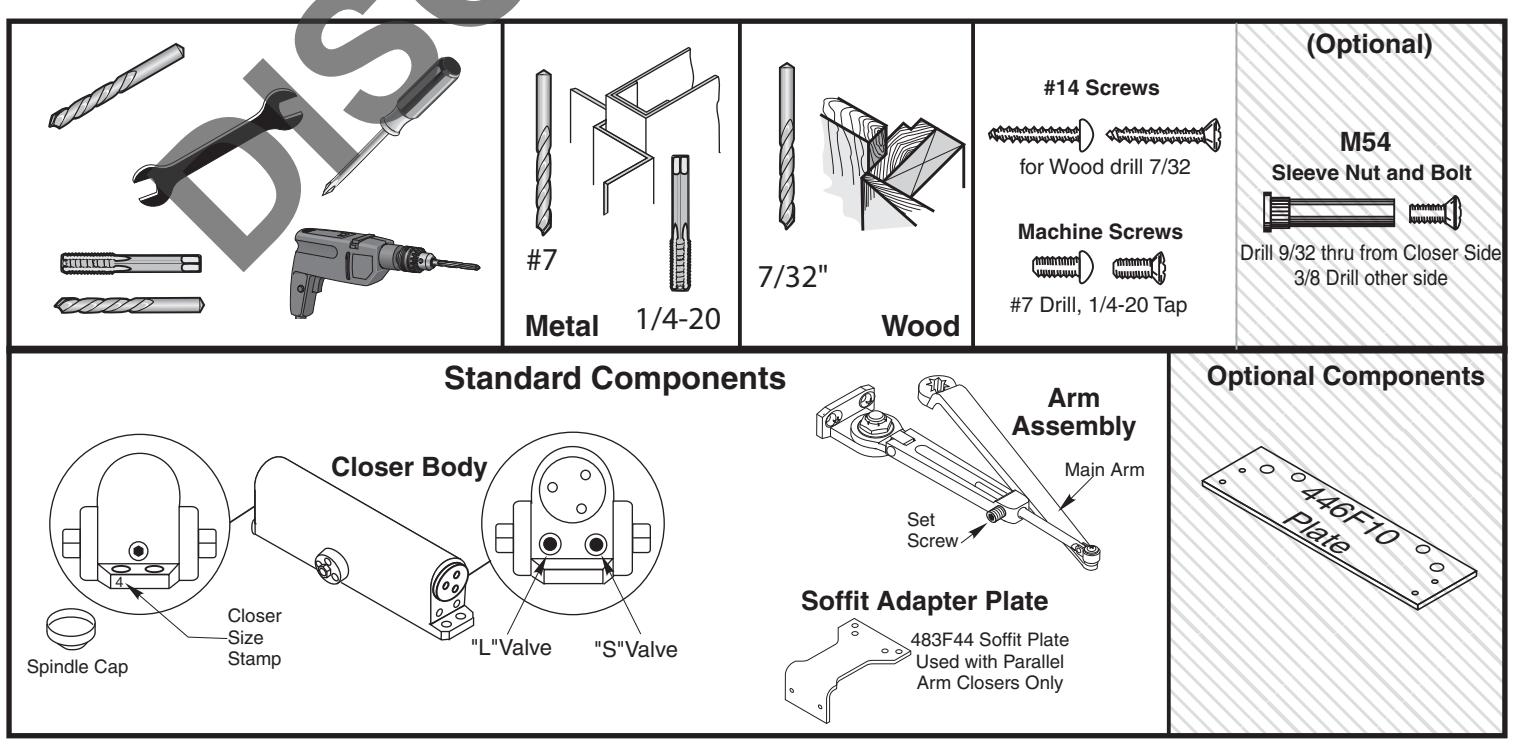

Spindle Cap

* Door/Wall/Hardware/Jamb conditions permitting

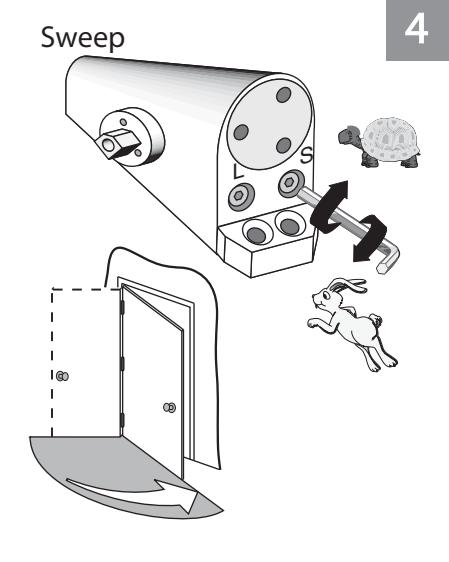

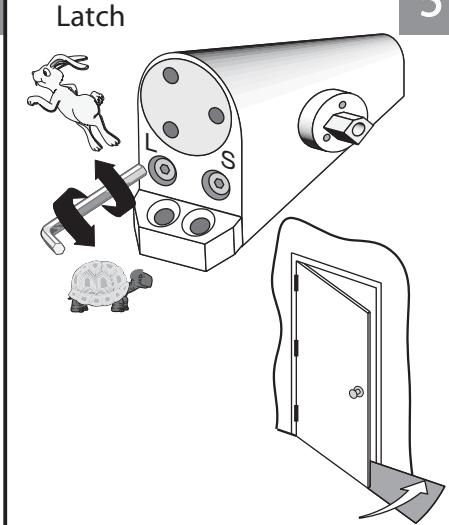

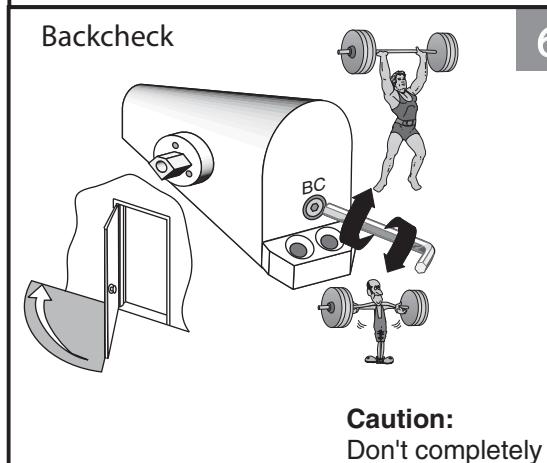

close valve

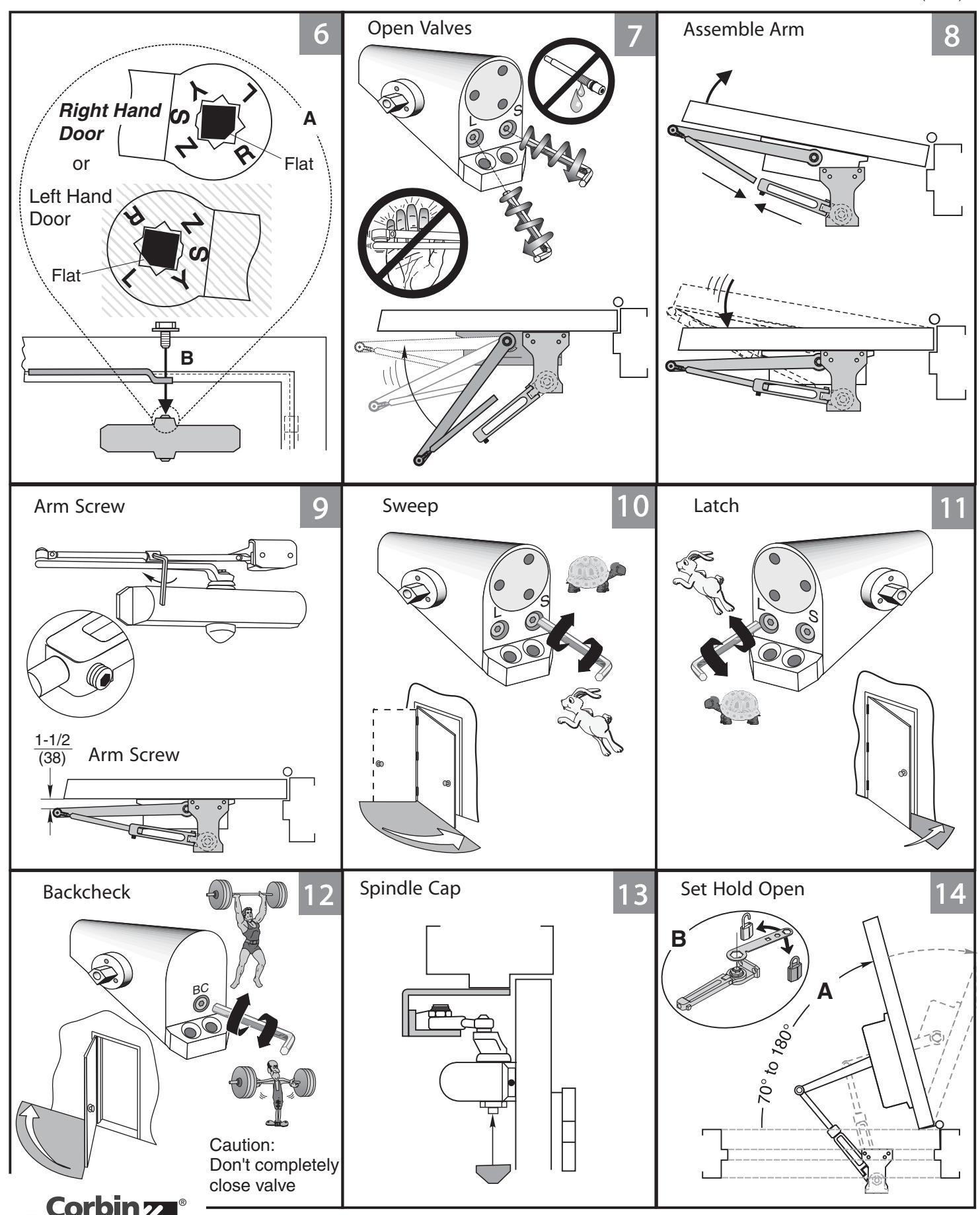

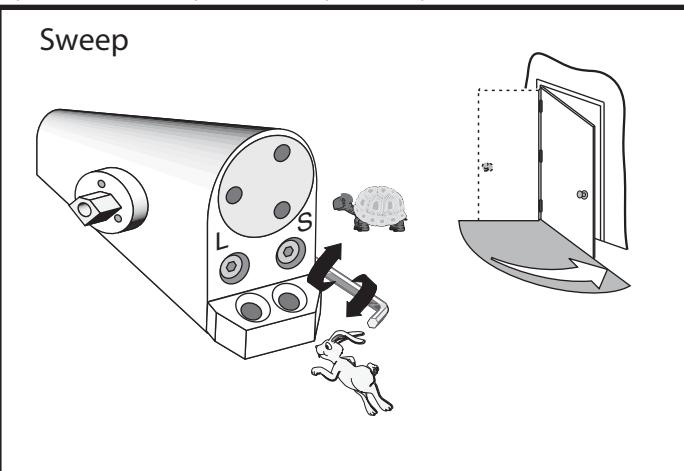

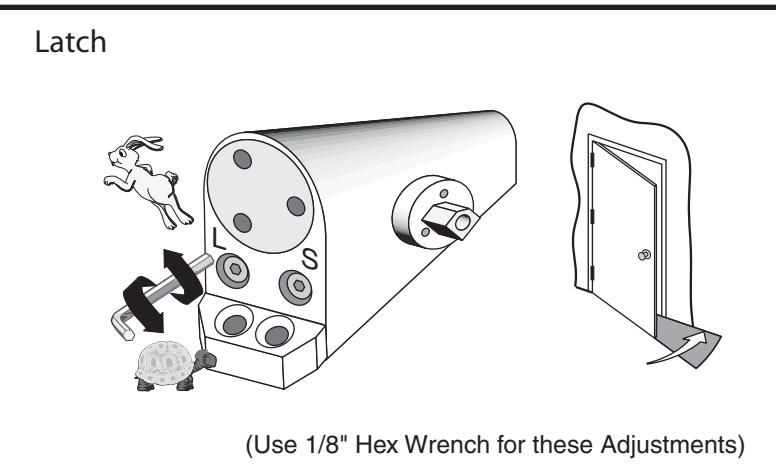

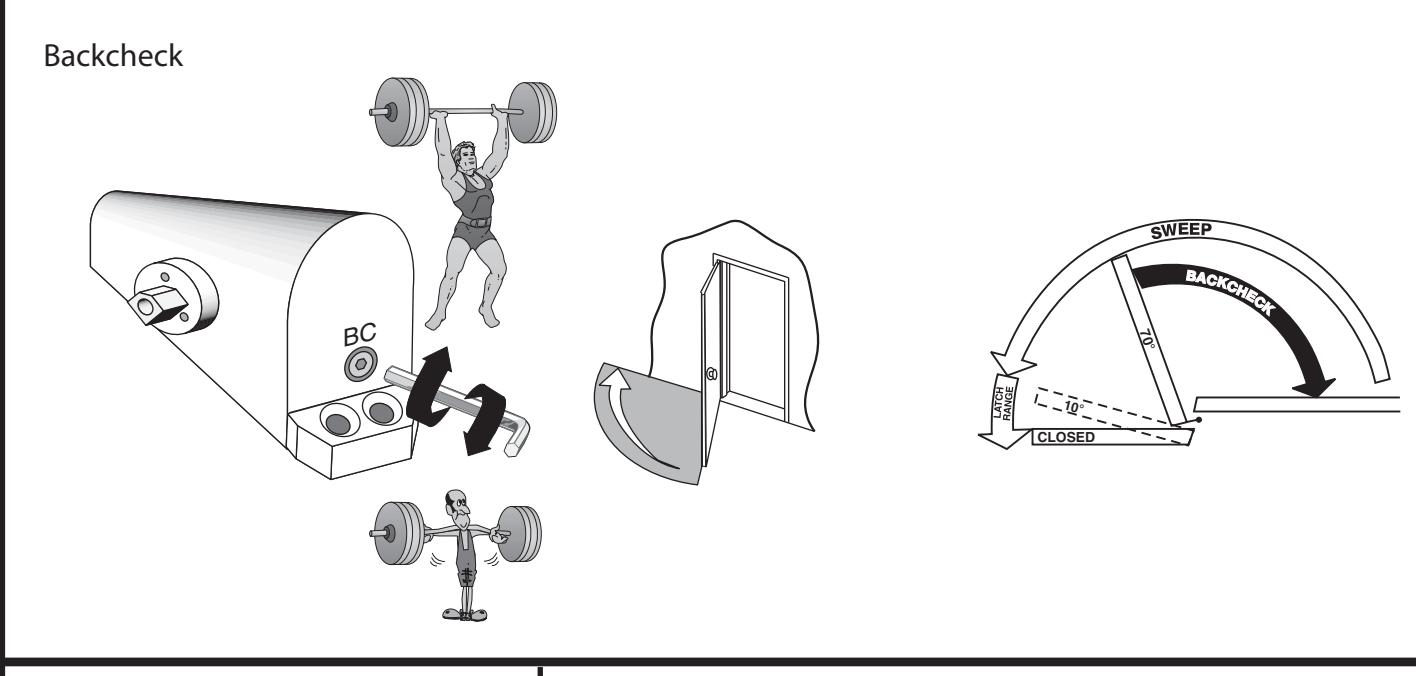

DC4600 x A1 Adjustments Page

® ASSA ABLOY

80-9340-1002-152 (02-09)

Copyright© 2004, 2008 Corbin Russwin, Inc., an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Corbin Russwin, Inc. is prohibited.

2=DC4602 x A1

3=DC4603 x A1

4=DC4604 x A1

5=DC4605 x A1

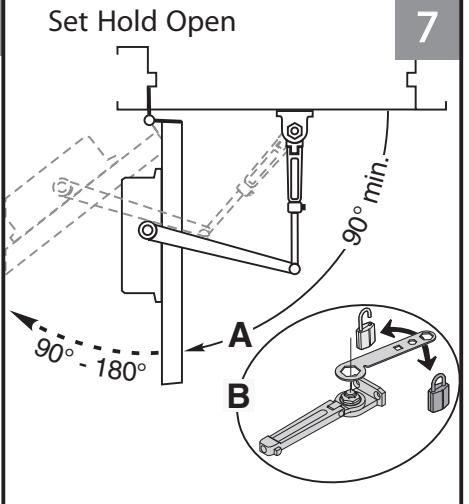

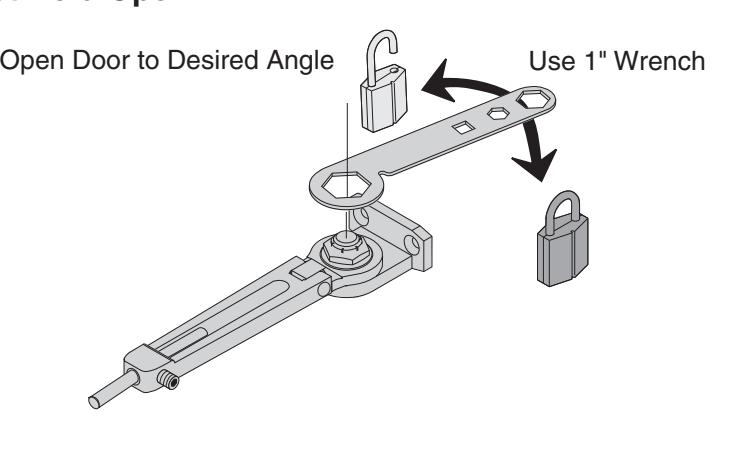

To Set Hold Open
