Corbin 778 Russwin 778

DC4600 Series

Non Handed Door Closer

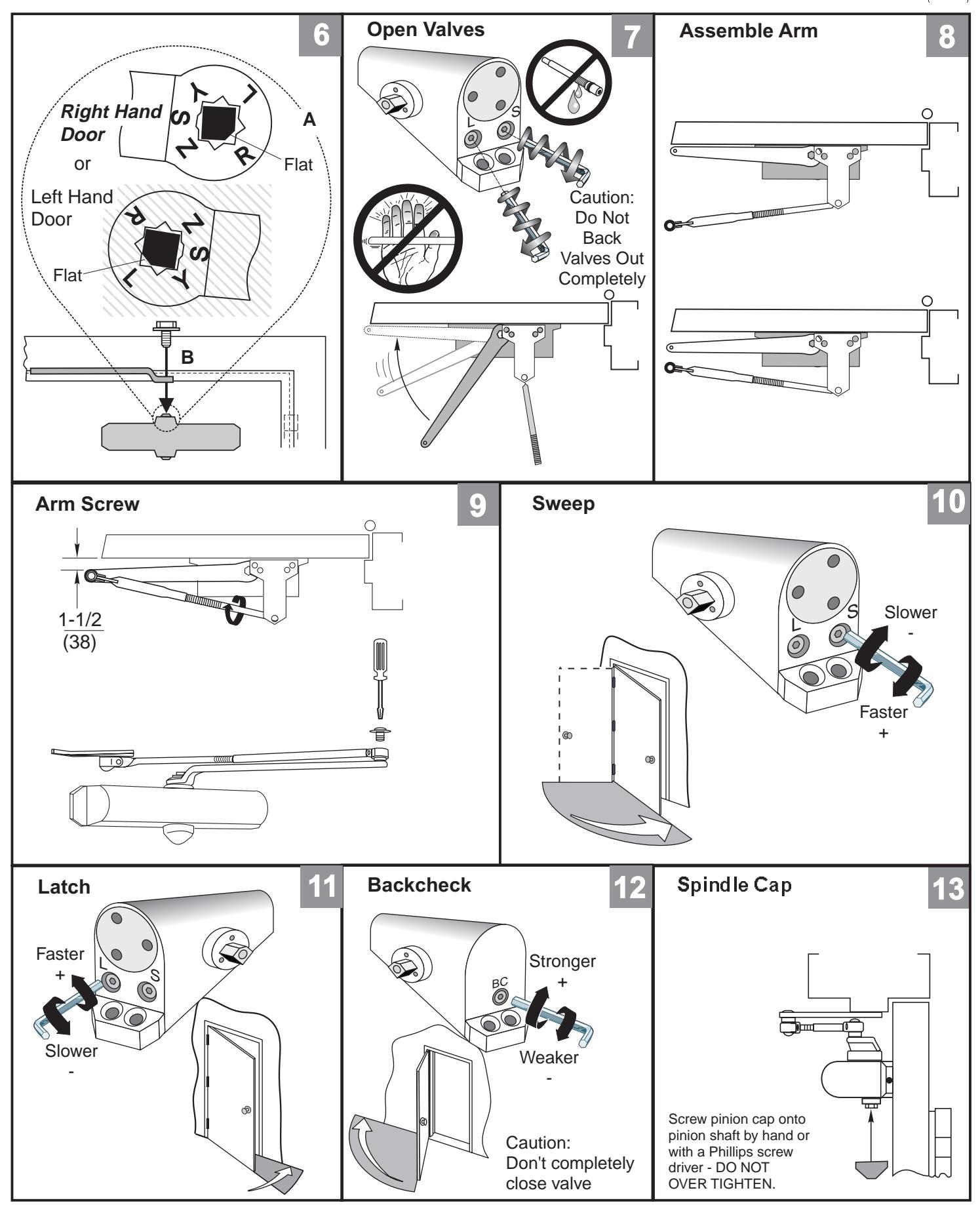

Spindle Cap

Installation Instructions

80-9340-1010-152 (11-06)

An Incorrectly installed or improperly adjusted 🖸 door closer can cause property damage or personal injury. These installation instructions should be followed to avoid the possibility of misapplication or misadjustment.

NOTE: For special applications a separate door and frame preparation template is packed with these instructions. Use this instruction sheet for installation sequence and closer adjustments only.

• Doors should be hung on ball bearing or anti-friction hinges.
• A separate door stop is recommended.
• Door and frame must be properly reinforced.

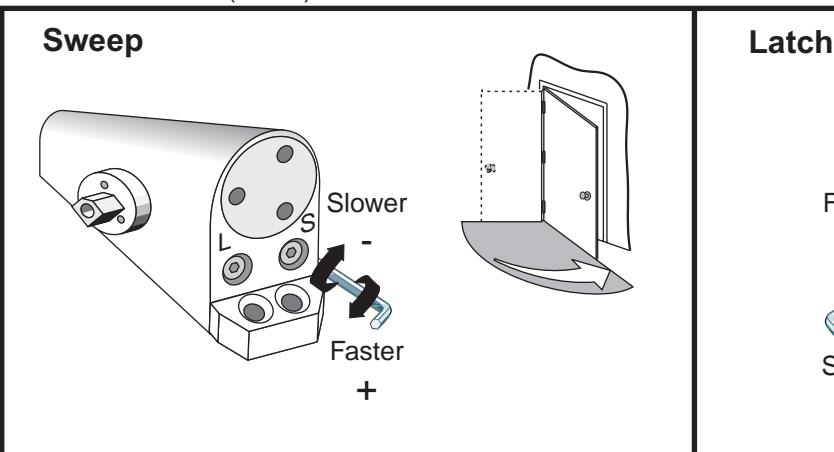

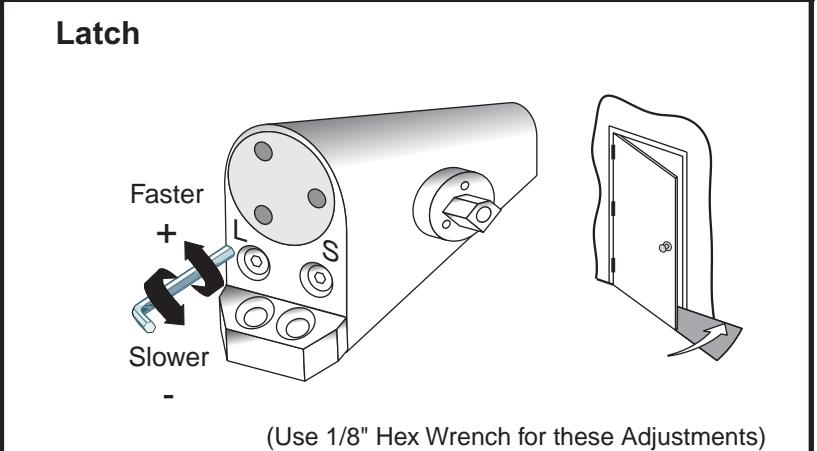

• Adjust closing time speed between 3 and 7

Non Hold Open Models

Sized

(*Sizes 2,3,4,5)

Weaker

DC460* DC461*

DC462*

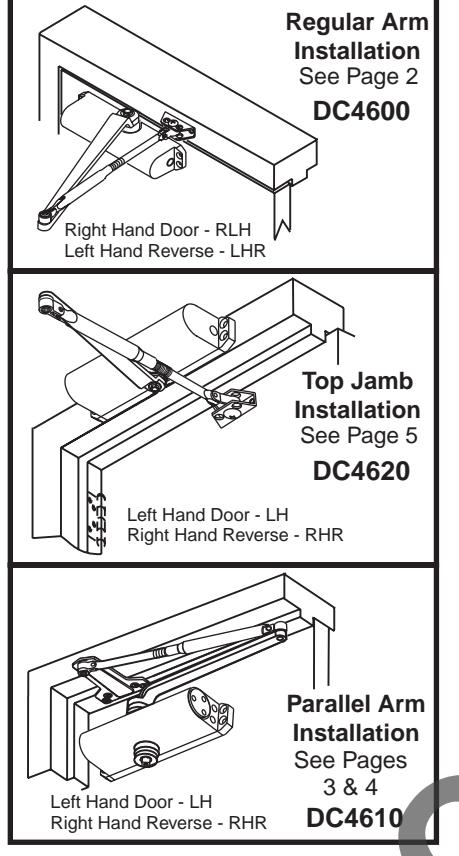

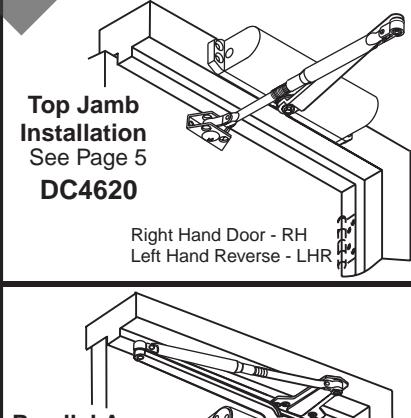

Regular Arm Installation See Page 2 DC4600 Left Hand Door - LH Right Hand Reverse - RHR

These door closers should NOT be installed on the exposed side (weather side) of exterior doors.

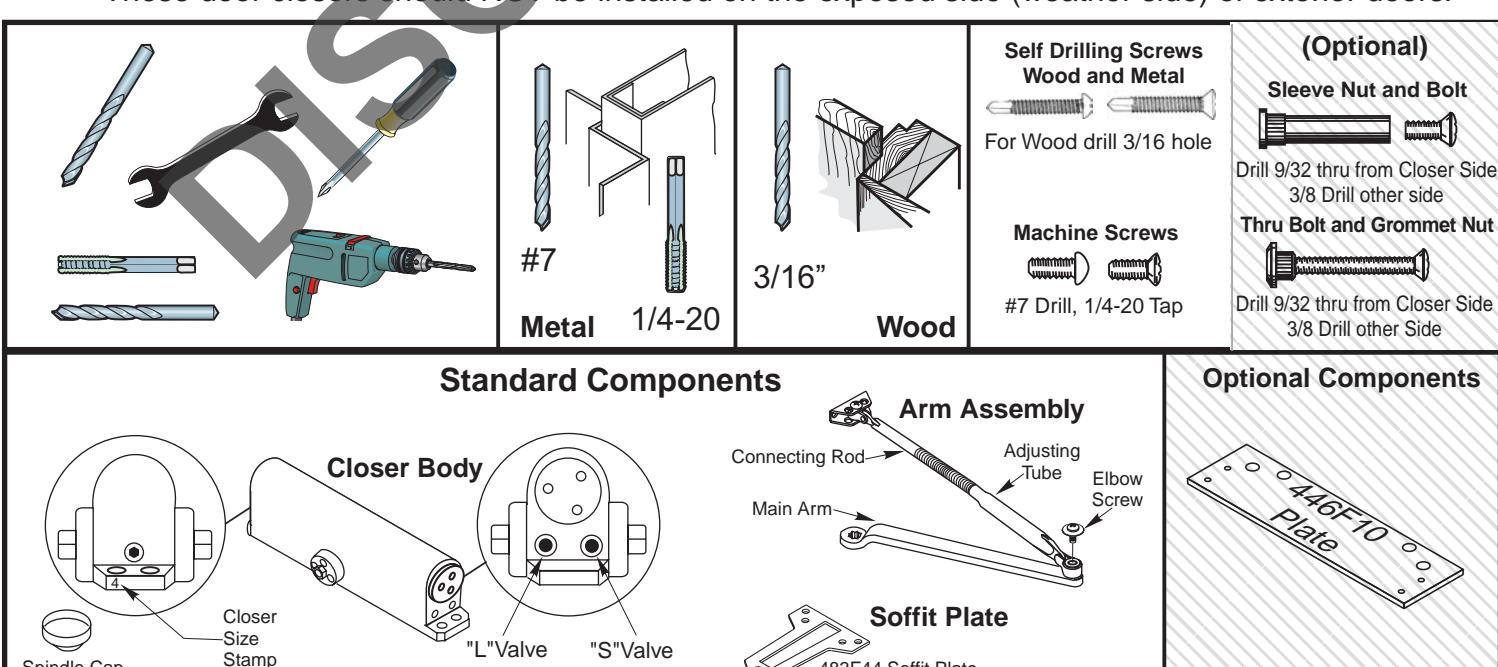

483F44 Soffit Plate Used with Parallel Arm Closers Only

DC4600 Series

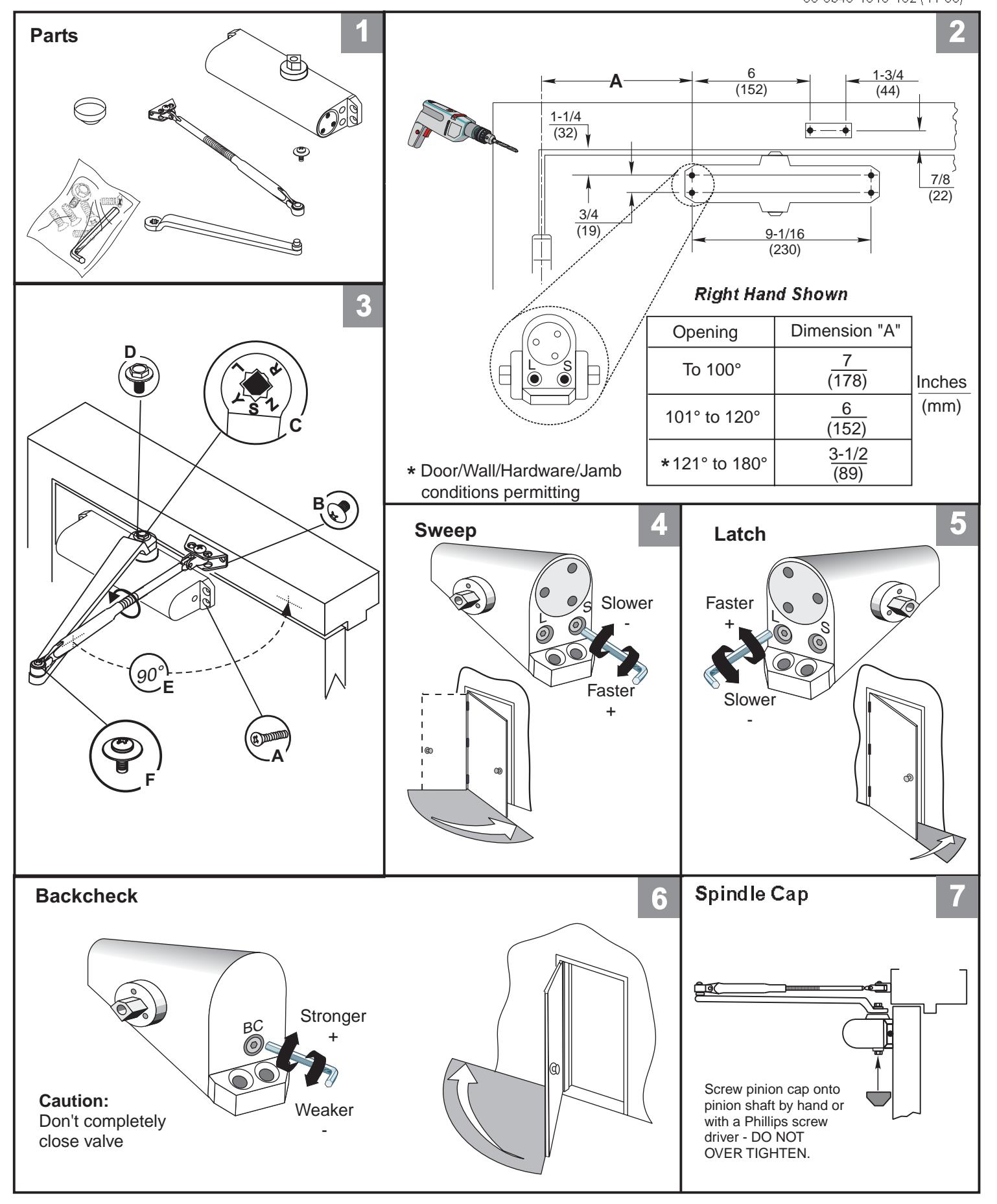

Non Hold Open Door Closers — Regular Arm 80-9340-1010-152 (11-06)

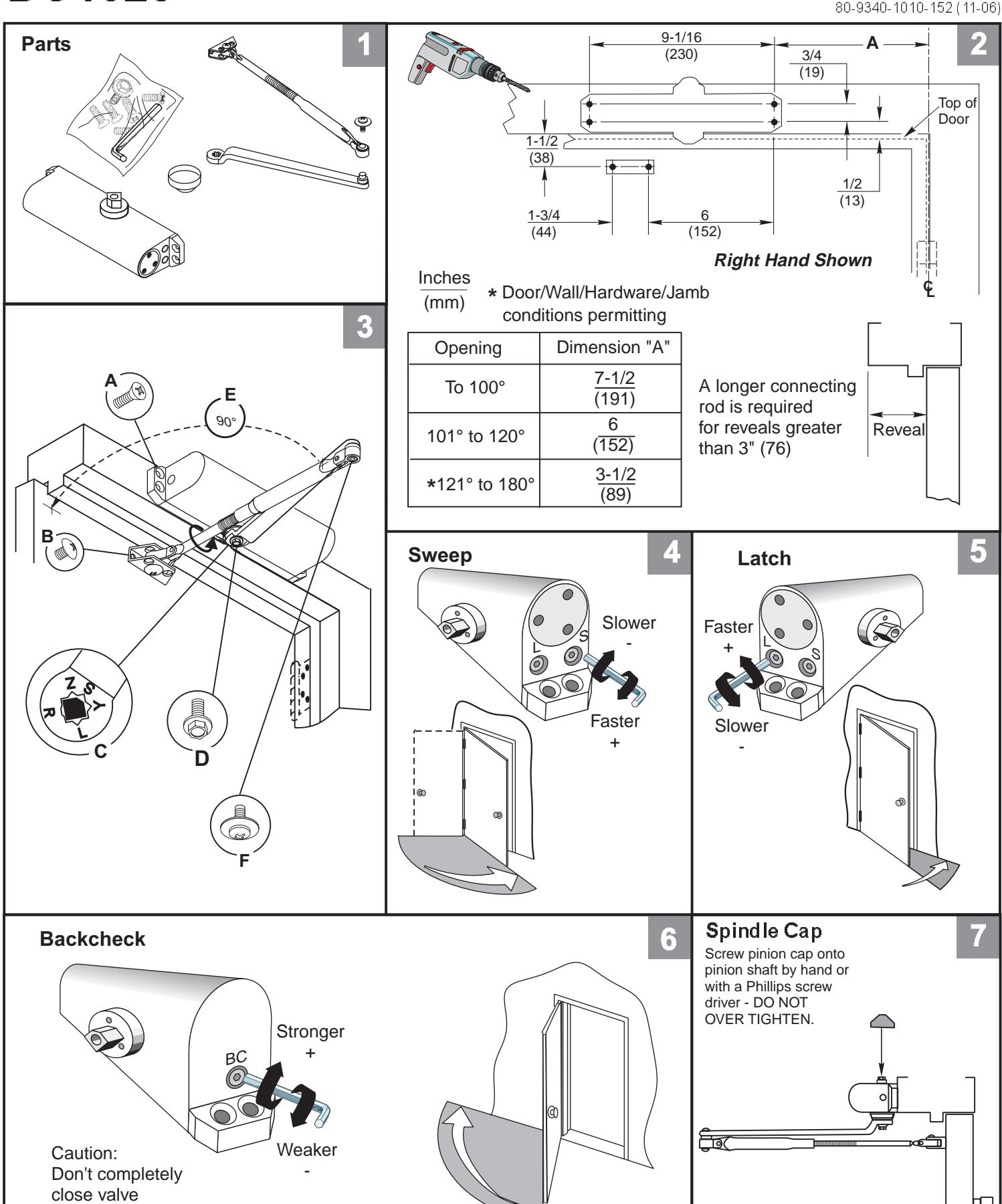

DC4610 Series

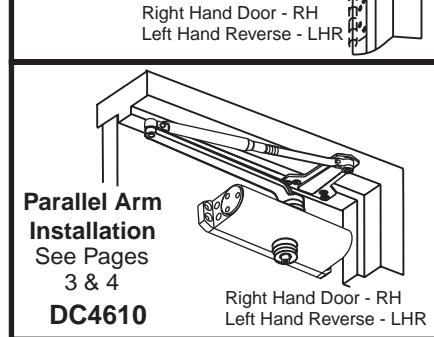

Non Hold Open Door Closers — Parallel Arm

80-9340-1010-152 (11-06)

DC4610 Series Non Hold Open Door Closers — Parallel Arm 80-9340-1010-152 (11-06)

-

-

80-9340-1010-152 (11-06)

Yale Security Inc. Yale Security

Monroe, NC 28110 Phone (800)-438-1951/Fax (800)-338-0965 in Canada Phone (800)-461-3007 /Fax (800)-461-8989 www.yalesecurity.com

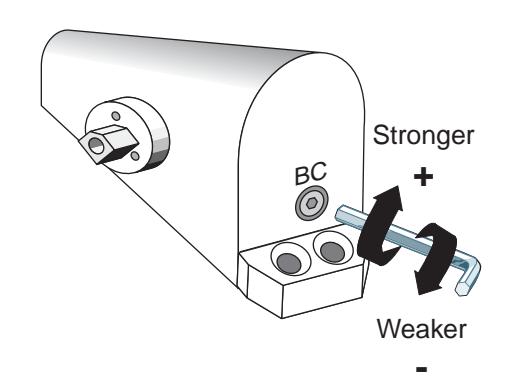

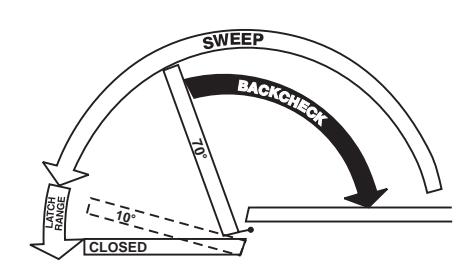

Backcheck

7-1/2 % weaker

To identify your model: Arm Placement in Shoe

4=DC4604 3=DC4603 2=DC4602

5=DC4605

or or 7-1/2 % stronger
