Corbin Russwin DC3210 Series A11 and A12 Heavy Duty Spring Stop Installation Instructions
Open the original PDF document
View PDF

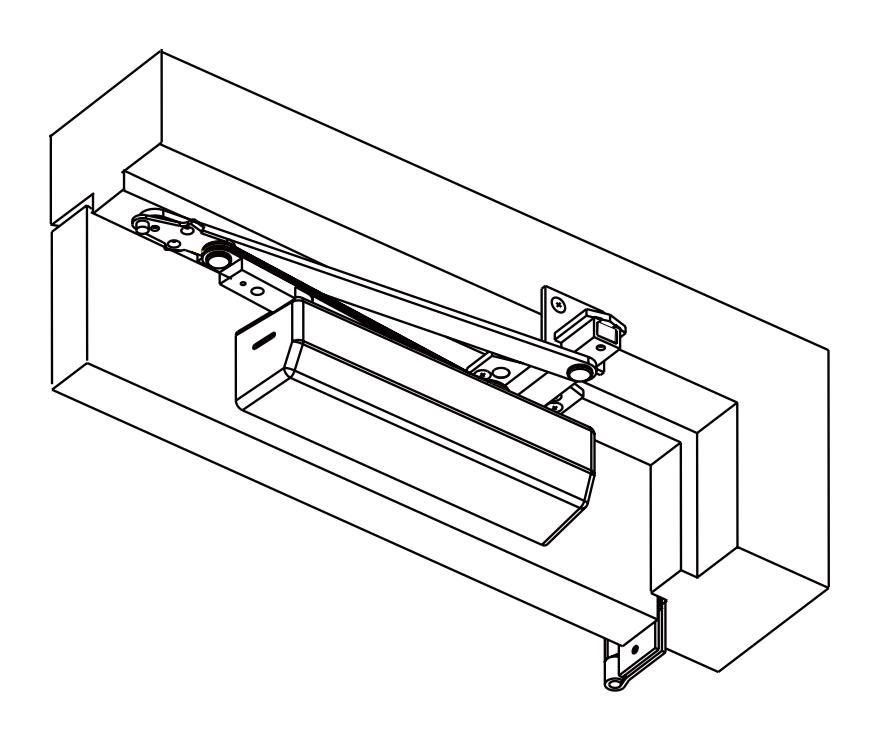

DC3210 Series
A11 or A12 Heavy Duty Spring Stop Parallel Arm
Important
permission of Corbin Russwin, Inc. is prohibited.
- An improperly installed or incorrectly adjusted door closer may cause property damage or personal injury; and will void product warranty.
- To avoid personal injury, DO NOT DISASSEMBLE THIS DOOR CLOSER BODY.
- Door closers must be securely fastened to a properly reinforced door and frame with fasteners provided.
- Door closers with a HOLD OPEN ARM are not permitted to be installed in fire door assemblies.
- Door and frame must be specifically templated for 85°, 90°, 95°, 100°, 105° orb 110° door swing.
Copyright © 2018 Corbin Russwin, Inc., an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written
Installation Instructions
1
Introduction
TO DETERMINE HAND OF YOUR DOOR:
STANDARD APPLICATION WITH 615F58 BRACKET
DEEP REVEAL APPLICATION WITH M103 OPTION(615F59 CLAMP KIT)
FLUSH PARTITION APPLICATION WITH M104 OPTION (615F60 BRACKET)
MOUNTING SCREW SPECIFICATIONS
ARM AND CLOSER BRACKET

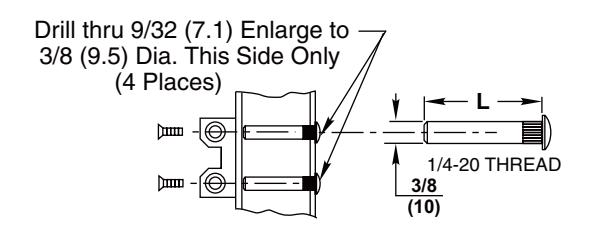

1/4-20 oval head machine screw or 1/4-14 self-drilling screw Type BSD. 3/16 (4.8) diameter pilot hole required for Wood Applications.
|
DOOR
THICKNESS |
SEX NUT
LENGTH "L" |
||
|---|---|---|---|
| 1-3/8" (35mm) | 1-9/32" (33mm) | ||
|
1-3/4" (44mm)
& OVER |
1-21/32" (42mm) | ||
DC3210 Series Closer
A11 or A12 Heavy Duty Spring Stop Parallel Arm
Installation Instructions
1
Introduction
| Size of Door & Door Closer | |||||||
|---|---|---|---|---|---|---|---|
|
Type of
Installation |
Interior | Exterior Exterior In-swinging Out-swinging |
Recommended
Closer Size |
**Max. Opening Force
lbs/f |
|||
| 2' 4" | - | - | 1 | 8 | |||
| 2' 6" | - | - | 2 | 14 | |||
| Dowellel Avm | 3' 0" | - | 2' 6" | 3 | 16 | ||
| Parallel Arm | 3' 6" | - | 3' 0" | 4 | 22 | ||
| 4' 0" | - | 3' 6" | 5 | 24 | |||
| 4' 6" | - | 4' 0" | 6 | 26 | |||
** NOTE: These forces are for standard templating with bearing type hinges and do not account for pressure differentials and draft.
SEE CHART TO SELECT DEGREE OF DOOR OPENING AND DOOR WIDTH FOR YOUR DOOR. THEN, DETERMINE FRAME CONDITION: STANDARD & DEEP REVEAL (use Dim's. A & B) or FLUSH PARTITION (use Dim's A & C)
| *Dimension "C" is only used for Flush Partition application (Frame Template 1C) | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Opening |
Doors 28" to 32"

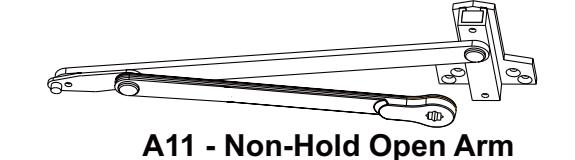

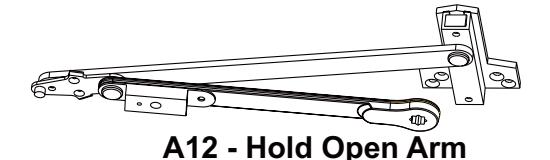

615F52 NHO Arm (A11) 615F51 HO Arm (A12) |
Doors 33" to 41"
615F54 NHO Arm (A11) 615F53 HO Arm (A12) |
Doors 42" to 48"
615F56 NHO Arm (A11) 615F55 HO Arm (A12) |
|||||||
|
HOLD
OPEN |
DEAD
STOP |
DIM. A | DIM. B | *DIM. C | DIM. A | DIM. B | *DIM. C | DIM. A | DIM. A | *DIM. C |
| 85° | 90° |
11
(279) |
10
(254) |
10-1/8
(257) |
13-1/8
(333) |
12-1/4
(311) |
12-3/8
(314) |
15-1/8
(384) |
14-3/8
(365) |
14-1/2
(368) |
| 90° | 95° |
10-1/2
(267) |
9-1/2
(241) |
9-5/8
(244) |
12-5/8
(321) |
11-5/8
(295) |
11-3/4
(298) |
14-1/2
(368) |
13-3/4
(349) |
13-7/8
(352) |
| 95° | 100° |
10
(254) |
9
(229) |
9-1/8
(232) |
12
(305) |
11-1/8
(283) |
11-1/4
(286) |
13-7/8
(352) |
13-1/8
(333) |
13-1/4
(337) |
| 100° | 105° |
9-1/2
(241) |
8-1/2
(216) |
8-5/8
(219) |
11-5/8
(295) |
10-5/8
(270) |
10-3/4
(273) |
13-1/4
(337) |
12-1/2
(318) |
12-5/8
(321) |
| 105° | 110° |
9
(229) |
8
(203) |
8-1/8
(206) |
11
(279) |
10-1/8
(257) |
10-1/4
(260) |
12-3/4
(324) |
12-1/8
(308) |
12-1/4
(311) |
| 110° | 115° |
8-1/2
(216) |
7-1/2
(191) |
7-5/8
(194) |
10-1/2
(267) |
9-1/2
(241) |
9-5/8
(244) |
12-1/4
(311) |
11-1/2
(292) |
11-5/8
(295) |
Installation Instructions
2
Installation
1. Template
Mark door and jamb (for closer bracket and arm brackets).

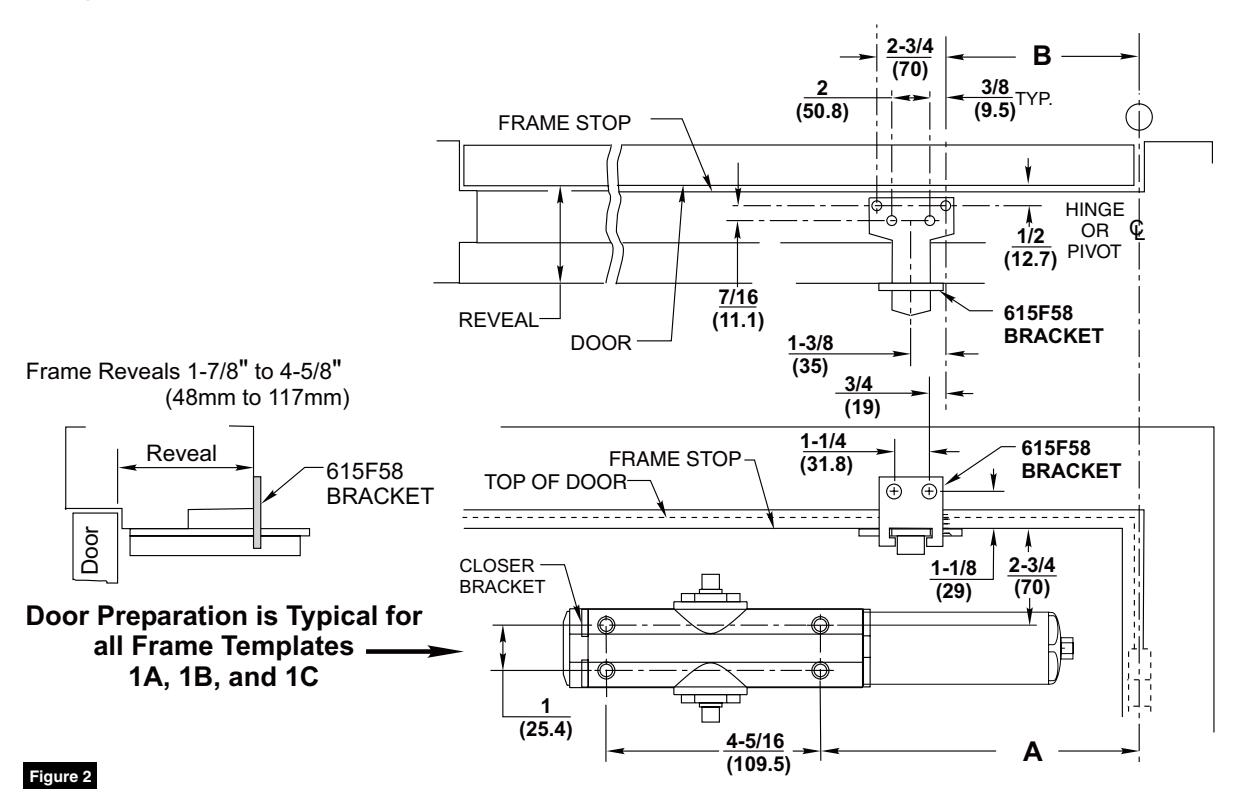

Frame Template 1A (Standard Application with 615F58 Bracket) (Figure 2)
For Deep Reveal: Frame Template 1B. (Figure 3) For Flush Partition: Frame Template 1C. (Figure 4)
NOTES:

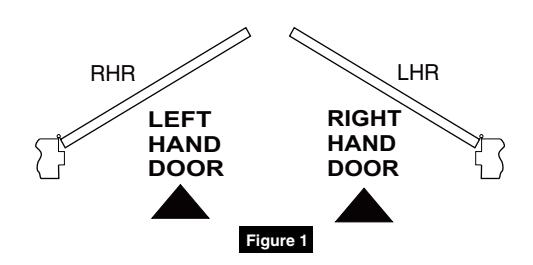

- Check hand of door. (Figure 1)
- Right Hand Application Shown, Left Hand Opposite
- Dimensions given in inches (mm). Do Not Scale Drawing.
- Closer must be installed in a true horizontal plane to ensure proper closer performance.
Installation Instructions
2 Installation

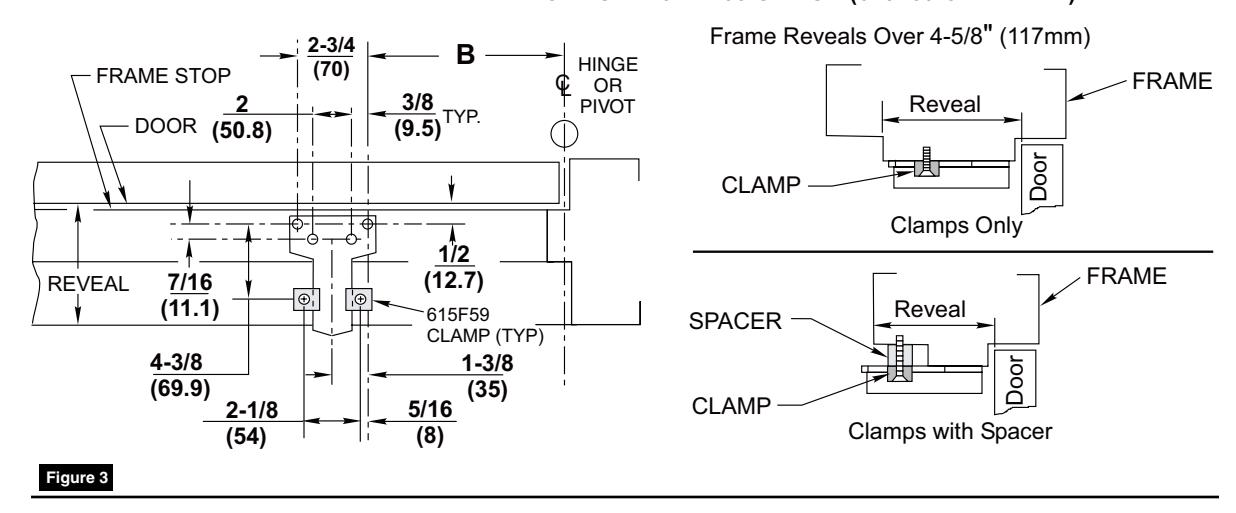

FRAME TEMPLATE 1B DEEP REVEAL APPLICATION with M103 OPTION (615F59 CLAMP KIT)

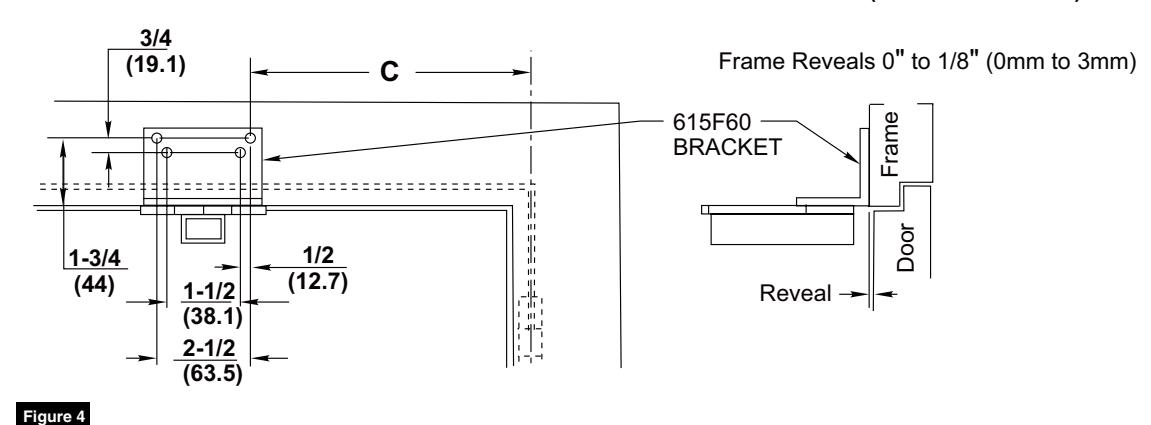

FRAME TEMPLATE 1C FLUSH PARTITION APPLICATION with M104 OPTION (615F60 BRACKET)

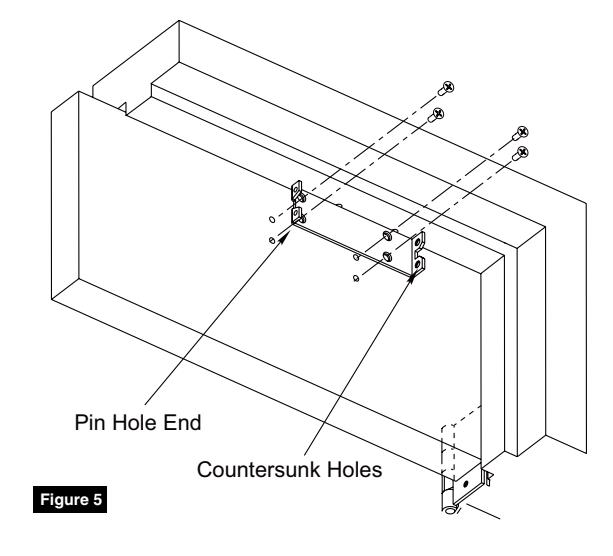

2. Install Closer Bracket. (Figure 5)
Installation Instructions
2 Installation

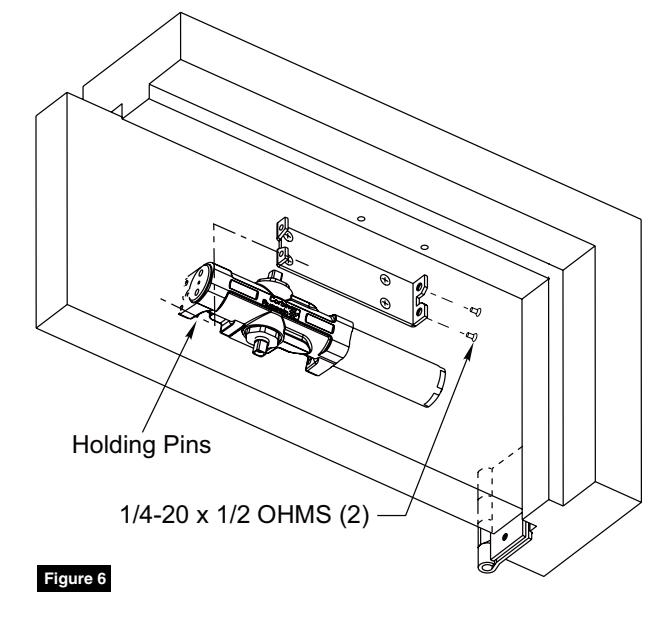

3. Mount Closer Body to Closer Bracket. (Figure 6)
4. Fasten Arm Brackets to Frame
For Frame Templates "1A" and "1B" fasten main arm bracket to frame. Locate and install reinforced brackets 615F58 (1A) or 615F59 Kit (1B).
For Frame Template "1C" fasten Flush Partition Bracket 615F60 to frame face and install main arm bracket to the 615F60 Bracket.
Using hex wrench provided, close (turn clockwise) CLOSING SPEED VALVE. (Figure 9) DO NOT OVER TIGHTEN.

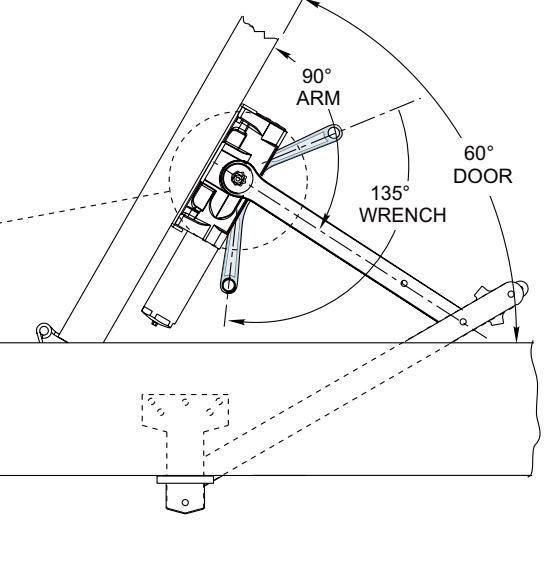

- Open door to approximately 60°

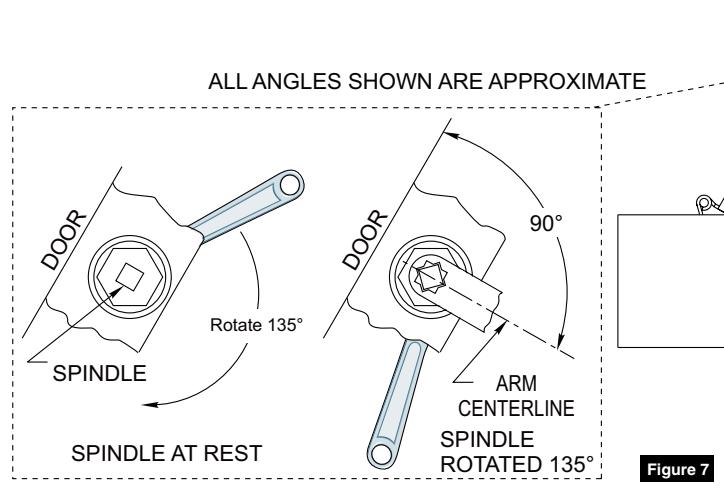

- Using wrench on underside of spindle, rotate spindle approximately 135° toward hinge edge of door.
- Install arm on spindle at an approximate 90° angle to door.
- Reopen CLOSING SPEED VALVE.
• Install and tighten arm washer and screw.
DC3210 Series Closer
A11 or A12 Heavy Duty Spring Stop Parallel Arm
Installation Instructions
3 Adjustments

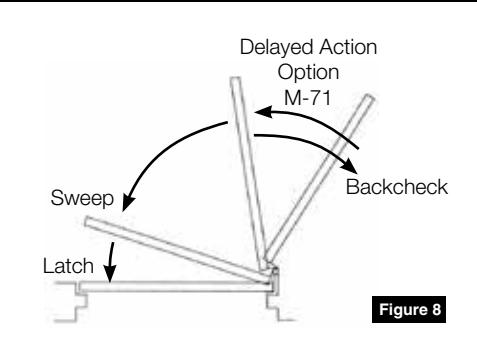

Adjustments (Figure 8)
(3/32 Allen Wrench Provided)
Closing Speed Valve (Figure 9)
To adjust speed of door closing from fully open to a position 2 to 5" from closed, turn Closing Speed Valve CLOCKWISE to SLOW closing, COUNTER-CLOCKWISE to SPEED closing.

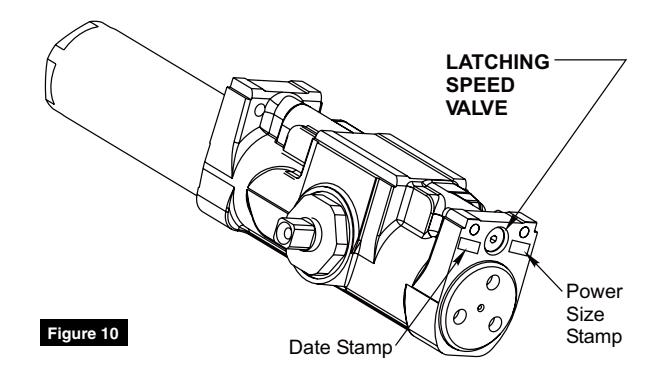

Latching Speed Valve (Figure 10)
After closing speed has been obtained, turn latching speed valve CLOCKWISE to SLOW latching or COUNTER-CLOCKWISE to SPEED latching for last 2 to 5 of door travel.
NOTE: Set combination of CLOSING and LATCHING speeds to between 3 and 7 seconds Use of door by handicapped, elderly or small children, may require even greater closing time.

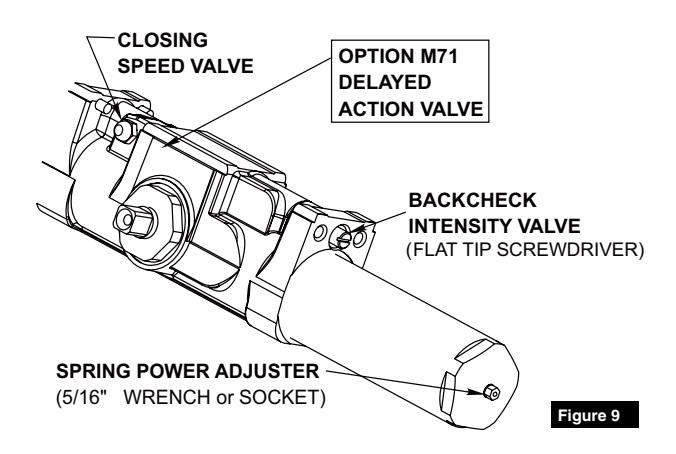

Backcheck Intensity Valve (Figure 9)
Turn valve COUNTER- CLOCKWISE to reduce backcheck or CLOCKWISE to increase backcheck. (Backcheck should be set to give a soft cushioning action, not a sudden stop).
Delayed Action Valve (Figure 9)
Turn valve CLOCKWISE to SLOW closing, COUNTERCLOCKWISE to SPEED closing. Delayed action may be adjusted from 20 seconds to 90 seconds, depending on degree of door swing. Delay occurs at the beginning of the door closing cycle from fully open down to 70°, where the closing speed valve then begins its control.

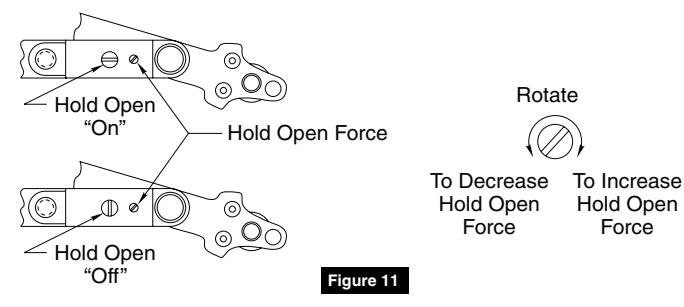

HOLD OPEN ADJUSTMENTS - A12 ARMS ONLY
For installation assistance contact Corbin Russwin 1-800-543-3658 • techsupport.corbinrusswin@assaabloy.com
3 Adjustments
Adjust Spring Power According to Chart DC3200 Size 1-6 Adjustment (Figure 12)
- All DC3200 closers are factory set at an approximate Size 3.
- Adjust closer as necessary for door size using this chart.
- Readjustment may be required to suit prevailing conditions.
| Size of Doo | r | No. of Full (360°) | Equivalent Claser | ||
|---|---|---|---|---|---|
| Interior |
Exterior
In-Swinging |
Equivalent Closer
Size (Approx.) |
|||
|
2' 4"
(712) |
2' 6"
(764) |
- | 4 | 2 | |
|
2' 6"
(764) |
3' 0"
(915) |
- | 8 | 3 | |
|
3' 0"
(915) |
3' 6"
(1067) |
2' 6"
(764) |
12 | 4 | |
|
3' 6"
(1067) |
4' 0"
(1219) |
3' 0"
(915) |
16 | 4 | |
Figure 12
Cover Installation
Install Cover (Figure 13)

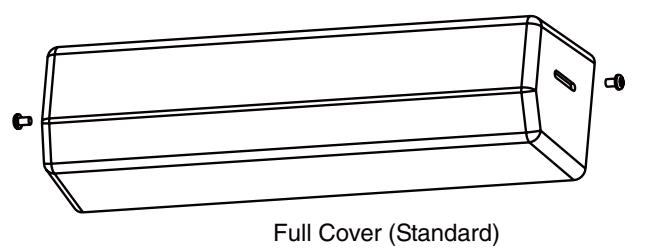

Slip cover over closer. Hold tightly against closer mounting surface. Secure on each side with PBHMS screws.
Figure 13

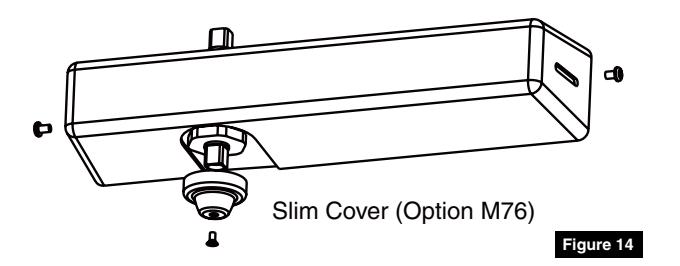

Slim Cover Option M76 only (Figure 14)
Position spindle cap over unused spindle and secure with truss head screw.
Corbin Russwin 225 Episcopal Road Berlin, CT 06037 Phone: 800-543-3658 Fax: 800-447-6714 corbinrusswin.com
ASSA ABLOY is the global leader in door opening solutions, dedicated to satisfying end-user needs for security, safety and convenience
For installation assistance contact Corbin Russwin 1-800-543-3658 • techsupport.corbinrusswin@assaabloy.com
