View PDFMOUNTING INFORMATION
Sex nuts or through bolts are required for wood and plastic covered composite doors, and any type of door without reinforcements and recommended for wood core and metal clad (Kalamein) tupe doors.
RH SHOWN H OPPOSITE
| TEMPLATE CROSS REFE | RENCE |
|---|---|
| DESCRIPTION | TEMPLATE |
| DC3210, DC3610 | T30612 |
| DC3210, DC3610 x M80 | T30613 |
| DC3210, DC3610 x M80 & M83 | T30616 |
| DC3210, DC3610 x M82 | T30614 |
| APPLICATION | |||||
|---|---|---|---|---|---|
| DOOR HOLDER SERIES | RABBET | ||||
| A | B MIN | B MAX | |||
|
DH5201,DH5202,DH5203 SERIES
DH52015,DH52025,DH5203S SERIES |
4-1/16
(103.2) |
1-1/8
(28.6) |
1-1/2
(38.1) |
2-1/16
(52.3) |
|
| DH5401,DH5402 SERIES | (103.2) | ||||
| DH5600 SERIES |
4-13/16
(122.2) |
1-1/2
(38.1) |
2-7/16
(61.9) |
||
| _ | |||||
| D | ESCRIPTION | DIMENSION D | |
| DC3610 | 10-3/8 (263.5) | ||
| DC3210 | 11-5/8 (295.3) | ||
| F | ULL COVER | ||
RESPONSIBILITY
Door and Frame Manufacturers are responsible for providing adequate construction or reinforcements for proper installation of hardware shown. All architectural builders hardware must be installed on properly reinforced doors and frames, regardless of the type, material, or method of construction.
DC3210 SERIES BY M83 DC3610 SERIES BY M83

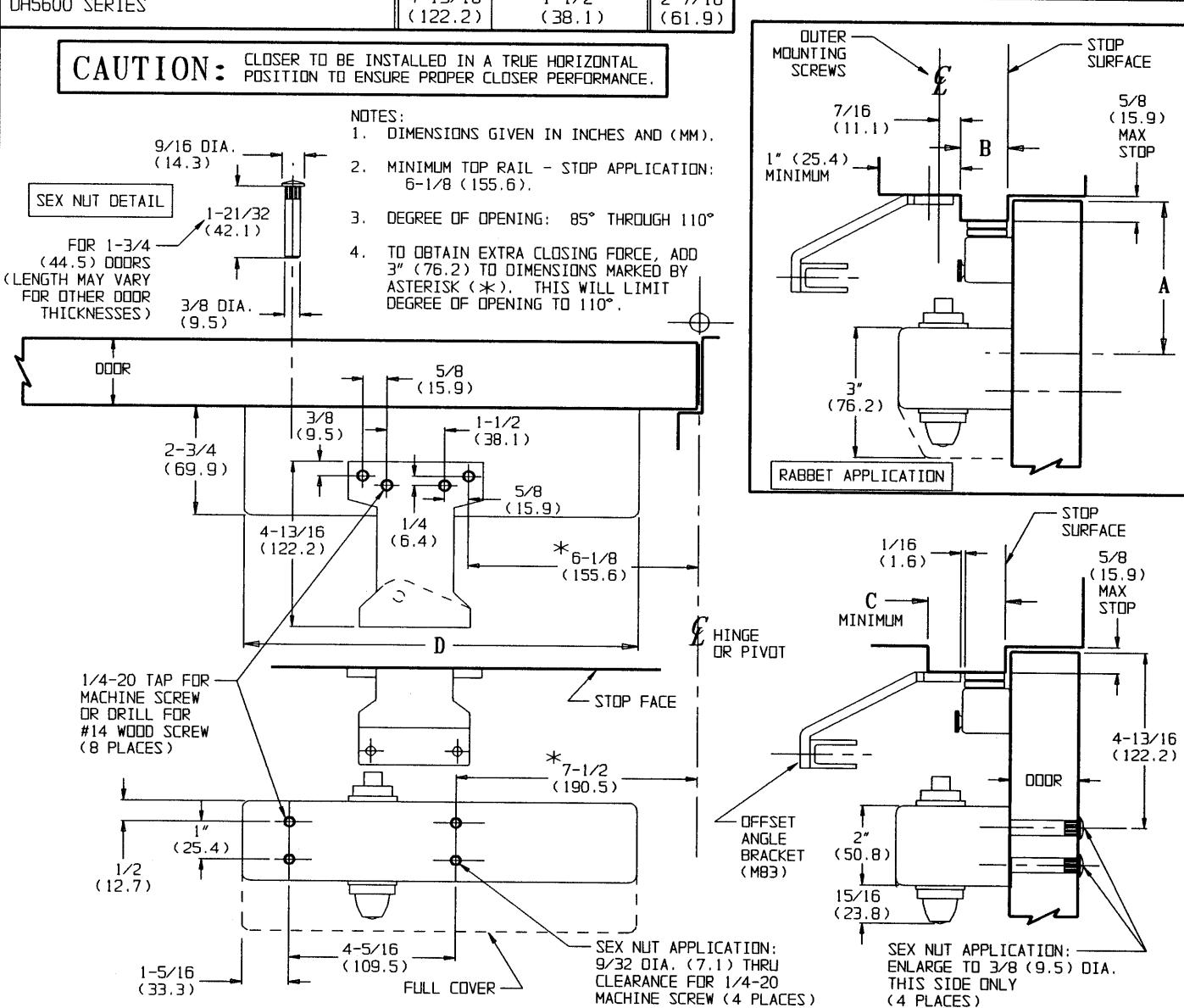

SURFACE DOOR CLOSER PARALLEL ARM MOUNTING BY OFFSET ANGLE BRACKET FOR HOLDERS
www.corbinrusswin.com DO NOT SCALE DRAWING
0 4 / 0 7 / 9 3 NUMBER T 3 0 6 1
