MOUNTING INFORMATION

Sex nuts or through bolts are required for wood and plastic covered composite doors, and any type of door without reinforcements and recommended for wood core and metal clad (Kalamein) type doors.

RH SHOWN LH OPPOSITE

TEMPLATE CROSS REFE ERENCE
DESCRIPTION TEMPLATE
DC3210, DC3610 T30612
DC3210, DC3610 × M80 T30613
DC3210, DC3610 x M83 T30615
DC3210, DC3610 x M82 T30614

CAUTION: CLOSER TO BE INSTALLED IN A TRUE HORIZONTAL POSITION TO ENSURE PROPER CLOSER PERFORMANCE.

NOTES:

  • 1. DEGREE OF OPENING: 85° THROUGH 110°.
  • 2. DIMENSIONS GIVEN IN INCHES AND (MM).
  • DFFSET ANGLE BRACKET MAY BE MOUNTED ON STOP AS SHOWN OR RABBET. REFER TO TEMPLATE T30530 FOR MOUNTING DIMENSIONS.
  • 4. TO OBTAIN EXTRA CLOSING FORCE, ADD 3"(76.2)TO DIMENSIONS MARKED BY ASTERISK(米). THIS WILL LIMIT DEGREE OF DOOR OPENING TO 110°.

FOR 1-3/4 (44.5) INCH DODRS (LENGTH MAY VARY FOR OTHER DODR THICKNESSES) SEX NUT DETAIL 3/8 DIA. 9/16 DIA (9.5) (14.3)

1-21/32 (42.1)

CLOSER
SERIES 		A В С DOOR HOLDER SERIES D Е
DC3610 *
3-1/4
(82.6) 		2-3/8
(60.3) 		10-3/8
(263.5) 		DH5201, DH5202, DH5203 SERIES
DH5201S, DH5202S, DH5203S SERIES
DH5401, DH5402 SERIES 		3-5/16
(84.1) 		4"
(101.6)
DH5600 SERIES 2-7/8 (73) 3-9/16 (90.5)
DC3210 * 2″
(50.8) 		3″
(76.2) 		11-5/8
(295.3) 		DH5201,DH5202,DH5203 SERIES
DH52015,DH52025,DH52035 SERIES
DH5401,DH5402 SERIES 		3-5/16
(84.1) 		4″
(101.6)
DH5600 SERIES 2-7/8 (73) 3-9/16 (90.5)

RESPONSIBILITY

(4 PLACES)

Door and Frame Manufacturers are responsible for providing adequate construction or reinforcements for proper installation of hardware shown. All architectural builders hardware must be installed on properly reinforced doors and frames, regardless of the type, material, or method of construction.

DC3210 SERIES BY M80 & M83 DC3610 SERIES BY M80 & M83

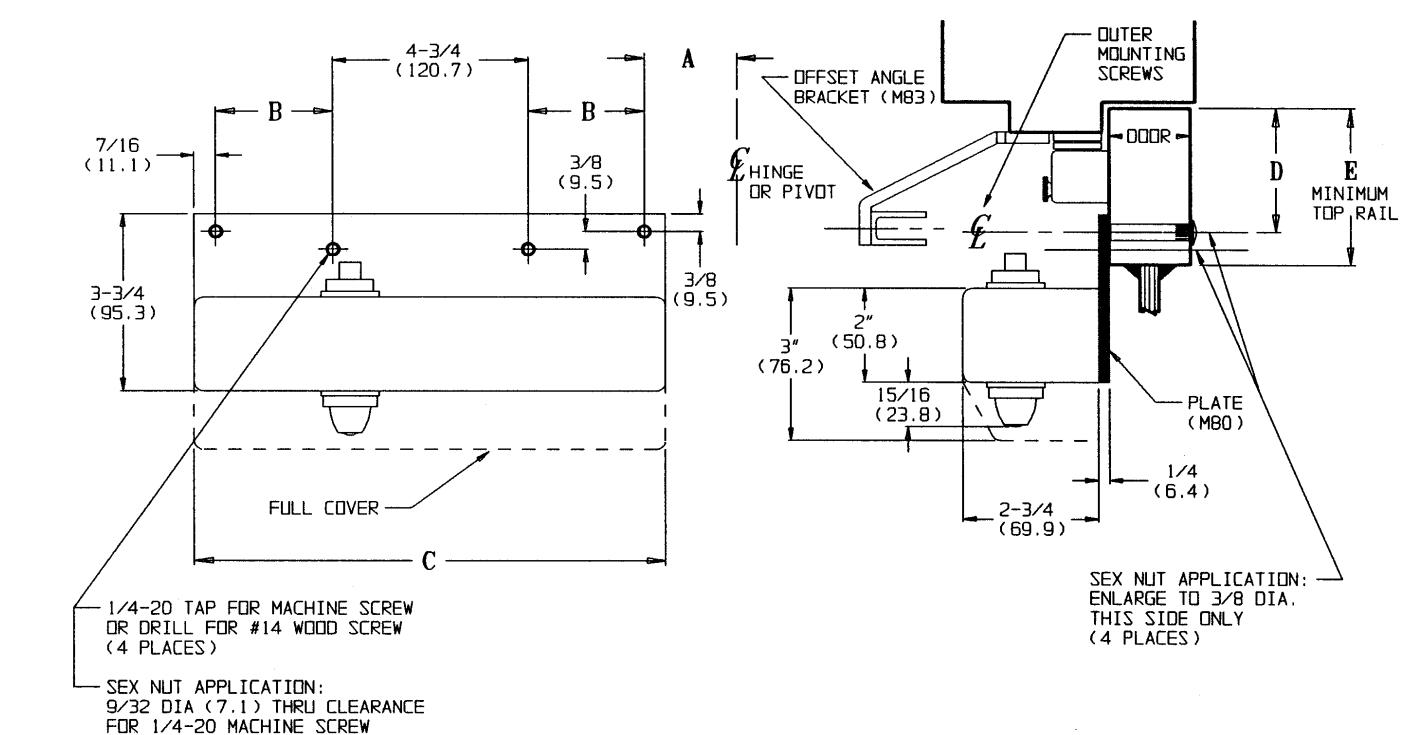

SURFACE DOOR CLOSER PARALLEL ARM MOUNTING BY OFFSET ANGLE BRACKET BY PLATE FOR HOLDERS

WWW.corbinrusswin.com DO NOT SCALE DRAW ING SUPERSEDES DR. BTH

0 4 / 0 7 / 9 3 TEMPLATE T 3
