View PDFMOUNTING INFORMATION
Sex nuts or through bolts are required for wood and plastic covered conposite doors, and any type of door without reinforcements and recommended for wood core and netal clad (Kalanein) type doors.

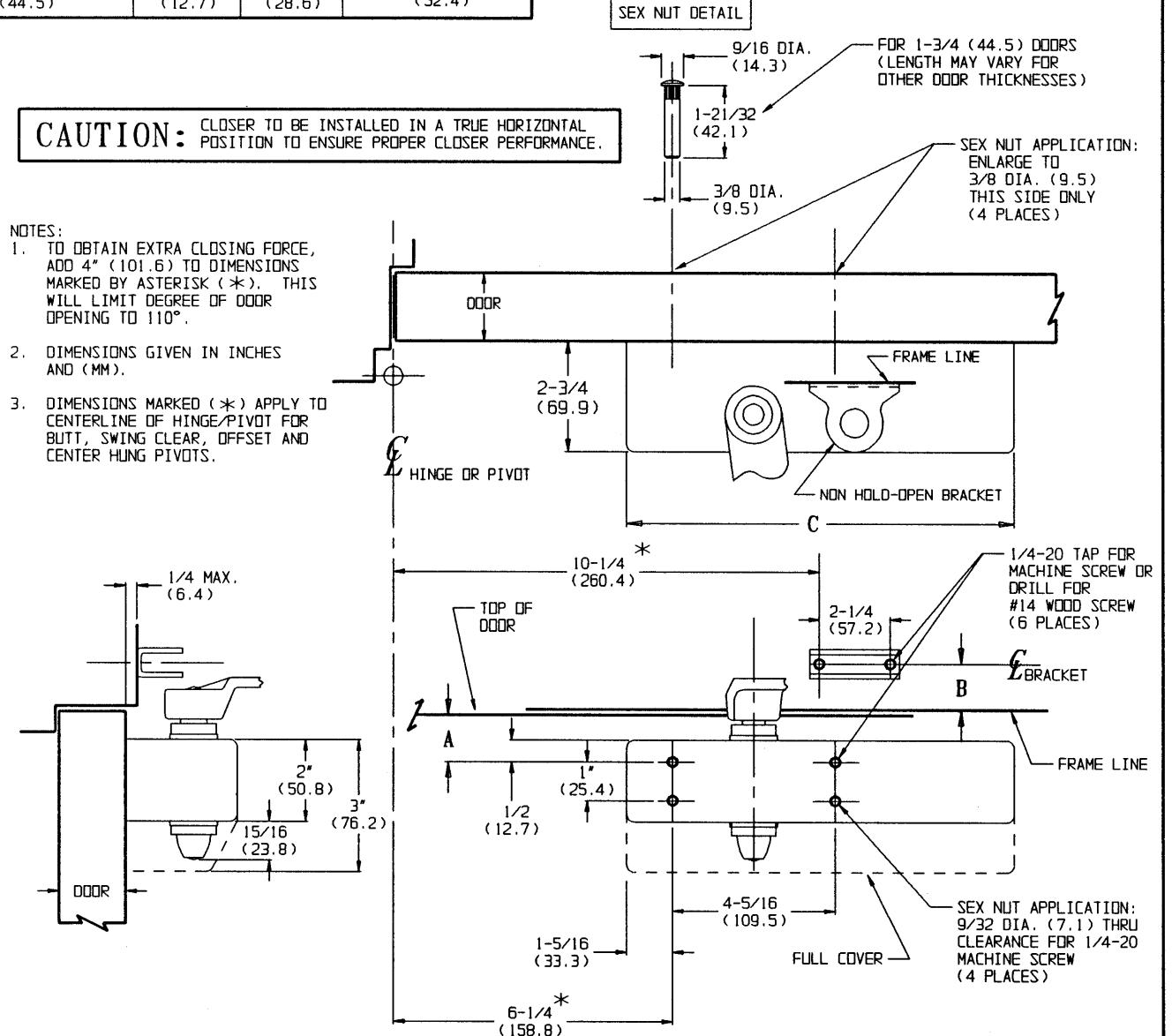

RH SHOWN LH OPPOSITE
| TEMPLATE CROSS RE | FERENCE |
|---|---|
| DESCRIPTION TEMPLATE | |
| DC3210, DC3610 | T30612 |
| DC3220, DC3620 | T30621 |
| TOP RAIL | A | В |
MINIMUM CLEARANCE
REQUIRED OVER DOOR NON HOLD-OPEN |
|---|---|---|---|
| 2-1/2 & DVER | 7/8 | 3/4 | 1-11/16 |
| (63.5) | (22.2) | (19.1) | (42.9) |
| 1-3/4 MIN. | 1/2 | 1-1/8 | 2-1/16 |
| (44.5) | (12.7) | (28.6) | (52.4) |
| DESCRIPTION | С |
|---|---|
| DC3600 | 10-3/8 (263.5) |
| DC3200 | 11-5/8 |
| FULL COVER | (295.3) |
RESPONSIBILITY
Door and Frane Manufacturers are responsible for providing adequate construction or reinforcements for proper installation of hardware shown. All architectural builders hardware nust be installed on properly reinforced doors and franes, regardless of the type, naterial, or nethod of construction.
DC3200 SERIES BY A10 DC3600 SERIES BY A10
SURFACE DOOR CLOSER BY HEAVY DUTY REGULAR ARM
DO NOT SCALE DRAWING SUPERSECES DATE 9-95 TOPPLATE T30650
