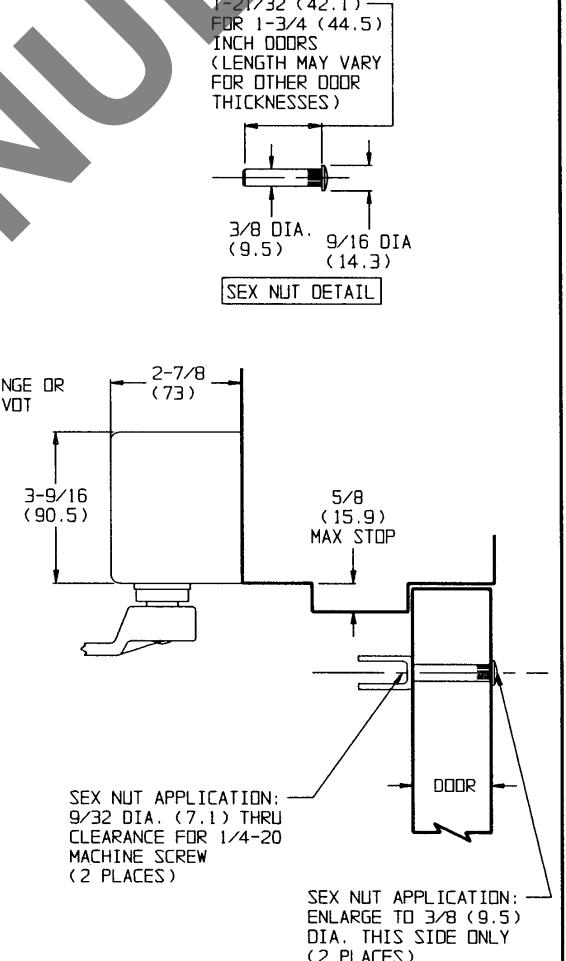

Corbin Russwin DC26900 Series DC26920 Electromechanical Surface Door Closers Top Jamb Mounting Template_T30534
Open the original PDF document
View PDF
|
OPENING
MAXIMUM |
A | В |
HINGE
CONDITION |
|---|---|---|---|
| 110° | 8-3/8 (212.7) | 13-7/8 (352.4) |
PIVOTS, AND
SWING CLEAR |
| 140° | 6-7/8 (174.6) | 12-3/8 (314.3) | |
| 180° | 10-7/8 (276.2) | ||
| 140° | 6-7/8 (174.6) | 12-3/8 (314.3) | CENTER HUNG |
