Conversion Chart
Nomenclature Made Easy!
| Mortise Locksets | |
|---|---|
| Series | 2 |
| Functions | 3 |
| Trim Designation | 4-19 |
| Electromehcanical Mortise | |
| Locksets | 20 |
| Cylindrical and Unit Locksets | |
| Series | 21 |
| Functions | 22 |
| Trim Designation | 23-24 |
| Padlocks | 25 |
| Deadlocks | 26 |
| Push-Pull Levers | 26 |

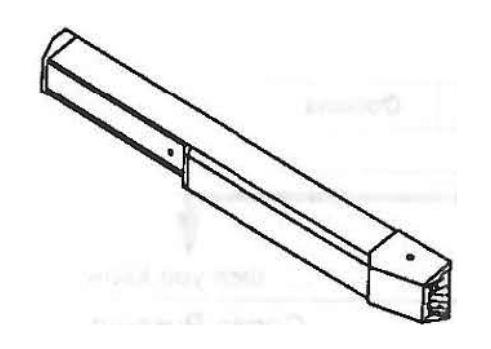

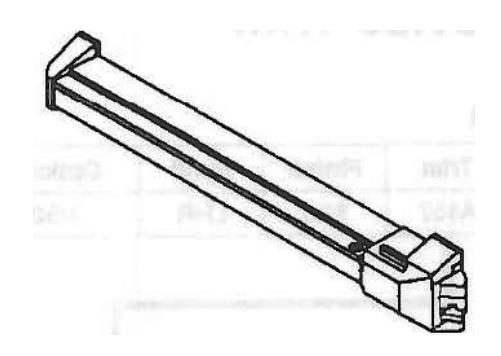

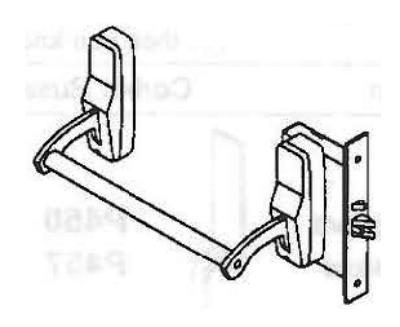

| Pushbar Exit Devices | |
| Series/Functions | 27-28 |
| Trim Designation | 29-33 |

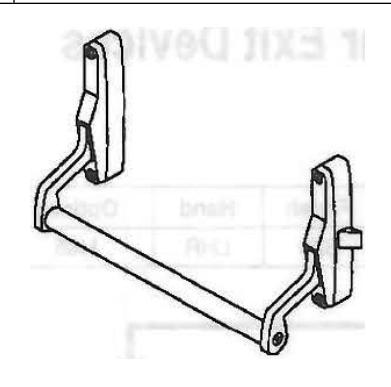

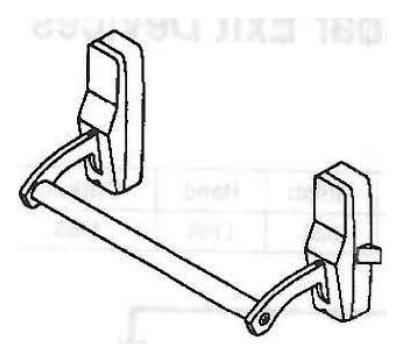

| Crossbar Exit Devices | |
| Series/Functions | 34-36 |
| Trim Designation | 37-46 |
| Electromechanical Mortise | |
| Crossbar Exit Devices | 47 |
| Mullions | 47 |

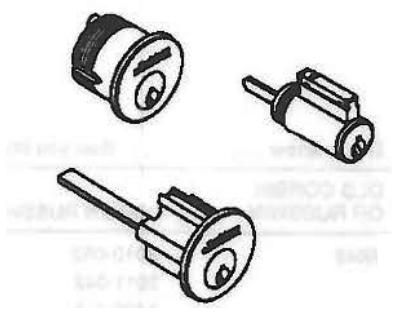

| Cylinders | 48-54 |

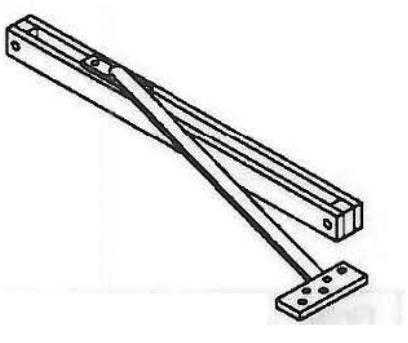

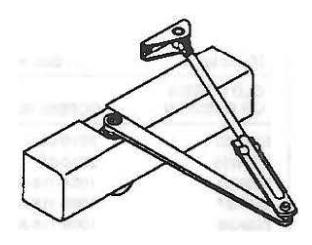

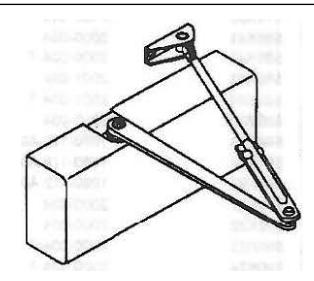

| Door Closers | |
| Door Closers | 55 |
| Electromechanical Door Closers | 55 |
| Door Holders | 56 |
| Electromagnetic Door Releases | 56 |
| Qty | Series/Function | Trim | Finish | Hand | Options |
|---|---|---|---|---|---|
| 100 | ML2255 | LSM | 626 | LH | D214 |

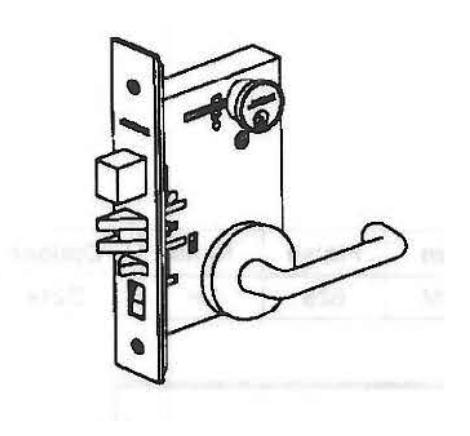

SERIES NUMBERS
| Corbin | Russwin | Description | Corbin Russwin |
|---|---|---|---|
| 9200/9400 | 4000/6000 | Mortise Lockset | ML2200 + D138 |
| 9500/9700 | 5000/7000 | Mortise Lockset | ML2200 |
| 9700T | T7000 | Mortise Lockset (High Security) | ML2200HS |
| 9800 | 7400 | Mortise Lockset (Master Ring) | ML2200 + MR |
| Qty | Series/Function | Trim | Finish | Hand | Options |
|---|---|---|---|---|---|
| 100 | ML2255 | LSM | 626 | LH | D214 |
FUNCTION NUMBERS
| Corbin | Russwin | Description | Corbin Russwin |
|---|---|---|---|
| 10 | 25 | Passage or Closet | 10 |
| 20 | 39 | Privacy, Bedroom, Bath | 20 |
| E20 | 69 | Privacy, Bedroom, Bath | 30 |
| 51 | 56 | Entrance or Office | 51 |
| 55 | 45 | Classroom | 55 |
| 57 | 59 | Storeroom or Closet | 57 |
| 29 | 34 | Hotel | 29 |
| 11 | 01 | Deadlock | 11 |
| 12 | 02 | Deadlock | 12 |
| 13 | 03 | Deadlock | 13 |
| 22 | 22 | Store Door | 22 |
| 54 | 42 | Enterance, Public Restroom | 42 |
| 43 | 48 | Entry or Apartment | 48 |
| 65 | 61 | Dormitory, Entry, Storeroom | 65 |
| 49 | 67 | Apartment, Dormitory | 67 |
| 23 | 24 | Enterance or Storeroom | 24 |
| Qty | Series/Function | Trim | Finish | Hand | Options |
|---|---|---|---|---|---|
| 100 | ML2255 | RSA | 626 | LH | D214 |
TRIM DESIGNATION
| Corbin | Russwin | Corbin Russwin |
|---|---|---|
| 771L Flute | L Regis | RSB |
| 771L2 Flute | L2 Regis | RWA |
| 771L3 Flute | L3 Regis | RWB |
| 771L4 Flute | L4 Regis | RSA |
| Corbin | Russwin | Corbin Russwin |
|---|---|---|
| 781L2 Washington | L2 RegRad | RWM |
| 781L4 Washington | L4 RegRad | RSM |
| 741L2 Washington | L2 RegRoc | RWN |
| 741L4 Washington | L4RegRoc | RSN |
| 791L2 Lincoln | L2RegRex | RWP |
| 791L4 Lincoln | L4RegRex | RSP |
| 772L Cambridge | RegMo | RSR |
| Corbin | Russwin | Corbin Russwin |
|---|---|---|
| 779L Curl | L Lustra | LSB |
| 779L2 Curl | L2 Lustra | LWA |
| 779L3 Curl | L3 Lustra | LWB |
| 779L4 Curl | L4 Lustra | LSA |
| Corbin | Russwin | Corbin Russwin |
|---|---|---|
| 789L2 Washington | L2 LusRad | LWM |
| 789L4 Washington | L4 LusRad | LSM |
| 749L2 Washington | L2 LusRoc | LWN |
| 749L4 Washington | L4 LusRoc | LSN |
| 799L2 Lincoln | L2 LusRex | LWP |
| 799L4 Lincoln | L4 LusRex | LSP |
| 773L Boston | LusMo | LSR |
| Corbin | Russwin | Corbin Russwin |
|---|---|---|
| 975L4 Boston | L4 Armstrong | ASA |
| 975L Boston | L Armstrong | ASB |
| 985L4 Washington | L4 ArmRad | ASM |
| 748L4 Washington | L4 ArmRoc | ASN |
| 995L4 Lincoln | L4 ArmRex | ASP |
| 965L Boston | L4 ArmMo | ASR |
| Corbin | Russwin | Corbin Russwin |
|---|---|---|
| 977L4 Sacramento | L4 Newport | NSA |
| 977L Sacramento | L Newport | NSB |
| 987L4 Washington | L4 NewRad | NSM |
| 747L4 Washington | L4 NewRoc | NSN |
| 997L4 Lincoln | L4NewRex | NSP |
| 967L Sacramento | NewMo | NSR |
| Corbin | Russwin | Corbin Russwin |
|---|---|---|
| 765L4 Plaza | L4 Citation | CSA |
| 765L Plaza | L Citation | CSB |
| 710L4 Washington | L4 CitRad | CSM |
| 745L4 Washington | L4 CitRoc | CSN |
| 709L4 Lincoln | L4 CitRex | CSP |
| 775L Calais | CitMo | CSR |
| Corbin | Russwin | Corbin Russwin |
|---|---|---|
| 760L4 Stratford | L4 Dirke | DSA |
| 760L Stratford | L Dirke | DSB |
| 780L4 Washington | L4 DirRad | DSM |
| 740L4 Washington | L4 DirRoc | DSN |
| 790L4 Lincoln | L4 DirRex | DSP |
| 770L Seattle | DirMo | DSR |
| Corbin | Russwin | Corbin Russwin |
|---|---|---|
| 766L4 Essex | L4 Tornay | ESA |
| 766L Essex | L Tornay | ESB |
| 786L4 Washington | L4 TorRad | ESM |
| 746L4 Lincoln | L4 TorRoc | ESN |
| 796L4 Lincoln | L4 TorRex | ESP |
| 776L Cherbourg | TorMo | ESR |
| Corbin | Russwin | Corbin Russwin |
|---|---|---|
| 863 Global | W4 Ashford | GRC |
| 833 Global | W43 Ashford | GWC |
| 864 Global | W4 Albany | GRD |
| 834 Global | W43 Albany | GWD |
| 868 Global | W4 Andover | GRE |
| 838 Global | W43 Andover | GWE |
| 783 Dallas | B23KS Ronde | GSA |
| 783 Dallas | L Ronde | GSB |
| Corbin | Russwin | Corbin Russwin |
|---|---|---|
| 710 (D) Washington | W4 A-Rad | GRM |
| 710 (A) Washington | W43 A-Rad | GWM |
| 710 (K) Washington | K-Rad | GSM |
| 700 (D) Washington | W4 A-Rock | GRN |
| 700 (A) Washington | W43 A-Rock | GWN |
| 700 (K) Washington | K-Rock | GSN |
| Corbin | Russwin | Corbin Russwin |
|---|---|---|
| 709 (D) Lincoln | W4 A-Rex | GRP |
| 709 Lincoln | W43 A-Rex | GWP |
| 709 (K) Lincoln | K-Rex | GSP |
| 764 (D) LeMans | W4 A-Mo | GRR |
| 764 (A) LeMans | W43 A-Mo | GWR |
| 764 LeMans | B2KS Ron Mo | GSR |
| Corbin | Russwin | Corbin Russwin |
|---|---|---|
| 865 Pierce | W4 Belmont | BRC |
| 835 Pierce | W43 Belmont | BWC |
| 866 Pierce | W4 Brockton | BRD |
| 836 Pierce | W43 Brockton | BWD |
| 869 Pierce | W4 Burbank | BRE |
| 839 Pierce | W43 Burbank | BWE |
| Corbin | Russwin | Corbin Russwin |
|---|---|---|
| 710 (E) Washington | W4 B-Rad | BRM |
| 710 (B) Washington | W43 B-Rad | BWM |
| 700 (E) Washington | W4 B-Rock | BRN |
| 700 (B) Washington | W43 B-Rock | BWN |
| Corbin | Russwin | Corbin Russwin |
|---|---|---|
| 709 (E) Lincoln | W4 B-Rex | BRP |
| 709 (B) Lincoln | W43 B-Rex | BWP |
| 764 (E) LeMans | W4 B-Mo | BRR |
| 764 (B) LeMans | W43 B-Mo | BWR |
| Corbin | Russwin | Corbin Russwin |
|---|---|---|
| 710 (S) Washington | S-Rad | YWM |
| 700 (S) Washington | S-Rock | YWN |
| 709 (S) Lincoln | S-Rex | YWP |
| 764 (S) LeMans | S-Mo | YWR |
HIGH SECURITY MORTISE LOCKSETS
| Corbin | Russwin | Corbin Russwin |
|---|---|---|
| Surety | Newgate | SST |

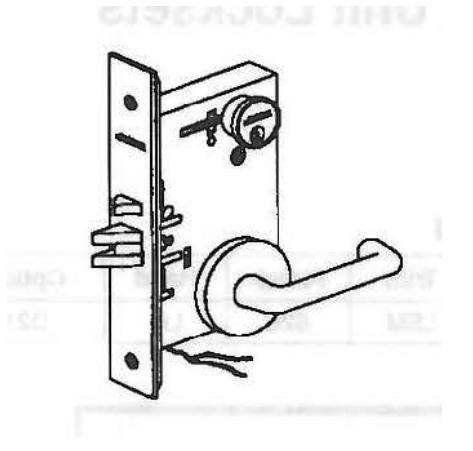

| Qty | Series/Function | Trim | Finish | Hand | Options | Voltage |
|---|---|---|---|---|---|---|
| 100 | ML22904 | LSM | 626 | LH | D214 | 24AD |
SERIES/FUNCTION NUMBERS
|
Corbin
Russwin |
Description | Corbin Russwin | |
|---|---|---|---|
| 9540ECL | 5084ECL | Electrically Controlled Mortise Lockset | ML22910 |
| 9541ECL | 5088ECL | Electrically Controlled Mortise Lockset | ML22920 |
| 9542ECL | 5086ECL | Electrically Controlled Mortise Lockset | ML22901 |
| 9546ECL | 5082ECL | Electrically Controlled Mortise Lockset | ML22903 |
| 9530ECL | 5083ECL | Electrically Controlled Mortise Lockset | ML22930 |
| 9531ECL | 5087ECL | Electrically Controlled Mortise Lockset | ML22940 |
| 9532ECL | 5085ECL | Electrically Controlled Mortise Lockset | ML22904 |
| 9536ECL | 5081ECL | Electrically Controlled Mortise Lockset | ML22905 |
| 9592ECA | 5092ECA | Electrically Controlled Frame Acutator | ML22906 |
| 9594ECA | 5094ECA | Electrically Controlled Frame Acutator | ML22950 |
| 9596ECA | 5096ECA | Electrically Controlled Frame Acutator | ML22907 |
| 9598ECA | 5098ECA | Electrically Controlled Frame Acutator | ML22960 |
| 9591ECA | 5091ECA | Electrically Controlled Frame Acutator | ML22908 |
| 9593ECA | 5093ECA | Electrically Controlled Frame Acutator | ML22970 |
| 9595ECA | 5095ECA | Electrically Controlled Frame Acutator | ML22909 |
| 9597ECA | 5097ECA | Electrically Controlled Frame Acutator | ML22980 |

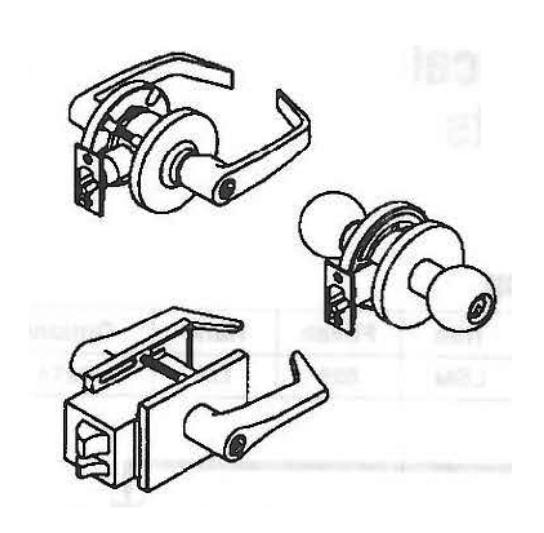

| Qty | Series/Function | Trim | Finish | Hand | Options |
|---|---|---|---|---|---|
| 100 | CL3455 | NZD | 626 | LH | D214 |
SERIES/FUNCTION NUMBERS
| Corbin | Russwin | Description | Corbin Russwin |
|---|---|---|---|
| 700 | 900 | Security Bolt Lever Lock | CL3200 |
| 800 | 800 | Cylindrical Lever lock | CL3400 |
| 400 | 400 | Cylindrical Knob Lock | CK4200 |
|
6600
3400 |
Cylindrical Knob Lock | CK4400 | |
| 300 | 500 | Unit Lock | UT5200 |
| Qty | Series/Function | Trim | Finish | Hand | Options |
|---|---|---|---|---|---|
| 100 | CL3455 | ASD | 626 | LH | D214 |
FUNCTION NUMBERS
| Corbin | Russwin | Description | Corbin Russwin |
|---|---|---|---|
| 10 | 10 | Passage or Closet | 10 |
| 20 | 20 | Privacy, Bedroom, Bath | 20 |
| 20Y | ER20, ER21 | Privacy, Bedroom, Bath | 30 |
| 40, 41 | 22 | Patio or Privacy | 40 |
| 51 | 40, 51 | Entrance or Office | 51 |
| 61 | 46, 61 | Office or Privacy | 61 |
| 55 | 40-5/8, 45, 55 | Classroom | 55 |
| 57 | 52, 57 | Storeroom or Closet | 57 |
| 32 | 32, 52-1/2 | Utility, Asylum, Inst. | 32 |
| 54 | 46-1/2, 54 | Apt., Exit or Toilet | 72 |
| 88 | 48-1/2, 88 | Store Door | 82 |
| 93 | 93 | Service Station | 93 |
| 29 | 33EM, 29 | Hotel | 29 |
| 14, 1/2 DT | 14, 1/2DT | Half Dummy Trim | 50 |
| 15, D, PRDT | 15, D, PRDT | Full Dummy Trim | 70 |
| 11-1/4, 80 | 16, 80 | Passage Lever, Blank Plate | 80 |
| 81 | 81 | Keyed Lever, Blank Plate | 81 |
| 90 | 90 | Passage Lever, Trunpiece | 90 |
| 91 | 91 | Keyed Lever, Turnpiece | 91 |
| 75 | 63 | Dormitory | 75 |
SECURITY BOLT LEVER LOCKSET TRIM DESIGNATION
| Corbin | Russwin | Corbin Russwin |
|---|---|---|
| 975L Boston | Armstrong | ASD |
| 977L Sacramento | Newport | NSD |
EXTRA HEAVY DUTY LEVER LOCKSET TRIM DESIGNATION
| Corbin | Russwin | Corbin Russwin |
|---|---|---|
| 75P | 75P | ASD - Brass |
| 75Z | 75Z | AZD - Zinc |
| 77P | 77P | NSD - Brass |
| 77Z | 77Z | NZD - Zinc |
HEAVY DUTY KNOB LOCKSET TRIM DESIGNATION
| Corbin | Russwin | Corbin Russwin |
|---|---|---|
| 863 Global | Ashford | GRC |
| 864 Global | Albany | GRD |
| 868 Global | Andover | GRE |
HEAVY DUTY KNOB LOCKSET TRIM DESIGNATION
| Corbin | Russwin | Corbin Russwin |
|---|---|---|
| 865 Pierce | Belmont | BRC |
| 866 Pierce | Brockton | BRD |
| 869 Pierce | Burbank | BRE |
HEAVY DUTY KNOB LOCKSET TRIM DESIGNATION
| Corbin | Russwin | Corbin Russwin |
|---|---|---|
| 363 Global | Austin | GWC |
| 365 Pierce | Branford | BWC |
UNIT LOCKSET TRIM DESIGNATION
| Corbin | Russwin | Corbin Russwin |
|---|---|---|
| 964 Global | Ashford | GRE |
| 966 Pierce | Belmont | BRE |
| 912R | 912R | ESE |
| Qty | Number | Options |
|---|---|---|
| 10 | PL5100-212 |
|
Corbin
Russwin |
Description | Corbin Russwin | ||
|---|---|---|---|---|
| 2863 | 2863 | Standard brass shackle | PL5100 | |
| 2863 A | 2863 A | Standard steel shackle | PL5000 | |
| 2863 H | 2863 H | Long brass shackle | PL5100-212 | |
| 2863 AH | 2863 AH | Long steel shackle | PL5000-212 | |
| 82863 | 82863 | Standard brass shackle | PL5180 | |
| 82863 A | 82863 A | Standard steel shackle | PL5080 | |
| 82863 H | 82863 H | Long brass shackle | PL5180-258 | |
| 82863 AH | 82863 AH | Long steel shackle | PL5080-258 | |
| NA prefix | NA prefix | Non-assembled (not for IC model) | Option M46 | |
| C suffix | C suffix | Chain (all models) | Option M44 | |
|
W8 prefix
W8 prefix |
High Security IC | PL5090 Series | ||
| 8 prefix + LC suffix | 8 prefix + LC suffix | IC Less Core | PL5070 Series | |
| Qty | Series/Function | Finish | Options |
|---|---|---|---|
| 50 | DL2013 | 626 |
NUMBERS
| Corbin | Russwin | Description | Corbin Russwin |
|---|---|---|---|
| C880-6 | E880-6 | Single cylinder | DL2013 |
| C881-6 | E881-6 | Cylinder x blank | DL2011 |
| C883-6 | E883-6 | Classroom | DL2017 |
| C885-6 | E885-6 | Double cylinder | DL2012 |
| 621 | 1413-1/4 | Cylinder x blank | DL3011 |
| 622 | 1413-1/2 | Double cylinder | DL3012 |
| 623 | 1413 | Single cylinder | DL3013 |
| 625 | 1413-7/8 | Thumbturn x blank | DL3060 |
| 627 | 1413-3/4 | Classroom | DL3017 |
| 421 | 1503-1/4 | Cylinder x blank | DL4011 |
| 422 | 1503-1/2 | Double cylinder | DL4012 |
| 423 | 1503 | Single cylinder | DL4013 |
| 427 | 1503-3/4 | Classroom | DL4017 |
PUSH-PULL LATCHES
ORDERING CONFIGURATION
| Qty | Series/Function | Finish | Options |
|---|---|---|---|
| 50 | HL13 | 626 |
|
Corbin
Russwin |
Description | Corbin Russwin | |||
|---|---|---|---|---|---|
|
1850
H10 |
Exposed screws push side, short pull | HL11 | |||
|
1860
H11 |
Exposed screws push side, large concave pull | HL12 | |||
|
T1850
H010 |
Exposed screws pull side, short pull | HL13 | |||
| T1860 | H011 | Esposed screws pull side, large concave pull | HL14 | ||
| Qty | Series/Function | Trim | Finish | Hand | Options |
|---|---|---|---|---|---|
| 100 | ED9200 | N157 | 626 | LHR | M61 |
SERIES/FUNCTION NUMBERS
|
Corbin
Russwin Description |
Corbin Russwin | |||
|---|---|---|---|---|
| 39 | 572 | Rim | ED9200 | |
| 39DB | 572DB | Rim | ED9200DB | |
| LA39 | LA572 | 1-1/2 Hour Fire Rated Rim | ED9200B | |
| 39U | U572 | UL Rim | ED9200A | |
| LA39EL | LA572EL | 1-1/2 Hr. Fire Rated Rim w/Alarm | ED9200B (with option M61) | |
| LA39ELD | LA572ELD | 1-1/2 Hr. Fire Rated Rim w/Delayed Alarm | ED9200B (with option M62) | |
| 39EL | 572EL | Rim w/ Alarm | ED9200 (with option M61) | |
| 39ELD | 572ELD | Rim w/ Delayed Alarm | ED9200 (with option M62) | |
| 49 | 472 | Narrow Stile Rim | ED9200 (with option M60) | |
| 49EL | 472EL | Narrow Stile Rim w/ Alarm | ED9200 (with options M60 and M61) | |
| 30 | 582 | Vertical Rod | ED9400 | |
| 30U | U582 | UL Vertical Rod | ED9400A | |
|
35
592 35L 592L |
Mortise | ED9600 | ||
| Mortise (for lever trim) | ED9600L | |||
| 35U | U592 | UL Mortise | ED9600A | |
| 35UL | U592L | UL Mortise (for lever trim) | ED9600AL | |
| Qty | Series/Function | Trim | Finish | Hand | Option |
|---|---|---|---|---|---|
| 100 | ED8200 | P857 | 689 | LHR | M54 |
SERIES/FUNCTION NUMBERS
| Corbin | Russwin | Description | Corbin Russwin |
|---|---|---|---|
| 29 | 372 | Rim | ED8200 |
| LA29 | LA372 | 1-1/2 Hour Fire Rated Rim | ED8200B |
| 29U | U372 | UL Rim | ED8200A |
| 29EL | 372EL | Rim w/ Alarm | ED8200 (with option M61) |
| 29ELD | 372ELD | Rim w/ Delayed Alarm | ED8200 (with option M62) |
| LA29EL | LA372EL | 1-1/2 Hr. Fire Rated Rim w/Alarm | ED8200B (with option M61) |
| LA29ELD | LA372ELD | 1-1/2 HR. Fire Rated Rim w/ Delayed Alarm | ED8200B (with option M62) |
| 20 | 382 | Vertical Rod | ED8400 |
| 20U | U382 | UL Vertical Rod | ED8400A |
| 25 | 392 | Mortise | ED8600 |
| 25L |
392L
Mortise (for lever trim) 25U U392 UL Mortise Device |
ED8600L | |
| ED8600A | |||
| 25UL | U392L | UL Mortise (for lever trim) | ED8600AL |
| Qty | Series/Function | Trim | Finish | Hand | Option |
|---|---|---|---|---|---|
| 100 | ED9200 | A157 | 626 | LHR | M52 |
| Corbin | Russwin | Corbin Russwin |
|---|---|---|
| 50DTL x 975L | 50DTL x Armstrong | A150 |
| 51AL x 975L | 51PL x Armstrong | A110 |
| 52BL x 975L | 53PL x Armstrong | A155 |
| 52CL x 975L | 53PNL x Armstrong | A157 |
| 50DTL x 765L | 50DTL x Citation | C150 |
| 51AL x 765L | 51PL x Citation | C110 |
| 52BL x 765L | 53PL x Citation | C155 |
| 52CL x 765L | 53PNL x Citation | C157 |
| 50DTL x 760L | 50DTL x Dirke | D150 |
| 51AL x 760L | 51PL x Dirke | D110 |
| 52BL x 760L | 53PL x Dirke | D155 |
| 52CL x 760L | 53PNL x Dirke | D157 |
| 50DTL x 766L | 50DTL x Tornay | E150 |
| 51AL x 766L | 51PL x Tornay | E110 |
| 52BL x 766L | 53PL x Tornay | E155 |
| 52CL x 766L | 53PNL x Tornay | E157 |
| 50DTL x 779L3 | 50DTL x L3 Lustra | L150 |
| 51AL x 779L3 | 51PL x L3 Lustra | L110 |
| 52BL x 779L3 | 53PL x L3 Lustra | L155 |
| 52CL x 779L3 | 53PNL x L3 Lustra | L157 |
| Corbin | Russwin | Corbin Russwin | |
|---|---|---|---|
| 50DTL x 977L | 50DTL x Newport | N150 | |
| 51AL x 977L | 51PL x Newport | N110 | |
| 52BL x 977L | 53PL x Newport | N155 | |
| 52CL x 977L | 53PNL X Newport | N157 | |
| 50DTL x 771L3 | 50DTL x L3 Regis | R150 | |
| 51AL x 771L3 | 51PL x L3 Regis | R110 | |
| 52BL x 771L3 | 53PL x L3 Regis | R155 | |
| 52CL x 771L3 | 53PNL x L3 Regis | R157 | |
| 50DTK x 865 | 50DTK x Belmont | B150 | |
| 51AK x 865 | 51PK x Belmont | B110 | |
| 52BK x 865 | 53PK x Belmont | B155 | |
| 52CK x 865 | 53PNK x Belmont | B157 | |
| 50DTK x 863 | 50DTK x Ashford | G150 | |
| 51AK x 863 | 51PK x Ashford | G110 | |
| 52BK x 863 | 53PK x Ashford | G155 | |
| 52CK x 863 | 53PNK x Ashford | G157 |
ROSE TRIM DESIGNATION
| Corbin | Russwin | Corbin Russwin | |
|---|---|---|---|
| 5DTL | 83DT x Armstrong | A250 | |
| 5AL | 81L x Armstrong | A210 | |
| 5BL | 83L x Armstrong | A255 | |
| 5CL | 83NT x Armstrong | A257 | |
| 5MDL | 93DTL x Armstrong | A2M50 | |
| 5MAL | 91L x Armstrong | A2M10 | |
| 5MBL | 93L x Armstrong | A2M55 | |
| 5MCL | 93NTL x Armstrong | A2M57 |
ROSE TRIM DESIGNATION
| Corbin | Russwin | Corbin Russwin |
|---|---|---|
| 7DTL | 83DT x Newport | N250 |
| 7AL | 81L x Newport | N210 |
| 7BL | 83L x Newport | N255 |
| 7CL | 83NT x Newport | N257 |
| 7MDL | 93DTL x Newport | N2M50 |
| 7MAL | 91L x Newport | N2M10 |
| 7MBL | 93L x Newport | N2M55 |
| 7MCL | 93NTL x Newport | N2M57 |
| 865DTK | 83DTK x Belmont | B250 |
| 865AK | 81K x Belmont | B210 |
| 865BK | 83K x Belmont | B255 |
| 865CK | 83NTK x Belmont | B257 |
| 865MDK | 93DTK x Belmont | B2M50 |
| 865MAK | 91K x Belmont | B2M10 |
| 865MBK | 93K x Belmont | B2M55 |
| 865MCK | 93NTK x Belmont | B2M57 |
| 863DTK | 83DTK x Ashford | G250 |
| 863AK | 81K x Ashford | G210 |
| 863BK | 83K x Ashford | G255 |
| 863CK | 83NTK x Ashford | G257 |
| 863MDK | 93DTK x Ashford | G2M50 |
| 863MAK | 91K x Ashford | G2M10 |
| 863MBK | 93K x Ashford | G2M55 |
| 863MCK | 93NTK x Ashford | G2M57 |
| 31K | 31K | G310 |
| 32K | 33K | G355 |
| 39K | 39K | G355 (w/ option LC) |
PLATE OR PULL TRIM DESIGNATION
| Corbin | Russwin | Corbin Russwin | |
|---|---|---|---|
| DTPL | DTPL | F150 | |
| 2PL | 3PL | F157 | |
| 9PL | 9PL | F157 (w/ option LC) | |
| 3DTP | 3DTP | P150 | |
| 32P | 33P | P157 | |
| 39P | 39P | P157 (w/ option LC) | |
| 4DTP | 4DTP | P250 | |
| 42P | 43P | P257 | |
| 49P | 49P | P257 (w/ option LC) | |
| 62DTP | 53DTP | P350 | |
| 62P | 53P | P357 | |
| DTP | DTP | P850 | |
| 2P | 3P | P857 | |
| 9P | 9P | P857 (w/ option LC) |
THUMBPIECE TRIM DESIGNATION
| Corbin | Russwin | Corbin Russwin | |
|---|---|---|---|
| 4D | 508 | T150 | |
| 4A | 518 | T110 | |
| 4B | 538 | T155 | |
| 4MD | 508M | T1M50 | |
| 4MA | 518M | T1M10 | |
| 4MB | 538M | T1M55 | |
| 6D | 507 | T250 | |
| 6A | 517 | T210 | |
| 6B | 537 | T255 | |
| 6MD | 507M | T2M50 | |
| 6MA | 517M | T2M10 | |
| 6MB | 537M | T2M55 |
| Qty | Series/Function | Trim | Finish | Hand | Option |
|---|---|---|---|---|---|
| 100 | ED7200 | P657 | 626 | LHR | M66 |
SERIES/FUNCTION NUMBERS
| Corbin | Russwin | Description | Corbin Russwin |
|---|---|---|---|
| 4726NT | 635 | Rim | ED7200 |
| 4729-1/4 | LT635 | Rim | ED7200 |
| 4729 | 635-1/4 | Rim | ED7200 |
| 4726NTNH | 634 | Rim | ED7200 (w/ option M66) |
| 4729-1/4 NH | LT634 | Rim | ED7200 (w/ option M66) |
| 4161 | 691 | Vertical Rod | ED7400 |
| 4162 | 692 | Vertical Rod | ED7400 |
| 4163 | 693 | Vertical Rod | ED7400 |
| 4168 | 698 | Vertical Rod | ED7400 |
| 4161 (Plaza) | 691 (Citation) | Vertical Rod | ED7401 |
| 4163 (Plaza) | 693 (Citation) | Vertical Rod | ED7401 |
| 4168 (Plaza) | 698 (Citation) | Vertical Rod | ED7401 |
| 4126 | 696 | Mortise | ED7600 |
| 4126NT | NT696 | Mortise | ED7600 |
| 4127K | 697K | Mortise | ED7600 |
| 4127L | 697L | Mortise | ED7600 |
| 4129 | 699A | Mortise | ED7600 |
| 4126U | U696 | 3 Hour Mortise | ED7600A |
| 4126NTU | UNT696 | 3 Hour Mortise | ED7600A |
| 4127KU | U967K | 3 Hour Mortise | ED7600A |
| 4127LU | U697L | 3 Hour Mortise | ED7600A |
| 4129U | U699A | 3 Hour Mortise | ED7600A |
| 4062 | CH642 | Concealed Vertical Rod | ED7800 |
| 4062U | UCH642 | 3 Hour Concealed Vertical Rod | ED7800A |
| 4065 | CH645 | Concealed Vertical Rod | ED7800 x 0557 |
| 4065U | UCH645 | 3 Hour Concealed Vertical Rod | ED7800A x O557 |
| Qty | Series/Function | Trim | Finish | Hand | Option |
|---|---|---|---|---|---|
| 100 | ED6400 | L255 | 626 | LHR | M65 |
SERIES/FUNCTION NUMBERS
| Corbin | Russwin | Description | Corbin Russwin |
|---|---|---|---|
| 3726 | 736 | Rim | ED6200 |
| 3726NT | NT736 | Rim | ED6200 |
| 3727 | 737 | Rim | ED6200 |
| 3729 | 736-1/4 | Rim | ED6200 |
| 7729U | U936 | 3 Hour Rim | ED6200A |
| 7729-1/4 U | U935 | 3 Hour Rim | ED6257A |
| 3112-73 | 700-73 | Vertical Rod | ED6410 (w/ option M65) |
| 3114-73 | 790-73 | Vertical Rod | ED6410 (w/ option M65) |
| 3120-73 | H792-73 | Vertical Rod | ED6410 |
| 3120EO-73 | H709-73 | Vertical Rod | ED6400 |
| 3121-73 | 791-73 | Vertical Rod | ED6457 |
| 3122-73 | 792-73 | Vertical Rod | ED6410 (w/ option M65) |
| 3122EO-73 | 709-73 | Vertical Rod | ED6400 (w/ option M65) |
| 3125-73 | H798-73 | Vertical Rod | ED6410 |
| 3128-73 | 798-73 | Vertical Rod | ED6410 (w/ option M65) |
| 3144-73 | H704-73 | Vertical Rod | ED6458 |
| 3145-73 | H708-73 | Vertical Rod | ED6410 |
| 3147-73 | 704-73 | Vertical Rod | ED6458 |
| 3148-73 | 708-73 | Vertical Rod | ED6410 (w/ option M65) |
| 3149-73 | 701-73 | Vertical Rod | ED6457 |
| 3154-73 | H794-73 | Vertical Rod | ED6458 |
| 3157-73 | 794-73 | Vertical Rod | ED6458 |
| 3210U-73 | U770-73 | 3 Hour Vertical Rod | ED6410A |
| 3220EOU-73 | U789-73 | 3 Hour Vertical Rod | ED6400A |
| 3225U-73 | U788-73 | 3 Hour Vertical Rod | ED6410A |
| 3245U-73 | U778-73 | 3 Hour Vertical Rod | ED6410A |
SERIES NUMBERS
| Corbin | Russwin | Description | Corbin Russwin |
|---|---|---|---|
| 3129 | 799A | Mortise | ED6600 |
| 3126 | 796 | Mortise | ED6600 |
| 3126NT | NT796 | Mortise | ED6600 |
| 3127 | 797 | Mortise | ED6600 |
| 3129U | U799A | 3 Hour Mortise | ED6600A |
| 3126U | U796 | 3 Hour Mortise | ED6600A |
| 3126NTU | UNT796 | 3 Hour Mortise | ED6600A |
| 3127U | U797 | 3 Hour Mortise | ED6600A |
| 3062 | CH742 | Concealed Vertical Rod | ED6800 |
| 3062U | UCH742 | 3 Hour Concealed Vertical Rod | ED6800A |
| 3068A | CH748A | Concealed Vertical Rod | ED6800 (w/ trim O155) |
| 3068G | CH748G | Concealed Vertical Rod | ED6800 (w/ trim O255) |
| 3068K | CH748K | Concealed Vertical Rod | ED6800 (w/ trim B555) |
| 3063A | CH743A | Concealed Vertical Rod | ED6800 (w/ trim O156) |
| 3063G | CH743G | Concealed Vertical Rod | ED6800 (w/ trim O256) |
| 3010K | CH744K | Concealed Vertical Rod | ED6800 (w/ trim B510) |
| 3061A | CH741A | Concealed Vertical Rod | ED6800 (w/ trim O157) |
| 3061G | CH741G | Concealed Vertical Rod | ED6800 (w/ trim O257) |
| 3061K | CH741K | Concealed Vertical Rod | ED6800 (w/ trim B557) |
| 3062A | CH742A | Concealed Vertical Rod | ED6800 (w/ trim O150) |
| 3062G | CH742G | Concealed Vertical Rod | ED6800 (w/ trim O250) |
| 3062K | CH742K | Concealed Vertical Rod | ED6800 (w/ trim B550) |
| 3068AU | UCH748A | 3 Hour Concealed Vertical Rod | ED6800A (with trim O155) |
| 3068GU | UCH748G | 3 Hour Concealed Vertical Rod | ED6800A (w/ trim O255) |
| 3068KU | UCH748K | 3 Hour Concealed Vertical Rod | ED6800A (w/ trim B555) |
| 3010KU | UCH744K | 3 Hour Concealed Vertical Rod | ED6800A (w/ trim B510) |
| 3061AU | UCH741A | 3 Hour Concealed Vertical Rod | ED6800A (w/ trim O157) |
| 3061GU | UCH741G | 3 Hour Concealed Vertical Rod | ED6800A (w/ trim O257) |
| 3061KU | UCH741K | 3 Hour Concealed Vertical Rod | ED6800A (w/ trim B557) |
| 3062AU | UCH742A | 3 Hour Concealed Vertical Rod | ED6800A (w/ trim O150) |
| 3062GU | UCH742G | 3 Hour Concealed Vertical Rod | ED6800A (w/ trim O250) |
| 3062KU | UCH742K | 3 Hour Concealed Vertical Rod | ED6800A (w/ trim B550) |
| Qty | Series/Function | Trim | Finish | Hand | Option |
|---|---|---|---|---|---|
| 100 | ED6200 | A355 | 626 | LHR | M53 |
| Corbin | Russwin | Corbin Russwin | |
|---|---|---|---|
| 037D x 975L | Armstrong x D888L | A350 | |
| 37B x 975L | Armstrong x B888L | A310 | |
| 37 x 975L | Armstrong x 888L | A355 | |
| 037DU x 975L | Armstrong x DU888L | A450 | |
| 37UB x 975L | Armstrong x UB888L | A410 | |
| 37U x 975L | Armstrong x U888L | A455 | |
| 037D x 975L | Armstrong x DU888LN | A4M50 | |
| 037MB x 975L | Armstrong x B888LN | A4M10 | |
| 037M x 975L | Armstrong x 888LN | A4M55 | |
| 037D x 765L | Citation x D888L | C250 | |
| 37B x 765L | Citation x B888L | C210 | |
| 37 x 765L | Citation x 888L | C255 | |
| 037DU x 765L | Citation x DU888L | C350 | |
| 37UB x 765L | Citation x UB888L | C310 | |
| 37U x 765L | Citation x U888L | C355 | |
| 037D x 765L | Citationx DU888LN | C3M50 | |
| 037MB x 765L | Citation x B888LN | C3M10 | |
| 037M x 765L | Citation x 888LN | C3M55 |
| Corbin | Russwin | Corbin Russwin |
|---|---|---|
| 76568L | 423C Citation | C455 |
| 76561L | 423A Citation | C457 |
| 75DL x 765L | 426DL Citation | C4M50 |
| 75NCL x 765L | 426NCL Citation | C4M10 |
| 75L x 765L | 426L Citation | C4M55 |
| 037D x 760L | Dirke x D888L | D250 |
| 37B x 760L | Dirke x B888L | D210 |
| 37 x 760L | Dirke x 888L | D255 |
| 037DU x 760L | Dirke x DU888L | D350 |
| 37UB x 760L | Dirke x UB888L | D310 |
| 37U x 760L | Dirke x U888L | D355 |
| 037D x 760L | Dirke x DU888LN | D3M50 |
| 037MB x 760L | Dirke x B888LN | D3M10 |
| 037M x 760L | Dirke x 888LN | D3M55 |
| 76068L | 423C Dirke | D455 |
| 76061L | 423A Dirke | D457 |
| 037D x 766L | Tornay x D888L | E250 |
| 37B x 766L | Tornay x B888L | E210 |
| 37 x 766L | Tornay x 888L | E255 |
| 037DU x 766L | Tornay x DU888L | E350 |
| 37UB x 766L | Tornay x UB888L | E310 |
| 37U x 766L | Tornay x U888L | E355 |
| Corbin | Russwin | Corbin Russwin |
|---|---|---|
| 037D x766L | Tornay x DU888LN | E3M50 |
| 037MB x 766L | Tornay x B888LN | E3M10 |
| 037M x 766L | Tornay x 888LN | E3M55 |
| 76668L | 423C Tornay | E455 |
| 76661L | 423A Tornay | E457 |
| 75DL x 766L | 426DL x Tornay | E4M50 |
| 75NCL x 766L | 426DL x Tornay | E4M10 |
| 75L x 766L | 426L x Tornay | E4M55 |
| 037D x 779L | Lustra x D888L | L250 |
| 37B x 779L | Lustra x B888L | L210 |
| 37 x 779L | Lustra x 888L | L255 |
| 037DU x 779L | Lustra x DU888L | L350 |
| 37UB x 779L | Lustra x UB888L | L310 |
| 37U x 779L | Lustra x U888L | L355 |
| 037D x 779L | Lustra x DU888LN | L3M50 |
| 037MB x 779L | Lustra x B888LN | L3M10 |
| 037M x 779L | Lustra x 888LN | L3M55 |
| 037D x 977L | Newport x D888L | N350 |
| 37B x 977L | Newport x B888L | N310 |
| 37 x 977L | Newport x 888L | N355 |
| 037DU x 977L | Newport x DU888L | N450 |
| 37UB x 977L | Newport x UB888L | N410 |
| 37U x 977L | Newport x U888L | N455 |
| Corbin | Russwin | Corbin Russwin |
|---|---|---|
| 037D x 977L | Newport x DU888LN | N4M50 |
| 037MB x 977L | Newport x B888LN | N4M10 |
| 037M x 977L | Newport x 888LN | N4M55 |
| 037D x 771L | Regis x D888L | R250 |
| 37B x 771L | Regis x B888L | R210 |
| 37 x 771L | Regis x 888L | R255 |
| 037DU x 771L | Regis x DU888L | R350 |
| 37UB x 771L | Regis x UB888L | R310 |
| 37U x 771L | Regis x U888L | R355 |
| 037DU x 771L | Regis x DU888LN | R3M50 |
| 037MB x 771L | Regis x B888LN | R3M10 |
| 037M x 771L | Regis x 888LN | R3M55 |
| 027D x 865 | Belmont x D778N | B350 |
| 27B x 865 | Belmont x B777 | B310 |
| 27 x 865 | Belmont x 777 | B355 |
| 027DU x 865 | Belmont x DU777 | B450 |
| 27UB x 865 | Belmont x BU777 | B410 |
| 27U x 865 | Belmont x U777 | B455 |
| 27UR x 865 | Belmont x UR777 | B457 |
| 027D x 865 | Belmont x D778N | B4M50 |
| 027MB x 865 | Belmont x B778N | B4M10 |
| 27M x 865 | Belmont x 778N | B4M55 |
| 3062K x 865 | Belmont x CH742K | B550 |
| 3010K x 865 | Belmont x CH744K | B510 |
| 3068K x 865 | Belmont x CH748K | B555 |
| 3061 x 865 | Belmont x CH741K | B557 |
| Corbin | Russwin | Corbin Russwin | |
|---|---|---|---|
| 75DK x 865 | 425DK Belmont | B5M50 | |
| 75NCK x 865 | 425NCK Belmont | B5M10 | |
| 75K x 865 | 425K Belmont | B5M55 | |
| 027D x 863 | Ashford x D778N | G450 | |
| 27B x 863 | Ashford x B777 | G410 | |
| 27 x 863 | Ashford x 777 | G455 | |
| 027DU x 863 | Ashford x DU777 | G550 | |
| 27UB x 863 | Ashford x BU777 | G510 | |
| 27U x 863 | Ashford x U777 | G555 | |
| 27UR x 863 | Ashford x UR777 | G557 | |
| 027D x 863 | Ashford x D778N | G5M50 | |
| 027MB x 863 | Ashford x B778N | G5M10 | |
| 027M x 863 | Ashford x 778N | G5M55 | |
| 3062K x 863 | Ashford x CH742K | G650 | |
| 3010K x 863 | Ashford x CH744K | G610 | |
| 3068K x 863 | Ashford x CH748K | G655 | |
| 3061K x 863 | Ashford x CH741K | G657 | |
| 75DK x 863 | 425DK Ashford | G6M50 | |
| 75NCK x 863 | 425NCK Ashford | G6M10 | |
| 75K x 863 | 425K Ashford | G6M55 |
| Corbin | Russwin | Corbin Russwin | |
|---|---|---|---|
| 70A-DNT | DNT 8416 Rockford | T350 | |
| 70A-NC | NC 8415 Rockford | T310 | |
| 70A | 8415 Rockford | T355 | |
| 70A-NT | NT 8415 Rockford | T357 | |
| 70AU-DNT | DNTU 8416 Rockford | T750 | |
| 70AU-NC | NCU 8415 Rockford | T710 | |
| 70AU | U8415 Rockford | T755 | |
| 70AU-NT | NTU 8415 Rockford | T757 | |
| 70A-DNT | DNT 8416 Rockford | T7M50 | |
| 70MA-NC | NC 8416 Rockford | T7M10 | |
| 70MA | 8416 Rockford | T7M55 | |
| 70MA-NT | NT 8416 Rockford | T7M57 | |
| 34A-DNT | DNT 8426 Ronde | T550 | |
| 34A-NC | NC 8425 Ronde | T510 | |
| 34A | 8425 Ronde | T555 | |
| 34A-NT | NT 8425 Ronde | T557 | |
| 34AU-DNT | DNT 8426 Ronde | T950 | |
| 34AU-NC | NCU 8425 Ronde | T910 | |
| 34AU | U8425 Ronde | T955 | |
| 34AU-NT | NTU 8425 Ronde | T957 |
THUMBPIECE TRIM DESIGNATION
| Corbin | Russwin | Corbin Russwin |
|---|---|---|
| 34A-DNT | DNT 8426 Ronde | T9M50 |
| 34MA-NC | NC 8426 Ronde | T9M10 |
| 34MA | U8426 Ronde | T9M55 |
| 34MA-NT | NT8426 Ronde | T9M57 |
| 75DNTA | DNT 4318 Modera | T11M50 |
| 75NCA | NC 4318 Modera | T11M10 |
| 75A | 4318 Modera | T11M55 |
| 75NTA | NT 4318 Modera | T11M57 |
| 70G-DNT | DNT 7416 Rockford | T450 |
| 70G-NC | NC 7415 Rockford | T410 |
| 70G | 7415 Rockford | T455 |
| 70G-NT | NT 7415 Rockford | T457 |
| 70GU-DNT | DNTU 7416 Rockford | T850 |
| 70GU-NC | NCU 7415 Rockford | T810 |
| 70GU | U7415 Rockford | T855 |
| 70GU-NT | NTU 7415 Rockford | T857 |
| 70G-DNT | DNT 7416 Rockford | T8M50 |
| 70MG-NC | NC 7416 Rockford | T8M10 |
| 70MG | 7416 Rockford | T8M55 |
| 70MG-NT | NT 7416 Rockford | T8M57 |
THUMBPIECE TRIM DESIGNATION
| Corbin | Russwin | Corbin Russwin |
|---|---|---|
| 34G-DNT | DNT 7426 Ronde | T650 |
| 34G-NC | NC 7425 Ronde | T610 |
| 34G | 7425 Ronde | T655 |
| 34G-NT | NT 7425 Ronde | T657 |
| 34GU-DNT | DNT 7426 Ronde | T1050 |
| 34GU-NC | NCU 7425 Ronde | T1010 |
| 34GU | U7425 Ronde | T1055 |
| 34GU-NT | NTU 7425 Ronde | T1057 |
| 34G-DNT | DNT 7426 Ronde | T10M50 |
| 34MG-NC | NC 7426 Ronde | T10M10 |
| 34MG | 7426 Ronde | T10M55 |
| 34MG-NT | NT 7426 Ronde | T10M57 |
| 75DNTG | DNT 4317 Modera | T12M50 |
| 75NCG | NC 4317 Modera | T12M10 |
| 75G | 4317 Modera | T12M55 |
| 75NTG | NT 4317 Modera | T12M57 |
OPERATOR TRIM DESIGNATION
| Corbin | Russwin | Corbin Russwin | |
|---|---|---|---|
| 3062A | CH742A | O150 | |
| 3068A | CH748A | O155 | |
| 3063A | CH743A | O156 | |
| 3061A | CH741A | O157 | |
| 68PA | 428A Phillip | O355 | |
| 63PA | 428B Phillip | O356 | |
| 61PA | 428C Phillip | O357 | |
| 3062G | CH742G | O250 | |
| 3068G | CH748G | O255 | |
| 3063G | CH743G | O256 | |
| 3061G | CH741G | O257 | |
| 68PO | 422A Phillip | O455 | |
| 63PO | 422B Phillip | O456 | |
| 61PO | 422C Phillip | O457 |
PULL OR OPERATOR TRIM DESIGNATION
| Corbin | Russwin | Corbin Russwin |
|---|---|---|
| 47DNTA | DNT 4218 Rockford | P450 |
| 47NTA | NT 4218 Rockford | P457 |
| 47DNTG | DNT 4217 Rockford | P550 |
| 47NTG | NT 4217 Rockford | P557 |
| 49DNT | DNT 422 Rockford | P650 |
| 49NT | NT 422 Rockford | P657 |
| 48 | 917 Rockford | P757 |
| 406F44 | 406F85 | O557 |
| Qty | Series/Function | Trim | Finish | Hand | Option | Voltage |
|---|---|---|---|---|---|---|
| 100 | ED66901 | L3M57 | 626 | LHR | M50 | 24D |
SERIES/FUNCTION NUMBERS
| Corbin | Russwin | Description | Corbin Russwin |
|---|---|---|---|
| 3126UTL | TLU796 | Electro-mechanical Mortise | ED66901 |
| 3126UT | TU796 | Electro-mechanical Mortise | ED66902 |
| 3127UTL | TLU797 | Electro-mechanical Mortise | ED66903 |
| 3127UT | TU797 | Electro-mechanical Mortise | ED66904 |
MULLIONS
ORDERING CONFIGURATION
| Qty | Number | Finish |
|---|---|---|
| 100 | 508 | 690 |
| Corbin | Russwin | Description | Corbin Russwin |
|---|---|---|---|
| U0569 | U0569 | 7'2" Fire Rated Removable Mullion | 507 |
| U0570 | U0570 | 8' Fire Rated Removable Mullion | 508 |
| 0570 | 0750 | 10' Removable Mullion | 510 |
Numbering Scheme Overview for all Cylinders Sold Separately
1000-118-A01-6-L4
| Mortise | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| C |
linder Type
(10) |
Ν | Mechanism (0) |
Function
(0) |
ngth
18) |
Cam
(A01) |
Pins
(6) |
Keyway
(L4) |
|||
| 10 |
Standard
Mortise |
0* | Standard | 0* | Standard | 100 | 1" | A01* |
#11
Cloverleaf |
5 | |
| 11 |
Flex Head
Mortise |
1 | High Security | 1 | Hotel | 118* | 1-1/8" | A02 | #1 Straight | 6* | |
| 12 |
Concealed
Shell Mortise |
6 | Master Ring | 2 | Blockout | 114 | 1-1/4" | A03 | A: Adams Rite | 7 | |
| 13 |
Thumbturn
Mortise |
7 | IC Housing | 3 | Classroom | 138 | 1-3/8" | A04 |
J: DL4000
Series |
||
| 14 |
Dummy
Mortise |
8 |
IC Complete
Cylinder |
4 | Brink CW | 112 | 1-1/2" | A05 |
B: Adam Rite
4070 |
||
| 20 | Knob/Lever | 9 |
IC High Security
Cylinder |
5 |
Bring
CCW |
200 | 2" | A61 |
New MR
Cloverleaf |
||
| 21 |
Continental
Knob |
6 | Exit Device | 214 | 2-1/4" | A62 | #1A Straight | ||||
| 22 |
Competitor
Knob |
212 | 2-1/2" | A63 |
1MR Master
Ring |
||||||
| 30 | Rim | 234 | 2-3/4" | A64 |
2MR
MasterRing |
||||||
| 40 |
Special
Application |
300 | 3" | A65 |
Old MR
Cloverleaf |
||||||
| 80 | I-Core Only | 314 | 3-1/4" | A91 |
Exit Grip O1,
O2 |
||||||
| 312 | 3-1/2" | A93 | C | ||||||||
| 334 | 3-3/4" | ||||||||||
| Rin | ו | ||||||||||
| Rim Ta | ail Piece | Rim Ta | ail Piece | ||||||||
| 058 | 5/8" | Horizo | ntal (std) | ||||||||
| 114 | 1-1/4" | V | Vertical | ||||||||
| 138 | 1-3/8" | ||||||||||
| 178* | 1-7/8" | ||||||||||
| 200* | 2" | ||||||||||
| 318 | 3-1/8" | ||||||||||
| 312 | 3-1/2" | ||||||||||
* Asterisk designates default
Numbering Scheme Overview for all Cylinders Sold Separately
|
or Russwin
Russwin 0 1000-100-A02-5 0A 1000-100-A03-5 0B 1000-100-A05-5 MR0 1060-100-A62-5 0-1/2 1000-118-A02 0-1/2A 1000-118-A03 0-1/2B 1000-118-A05 0-1/2C 1000-118-A93 0-1/2FE 1006-118-A02 0-1/2J 1000-118-A04 D 0-1/2 1400-118 MR 0-1/2 1060-118-A62 T 0-1/2C 1300-118-A94 TP 0-1/2C 1303-118-A94 W 0-1/2 1010-118-A02 W 0-1/2A 1010-118-A03 W 0-1/2B 1010-118-A05 W 0-1/2C 1010-118-A93 W 0-1/2J 1010-118-A04 1 1000-114-A02 1 7P 1000-114-A02-7 1A 1000-114-A03 1A 79 1000-114-A03-7 1B 1000-114-A05 1B 7P 1000-114-A05-7 1C 1000-114-A93 1C 7P 1000-114-A93-7 1J 1000-114-A04 1J 7P 1000-114-A04-7 D 1 1400-114 MR 1 1060-114-A62 T 1C 1300-114-A94 TP 1C 1303-114-A94 W 1 1010-114-A02 W 1BO 1012-114-A02 W 1A 1010-114-A03 W 1A-BO 1012-114-A03 W 1B 1010-114-A05 |
Old Corbin | Corbin |
|---|---|---|
| Old Corbin | Corbin |
|---|---|
| or Russwin | Russwin |
| W 1B-BO | 1012-114-A05 |
| W 1C | 1010-114-A93 |
| W 1C-BO | 1012-114-A93 |
| W 1J-BO | 1012-114-A04 |
| W 1R-BO | 3012-178 |
| W 1RT-BO | 3012-178V |
| 1-1/2 | 1000-138-A02 |
| 1-1/2 7P | 1000-138-A02-7 |
| 1-1/2A | 1000-138-A03 |
| 1-1/2A 7P | 1000-138-A03-7 |
| 1-1/2B | 1000-138-A05 |
| 1-1/2B 7P | 1000-138-A05-7 |
| 1-1/2C | 1000-138-A93 |
| 1-1/2C 7P | 1000-138-A93-7 |
| 1-1/2J | 1000-138-A04 |
| 1-1/2J 7P | 1000-138-A04-7 |
| D 1-1/2 | 1400-138 |
| MR 1-1/2 | 1060-138-A62 |
| T 1-1/2C | 1300-138-A93 |
| TP 1-1/2C | 1303-138-A93 |
| W 1-1/2 | 1010-138-A02 |
| W 1-1/2A | 1010-138-A03 |
| W 1-1/2C | 1010-138-A93 |
| 2 | 1000-112-A02 |
| 2 7P | 1000-112-A02-7 |
| 2A | 1000-112-A03 |
| 2A TP | 1000-112-A03-7 |
| 2B | 1000-112-A05 |
| 2B 7P | 1000-112-A05-7 |
| 2J | 1000-112-A04 |
| 2J 7P | 1000-112-A04-7 |
| MR 2 | 1060-112-A62 |
| W 2 | 1010-112-A02 |
| 3 | 1000-134-A02 |
| 3 7P | 1000-134-A02-7 |
| 3A | 1000-134-A03 |
| 3A 7P | 1000-134-A03-7 |
| 3B | 1000-134-A05 |
|
or Russwin
Russwin 3B 7P 1000-134-A05-7 3J 1000-134-A04 3J 7P 1000-134-A04-7 MR 3 1060-134-A62 W 3 1010-134-A02 4 1000-200-A02 4 7P 1000-200-A02-7 4A 1000-200-A03 4A 7P 1000-200-A03-7 4B 1000-200-A05 4B 7P 1000-200-A05-7 4J 1000-200-A04 4J 7P 1000-200-A04-7 MR 4 1060-200-A62 W 4 1060-200-A02 5 1000-214-A02 5 7P 1000-214-A02-7 5A 1000-214-A03 5A 7P 1000-214-A03-7 5B 1000-214-A05 5B 7P 1000-214-A05-7 MR 5 1060-214-A62 W 5 1010-214-A02 6 1000-212-A02 6 7P 1000-212-A02-7 6A 1000-212-A03 6A 7P 1000-212-A03-7 6B 1000-212-A05 6B 7P 1000-212-A05-7 MR 6 1060-212-A62 W 6 1010-212-A02 13 1000-234-A02 13 7P 1000-234-A02-7 13A 1000-234-A03 13A 7P 1000-234-A03-7 13B 1000-234-A05 |
Old Corbin | Corbin |
|---|---|---|
|
13B 7P
1000-234-A05-7 |
||
|
MR 13
1060-234-A62 |
| Old Corbin | Corbin |
|---|---|
| or Russwin | Russwin |
| W 13 | 1010-234-A02 |
| 14 | 1000-300-A02 |
| 14 7P | 1000-300-A02-7 |
| 14A | 1000-300-A03 |
| 14A 7P | 1000-300-A03-7 |
| 14B | 1000-300-A05 |
| 14B 7P | 1000-300-A05-7 |
| MR 14 | 1060-300-A62 |
| 15 | 1000-314-A02 |
| 15A | 1000-314-A03 |
| 15B | 1000-314-A05 |
| 16 | 1000-312-A02 |
| 16A | 1000-312-A03 |
| 16B | 1000-312-A05 |
| 17 | 1000-334-A02 |
| 17A | 1000-334-A03 |
| 17B | 1000-334-A05 |
| 20 | 1060-100-A63-5 |
| 20 T | 1060-100-A64-5 |
| 20-1/2 | 1060-118-A63 |
| 20-1/2C | discontinued |
| 20-1/2T | 1060-118-A64 |
| 21 | 1060-114-A63 |
| 21C | discontinued |
| 21T | 1060-114-A64 |
| 21-1/2 | 1060-138-A63 |
| 21-1/2C | discontinued |
| 21-1/2T | 1060-138-A64 |
| 22 | 1060-112-A63 |
| 22C | discontinued |
| 22T | 1060-112-A64 |
| 23 | 1060-134-A63 |
| 23T | 1060-134-A64 |
| 24 | 1060-200-A63 |
| 24T | 1060-200-A64 |
| 25 | 1060-214-A63 |
| 25T | 1060-214-A64 |
| 26 | 1060-212-A63 |
| Russwin | |
|---|---|
| or Russwin | |
| 26T | 1060-212-A64 |
| 29 | 1060-234-A63 |
| 29T | 1060-234-A64 |
| WK48 | 2010-052 |
| WK51 | 2011-042 |
| 52 1-1/8" | 1400-118 |
| 52 1-1/4" | 1400-114 |
| 52 1-3/8" | 1400-138 |
| 53 1-1/8" | 1000-118-A93 |
| 53 1-1/4" | 1000-114-A93 |
| 53 1-1/4" 7P | 1000-114-A93-7 |
| 53 1-3/8" | 1000-138-A93 |
| 53 1-3/8" 7P | 1000-138-A93-7 |
| 53-1/2 1-1/8" | discontinued |
| 53-1/2 1-1/4" | discontinued |
| 53-1/2 1-3/8" | discontinued |
| 53-1/2 1-1/2" | discontinued |
| 63 1-1/8" | 1000-118-A93 |
| 63 1-1/4" | 1000-114-A93 |
| 63 1-1/4" 7P | 1000-114-A93-7 |
| 63 1-3/8" | 1000-138-A93 |
| 63 1-3/8" 7P | 1000-138-A93-7 |
| W 63 1-1/8" | 1010-118-A93 |
| W 63 1-1/4" | 1010-114-A93 |
| W63 1-3/8" | 1010-183-A93 |
| 63-1/2 1-1/8" | discontinued |
| 63-1/2 1-1/4" | discontinued |
| 63-1/2 1-3/8" | discontinued |
| 63-1/2 1-1/2" | discontinued |
| 67 1-1/8" | 1303-118-A93 |
| 67 1-1/4" | 1303-114-A93 |
| 67 1-3/8" | 1303-138-A93 |
| 69 1-1/8" | 1300-118-A93 |
| 69 1-1/4" | 1300-114-A93 |
| 69 1-3/8" | 1300-138-A93 |
| 70 | discontinued |
| 70-1/2 | discontinued |
| 71 | discontinued |
|
71-1/2
discontinued 83 1-1/4" 1080-114-A93 83 1-3/8" 1080-138-A93 83 1-1/2" 1080-112-A93 83 1-1/2" 7P 1080-112-A93-7 W 83 1-1/4" 1090-114-A93 W 83 1-3/8" 1090-138-A93 W 83 1-1/2" 1090-112-A93 W 93 1-1/4" 1012-114-A93 100 1200-100-A02 100-1/2 1200-118-A02 101 1200-114-A02 101 7P 1200-114-A02-7 101-1/2 1200-138-A02 101-1/2 7P 1200-138-A02-7 102 1200-112-A02 102 7P 1200-112-A02-7 110 1000-100-A01-5 MR 110 1060-100-A65-5 110-1/2 1000-118-A01 MR 110-1/2 1060-118-A65 W 110-1/2 1010-118-A01 111 1000-114-A01 111 7P 1000-114-A01-7 111 HM 1001-114-A01 111 HMP 1201-114-A01 MR 111 1060-114-A65 W 111 1010-114-A01 W 111BO 1012-114-A01 W 111HM 1011-114-A01 111-1/2 1000-138-A01 111-1/2 7P 1000-138-A01-7 MR 111-1/2 1060-138-A65 W 111-1/2 1010-138-A01 112 1000-112-A01 112 7P 1000-112-A01-7 MR 1-1/2" 1060-112-A65 W 1-1/2" 1010-112-A01 |
Old Corbin | Corbin |
|---|---|---|
| or Russwin | Russwin | |
|
Old Corbin
or Russwin |
Corbin
Russwin |
|---|---|
| 113 | 1000-134-A01 |
| 113 7P | 1000-134-A01-7 |
| MR113 | 1060-134-A65 |
| 114 | 1000-200-A01 |
| 114 7P | 1000-200-A01-7 |
| MR 1-1/4" | 1060-200-A65 |
| 115 | 1000-214-A01 |
| 115 7P | 1000-214-A01-7 |
| MR 115 | 1060-214-A65 |
| 116 | 1000-212-A01 |
| 116 7P | 1000-212-A01-7 |
| MR 116 | 1060-212-A65 |
| 195-0 | 1300-100-A02 |
| 195-0-1/2 | 1300-118-A02 |
| 195-1 | 1300-114-A02 |
| 211 | 3000-200 |
| 211 7P | 3000-200-7 |
| 211 T | 3000-200V |
| 211 T 7P | 3000-200V-7 |
| 211-1/2 | 3060-200 |
| 211-1/2T | 3060-200-V |
| 253 1" | 1000-100-A02-5 |
| 253 1-1/8" | 100-118-A02 |
| 253 1-1/4" | 1000-114-A02 |
| 253 1-1/4" 7P | 1000-114-A02-7 |
| 253 1-3/8" | 1000-138-A02 |
| 253 1-3/8" 7P | 1000-138-A02-7 |
| 253 1-1/2" | 1000-112-A02 |
| 253 1-1/2" 7P | 1000-112-A02-7 |
| 253 1-3/4" | 1000-134-A02 |
| 253 1-3/4" 7P | 1000-134-A02-7 |
| 253 2" | 1000-200-A02 |
| 253 2" 7P | 1000-200-A02-7 |
| 253C2-1/4" | 1000-214-A02 |
| 253 2-1/2" | 1000-212-A02 |
| 253 2-3/4" | 1000-234-A02 |
| 253 3" | 1000-300-A02 |
| 253 A 1" | 1000-100-A03-5 |
|
Old Corbin
or Russwin |
Corbin
Russwin |
|---|---|
| 253 A 1-1/8" | 1000-118-A03 |
| 253 A 1-1/4" | 1000-114-A03 |
| 253 A 1-1/4" 7P | 1000-114-A03-7 |
| 253 A 1-3/8" | 1000-138-A03 |
| 253 A 1-3/8" 7P | 1000-138-A03-7 |
| 253 A 1-1/2" | 1000-112-A03 |
| 253 A 1-1/2" 7P | 1000-112-A03-7 |
| 253 A 1-3/4" | 1000-134-A03 |
| 253 A 1-3/4" 7P | 1000-134-A03-7 |
| 253 A 2" | 1000-200-A03 |
| 253 A 2" 7P | 1000-200-A03-7 |
| 253 A 2-1/4" | 1000-214-A03 |
| 253 A 2-1/2" | 1000-212-A03 |
| 253 A 2-3/4" | 1000-234-A03 |
| 253 A 3" | 1000-300-A03 |
| 253 B 1" | 1000-100-A05-5 |
| 253 B 1-1/8" | 1000-118-A05 |
| 253 B 1-1/4" | 1000-114-A05 |
| 253 B 1-1/4" 7P | 1000-114-A05-7 |
| 253 B 1-3/8" | 1000-138-A05 |
| 253 B 1-3/8" 7P | 1000-138-A05-7 |
| 253 B 1-1/2" | 1000-112-A05 |
| 253 B 1-1/2" 7P | 1000-112-A05-7 |
| 253 B 1-3/4" | 1000-134-A05 |
| 253 B 1-3/4" 7P | 1000-134-A05-7 |
| 253 B 2" | 1000-200-A05 |
| 253 B 2" 7P | 1000-200-A05-7 |
| 253 B 2-1/4" | 1000-214-A05 |
| 253 B 2-1/2" | 1000-212-A05 |
| 253 B 2-3/4" | 1000-234-A05 |
| 253 B 3" | 1000-300-A05 |
| 253 FE | 1006-118-A02 |
| 253-1/4 1" | 1000-100-A01-5 |
| 253-1/4 1-1/8" | 1000-118-A01 |
| 253-1/4 1-1/4" | 1000-114-A01 |
| 253-1/4 1-1/4" 7P | 1000-114-A01-7 |
| 253-1/4 1-3/8" | 1000-138-A01 |
| 253-1/4 1-3/8" 7P | 1000-138-A01-7 |
| Old Corbin | Corbin |
|---|---|
| or Russwin | Russwin |
| 253-1/4 1-1/2" | 1000-112-A01 |
| 253-1/4 1-1/2" 7P | 1000-112-A01-7 |
| 253-1/4 1-3/4" | 1000-134-A01 |
| 253-1/4 1-3/4" 7P | 1000-134-A01-7 |
| 253-1/4 2" | 1000-200-A01 |
| 253-1/4 2" 7P | 1000-200-A01-7 |
| 253-1/4 2-1/4" | 1000-214-A01 |
| 253-1/4 2-1/2" | 1000-212-A01 |
| 253-1/4 2-3/4" | 1000-234-A01 |
| 253-1/4 3" | 1000-200-A01 |
| 253-1/4H | 1001-114-A01 |
| 253-1/2 1" | 1060-100-A63-5 |
| 253-1/2 1" x 1A | 1060-100-A62-5 |
| 253-1/2 1" x 11A | 1060-100-A62-5 |
| 253-1/2 1-1/8" | 1060-118-A63 |
| 253-1/2 1-1/8" x 1A | 1060-118-A62 |
| 253-1/2 1-1/8" x 11A | 1060-118-A65 |
| 253-1/2 1-1/4" | 1060-114-A63 |
| 253-1/2 1-1/4" x 1A | 1060-114-A62 |
| 253-1/2 1-1/4" x 11A | 1060-114-A65 |
| 253-1/2 1-3/8" | 1060-138-A63 |
| 253-1/2 1-3/8" x 1A | 1060-138-A62 |
| 253-1/2 1-3/8" x 11A | 1060-138-A65 |
| 253-1/2 1-1/2" | 1060-112-A63 |
| 253-1/2 1-1/2" x 1A | 1060-112-A62 |
| 253-1/2 1-1/2" x 11A | 1060-112-A65 |
| 253-1/2 1-3/4" | 1060-134-A63 |
| 253-1/2 1-3/4" x 1A | 1060-134-A62 |
| 253-1/2 1-3/4" x 11A | 1060-134-A65 |
| 253-1/2 2" | 1060-200-A63 |
| 253-1/2 2" x 1A | 1060-200-A62 |
| 253-1/2 2" x 11A | 1060-200-A65 |
| 253-1/2 2-1/4" | 1060-214-A63 |
| 253-1/2 2-1/4" x 1A | 1060-214-A62 |
| 253-1/2 2-1/4" x 11A | 1060-214-A65 |
| 253-1/2 2-1/2" | 1060-212-A63 |
| 253-1/2 2-1/2" x 1A | 1060-212-A62 |
| 253-1/2 2-1/2" x 11A | 1060-212-A65 |
|
Old Corbin
or Russwin |
Corbin
Russwin |
|---|---|
| 253-1/2 2-3/4" | 1060-234-A63 |
| 253-1/2 2-3/4" x 1A | 1060-234-A62 |
| 253-1/2 2-3/4" x 11A | 1060-234-A65 |
| 253-1/2 3" | 1060-300-A63 |
| 253-1/2 3" x 1A | 1060-300-A62 |
| 253-1/2 3" x 11A | 1060-300-A65 |
| 263 1-1/8" | 1000-118-A04 |
| 263-1/2 1" | 1060-100-A64-5 |
| 263-1/2 1-1/8" | 1060-118-A64 |
| 263-1/2 1-1/4" | 1060-114-A64 |
| 263-1/2 1-3/8" | 1060-138-A64 |
| 263-1/2 1-1/2" | 1060-112-A64 |
| 263-1/2 1-3/4" | 1060-134-A64 |
| 263-1/2 2" | 1060-200-A64 |
| 263-1/2 2-1/4" | 1060-214-A64 |
| 263-1/2 2-1/2" | 1060-212-A64 |
| 263-1/2 2-3/4" | 1060-234-A64 |
| 263-1/2 3" | 1060-300-A64 |
| 264 1" | 1300-100-A02 |
| 264 1-1/8" | 1300-118-A02 |
| 264 1-1/4" | 1300-114-A02 |
| 264-1/4 1" | discontinued |
| 264-1/4 1-1/8" | discontinued |
| 264-1/4 1-1/4" | discontinued |
| 281 | 3080-178 |
| 281 7P | 3080-178-7 |
| 283 1-1/4" | 1080-114-A02 |
| 283 1-3/8" | 1080-138-A02 |
| 283 1-1/2" | 1080-112-A02 |
| 283 1-1/2" 7P | 1080-112-A02-7 |
| 283 1-3/4" | 1080-134-A02 |
| 283 1-3/4" 7P | 1080-134-A02-7 |
| 283 A 1-1/4" | 1080-114-A03 |
| 283 A 1-3/8" | 1080-138-A03 |
| 283 A 1-1/2" | 1080-112-A03 |
| 283 A 1-1/2" 7P | 1080-112-A03-7 |
| 283 A 1-3/4" | 1080-134-A03 |
| 283 A 1-3/4" 7P | 1080-134-A03-7 |
|
Old Corbin
or Russwin |
Corbin
Russwin |
|---|---|
| 283 B 1-1/4" | 1080-114-A05 |
| 283 B 1-3/8" | 1080-138-A05 |
| 283 B 1-1/2" | 1080-112-A05 |
| 283 B 1-1/2" 7P | 1080-112-A05-7 |
| 283 B 1-3/4" | 1080-134-A05 |
| 283 B 1-3/4" 7P | 1080-134-A05-7 |
| 283 J 1-1/4" | 1080-114-A04 |
| 283 J 1-3/8" | 1080-138-A04 |
| 283 J 1-1/2" | 1080-112-A04 |
| 283 J 1-1/2" 7P | 1080-112-A04-7 |
| 283 J 1-3/4" | 1080-134-A04 |
| 283 J 1-3/4" 7P | 1080-134-A04-7 |
| P283 | 8000 |
| P283 7P | 8000-7 |
| P283HC | 8001-042 |
| 283-1/4 1-1/4" | 1080-114-A01 |
| 283-1/4 1-3/8" | 1080-138-A01 |
| 283-1/4 1-1/2" | 1080-112-A01 |
| 283-1/4 1-1/2" 7P | 1080-112-A01-7 |
| 283-1/4 1-3/4" | 1080-134-A01 |
| 283-1/4 1-3/4" 7P | 1080-134-A01-7 |
| 283-1/4 H | 10801-138-A01 |
| 460-1/2FH | 2061-052 |
| 460-1/2R | 2060-052 |
| 471AR | 4200-002-A47 |
| 571AR | 4200-002-A47 |
| 800 | 8000 |
| 800 7P | 8000-7 |
| 800HC | 8001-042 |
| W 800 | 8010 |
| W 800H | 8011-042 |
| AR 848 | 4200-002-A47 |
| ARH 848 | 4200-003-A47 |
| 1113 | 1000-234-A01 |
| 1113 7P | 1000-234-A01-7 |
| MR1113 | 1060-234-A65 |
| 1114 | 1000-300-A01 |
| 1114 7P | 1000-300-A01-7 |
|
Old Corbin
Corbin or Russwin Russwin MR1114 1060-300-A65 1191 3000-200 1191T 3000-200V 1195-0 discontinued 1195-0-1/2 discontinued 1195-1 discontinued 1291 3000-200 1291 7P 3000-200-7 1291T 3000-200V 1291T 7P 3000-200V-7 W1291 3010-200 W1291T 3010-200V 2291 3060-200 2291T 3060-200V 2471AR 4200-003-A47 2571AR 4200-003-A47 S-4542 3000-A38-5 S-4542 x S4748 3000-A39-5 5211 3000-200 5211 7P 3000-200-7 5211T 3000-200V 5211T 7P 3000-200V-7 W5211 3010-200 W5211T 3010-200V 5211 1/2 3060-200 |
|---|
|
5211 1/2T
3060-200V |
|
5253 1"
1000-100-A02-5 |
|
5253 1-1/8"
1000-118-A02 |
|
5253 1-1/4"
1000-114-A02 |
|
5253 1-1/4" 7P
1000-114-A02-7 |
|
5253 1-3/8"
1000-138-A02 |
|
5253 1-3/8" 7P
1000-138-A02-7 |
|
5253 1-1/2"
1000-112-A02 |
|
5253 1-1/2" 7P
1000-112-A02-7 |
|
5253 1-3/4"
1000-134-A02 |
|
5253 1-3/4" 7P
1000-134-A02-7 |
|
5253 2"
1000-200-A02 |
|
5253 2" 7P
1000-200-A02-7 |
| Corbin |
|---|
| Russwin |
| 1000-214-A02 |
| 1000-214-A02-7 |
| 1000-212-A02 |
| 1000-212-A02-7 |
| 1000-234-A02 |
| 1000-234-A02-7 |
| 1000-300-A02 |
| 1000-300-A02-7 |
| 1000-314-A02 |
| 1000-312-A02 |
| 1000-334-A02 |
| 1000-100-A03-5 |
| 1000-118-A03 |
| 1000-114-A03 |
| 1000-114-A03-7 |
| 1000-138-A03 |
| 1000-138-A03-7 |
| 1000-112-A03 |
| 1000-112-A03-7 |
| 1000-134-A03 |
| 1000-134-A03-7 |
| 1000-200-A03 |
| 1000-200-A03-7 |
| 1000-214-A03 |
| 1000-214-A03-7 |
| 1000-212-A03 |
| 1000-212-A03-7 |
| 1000-234-A03 |
| 1000-234-A03-7 |
| 1000-300-A03 |
| 1000-300-A03-7 |
| 1000-314-A03 |
| 1000-312-A03 |
| 1000-334-A03 |
| 1000-100-A05-5 |
| 1000-118-A05 |
| 1000-114-A05 |
| 1000-114-A05-7 |
|
or Russwin
Russwin 5253 B 1-3/8" 1000-138-A05 5253 B 1-3/8" 7P 1000-138-A05-7 5253 B 1-1/2" 1000-112-A05 5253 B 1-1/2" 7P 1000-112-A05-7 5253 B 1-3/4" 1000-134-A05 5253 B 1-3/4" 7P 1000-134-A05-7 5253 B 2" 1000-200-A05 5253 B 2" 7P 1000-200-A05-7 5253 B 2-1/4" 1000-214-A05 5253 B 2-1/4" 7P 1000-214-A05-7 5253 B 2-1/2" 1000-212-A05 5253 B 2-1/2" 7P 1000-212-A05-7 5253 B 2-3/4" 1000-234-A05 5253 B 2-3/4" 7P 1000-234-A05-7 5253 B 3" 1000-300-A05 5253 B 3" 7P 1000-300-A05-7 5253 B 3-1/4" 1000-314-A05 5253 B 3-1/2" 1000-312-A05 5253 B 3-3/4" 1000-334-A05 5253 FE 1006-118-A02 5253 P 1-1/8" 1200-118-A02 5253 P 1-1/4" 1200-114-A02 5253 P 1-1/4" 7P 1200-114-A02-7 W5253 1-1/8" 1010-118-A02 W5253 1-1/4" 1010-114-A02 W5253 1-3/8" 1010-138-A02 W5253 1-1/2" 1010-112-A02 W5253 1-3/4" 1010-134-A02 W5253 2" 1010-200-A02 W5253 2-1/4" 1010-214-A02 W5253 2-1/2" 1010-212-A02 W5253 2-3/4" 1010-234-A02 W5253 A 1-1/8" 1010-118-A03 W5253 A 1-1/4" 1010-114-A03 W5253 A 1-3/8" 1010-138-A03 |
Old Corbin | Corbin |
|---|---|---|
| W5253 B 1-1/8" | 1010-118-A05 | |
|
W5253 B 1-1/4"
1010-114-A05 |
||
|
W5253 J 1-1/8"
1010-118-A04 |
| Old Corbin | Corbin |
|---|---|
| or Russwin | Russwin |
| 5253-1/4 1" | 1000-100-A01-5 |
| 5253-1/4 1-1/8" | 1000-118-A01 |
| 5253-1/4 1-1/4" | 1000-114-A01 |
| 5253-1/4 1-1/4" 7P | 1000-114-A01-7 |
| 5253-1/4 1-3/8" | 1000-138-A01 |
| 5253-1/4 1-3/8" 7P | 1000-138-A01-7 |
| 5253-1/4 1-1/2" | 1000-112-A01 |
| 5253-1/4 1-1/2" 7P | 1000-112-A01-7 |
| 5253-1/4 1-3/4" | 1000-134-A01 |
| 5253-1/4 1-3/4" 7P | 1000-134-A01-7 |
| 5253-1/4 2" | 1000-200-A01 |
| 5253-1/4 2" 7P | 1000-200-A01-7 |
| 5253-1/4 2-1/4" | 1000-214-A01 |
| 5253-1/4 2-1/4" 7P | 1000-214-A01-7 |
| 5253-1/4 2-1/2" | 1000-212-A01 |
| 5253-1/4 2-1/2" 7P | 1000-212-A01-7 |
| 5253-1/4 2-3/4" | 1000-234-A01 |
| 5253-1/4 2-3/4" 7P | 1000-234-A01-7 |
| 5253-1/4 3" | 1000-300-A01 |
| 5253-1/4 3" 7P | 1000-300-A01-7 |
| 5253-1/4H | 1001-114-A01 |
| 5253-1/4HP | 1201-114-A01 |
| 5253-1/4P 1-1/4" | 1200-114-A01 |
| 5253-1/4P 1-1/4" 7P | 1200-114-A01-7 |
| 5253-1/4P 1-1/8" | 1200-118-A01 |
| W5253-1/4 1-1/8" | 1010-118-A01 |
| W5253-1/4 1-1/4" | 1010-114-A01 |
| W5253-1/4 1-3/8" | 1010-138-A01 |
| W5253-1/4 1-1/2" | 1010-112-A01 |
| W5253-1/4H | 1011-114-A01 |
| 5253-1/2 1" | 1060-100-A63-5 |
| 5253-1/2 1" x 1A | 1060-100-A62-5 |
| 5253-1/2 1" x 11A | 1060-100-A65-5 |
| 5253-1/2 1-1/8" | 1060-118-A63 |
| 5253-1/2 1-1/8" x 1A | 1060-118-A62 |
| 5253-1/2 1-1/8" x 11A | 1060-118-A65 |
| 5253-1/2 1-1/4" | 1060-114-A63 |
| 5253-1/2 1-1/4" x 1A | 1060-114-A62 |
|
Old Corbin
Corbin or Russwin Russwin 5253-1/2 1-1/4" x 11A 1060-114-A65 5253-1/2 1-3/8" 1060-138-A63 5253-1/2 1-3/8" x 1A 1060-138-A62 5253-1/2 1-3/8" x 11A 1060-138-A65 5253-1/2 1-1/2" 1060-112-A63 5253-1/2 1-1/2" x 1A 1060-112-A62 5253-1/2 1-1/2" x 11A 1060-112-A65 5253-1/2 1-3/4" 1060-134-A63 5253-1/2 1-3/4" x 1A 1060-134-A62 |
|---|
|
5253-1/2 1-3/4" x 11A
1060-134-A65 |
|
5253-1/2 2"
1060-200-A63 |
|
5253-1/2 2" x 1A
1060-200-A62 |
|
5253-1/2 2" x 11A
1060-200-A65 |
|
5253-1/2 2-1/4"
1060-214-A63 |
|
5253-1/2 2-1/4" x 1A
1060-214-A62 |
|
5253-1/2 2-1/4" x 11A
1060-214-A65 |
|
5253-1/2 2-1/2"
1060-212-A63 |
|
5253-1/2 2-1/2" x 1A
1060-212-A62 |
|
5253-1/2 2-1/2" x 11A
1060-212-A65 |
|
5253-1/2 2-3/4"
1060-234-A63 |
|
5253-1/2 2-3/4" x 1A
1060-234-A62 |
|
5253-1/2 2-3/4" x 11A
1060-234-A65 |
|
5253-1/2 3"
1060-300-A63 |
|
5253-1/2 3" x 1A
1060-300-A62 |
|
5253-1/2 3" x 11A
1060-300-A65 |
|
5263 1-1/8"
1000-118-A04 |
|
5263 1-1/4"
1000-114-A04 |
|
5263 1-1/4" 7P
1000-114-A04-7 |
|
5263 1-3/8"
1000-138-A04 |
|
5263 1-3/8" 7P
1000-138-A04-7 |
|
5263 1-1/2"
1000-112-A04 |
|
5263 1-1/2" 7P
1000-112-A04-7 |
|
5263 1-3/4"
1000-134-A04 |
|
5263 1-3/4" 7P
1000-134-A04-7 |
|
5263 2"
1000-200-A04 |
|
5263 2" 7P
1000-200-A04-7 |
|
5263 2-1/4"
1000-214-A04 |
|
5263 2-1/4" 7P
1000-214-A04-7 |
| Old Corbin | Corbin |
|---|---|
| or Russwin | Russwin |
| 5263 2-1/2" | 1000-212-A04 |
| 5263 2-1/2" 7P | 1000-212-A04-7 |
| 5263 2-3/4" | 1000-234-A04 |
| 5263 2-3/4" 7P | 1000-234-A04-7 |
| 5263 3" | 1000-300-A04 |
| 5263 3" 7P | 1000-300-A04-7 |
| 5263-1/2 1" | 1060-100-A64-5 |
| 5263-1/2 1-1/8" | 1060-118-A64 |
| 5263-1/2 1-1/4" | 1060-114-A64 |
| 5263-1/2 1-3/8" | 1060-138-A64 |
| 5263-1/2 1-1/2" | 1060-112-A64 |
| 5263-1/2 1-3/4" | 1060-134-A64 |
| 5263-1/2 2" | 1060-200-A64 |
| 5263-1/2 2-1/4" | 1060-214-A64 |
| 5263-1/2 2-1/2" | 1060-212-A64 |
| 5263-1/2 2-3/4" | 1060-234-A64 |
| 5263-1/2-300 | 1060-300-A64 |
| 5281 | 3080-178 |
| 5281 7P | 3080-178-7 |
| W5281 | 3090-178 |
| 5283 1-1/4" | 1080-114-A02 |
| 5283 1-3/8" | 1080-138-A02 |
| 5283 1-1/2" | 1080-112-A02 |
| 5283 1-1/2" 7P | 1080-112-A02-7 |
| 5283 1-3/4" | 1080-134-A02 |
| 5283 1-3/4" 7P | 1080-134-A02-7 |
| 5283 A 1-1/4" | 1080-114-A03 |
| 5283 A 1-3/8" | 1080-138-A03 |
| 5283 A 1-1/2" | 1080-112-A03 |
| 5283 A 1-1/2" 7P | 1080-112-A03-7 |
| 5283 A 1-3/4" | 1080-134-A03 |
| 5283 A 1-3/4" 7P | 1080-134-A03-7 |
| 5283 B 1-1/4" | 1080-114-A05 |
| 5283 B 1-3/8" | 1080-138-A05 |
| 5283 B 1-1/2" | 1080-112-A05 |
| 5283 B 1-1/2" 7P | 1080-112-A05-7 |
| 5283 B 1-3/4" | 1080-134-A05 |
| 5283 B 1-3/4" 7P | 1080-134-A05-7 |
|
Corbin
Russwin |
|---|
| 1080-114-A04 |
| 1080-138-A04 |
| 1080-112-A04 |
| 1080-112-A04-7 |
| 1080-134-A04 |
| 1080-134-A04-7 |
| 8000 |
| 8000-7 |
| 8001-042 |
| 1090-114-A02 |
| 1090-138-A02 |
| 1090-112-A02 |
| 1090-134-A02 |
| 1090-114-A03 |
| 1090-138-A03 |
| 1090-112-A03 |
| 1090-134-A03 |
| 1090-114-A05 |
| 1090-138-A05 |
| 1090-112-A05 |
| 1090-134-A05 |
| 1090-114-A04 |
| 1090-138-A04 |
| 1090-112-A04 |
| 1090-134-A04 |
| 8010 |
| 8011-042 |
| 1080-114-A01 |
| 1080-138-A01 |
| 1080-112-A01 |
| 1080-112-A01-7 |
| 1080-134-A01 |
| 1080-134-A01-7 |
| 1081-138-A01 |
| 1090-114-A01 |
| 1090-138-A01 |
| 1090-112-A01 |
| 1090-134-A01 |
| Old Corbin | Corbin |
|---|---|
| or Russwin | Russwin |
| 5283-1/4H | 1091-138-A01 |
| W5291 | 3012-178 |
| W5291T | 3012-178V |
| W5293 | 1012-114-A02 |
| W5293 A | 1012-114-A03 |
| W5293 B | 1012-114-A05 |
| W5293 J | 1012-114-A04 |
| W5293-1/4" | 1012-114-A01 |
| 5353 1" | 1100-100-A02 |
| 5353 1-1/8" | 1100-118-A02 |
| 5353 1-1/8" 7P | 1100-118-A02-7 |
| 5353 1-1/4" | 1100-114-A02 |
| 5353 1-1/4" 7P | 1100-114-A02-7 |
| 5353-1/4 1" | 1100-100-A01 |
| 5353-1/4 1-1/8" | 1100-118-A01 |
| 5353-1/4 1-1/8" 7P | 1100-118-A01-7 |
| 5353-1/4 1-1/4" | 1100-114-A01 |
| 5353-1/4 1-1/4" 7P | 1100-114-A01-7 |
| 5353-1/4H | 1101-118-A01 |
| 5353-1/2 1" | 1160-100-A63 |
| 5353-1/2 1" x 1A | 1160-100-A62 |
| 5353-1/2 1" x 11A | 1160-100-A65 |
| 5353-1/2 1-1/8" | 1160-118-A63 |
| 5353-1/2 1-1/8" x 1A | 1160-118-A62 |
| 5353-1/2 1-1/8" x 11A | 1160-118-A65 |
| 5353-1/2 1-1/4" | 1160-114-A63 |
| 5353-1/2 1-1/4" x 1A | 1160-114-A62 |
| 5353-1/2 1-1/4" x 11A | 1160-114-A65 |
| 5460 R | 2000-052 |
| 5460 T | 2100-052 |
| W5460FH | 2011-052 |
| W5460R | 2010-052 |
| 5460-1/2FH | 2061-042 |
| 5460-1/2R | 2060-052 |
| 5460-1/2T | 2160-052 |
| 5811 | discontinued |
| 7110 | discontinued |
| 7100 1/2 | discontinued |
|
Old Corbin
Corbin or Russwin Russwin 7111 discontinued 7111 1/2 discontinued 7191 discontinued 8253 1" discontinued 8253 1-1/4" discontinued 8253 1-1/8" discontinued 8253 1-3/8" discontinued |
|---|
|
8253-1/4 1"
discontinued |
|
8253-1/4 1-1/8"
discontinued |
|
8253-1/4 1-1/4"
discontinued |
|
8253-1/4 1-3/8"
discontinued |
|
8291
3080-178 |
|
8291 7p
3080-178-7 |
|
w8291
3090-178 |
|
11100
1200-100-A01 |
|
11100-1/2
1200-118-A01 |
|
11101
1200-114-A01 |
|
11101-1/2
1200-138-A01 |
|
11102
1200-112-A01 |
|
S-18397 1"
1160W-100-A63 |
|
S-18397 1-1/8"
1160W-118-A63 |
|
26400-4
discontinued |
|
26400-5
discontinued |
|
56400-3
2001-051 |
|
56400-4
discontinued |
|
56400-5
discontinued |
|
61001
1100-100-A02 |
|
MR61001
1160-100-A62 |
|
61002
1100-100-A01 |
|
MR61001
1160-100-A65 |
|
MR61003
1160-100-A63 |
|
61141
1100-114-A02 |
|
MR61141
1160-114-A62 |
|
61142
1100-114-A01 |
|
MR61142
1160-114-A65 |
|
MK61143
1160-114-A63 |
|
61181
1100-118-A02 |
|
MR61181
1160-118-A62 |
| Old Corbin | Corbin |
|---|---|
| or Russwin | Russwin |
| 61182 | 1100-118-A01 |
| 61182HM | 1101-118-A01 |
| MR61182 | 1160-118-A65 |
| MR61183 | 1160-118-A63 |
| 71141 | 1100-114-A02-7 |
| 71142 | 1100-114-A01-7 |
| 71181 | 1100-118-A02-7 |
| 71182 | 1100-118-A01-7 |
| 81121 | 1080-112-A02 |
| 81121 7P | 1080-112-A02-7 |
| 81121C 7P | 1080-112-A93-7 |
| 81121A | 1080-112-A03 |
| 81121A 7P | 1080-112-A03-7 |
| 81121B | 1080-112-A05 |
| 81121B 7P | 1080-112-A05-7 |
| 81121C | 1080-112-A93 |
| 81121J | 1080-112-A04 |
| 81121J 7P | 1080-112-A04-7 |
| W81121 | 1090-112-A02 |
| W81121A | 1090-112-A03 |
| W81121B | 1090-11-A05 |
| W81121C | 1090-11-A93 |
| W81121J | 1090-11-A04 |
| 81122 | 1080-112-A01 |
| 81122 7P | 1080-112-A01-7 |
| W81122 | 1090-112-A01 |
| 81141 | 1080-114-A02 |
| 81141A | 1080-114-A03 |
| 81141B | 1080-114-A05 |
| 81141C | 1080-114-A93 |
| 81141J | 1080-114-A04 |
| W81141 | 1090-114-A02 |
| W81141A | 1090-114-A03 |
| W81141B | 1090-114-A05 |
| W81141C | 1090-114-A93 |
| W81141J | 1090-114-A04 |
| 81142 | 1080-114-A01 |
| W81142 | 1090-114-A01 |
| Old Corbin | Corbin |
|---|---|
| or Russwin | Russwin |
| 81341 | 1080-134-A02 |
| 81341 7P | 1080-134-A02-7 |
| 81341A | 1080-134-A03 |
| 81341A 7P | 1080-134-A03-7 |
| 81341B | 1080-134-A05 |
| 81341B 7P | 1080-134-A05-7 |
| 81341J | 1080-134-A04 |
| 81341J 7P | 1080-134-A04-7 |
| W81341 | 1090-134-A02 |
| W81341A | 1090-134-A03 |
| W81341B | 1090-134-A05 |
| W81341J | 1090-134-A04 |
| 81342 | 1080-134-A01 |
| 81342 7P | 1080-134-A01-7 |
| W81342 | 1090-134-A01 |
| 81381 | 1080-138-A02 |
| 81381A | 1080-138-A03 |
| 81381B | 1080-138-A05 |
| 81381C | 1080-138-A93 |
| 81381J | 1080-138-A04 |
| W81381 | 1090-138-A02 |
| W81381A | 1090-138-A03 |
| W81381B | 1090-138-A05 |
| W81381C | 1090-138-A93 |
| W81381J | 1090-138-A04 |
| 81382 | 1080-138-A01 |
| 81382HM | 1081-138-A01 |
| W81382 | 1090-138-A01 |
| W81382HM | 1091-138-A01 |
| 144K15 | 2060-052 |
| 144F16 | 2000-052 |
| 186K78 | 2001-051 |
| 195K69 | 4266-001-A02 |
| 195K70 | 4266-001-A02 |
| 245K39 | 2160-052 |
| 245K40 | 2100-052 |
| 334F16 | 1070-114-A02 |
| 334F17 | 1070-112-A02 |
|
Old Corbin
or Russwin |
Corbin
Russwin |
|---|---|
| 334F18 | 1070-114-A01 |
| 334F19 | 1070-112-A01 |
| 334F24 | 3070-178 |
| 353F88 | 1071-138-A01 |
| 35410 | 1070-138-A02 |
| 35411 | 1070-138-A01 |
| 364FF07 | 1070-114-A05 |
| 364FF08 | 1070-112-A05 |
| 364FF09 | 1070-138-A05 |
| 364FF10 | 1070-114-A03 |
| 364FF11 | 1070-112-A03 |
| 364FF12 | 1070-138-A03 |
| 364FF13 | 1070-114-A93 |
| 364FF14 | 1070-112-A93 |
| 364FF15 | 1070-138-A93 |
| 374K38 | 2061-052 |
| 399K19 | 1000-118-A91 |
| 399K20 | 1000-114-A91-7 |
| 399K46 | 4266-001-A92 |
| 399K47 | 4266-001-A92 |
| 404K60 | 1000-118-A91 |
| 404K61 | 1000-114-A91-7 |
| 406K51 | discontinued |
| 406K52 | discontinued |
| 416F16 | 3070-178-7 |
| 416F17 | 1070-112-A02-7 |
| 416F18 | 1070-112-A01-7 |
| 416F19 | 1070-112-A05-7 |
| 416F20 | 1070-112-A03-7 |
| 416F21 | 1070-112-A93-7 |
| 416K72 | discontinued |
| 416K73 | discontinued |
| 416K74 | discontinued |
| 423F50 | 1070-114-A04 |
| 427W52 | 1010-118-A04 |
| 427W53 | 1010-118-A04 |
| 445K00 | 2200-054 |
| 445K01 | 2200-001-A21 |
|
Old Corbin
or Russwin |
Corbin
Russwin |
|---|---|
| 445K02 | 2200-002-A21 |
| 445K03 | 2200-003-A24 |
| 445K04 | 2200-008 |
| 445W05 | 2210-054 |
| 445W06 | 2210-001-A21 |
| 445W07 | 2210-002-A21 |
| 445W08 | 2210-003-A24 |
| 445W09 | 2210-008 |
| 446W92 | 1090-114-A04 |
| 47W11 | 1090-114-A04 |
| 461K11 | 2200-002-A22 |
| 464K99 | 1004-118-A02 |
| 467F38 | 1300-118-A03 |
| 467F39 | 1300-114-A03 |
| 467F40 | 1300-138-A03 |
| 467F41 | 1303-118-A03 |
| 467F42 | 1303-114-A03 |
| 467F43 | 1303-138-A03 |
| 481W20 | 1014-118-A02 |
| 481W21 | 1014-118-A02 |
| 481W29 | 1015-118-A02 |
| 481W30 | 1015-118-A02 |
| 489K05 | 2000-052 |
| 489K06 | 2000-052 |
| 489K09 | 2000-051 |
| 489K10 | 2000-051 |
| 489K11 | 2001-042 |
| 489K12 | 2001-042 |
| 489K13 | 2000-052 |
| 489K15 | 2000-051 |
| 489K16 | 2001-042 |
| 489K51 | 2001-051 |
| 490K57 | 3000-138 |
| 490K59 | 3000-138 |
| 497F50 | 1070-134-A02 |
| 497F51 | 1070-134-A02-7 |
| 497F76 | 1070-134-A01 |
| 497F77 | 1070-134-A01-7 |
| Old Corbin | Corbin |
|---|---|
| or Russwin | Russwin |
| 519K52 | use 3000-138 |
| 519K54 | use 3000-138 |
| 520K36 | 2200-002-A23 |
| 522W70 | 4210-001-A42 |
| 522W71 | 4210-001-A43 |
| 522W72 | 4210-001-A45 |
| 522W73 | 4210-001-A46 |
| 522W74 | 4210-001-A41 |
| 522W75 | 4210-001-A44 |
| 522K78 | 4200-001-A42 |
| 522K79 | 4200-001-A43 |
| 522K80 | 4200-001-A45 |
| 522K81 | 4200-001-A46 |
| 522K82 | 4200-001-A41 |
| 522K83 | 4200-001-A44 |
| 522K85 | 4200-001-A42 |
| 522K86 | 4200-001-A43 |
| 522K87 | 4200-001-A45 |
| 522K88 | 4200-001-A46 |
| 522K89 | 4200-001-A41 |
| 522K90 | 4200-001-A44 |
| 523K22 | 2200-076 |
| 526K68 | use 2000-051 |
| 526K69 | use 2000-051 |
| 556W57 | 2010-051 |
| 556W58 | 2010-051 |
| 559K96 | 1004-118-A02 |
| 559K97 | 1005-118-A02 |
| 559K98 | 1005-118-A02 |
| 560K24 | 1004-118-A02 |
| 560K25 | 1005-118-A02 |
| 561K70 | 4200-001-A42 |
| 561K71 | 4200-001-A43 |
| 561K72 | 4200-001-A45 |
| 561K73 | 4200-001-A46 |
| 561K74 | 4200-001-A41 |
| 561K75 | 4200-001-A44 |
| 561W90 | 4210-001-A42 |
| Corbin |
|---|
| Russwin |
| 4210-001-A43 |
| 4210-001-A45 |
| 4210-001-A46 |
| 4210-001-A41 |
| 4210-001-A44 |
| 2001-044 |
| 2003-044 |
| 2000-044 |
| 2001-044 |
| 2003-044 |
| 2000-044 |
| 2001-044 |
| 2001-066 |
| 2003-044 |
| 2000-044 |
| 2000-034 |
| 2000-034-7 |
| 2001-034 |
| 2001-034-7 |
| 2010-034 |
| 1070-112-A04-7 |
| 1080-112-A04-7 |
| 1080-112-A04-7 |
| 2000-034 |
| 2000-034 |
| 2000-034-7 |
| 2000-034-7 |
| 2001-034 |
| 2001-034 |
| 2001-034-7 |
| 2001-034-7 |
| 2010-034 |
| 8001-034 |
| 8001-034 |
| 8001-034 |
| 8001-034-7 |
| 8001-034-7 |
| 8001-034-7 |
| Qty | Series/Application/Size | Arm | Finish | Hand | Options |
|---|---|---|---|---|---|
| 100 | DC2416 | A1 | 689 | RH | M54-M73 |
SERIES NUMBERS
| Corbin | Russwin | Description | Corbin Russwin |
|---|---|---|---|
| 120 | 2820 | Door Closer | DC2200 |
| 110 | 2810 | Door Closer | DC2400 |
| 100 | 2800 | Door Closer | DC2600 |
| 390E | R9120 | Door Closer | DC3200 |
| 290E | R9100 | Door Closer | DC3600 |
| 190E | R9000 | Door Closer | DC4600 (with option M88) |
| 90 | 90 | Door Closer | DC4600 |
ELECTROMECHANICAL DOOR CLOSERS
ORDERING CONFIGURATION
| Qty | Series/Application/Size | Arm | Finish | Hand | Options |
|---|---|---|---|---|---|
| 100 | DC26900 | A1 | 689 | RH | M54-M73 |
SERIES/FUNCTION NUMBERS
| Corbin | Russwin | Description | Corbin Russwin |
|---|---|---|---|
| 200 | 2900 | Electromechanical Door Closer | DC26900 |
| 2200 | 2200 | Electromechanical Door Closer | DC46920 |
| 2300 | 2300 | Electromechanical Door Closer | DC46930 |
| Qty | Series/Application/Size | Arm | Finish | Hand | Options |
|---|---|---|---|---|---|
| 100 | DH5401 | 626 | D214 | W35 | M88 |
SERIES NUMBERS
| Corbin | Russwin | Description | Corbin Russwin |
|---|---|---|---|
| 865 | 1650 | Surface - Three Way, Bronze | DH5201 |
| 1865 | ST1650 | Surface - Three Way, Steel | DH5201S |
| 765 | 1660 | Surface - Free Acting, Bronze | DH5202 |
| 1765 | ST1660 | Surface - Free Acting, Steel | DH5202S |
| 775 | 1670 | Surface - Non-Hold-Open, Bronze | DH5203 |
| 1775 | ST1670 | Surface - Non-Hold-Open, Steel | DH5203S |
| 1550 | 1550 | Surface - Positive Grip | DH4501 |
| 1555 | 1555 | Surface - Door Stay | DH4502 |
| 810 | 520 | Surface - Adjustable | DH5600 |
ELECTROMAGNETIC DOOR RELEASES
ORDERING CONFIGURATION
| Qty | Number | Finish |
|---|---|---|
| 100 | DH57903 | 690 |
| Corbin | Russwin | Description | Corbin Russwin |
|---|---|---|---|
| MA201 | MA201 | Electromagnetic Door Release | DH57901 |
| MA203 | MA203 | Electromagnetic Door Release | DH57903 |
| MA204 | MA204 | Electromagnetic Door Release | DH57904 |
| MA241 | MA241 | Electromagnetic Door Release | DH57941 |
| MA243 | MA243 | Electromagnetic Door Release | DH57943 |
| MA244 | MA244 | Electromagnetic Door Release | DH57944 |
| Qty | Series/Function | Trim | Finish | Hand | Options |
|---|---|---|---|---|---|
| 100 | ML2255 | LSM | 626 | LH | D214 |
FINISH NUMBERS
| Description | |||||||
|---|---|---|---|---|---|---|---|
| US3 | Polished Brass | BHMA 605 | |||||
| US4 | Satin Brass | BHMA 606 | |||||
| US9 | Polished Bronze | BHMA 611 | |||||
| US10 | Satin Bronze | BHMA 612 | |||||
| US10B | Oil Rubbed Bronze | BHMA613 | |||||
| US10BE |
Dark Oxidized Satin Bronze -
equivalent |
BHMA613E | |||||
| US14 | Bright Nickel (matches US32) | BHMA 618 | |||||
| US15 | Satin Nickel (matches US32D) | BHMA 619 | |||||
| US19 | Flat Black Coated | BHMA 622 | |||||
| US26 | Polished Chrome | BHMA 625 | |||||
| US26D | Satin Chrome | BHMA 626 | |||||
| US32 | Polished Stainless Steel | BHMA 629 | |||||
| US32D | Satin Stainless Stel | BHMA 630 | |||||
| USP | Primed for Painting | BHMA 600 | |||||
| SBL | Silver Aluminum Lacquer | BHMA 689 | |||||
| LBL | Dark Bronze Lacquer | BHMA 690 | |||||
| DBL | Dull Bronze Lacquer | BHMA 691 | |||||
| FBL | Flat Black Lacquer | BHMA 693 | |||||
| GBL | Gold Brass Lacquer | BHMA 696 | |||||
In U.S.
Corbin Russwin Architectural Hardware 225 Episcopal Road Berlin, CT 06037 Phone: 800-543-3658 Fax: 800-447-6714 corbinrusswin.com
In Canada
ASSA ABLOY Door Security Solutions Canada 160 Four Valley Drive Vaughan, Ontario Canada L4K 4T9 Phone: 800-461-3007 Fax: 905-738-2478
www.assaabloy.ca
For more information regarding Corbin Russwin Locksets, Exit Devices, Door Controls and Key Systems, contact your authorized Corbin Russwin Distributor or Sales Representative.
Corbin Russwin and Design® is a registered trademark of Corbin Russwin, Inc, an ASSA ABLOY Group company. Other products' brand names may be trademarks or registered trademarks of their respective owners and are mentioned for reference purposes only. These materials are protected under US copyright laws. All contents current at time of publication. Corbin Russwin, Inc., an ASSA ABLOY Group company reserves the right to change availability of any item in this catalog, its design, construction, and/ or its materials. Copyright © 2013 Corbin Russwin, Inc., an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Corbin Russwin, Inc. is prohibited.
