Corbin Russwin CLX3300 Series Cylindrical Locks All Functions and Trims (except Dummy Trim and M16 Latch 3, 4) …_T31253

Notes:

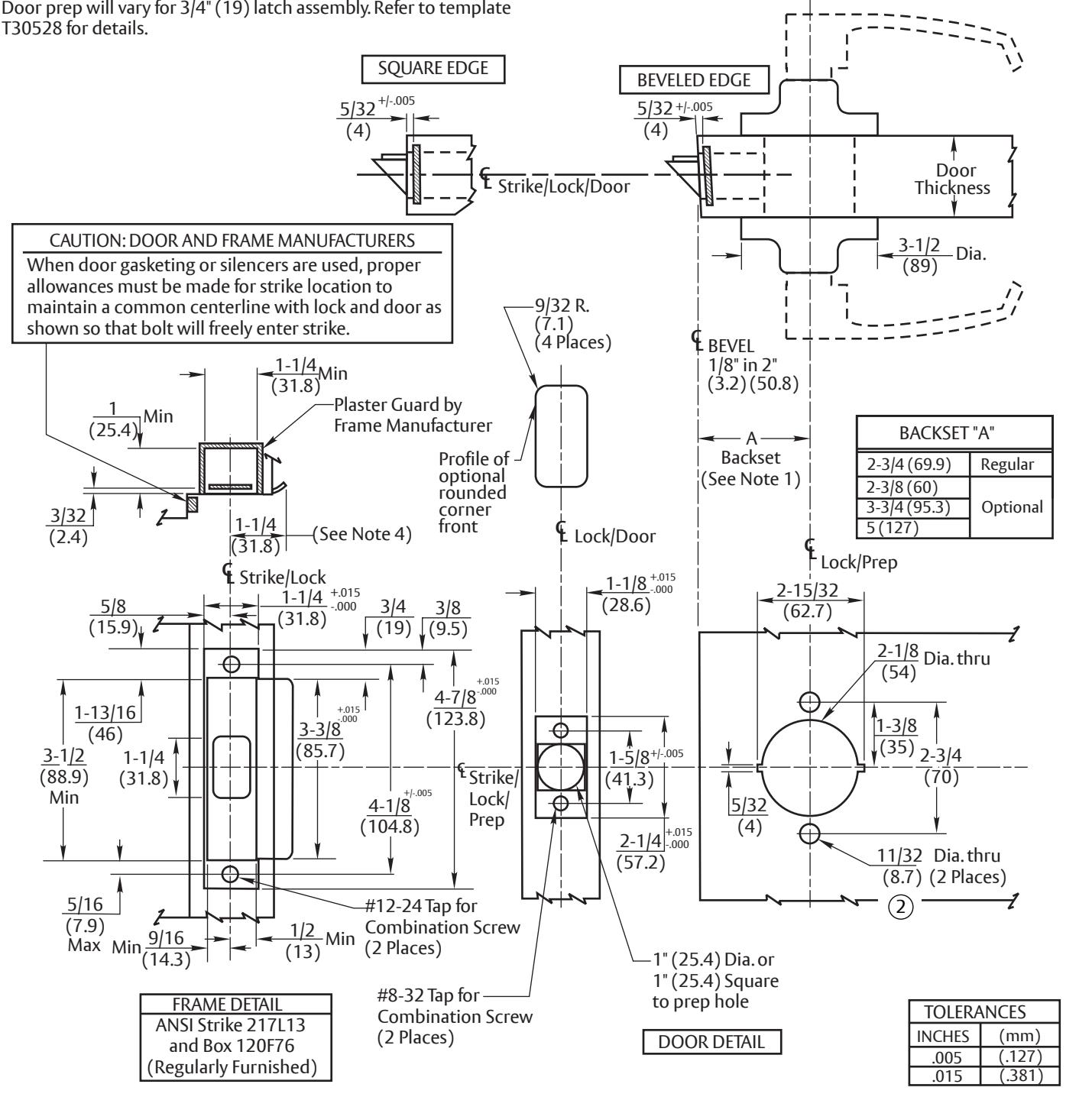

• 1. Backset is measured from centerline of bevel which is centerpoint of door thickness.
• 2. Door prep with 2-3/4" (69.9) backset meets ANSI/BHMA A156.115 for steel doors and A156.115W for wood doors plus through bolt holes shown.
• 3. Dimensions given in inches and (mm).
• 4. 1-1/4" strike lip suits frame for 1-3/4" thick door. Lip will vary for other door thicknesses.

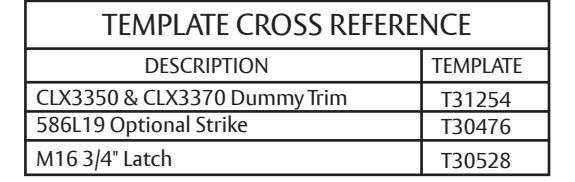

• 5. Door prep will vary for 3/4" (19) latch assembly. Refer to template

RESPONSIBILITY

DOOR AND FRAME MANUFACTURERS ARE RESPONSIBLE FOR PROVIDING ADEQUATE CONSTRUCTION OR REINFORCEMENTS FOR PROPER INSTALLATION OF HARDWARE SHOWN ALL ARCHITECTURAL BUILDERS HARDWARE MUST BE INSTALLED ON PROPERLY REINFORCED DOORS AND FRAMES, REGARDLESS OF TYPE, MATERIAL, OR METHOD OF CONSTRUCTION.

CLX3300 Series Cylindrical Lever Lockset

All Functions and Trims Except Dummy Trim, and M16 latch (3/4")

ASSA ABLOY

DO NOT SCALE DRAWING T31253-1 12/22 T31253 1 of 1
