Corbin Russwin CL3750 Series Template_T30634

Notes:

• Backset is measured from centerline of bevel which is centerpoint of door thickness.
• 2. Dimensions given in inches and (mm).

Template Cross Reference
Description	Template
CL3800 Series Cylindrical Lever Lock	T30560-2
CL3700 Series Tubular Lever Lock	T30686

RESPONSIBILITY

Door and Frame Manufacturers are responsible for providing adequate construction or reinforcements for proper installation of hardware shown. All architectural builders hardware must be installed on properly reinforced doors and frames, regardless of the type, material, or method of construction.

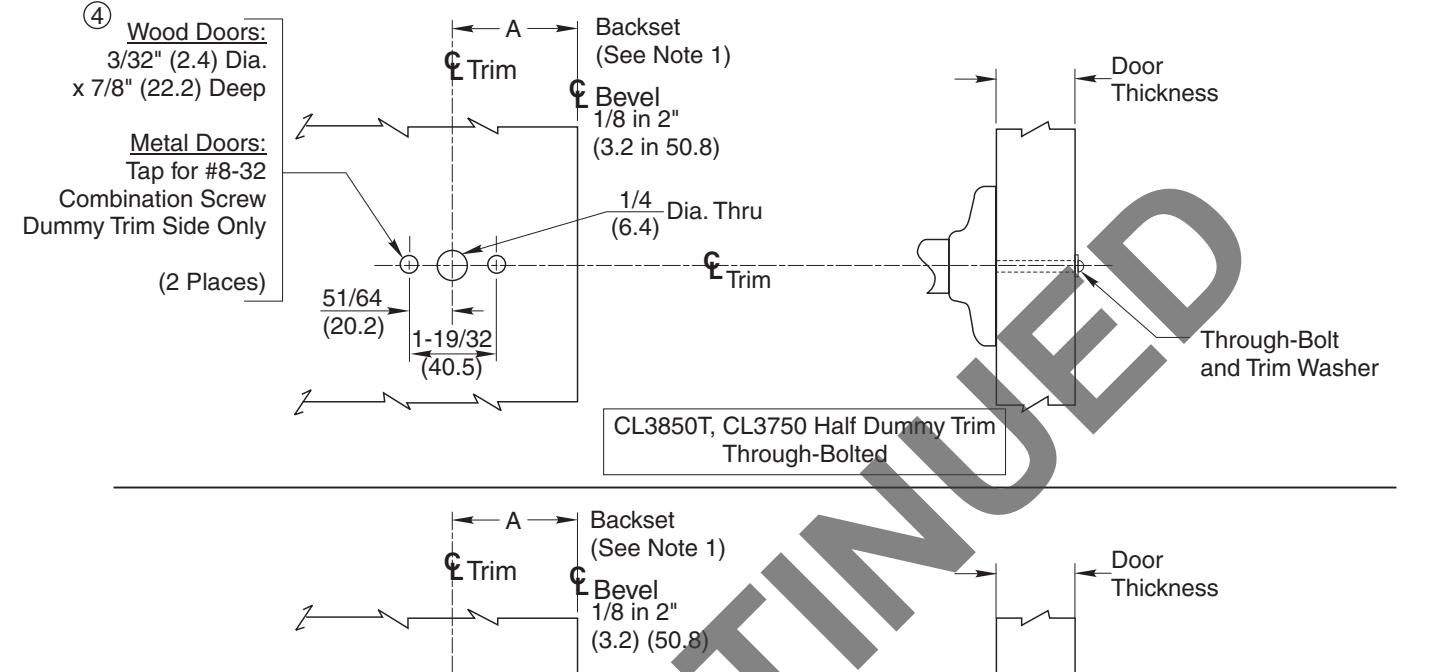

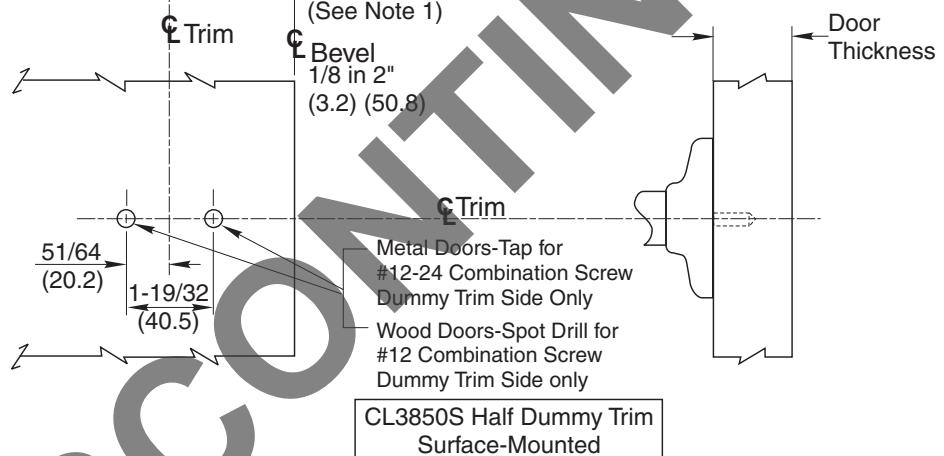

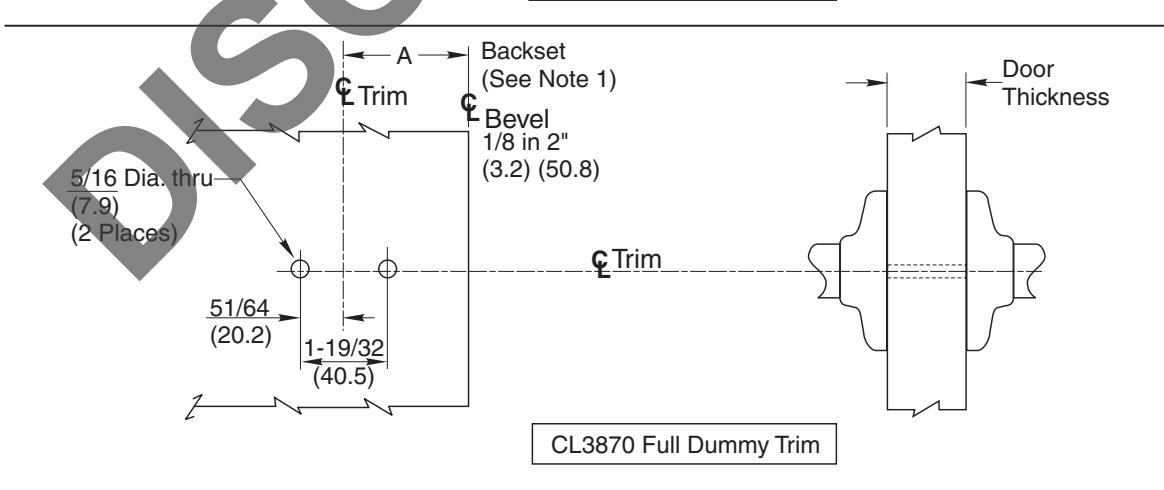

CL3850S CL3850T, CL3750 CL3870

Dummy Trim

Corbin 778° Russwin 778°

Backset A 2-3/4 (69.9) Regular

2-3/8 (60.3) Optional

ASSA ABLOY

www.corbinrusswin.com

SUPERSEDES T30634-3 DO NOT SCALE DRAWING

T30634-4 DATE

04-08
