CL3700 Series

Applications/Finishes

CL3700

Index

Applications 2
Finishes 2
Features 3
Trim Designs 3
Functions 4
Options and Accessories
5
How to Order/
6-7
Quick Codes
Specifications 7

Quality

The CL3700 series is a Grade 2 light/ medium-duty cylindrical lockset which provides an outstanding combination of value and performance. It is the ideal lever lockset for light commercial and heavy-duty residential applications such as interior offices, closets, multifamily housing, restaurants and retail complexes. Available in six architectural finishes and three lever designs, the CL3700 series provides quality materials and performance.

Aesthetics

Three lever designs offer variety when deciding on visual appeal, functionality and application. The Newport and Princeton lever designs easily fit into most commercial applications, while the Frascati lever brings a touch of Italy to residential and more sophisticated applications.

Vandal Resistance

CL3700 series locksets are available with Corbin Russwin's Pyramid patented security cylinder, the most secure locking system available. Pyramid is especially recommended for installations that require superior protection against picking and drilling. See the Key Systems catalog for additional information.

Key Advantages

  • • ANSI Grade 2 certification
  • • UL 1-1/2 hour fire rating
  • • Pyramid cylinders for increased security
  • • Interlocking tubular chassis and latchbolt
  • • ISO 9001 designed and manufactured in a certified 9001 facility

Finishes

Description
BHMA 605 Bright Brass
BHMA 606 Satin Brass
BHMA 613 Dark Oxidized Satin Bronze,
oil rubbed
BHMA 625 Bright Chromium Plated
BHMA 626 Satin Chromium Plated
Zinc levers are plated to match BHMA finish.

* Simulated painted finish meeting ANSI standards for wear and durability.

www.corbinrusswin.com

Features/Trim Designs

CL3700

Features

Handing

Field reversible.

Right or left hand must be specified for Frascati CL3755, 3759, 3780 and 3750.

Door Thickness

1-3/8" (35mm) to 1-3/4" (44mm).

Lock Chassis

Die-cast zinc for corrosion resistance.

Backset

2-3/4" (70mm) standard. Optional: 2-3/8" (60mm).

Latches

1/2" (13mm) bolt projection.

Auxiliary Latchbolt

Deadlocking latchbolt prevents manipulation when door is closed.

Strike

"T" Strike standard. Optional strikes, lip lengths and ANSI wrought strike box available; see How to Order, page 6.

Cylinder

Brass, 6-pin, L4 keyway, "0" bitted standard.

Split Finishes

BHMA 605x625, 605x626, 606x625, and 606x626 are available in CL3720 privacy function only. Outside finish specified first. Front and strike finished to match inside trim unless otherwise specified.

Keying Features Available

Master keying Construction master keying Visual key control Concealed key control Pyramid

Keys

Two nickel silver standard.

Warranty

One-year limited.

Certification/Compliance ANSI

Meets A156.2 Series 4000, Grade 2. Meets A117.1 Accessibility Code.

California State Reference Code

(Formerly Title 19, California State Fire Marshal Standard)

All levers with returns comply; levers return to within 1/2" of door face.

C-UL US

All locks listed for B Label Single doors. UL symbol on latch front indicates listing.

Any retrofit or other field modification to a fire rated opening can potentially impact the fire rating of the opening, and Corbin Russwin, Inc. makes no representations or warranties concerning what such impact may be in any specific situation. When retrofitting any portion of an existing firerated opening, or specifying and installing a new fire-rated opening, please consult with a code specialist or local code official (Authority Having Jurisdiction) to ensure compliance with all applicable codes and

ratings. Trim Designs

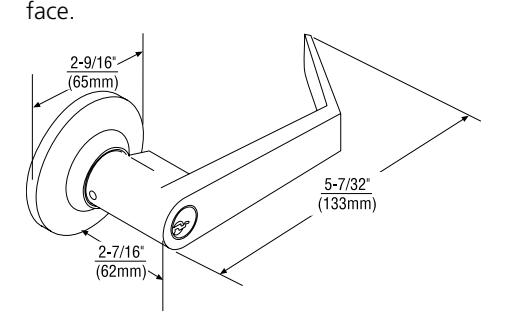

Lever: Die-cast zinc

Lever length: 5-7/32" (133mm) Rose: Brass

Rose diameter: 2-9/16" (65mm)

Complies with codes requiring lever to return to within 1/2" (13mm) of door

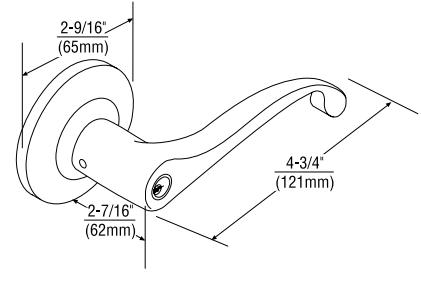

Frascati FZD

Lever: Die-cast zinc Lever length: 4-3/4" (121mm)

Rose: Brass

Rose diameter: 2-9/16" (65mm)

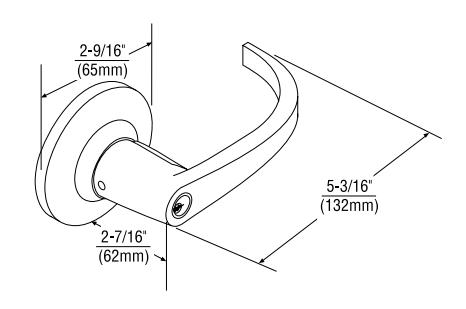

Princeton PZD

Lever: Die-cast zinc Lever length: 5-3/16" (132mm)

Rose: Brass

Rose diameter: 2-9/16" (65mm)

Complies with codes requiring lever to return to within 1/2" of door face.

Functions

CL3700

Outside Inside Series/
Function 		Туре ANSI No.
Series 4000 		Function Description
CL3710 Passage or Closet F75
  • Deadlocking latchbolt by lever either side.
  • Both levers always free.
CL3720 Privacy Bedroom
or Bathroom 		F76
  • Deadlocking latchbolt by lever either side.
  • Outside lever locked by button.
  • Outside lever unlocked by rotating inside lever.
  • Emergency release in outside lever.
  • Inside lever always free.
CL3751 Entrance or Office F81/82
  • Deadlocking latchbolt by lever either side, except when turn button locks outside lever.
  • Rotating turn button locks outside lever, requiring key to unlock.
  • Rotating button the other way unlocks outside lever.
  • Inside lever always free.
CL3755 Classroom F84
  • Deadlocking latchbolt by lever either side, except when key outside locks outside lever.
  • Outside lever unlocked by key outside.
  • Inside lever always free.
CL3759 Storeroom or
Public Restroom 		_
  • Deadlocking latchbolt by lever inside.
  • Key outside unlocks outside lever to retract latchbolt.
  • Lever retracts latchbolt.
  • Key is retained in the unlocked mode.
  • When key is removed, outside lever is locked.
  • Inside lever always free.
CL3780 Exit Latch _
  • For twin communicating or exit doors where one side operation is required.
  • Also when space is limited between door and switch panel.
  • Deadlocking latchbolt.
  • One-lever operation.
  • Blank rose.
  • Should be used only where rooms have more than one entrance.
CL3750 Half Dummy Trim
(Through-
bolted) 		Lever acts as pull only; no operation.

Options & Accessories

CL3700

Strikes

Curved Lip "T" Strike (Standard)

2-3/4 " x 1-1/8 " x 1-1/4 " (70mm x 29mm x 32mm) lip to center

To order with lockset, see How to Order, page 6. To order separately, specify 687F60 x Lip Length x

Dust Box for 2-3/4" (70mm) Curved Lip "T" Strike

To order with lockset, see How to Order, page 6. To order separately, specify 687F94.

Full Lip Radius Corner

2-1/4 " \times 1-1/2 " \times 1 " (57mm \times 38mm \times 25mm) lip to center

To order with lockset, see How to Order, page 6. To order separately, specify 687F62 x 1-1/8 " (29mm) x Finish.

Dust Box for 2-1/4" (57mm) Full Lip Radius and Square Corner Strikes

To order with lockset, see How to Order, page 6. To order separately, specify 687F95.

ANSI Curved Lip

4-7/8 " x 1-1/4 " x 1-1/4 " (124mm x 32mm x 32mm) lip to center

To order with lockset, see How to Order, page 6. To order separately, specify 217L13 x Lip Length x Finish

ANSI Wrought Strike Box

To order with lockset, see How to Order, page 6. To order separately, specify 120F76-8.

Full Lip Square Corner

2-1/4" x 1-1/2" x 1" (57mm x 38mm x 25mm) lip to center

To order with lockset, see How to Order, page 6. To order separately, specify 687F61 x Finish.

Cylinders

Standard Cylinder

.509" (13mm) plug diameter conventional .552" (14mm) plug diameter high security .496" plug diameter Pyramid Brass, 6-pin

2 nickel silver keys

Finishes: 606, 626

Conventional 6-Pin (standard) 2000-037
Schlage®
C Keyway 		6-Pin 2400-037-C
"O" bitted or keyed random
Pyramid High Security 7-Pin 2020-037
Pyramid Security 7-Pin 2027-037

To order optional cylinder with lockset, see How to Order, page 6. To order cylinder separately, specify Part No. x Keyway x Finish (e.g., 2000-037 x L4 x 626).

UL Firecup Part No. 687F66

Supplied standard with all CL3700's. Failure to use invalidates UL listing.

Latches

To order optional latchbolt with lockset, see How to Order, page 6. To order latchbolt separately, specify

To order latchbolt separately, specify Part No. x Finish (e.g., 687F63 x 626). All CL3700 latches are deadlocking.

Backse UL
Latches
2-3/4" (70mm) Square Corner Front 2-1/4" x
1-1/8" (57mm x 29mm) faceplate 		687F63
2-3/8" (60mm) Square Corner Front 2-1/4" x
1" (57mm x 25mm) faceplate 		687F64
2-3/8" (60mm) 1/4" Round Corner Front 2-1/4" x
1" (57mm x 25mm) faceplate 		687F65
1" (25mm) Latch Sleeve 687F71

Screw Pack

Part No. 687F96

Supplied standard with wood-machine screws combination.

How to Order/Quick Codes

CL3700

Ordering Examples Where to find ordering

Stock Order

Quantity Series/Function Trim Finish
100 CL3755 NZD 626

Contract/Detailed Order

Quantity Keyset Series/Function Trim Finish Backset Misc. Options Keying
24 AA1 CL3755 NZD 626 B238 M17 CKC2

Cylinder and Keying

Description Specify
Conventional 6-pin (standard)
Less cylinder(s) LC
Pyramid High Security Fixed Core PHS
Pyramid Security Fixed Core PS
0-bitted with 2 blank keys (standard)
Keyed random KR
Construction master keyed CMK
Visual key control (VKC)
No bitting or keyset stamping on keys VKC0
Keys only VKC1
Cylinders and keys (not for HS, CHS, PHS
or PCHS) 		VKC2
Cylinders only (not for HS, CHS, PHS or
PCHS) 		VKC3
Concealed key control (CKC)
CKC cylinders with VKC keys CKC2
CKC cylinders only (not for PHS, PCHS) CKC3
Lockset furnished with Schlage® C Keyway
cylinder 		C
More than 2 keys KY# (e.g., KY6)

information and quick codes

Finishes Page 2
Handing Page 7
Trim Designs Page 3
Series/Functions Page 4
Door Thickness Page 6
Backsets Page 7
Strikes Page 5
Miscellaneous Options Page 7
Cylinders and Keying Page 6

Finishes

Description Specify
BHMA 605 (US3) Bright Brass 605
BHMA 606 (US4) Satin Brass 606
BHMA 613 (US10B)* Oxidized Bronze, oil rubbed, available
lacquered 		613
BHMA 625 (US26) Bright Chromium Plated 625
BHMA 626 (US26D) Satin Chromium Plated 626
Zinc levers are plated to match BHMA finish.

* Simulated painted finish meeting ANSI standards for wear and durability.

Strikes

Strike Type Specify
Curved Lip "T" Strike (standard)
ANSI Curved Lip SA114
Full Lip 1/4" (6mm) Radius Corner SFR114
Full Lip Square Corner SF114

Door Thickness

Door Thickness Specify
1-3/8" (35mm) - 1-3/4" (44mm) (standard)

** Split finish only available on CL3720 - see page 4.

Quick Codes/Specifications

CL3700

Backset

Description Specify
2-3/8" (60mm) B238
2-3/4" (70mm) (standard)

Handing

Hand Specify
Right Hand RH
Left Hand LH

* Must specify hand for Frascati CL3755, 3759, 3780 and 3750.

Miscellaneous Options

Description Specify
Less cylinder, with tailpiece for Schlage® cylinder M06
1-1/8" (29mm) latch front, square corners (standard
with 2-3/4" (70mm) backset.) Available in 2-3/4"
(70mm) backset only 		Standard
1" (25mm) latch front, square corners (standard with
2-3/8" (60mm) backset). Available in 2-3/8" (60mm)
backset only 		Standard
1" (25mm) latch front, rounded corners. Available in
2-3/8" (60mm) backset only 		M15
ANSI wrought strike box M17
Dust box for 2-3/4" (70mm) strike M77
Dust box for 2-1/4" (57mm) strike M78

Suggested Specification

Locksets shall be CL3700 Series Grade 2 Key-in-Lever Locksets.

Locks shall have an interlocking tubular chassis and latchbolt. Chassis mounting screws shall be accessible only when the inside lever and rose are removed.

The latchbolt shall have a 1/2" (13mm) throw and shall include a deadlocking feature to inhibit manipulation when the door is locked.

Locksets and latchbolts shall be reversible for ease of installation.

Locksets shall be adjustable for 1-3/8" (35mm) and 1-3/4" (44mm) door thickness. Levers shall have inside and outside lever return springs to prevent lever sag.

Lever handles shall be a minimum of 4-3/4" (121mm) in length and shall provide a minimum of 2-1/8" (54mm) clearance from surface of door to the inside of the lever at the midpoint.

Outside levers on keyed locksets shall be removable only when the designated key is in the cylinder.

Locksets shall be furnished with two nickel silver keys. All cylinder plugs shall be brass and furnished with 6-pin chambers for master keying capabilities.

Cylinders shall be easily changed by removing the lever without disassembling the lockset.

Certification:

UL 1-1/2 Hour Fire Rating ANSI A156.2 Series 4000, Grade 2 ANSI A117.1 Accessibility Code All locksets shall carry a one-year warranty.
