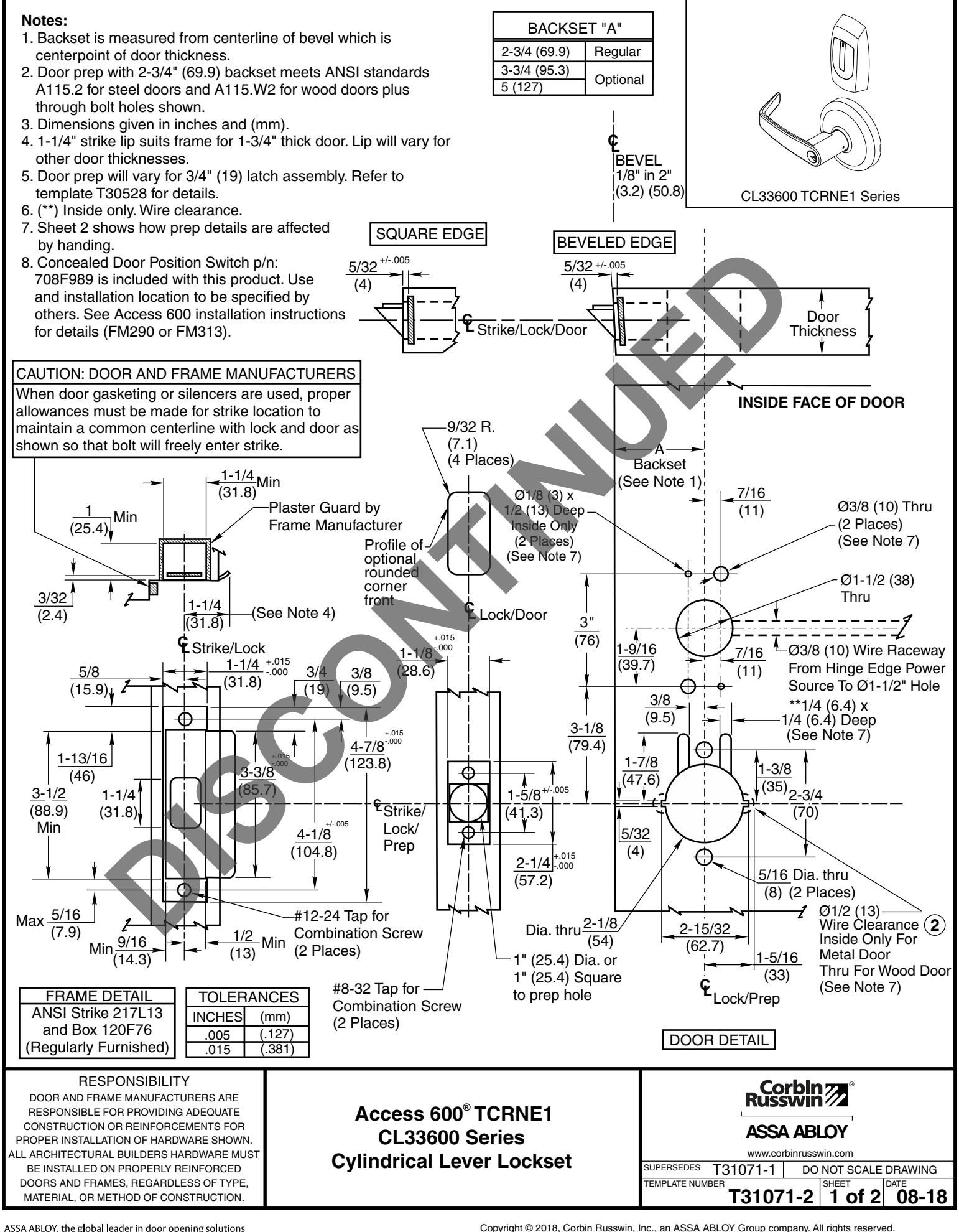

Corbin Russwin CL33600 Series Template_T31071

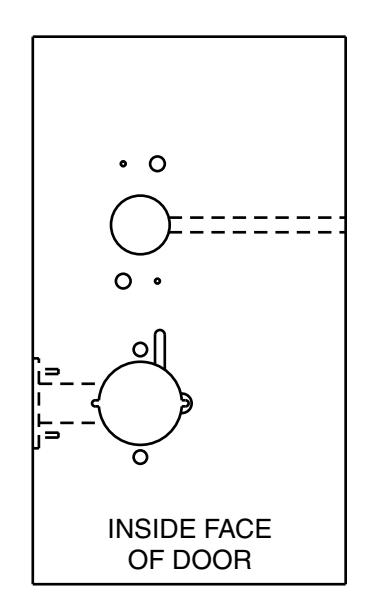

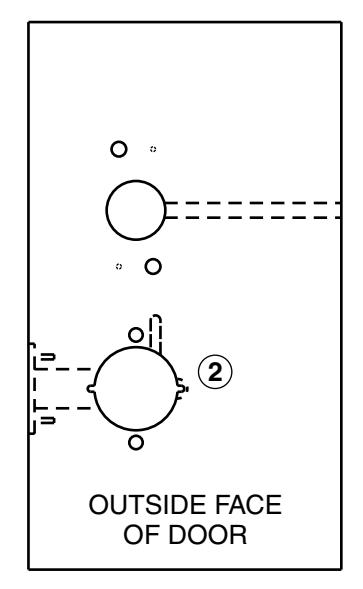

LH/LHR DOORS

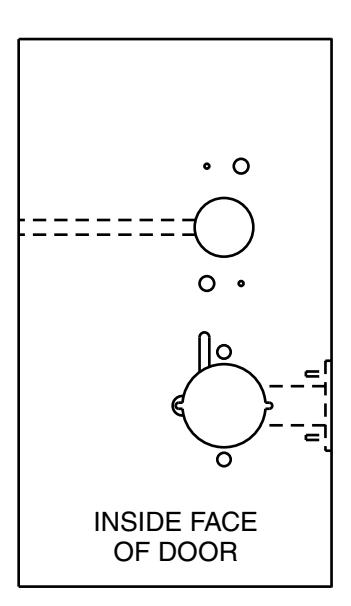

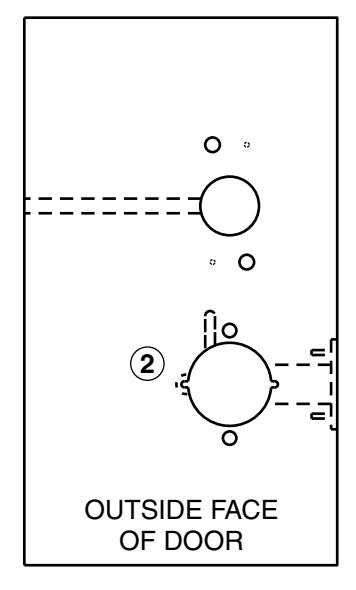

RH/RHR DOORS

RESPONSIBILITY

DOOR AND FRAME MANUFACTURERS ARE RESPONSIBLE FOR PROVIDING ADEQUATE CONSTRUCTION OR REINFORCEMENTS FOR PROPER INSTALLATION OF HARDWARE SHOWN. ALL ARCHITECTURAL BUILDERS HARDWARE MUST BE INSTALLED ON PROPERLY REINFORCED DOORS AND FRAMES, REGARDLESS OF TYPE, MATERIAL, OR METHOD OF CONSTRUCTION.

Access 600^® TCRNE1 CL33600 Series Cylindrical Lever Lockset

Corbin Russwin 2°

ASSA ABLOY

www.corbinrusswin.com

SUPERSEDES T31071-1 DO NOT SCALE DRAWING TEMPLATE NUMBER SHEET DATE

T31071-2 2

2 of 2 DATE 08-18
