Notes:

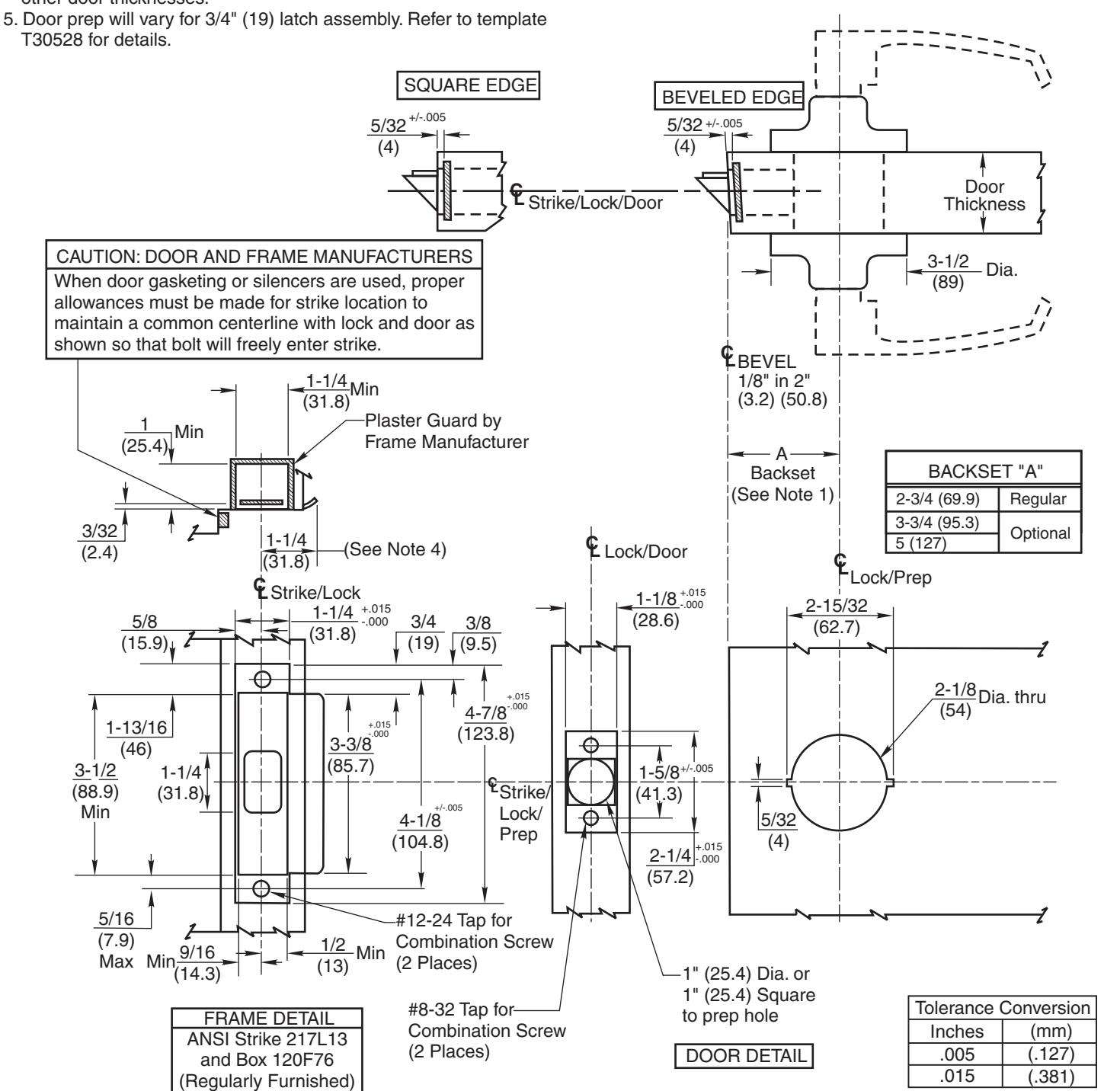

  • 1. Backset is measured from centerline of bevel which is centerpoint of door thickness.
  • 2. Door prep with 2-3/4" (69.9) backset meets ANSI standards A115.2 for steel doors and A115.W2 for wood doors plus through bolt holes shown.
  • 3. Dimensions given in inches and (mm).
  • 4. 1-1/4" strike lip suits frame for 1-3/4" thick door. Lip will vary for other door thicknesses.

RESPONSIBILITY

DOOR AND FRAME MANUFACTURERS ARE RESPONSIBLE FOR PROVIDING ADEQUATE CONSTRUCTION OR REINFORCEMENTS FOR PROPER INSTALLATION OF HARDWARE SHOWN ALL ARCHITECTURAL BUILDERS HARDWARE MUST BE INSTALLED ON PROPERLY REINFORCED DOORS AND FRAMES, REGARDLESS OF TYPE, MATERIAL OR METHOD OF CONSTRUCTION

CL3100 Series Vandal Resistant Lever Lockset

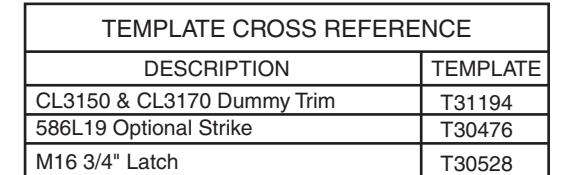

All Functions And Trims Except Dummy Trim, and M16 latch (3/4")

SUPERSEDES DO NOT SCALE DRAWING TEMPLATE NUMBER T31193 03-12
