Corbin Russwin CK4700 Series Template_T30688
Open the original PDF document
View PDFNotes:

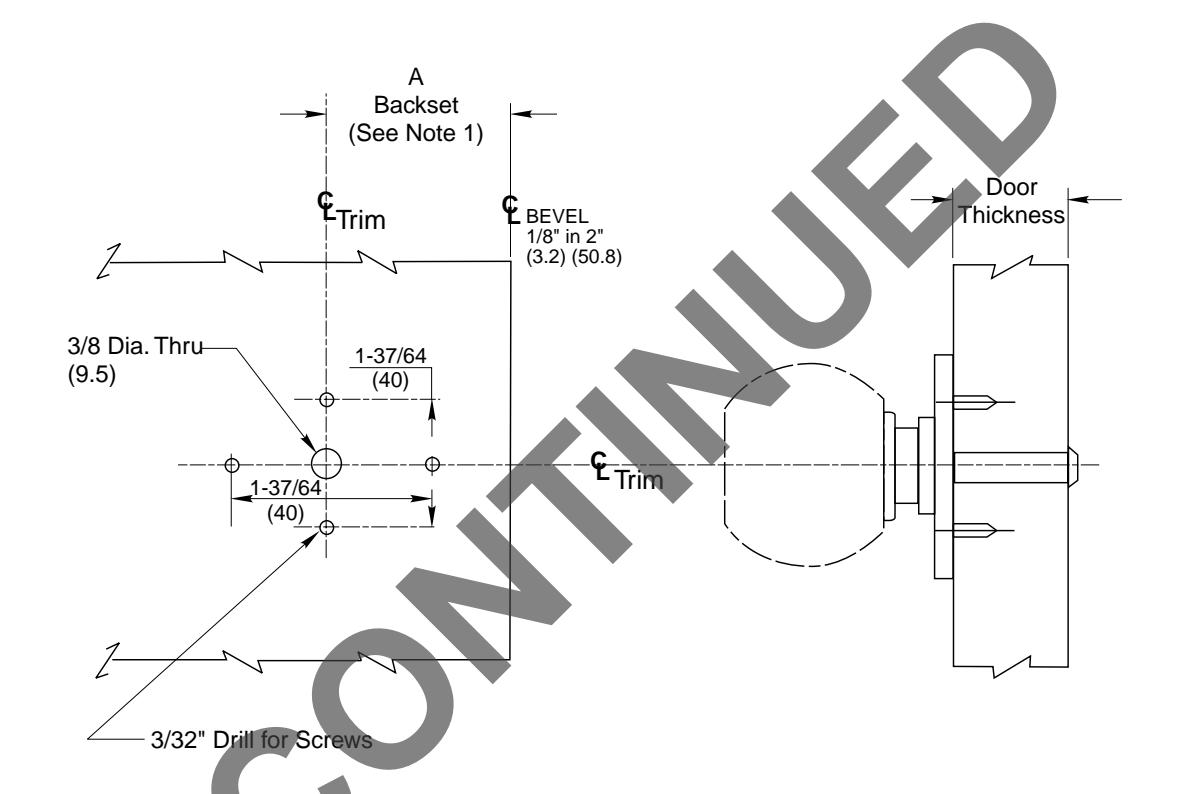

- Backset is measured from centerline of bevel which is centerpoint of door thickness.
- 2. Dimensions given in inches and (mm).
|
A
Backset |
Remarks |
|---|---|
|
2-3/4
(69.9) |
Regular |
|
2-3/8
(60.3) 3-3/4 (95.3) 5 (127) |
Optional |
RESPONSIBILITY
Door and Frame Manufacturers are responsible for providing adequate construction or reinforcements for proper installation of hardware shown. All architectural builders hardware must be installed on properly reinforced doors and frames, regardless of the type, material, or method of construction.
CK4700
Half Dummy Trim
Corbin Russwin.com
| Do Not Scale Drawing | Dr. | App. | App. | |-----------------------------------
