Corbin Russwin CK4250 and CK4270 Trim Template_T30561-2
Open the original PDF document
View PDFNotes:
- Backset is measured from centerline of bevel which is centerpoint of door thickness.
- 2. Full dummy trim, same as shown except applies to both sides.
- 3. Dimensions given in inches and (mm).
| TEMPLATE CROSS REFERENCE | ||
|---|---|---|
| Description | Template | |
| CK4200 Series Cylindrical Lock | T30341 | |
| ML2000, ML2200 Series Mortise Lock | T30600 | |
| Trim | Rose Design | ||
| BRC | |||
| BWC | 2-7/8" Dia. | ||
| GRC | (73) | ||
| GWC | , , | ||
| BRD | |||
| BWD | 3-1/2" Dia. | ||
| GRD | (88.9) | ||
| GWD | (333) | ||
| BRE | |||
| BWE | 3" Square | ||
| GRE | (76.2) | ||
| GWE | (1.5.2) | ||

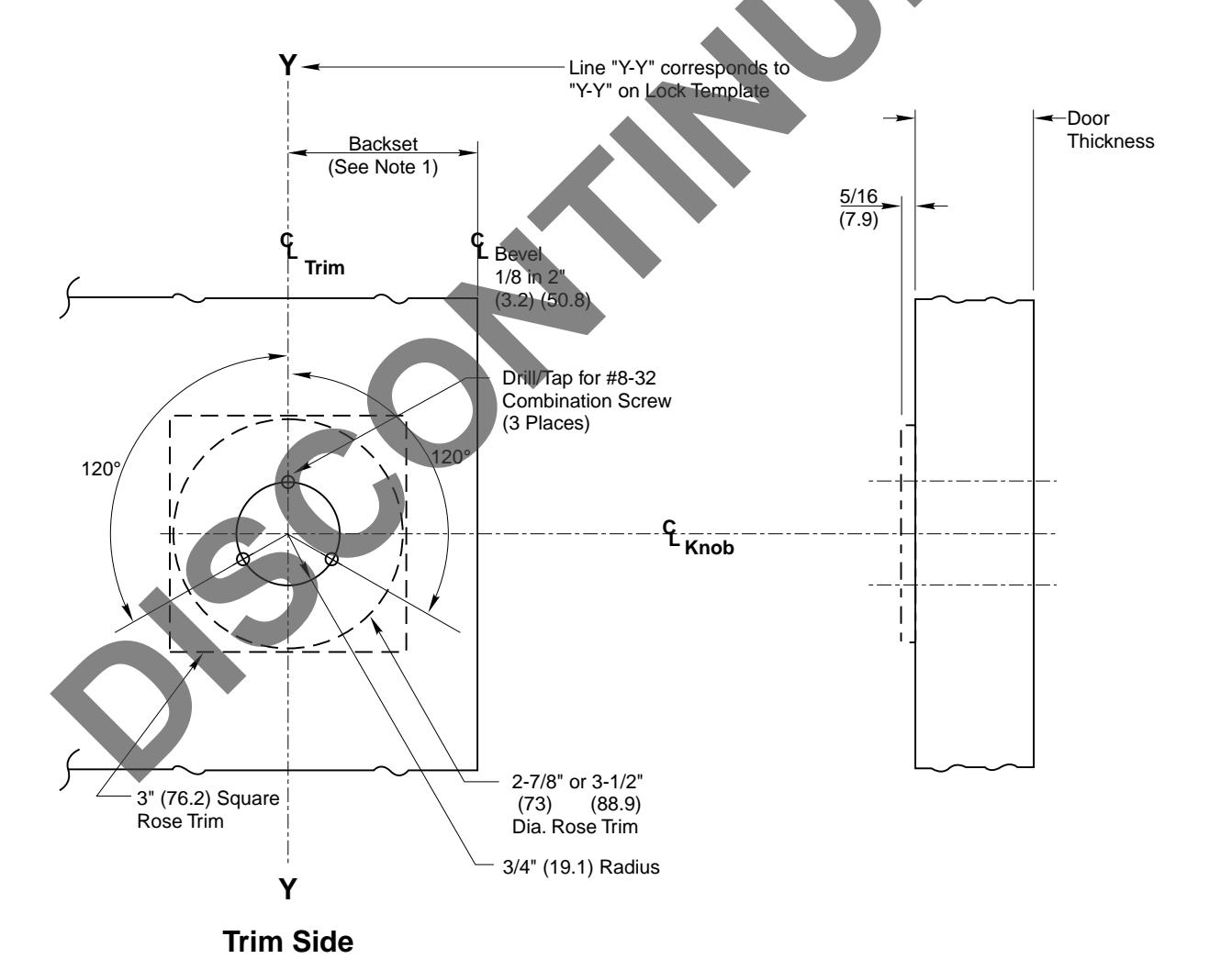

Half Dummy Trim Shown
RESPONSIBILITY
Door and Frame Manufacturers are responsible for providing adequate construction or reinforcements for proper installation of hardware shown. All architectural builders hardware must be installed on properly reinforced doors and frames, regardless of the type, material, or method of construction.
| BRC | BWD | GRE | ||
|---|---|---|---|---|
| BRD | BWE | GWC | ||
| BRE | GRC | GWD | ||
| BWC | GRD | GWE | ||
| Knob by Rose | ||||
| Half and Full Dummy Trim | ||||
| Corbin Russwin | ||||
|---|---|---|---|---|
| www.corbinrusswin.com | ||||
| Do Not Scale Drawing | ||||
| T30561-1 | Dr. | Арр. | ||
T30561-2
Template Number
Supersedes
Date 8-99
