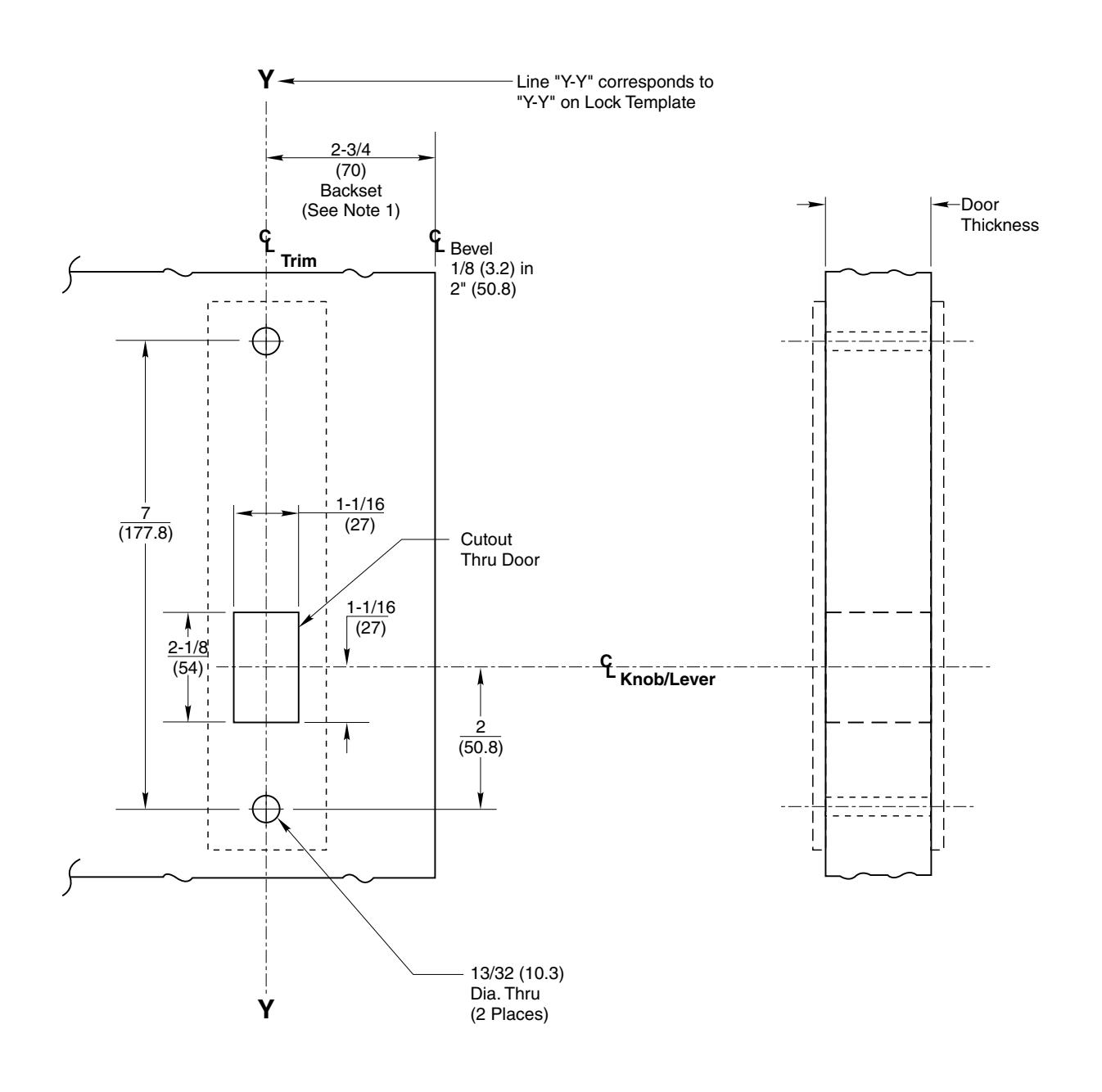

Corbin Russwin BRR and ZSL Trim Template_T30651

Notes:

• Backset is measured from centerline of bevel which is centerpoint of door thickness.
• 2. For Half Dummy Trim, refer to template T30652.
• 3. Dimensions given in inches and (mm).

RESPONSIBILITY

Door and Frame Manufacturers are responsible for providing adequate construction or reinforcements for proper installation of hardware shown. All architectural builders hardware must be installed on properly reinforced doors and frames, regardless of the type, material, or method of construction.

ASR FSL MSL RWR CSR GZR NSR TSL DSR LSR PSR YZR LWR RSR ESR ZSL

All MUSEO Levers x R/L-Esc Mortise Lock Escutcheon Full Dummy Trim

Corbin Russwin Samuel ASSA ABLOY

www.corbinrusswin.com

SUPERSEDES T30651-2 DO NOT SCALE DRAWING

T30651-3

1-3 DATE 01-19

3
