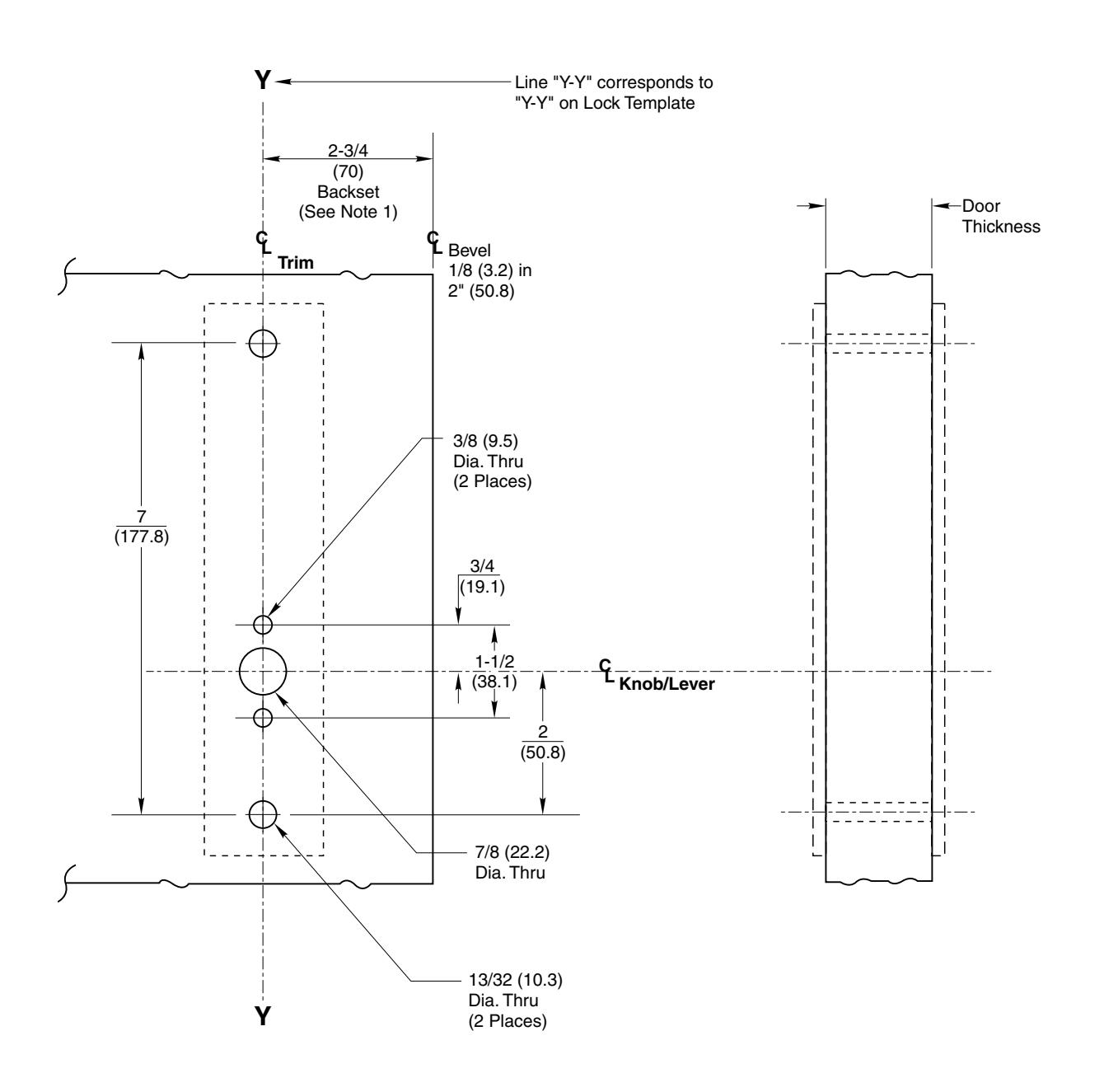

Corbin Russwin BRR and ZSL Trim Template_T30572
Open the original PDF document
View PDF| TEMPLATE CROSS REFERENCE | |
|---|---|
| Description | Template |
| ML2000, ML2200 Series Mortise Lock | T30600 |
Notes:
- Backset is measured from centerline of bevel which is centerpoint of door thickness.
- 2. Refer to appropriate mortise lock template for cylinder and turnpiece preps when required.
- 3. Dimensions given in inches and (mm).
RESPONSIBILITY
Door and Frame Manufacturers are responsible for providing adequate construction or reinforcements for proper installation of hardware shown. All architectural builders hardware must be installed on properly reinforced doors and frames, regardless of the type, material, or method of construction.
ASR FSL MSL RWR CSR GZR NSR TSL DSR LSR PSR YZR LWR RSR ZSL ESR
Mortise Lock Escutcheon Trim
Corbin 70° Russwin 70°
assa abloy
www.corbinrusswin.com
SUPERSEDES T30572-5 DO NOT SCALE DRAWING TEMPLATE NUMBER T30572-6 DATE 11-18
6
