Corbin Russwin BRP and RWP Trim Template_T30551
Open the original PDF document
View PDF| TEMPLATE CROSS REFERENCE | |
|---|---|
| Description | Template |
| ML2000, ML2200 Series Mortise Lock (HT) | T30607 |
Notes:

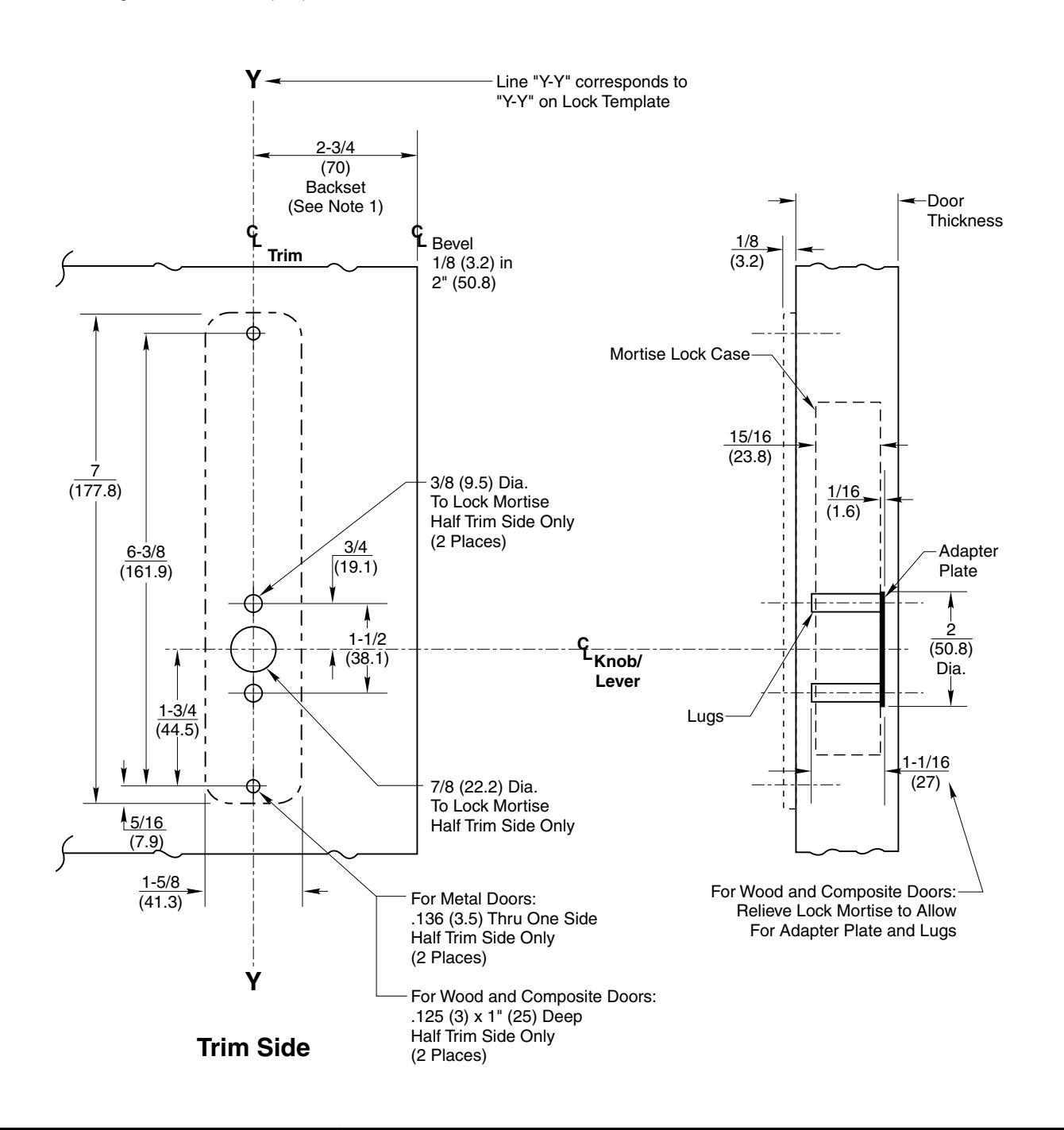

- Backset is measured from centerline of bevel which is centerpoint of door thickness.
- 2. Refer to appropriate mortise lock template for cylinder and turnpiece preps when required.
- 3. Dimensions given in inches and (mm).
RESPONSIBILITY
Door and Frame Manufacturers are responsible for providing adequate construction or reinforcements for proper installation of hardware shown. All architectural builders hardware must be installed on properly reinforced doors and frames, regardless of the type, material, or method of construction.
ASP GZP PSP CSP LSP RSP DSP LWP RWP ESP NSP YZP
Mortise Lock Escutcheon Half Working Trim
Corbin Russwin ASSA ABLOY
www.corbinrusswin.com
SUPERSEDES T30551-4 DO NOT SCALE DRAWING
T30551-5
11-18
(5)
