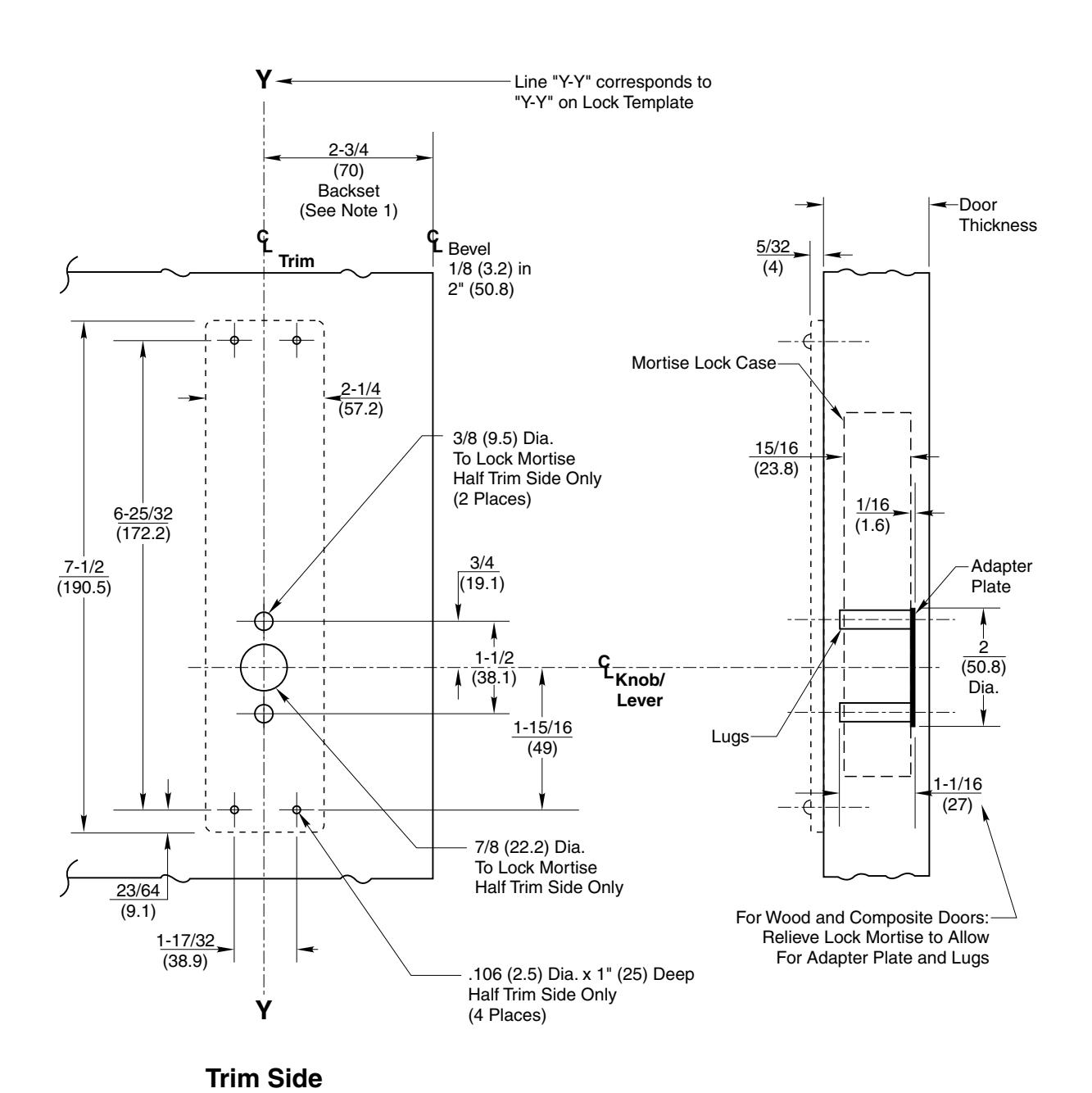

Corbin Russwin BRN and RWN Trim Template_T30549
Open the original PDF document
View PDF| TEMPLATE CROSS REFERENCE | |
|---|---|
| Description | Template |
| ML2000, ML2200 Series Mortise Lock (HT) | T30607 |
Notes:
- Backset is measured from centerline of bevel which is centerpoint of door thickness.
- Refer to appropriate mortise lock template for cylinder and turnpiece preps when required.
- 3. Dimensions given in inches and (mm).
RESPONSIBILITY
Door and Frame Manufacturers are responsible for providing adequate construction or reinforcements for proper installation of hardware shown. All architectural builders hardware must be installed on properly reinforced doors and frames, regardless of the type, material, or method of construction.
ASN GZN PSN CSN LSN RSN DSN LWN RWN ESN NSN YZN
Mortise Lock Escutcheon Half Working Trim
Corbin 20° RUSSWIN 20° ASSA ABLOY
ASSA ADLUT
www.corbinrusswin.com
SUPERSEDES T30549-5 DO NOT SCALE DRAWING TEMPLATE NUMBER T30549-6 DATE 11-18
