Corbin Russwin BRM and RWM Trim Template_T30453

Notes:

TEMPLATE CROSS REFERENCE Description Template ML2000, ML2200 Series Mortise Lock T30600 ML2000, ML2200 Series Mortise Lock (MR) T30605

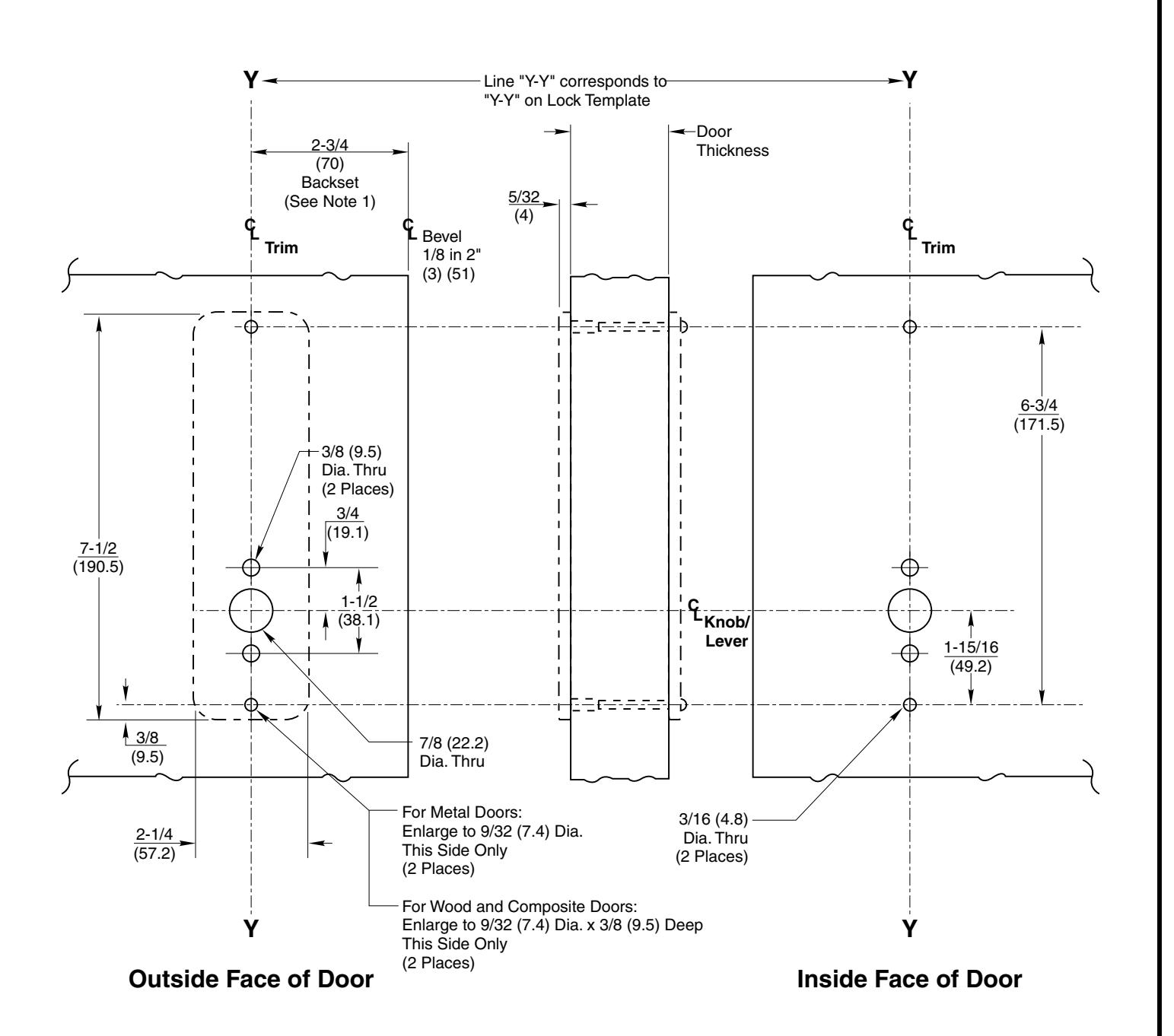

• Backset is measured from centerline of bevel which is centerpoint of door thickness.
• Refer to appropriate mortise lock template for cylinder and turnpiece preps when required.
• 3. Dimensions given in inches and (mm).

RESPONSIBILITY

Door and Frame Manufacturers are responsible for providing adequate construction or reinforcements for proper installation of hardware shown. All architectural builders hardware must be installed on properly reinforced doors and frames, regardless of the type, material, or method of construction.

ASM ESM LWM RSM CSM GZM NSM RWM DSM LSM PSM YZM

Mortise Lock Escutcheon Trim

Corbin 72° Russwin 72°

assa abloy

www.corbinrusswin.com

SUPERSEDES T30453-5 DO NOT SCALE DRAWING TEMPLATE NUMBER T30453-6

6
