Corbin Russwin BFF and ZSL Trim Template_T30548
Open the original PDF document
View PDF| TEMPLATE CROSS REFERENCE | |
|---|---|
| Description | Template |
| ML2000, ML2200 Series Mortise Lock (HT) | T30607 |
Notes:

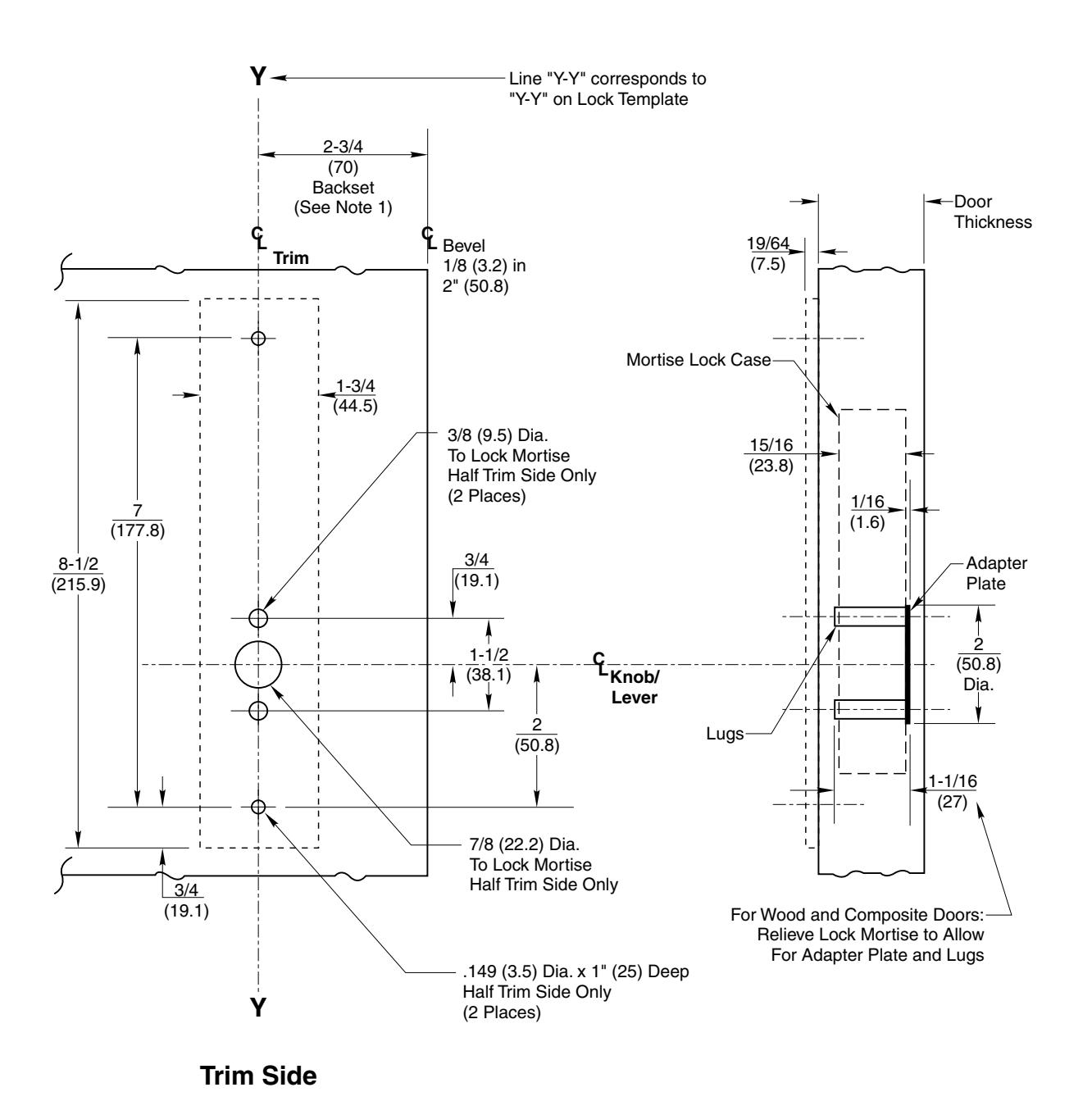

- 1. Backset is measured from centerline of bevel which is centerpoint of door thickness.
- 2. Refer to appropriate mortise lock template for cylinder and turnpiece preps when required.
- 3. Dimensions given in inches and (mm).
RESPONSIBILITY
Door and Frame Manufacturers are responsible for providing adequate construction or reinforcements for proper installation of hardware shown. All architectural builders hardware must be installed on properly reinforced doors and frames, regardless of the type, material, or method of construction.
ASR ESR GZR NSR TSL CSR FSL LSR PSR YZR DSR GWR MSL RSR ZSL
Mortise Lock Escutcheon Half Working Trim
