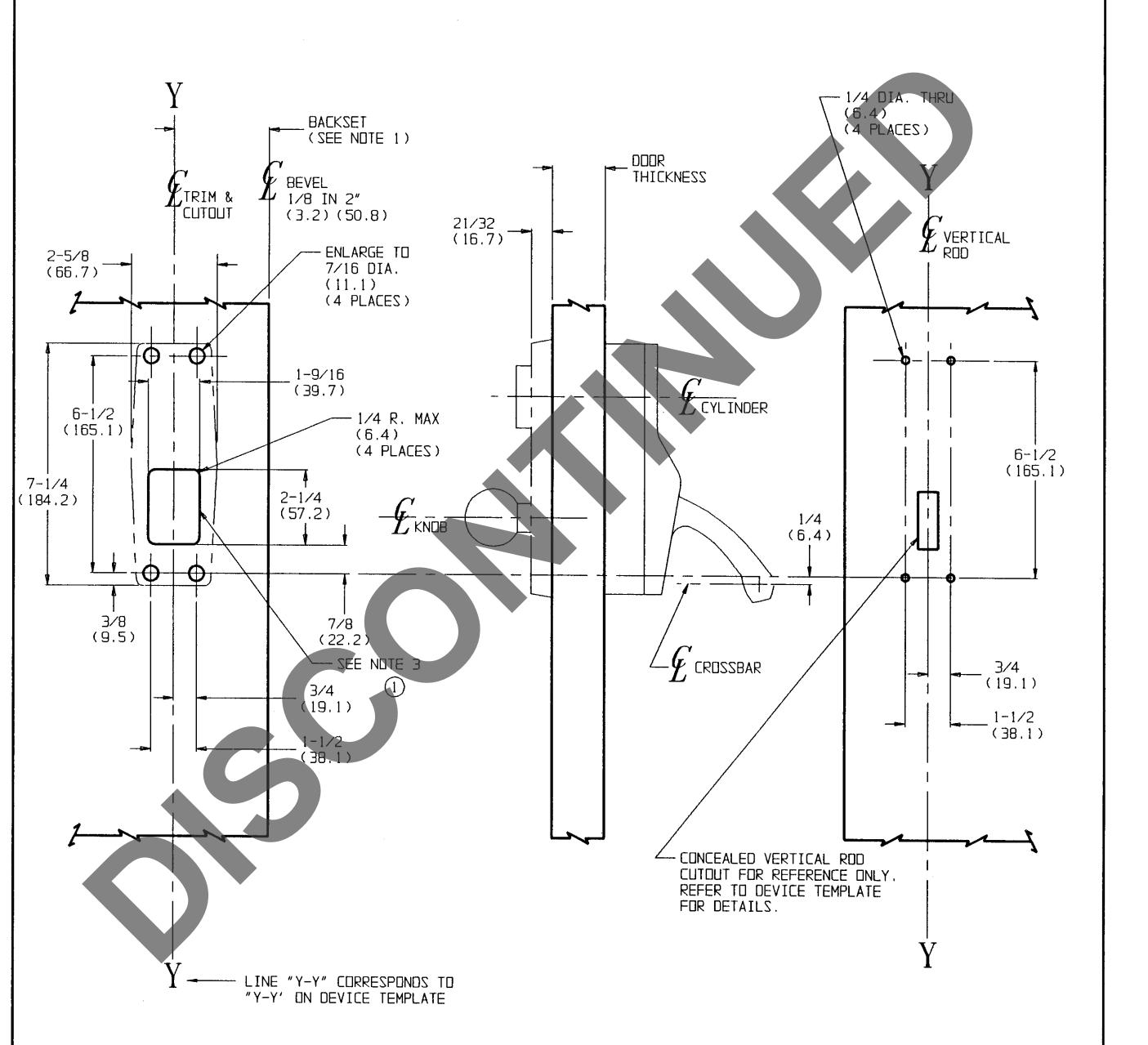

Corbin Russwin B510 and G657 Trim Template_T30627

NOTES:

1: BACKSET IS MEASURED FROM CENTERLINE OF BEVEL WHICH IS CENTERPOINT OF DOOR THICKNESS. REFER TO DEVICE TEMPLATE FOR BACKSET.

DIMENSIONS GIVEN IN INCHES AND (MM).

3. TRIM CUTOUT NOT REQUIRED FOR B550 AND G650 TRIMS.

LHR SHOWN RHR OPPOSITE

TEMPLATE CROSS REFERENCE DESCRIPTION TEMPLATE T30580 T30581

RESPONSIBILITY

DUTSIDE FACE OF DOOR

(TRIM SIDE)

Door and Frame Manufacturers are responsible for providing adequate construction or reinforcements for proper installation of hardware shown. All architectural builders hardware must be installed on properly reinforced doors and frames, regardless of the type, naterial, or nethod of construction.

B510 B550 B555 B557 G610 G650 G655 G657

KNOB ESCUTCHEON TRIM CROSSBAR CONCEALED VERTICAL ROD DEVICE

Corbin Russwin Com

INSIDE FACE OF DOOR

(DEVICE SIDE)

DD NOT SCALE DRAWING SUPERSEUES T30627 DR. DLD

1/28/94 NUMBER T30627-1
