View PDFInstallation Instructions

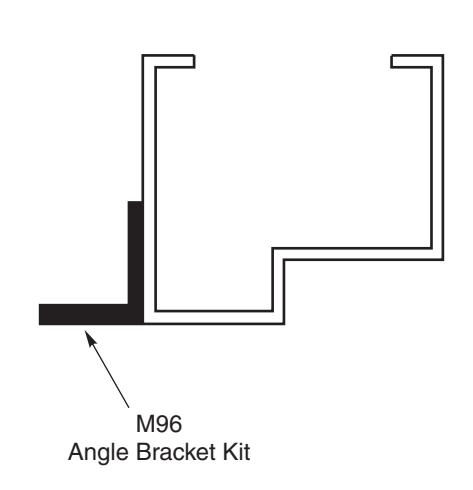

Angle Bracket Kit M96 Option
Recommended for header configuration with less than 3" (76mm) of mounting surface.
Note:
Do not scale.

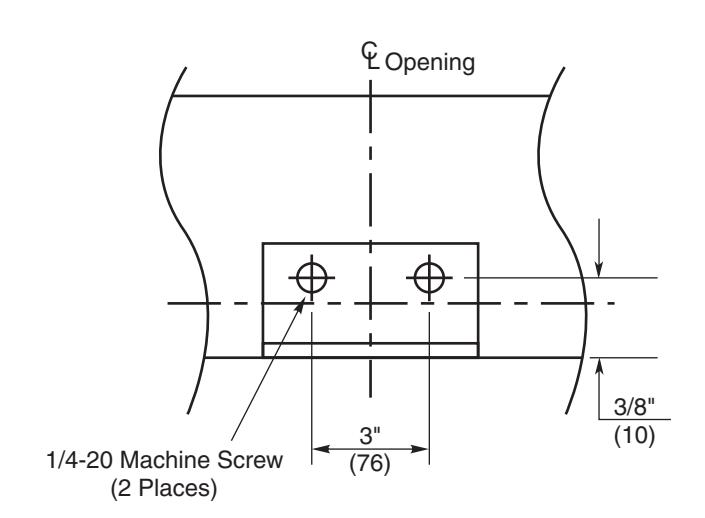

Dimensions given in inches (mm).
Corbin Russwin 225 Episcopal Road Berlin, CT 06037 corbinrusswin.com
