Corbin Russwin Access 800 ML20800 Series Template_T30989
Open the original PDF document
View PDFNotes:
- 1. Backset is measured from centerline of bevel which is centerpoint of door thickness.
- 2. 1-1/8 (28.6) strike lip suits frame for 1-3/4 (44.5) thick door, lip will vary for other door thicknesses.
- 3. Dimensions given in inches and (mm).
- 4. (*) Outside. For Fire Door Only.
- 5. For Remote Power requirements see Sheet 2.
Series Required Holes Function A DIE w/o Turn Only ML20803 w/o Turn Only ML20805 • • • ML20810 w/o Turn & Cyl. ML20830 w/o Turn & Cyl. w/o Turn & Cyl. ML20833 • w/o Turn Only ML20834 • ML20835 w/o Cyl. w Turn & Cyl. ML20836 • • ML20860 w/o Cyl. • • • ML20863 • • w Turn & Cyl. w/o Cyl. • • ML20880 ML20885 • • w Turn & Cyl.
CAUTION: DOOR & FRAME MANUFACTURERS When door gasketing or silencers are used, proper allowances must be made for strike location to maintain a common centerline with lock and door as shown so that bolt will freely enter strike.

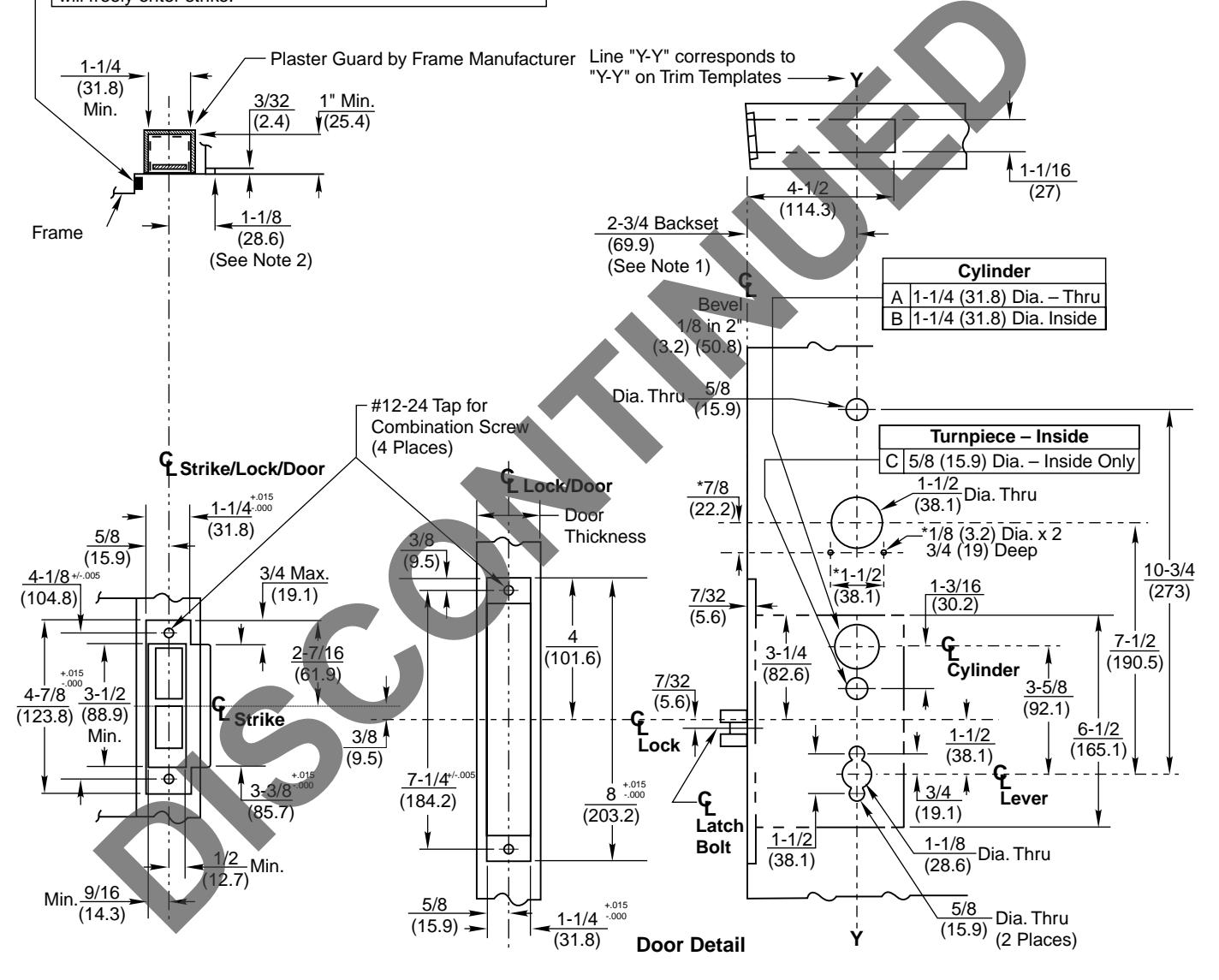

| FRAME DETAIL | ||
|---|---|---|
| ANSI Strike | Description | |
| 236L72 | Latch & Dead Bolt Holes | |
| 236L73 | Latch Bolt Hole Only | |
| And Optional Box 120F76 | ||
| Tolerances | ||
|---|---|---|
| Inches | (mm) | |
| .005 | (.127) | |
| .015 | (.381) | |
ML20800 Series Mortise Lock
Corbin Russwin ASSA ABLOY
SUPERSEDES T30989-1 DO N
DO NOT SCALE DRAWING
T30989-2
10-07 DATE 10-07

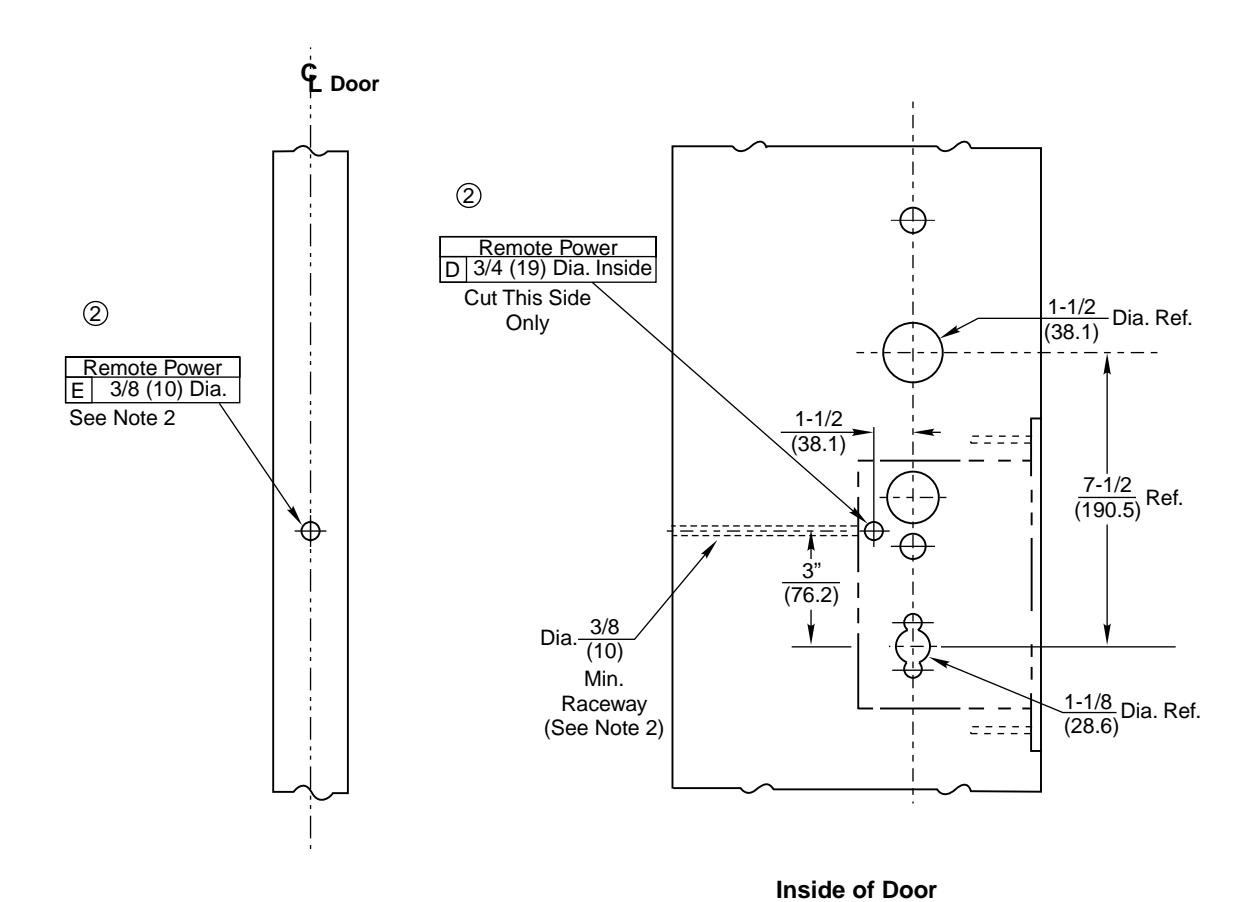

Remote Power Supply Door Details
Notes:
- 1. Dimensions given in inches and (mm).
- 2. Wire raceway must connect 3/4" (19) counterbore to the hinge edge power source.
ML20800 Series Mortise Lock
ASSA ABLOY
DO NOT SCALE DRAWING SUPERSEDES T30989-1
TEMPLATE NUMBER DATE SHEET 2of2
T30989-2 10-07
