Corbin Russwin Access 700 TCPWI and TCPIP Series Trim Template_T31169

Notes:

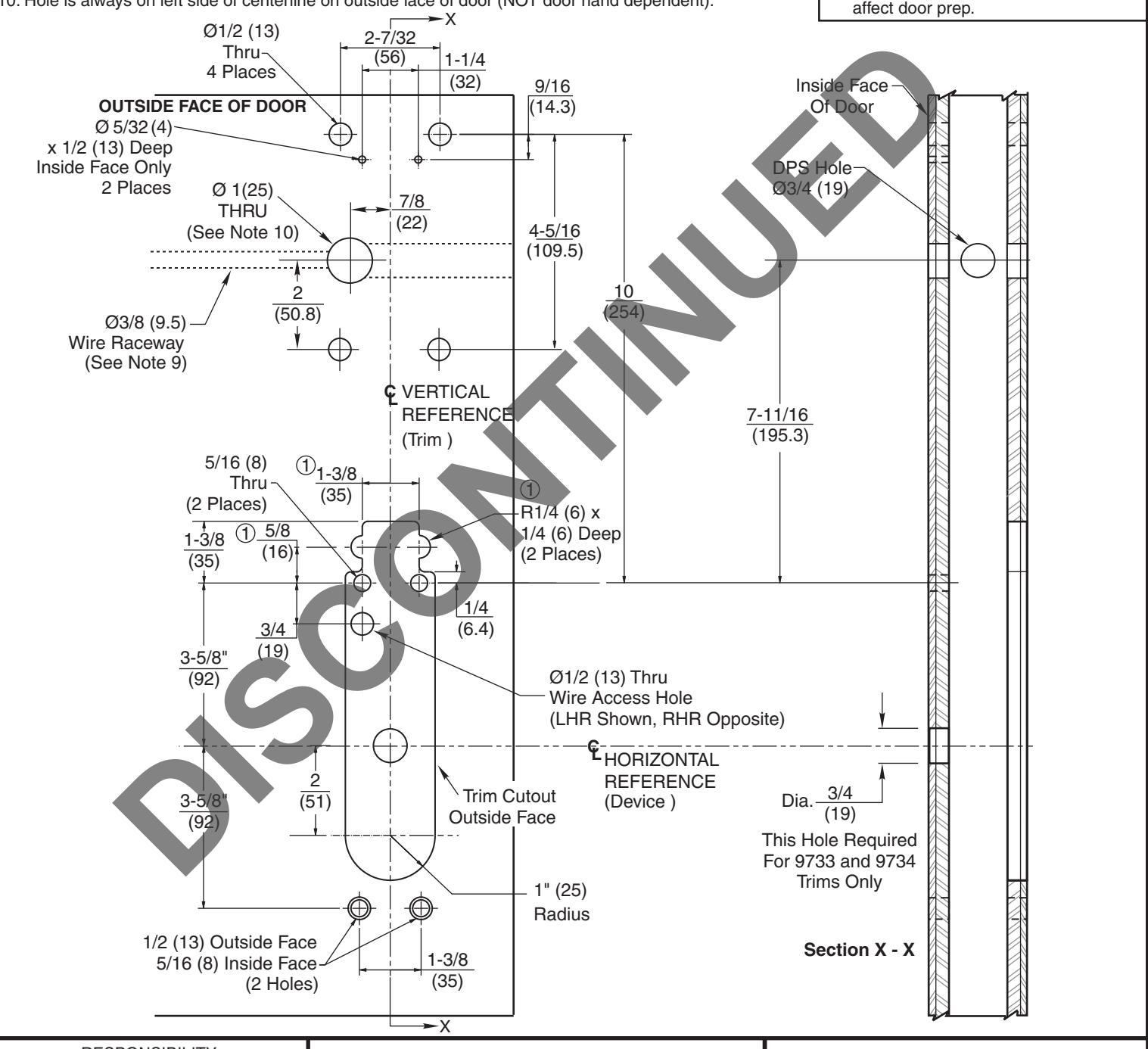

• 1. This template is an addition to the device template. Locate centerlines using horizontal and vertical references on device template.
• Dimensions are in inches (mm).
• LHR door shown. Preparation is typical for both door hands.
• For door reinforcement see template T30800.
• Prepare mounting holes when installing trim.
• Provide adequate internal support to prevent door deformation after trim is bolted to the device.
• Dimensions given about a centerline are symmetrical.
• Unspecified radius 1/8" (3.2) maximum. 8
• 9. Wire raceway required for TCPWI x M35 (remote power option) and all TCPIP locks. Raceway to connect Ø1" (25.4) hole to hinge edge power source.

10. Hole is always on left side of centerline on outside face of door (NOT door hand dependent).

9700 & 9M700 TCPWI & TCPIP Series Note: Lever design prefix does not affect door prep.

RESPONSIBILITY

DOOR AND FRAME MANUFACTURERS ARE RESPONSIBLE FOR PROVIDING ADEQUATE CONSTRUCTION OR REINFORCEMENTS FOR PROPER INSTALL ATION OF HARDWARE SHOWN ALL ARCHITECTURAL BUILDERS HARDWARE MUST BE INSTALLED ON PROPERLY REINFORCED DOORS AND FRAMES, REGARDLESS OF TYPE, MATERIAL. OR METHOD OF CONSTRUCTION

9733, 9734, 9M733 and 9M734 (Access 700® TCPWI and TCPIP Series Trim) ED5000 Series

SecureBolt™, Rim and Mortise Exit Devices Metal Door Preparation

assa abloy

www.corbinrusswin.com SLIPERSEDES

DO NOT SCALE DRAWING T31169 TEMPLATE NUMBER T31169-1

03-18
