Corbin Russwin Access 700 TCPWI and TCPIP Series Trim Template_T31167

Open the original PDF document

View PDF

Notes:

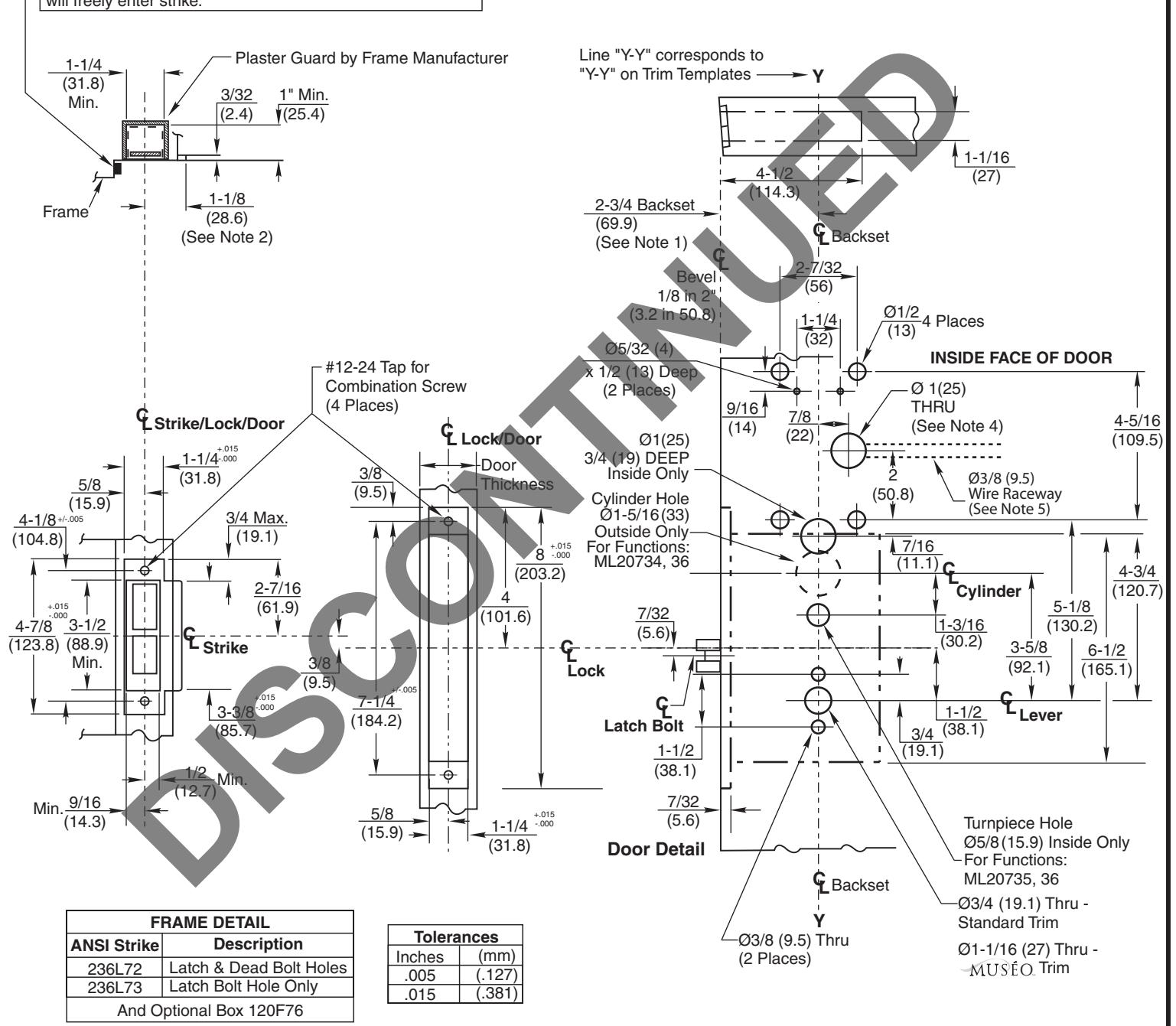

  • 1. Backset is measured from centerline of bevel which is centerpoint of door thickness.
  • 2. 1-1/8 (28.6) strike lip suits frame for 1-3/4 (44.5) thick door, lip will vary for other door thicknesses.
  • 3. Dimensions given in inches and (mm).
  • 4. Hole is always on right side of centerline on inside face of door (NOT door hand dependent).
  • 5. Wire raceway required for TCPWI x M35 (remote power option) and all TCPIP locks. Raceway to connect Ø1" (25.4) hole to hinge edge power source.

CAUTION: DOOR & FRAME MANUFACTURERS

When door gasketing or silencers are used, proper allowances must be made for strike location to maintain a common centerline with lock and door as shown so that bolt

will freely enter strike.

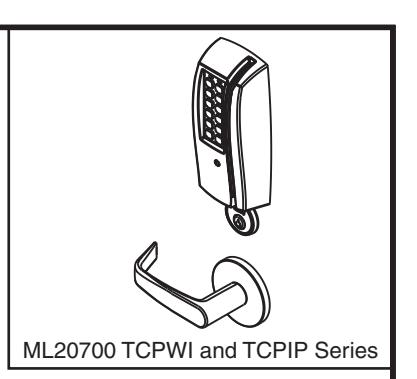

Access 700® TCPWI and TCPIP ML20700 Series Mortise Lock
