Access 700°

Installation Instructions For ML20700 TCPAC1 Series Mortise Lockset

FM304 10/18

ASSA ABLOY

In U.S.: Corbin Russwin, Inc. 225 Episcopal Road Berlin, CT 06037 USA www.corbinrusswin.com

In Canada: ASSA ABLOY Door Security Solutions Canada 160 Four Valley Drive Vaughan, Ontario, Canada L4K4T9 www.assaabloy.ca

Attention Installer

Please read these instructions carefully to prevent missing important steps.

Please Note: Improper installation may result in damage to the lock and void the factory warranty.

Important: The accuracy of the door preparation is critical for proper functioning and security of this lock.

This product can expose you to lead which is known to the state of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65warnings.ca.gov.

08/2018

For installation assistance contact Corbin Russwin Inc., at 1-800-810-WIRE (9473)

ML20700 Series Mortise Lock

Table of Contents

	Page
1) Warning	2
2) General Description	3
3) Specifications/Features	3
4) Product Illustration	4
5) Installation Instructions 5-16

1) Warning

Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that the interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna
• Increase the separation between the equipment and receiver
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected
• Consult the dealer or an experienced TV technician for help

This Class B digital apparatus complies with Canadian ICES-003.

Cet appareil numérique de la classe B est conforme avec la norme NMB-003 du Canada.

ML20700 Series Mortise Lock

2) General Description

Designed specifically for the campus market, the Corbin Russwin Access 700 TCPAC1 Series mortise lock provides offline card/PIN access control with both keypad and magstripe card technology (or magstripe only). The reader operates on six (6) "AA" alkaline batteries and may be used for both indoor and outdoor applications. The Access 700 technology is designed around Corbin Russwin's Grade 1 hardware. Weather seal gaskets are included and recommended for all outdoor applications. The Access 700 reader provides visual (LED) and audible indication of lock state (locked/unlocked).

3) Specifications/ Features

• Latch Stainless Steel (Easily field reversible without disassembling lock body)
• Deadbolt Stainless Steel

• Door Thickness 1-3/4" Standard; can be furnished for other door thicknesses upon request. Consult factory.
• Case 12 gauge heavy duty wrought steel
• Outside lever controlled by keypad/magstripe card, or key retracts latch
• Inside lever retracts latch
• Grade 1; UL Listed
• Card Coercivity: HiCo (400 Oersted) or LoCo (300 Oersted)

Electrical Specifications:

• 1200 users per door
• 700 event transaction audit trail
• Multiple time zone and holiday access scheduling
• First-In unlock configuration, either by time or by valid time or by user (selectable)
• Input power: DC 9V, 1.5A (6 AAAlkaline Batteries or Electrical Power)

PERSONA Campus Software Features:

• Use existing magstripe ID cards (high or low coercivity)
• New key cards can invalidate and reactivate keycards/users encoded quickly and easily through the "Conference Guest Wizard"
• Assign pre-defined access patterns and access points as well as key card start and end times (group or individually)

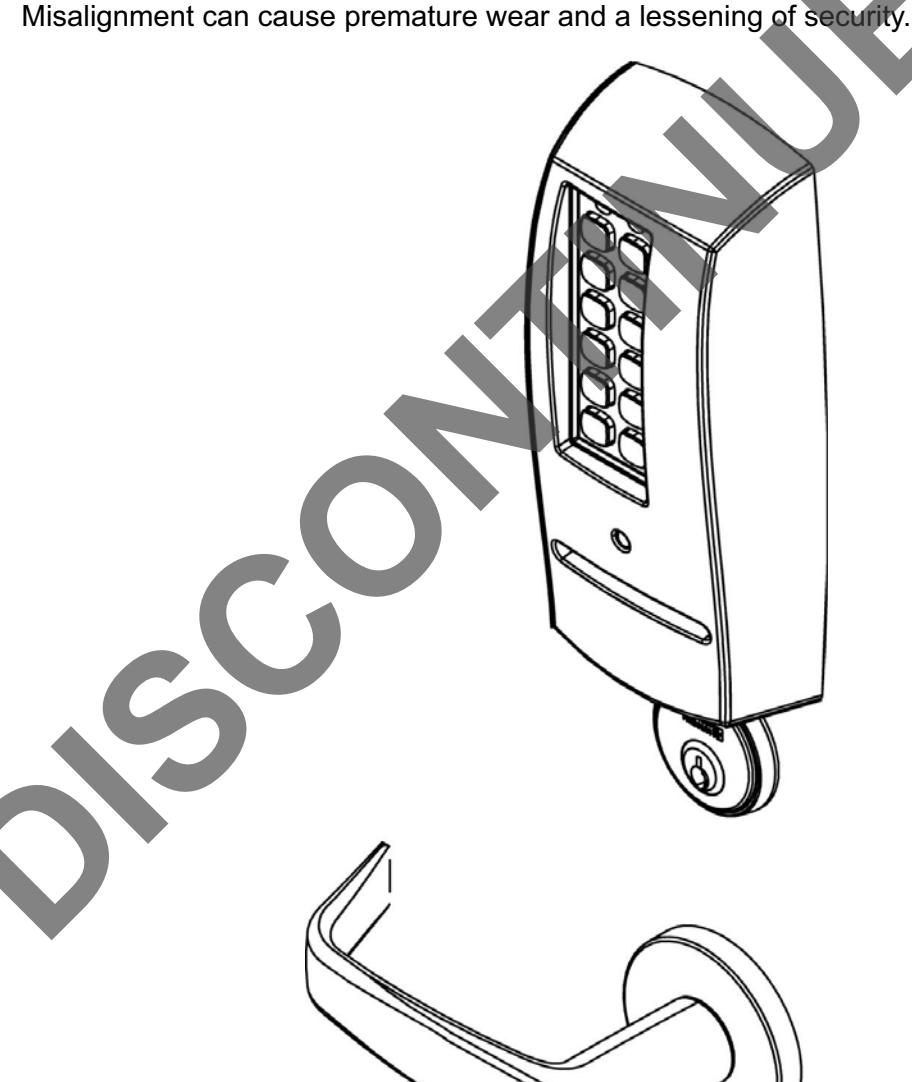

4) Product Illustration

Item	Part Number	Description	Qty.
1	795F125	Escutcheon, O/S, With Keypad, A700 PAC	1
2	795F105	Escutcheon, I/S, A700	1
3	795F069	Light Pipe Lens, A700	1
4	795F059	Light Pipe, A700	1
5	795F039	Keypad Assy, A700	1
6	795F809	Reader, A700 PAC, LCU	1
7	795F449	Mount, LCU	1
8	795F049	Harness, A700 Grounding	1
9	795F019	Harness, A700 Power 9V	1
10	795F009	Harness, A700 PAC, LCU	1
11	795F088	Mounting Plate, I/S A700	1
12	795F809	Electronics Assy, A700 PAC, I/S,	1
13	N/A	Battery Cartridge (part of 795F809)	1
14	795F197	Screw, #8-32x1/2, Torx Pan Head	2
15	323F818	Screw, #8-32x2, Phillips Flat Head Machine	4
16	795F318	Screw, #4-40x1/4, Phillips Pan Head Machine	9

Verify Hand and Bevel of door. Illustrations shown are as viewed from the outside or secure side of opening. 1

Left Hand Hinges Left. Open Inward. "LH"

Left Hand Reverse Bevel Hinges Left. Open Outward "LHR"

Right Hand Hinges Right. Open Inward. "RH"

Right Hand Reverse Bevel Hinges Right. Open Outward "RHR"

Prep door according to door template T31076 visit www.corbinrusswin.com 2

ML20700 Series Mortise Lock

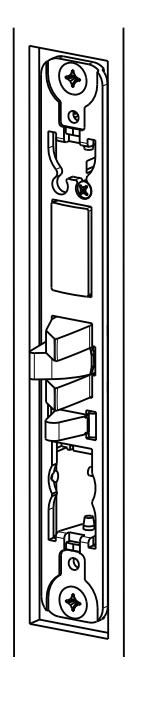

Install Lock Body into Door 4

Feed wires through hole as shown. Insert two #12 combination screws.

Standard Lever x Lever Trim Installation ML20700 Series Mortise Lock

Align adjustment bolt with threaded hole in lever. 5.)

Note:

• Unthread adjustment bolt approximately four turns for a good starting point (after being fully tightened).
• Make sure O/S lever is fully inserted into adapter plate before aligning adjustment bolt.

® MUSÉO Lever x Lever Trim Installation ML20700 Series Mortise Lock

5) Installation Instructions

1.)

Align adapter plate hub with square hole in lever; keeping hub as tight as possible

2.)

® MUSÉO Lever x Lever Trim Installation ML20700 Series Mortise Lock

5) Installation Instructions

4.)

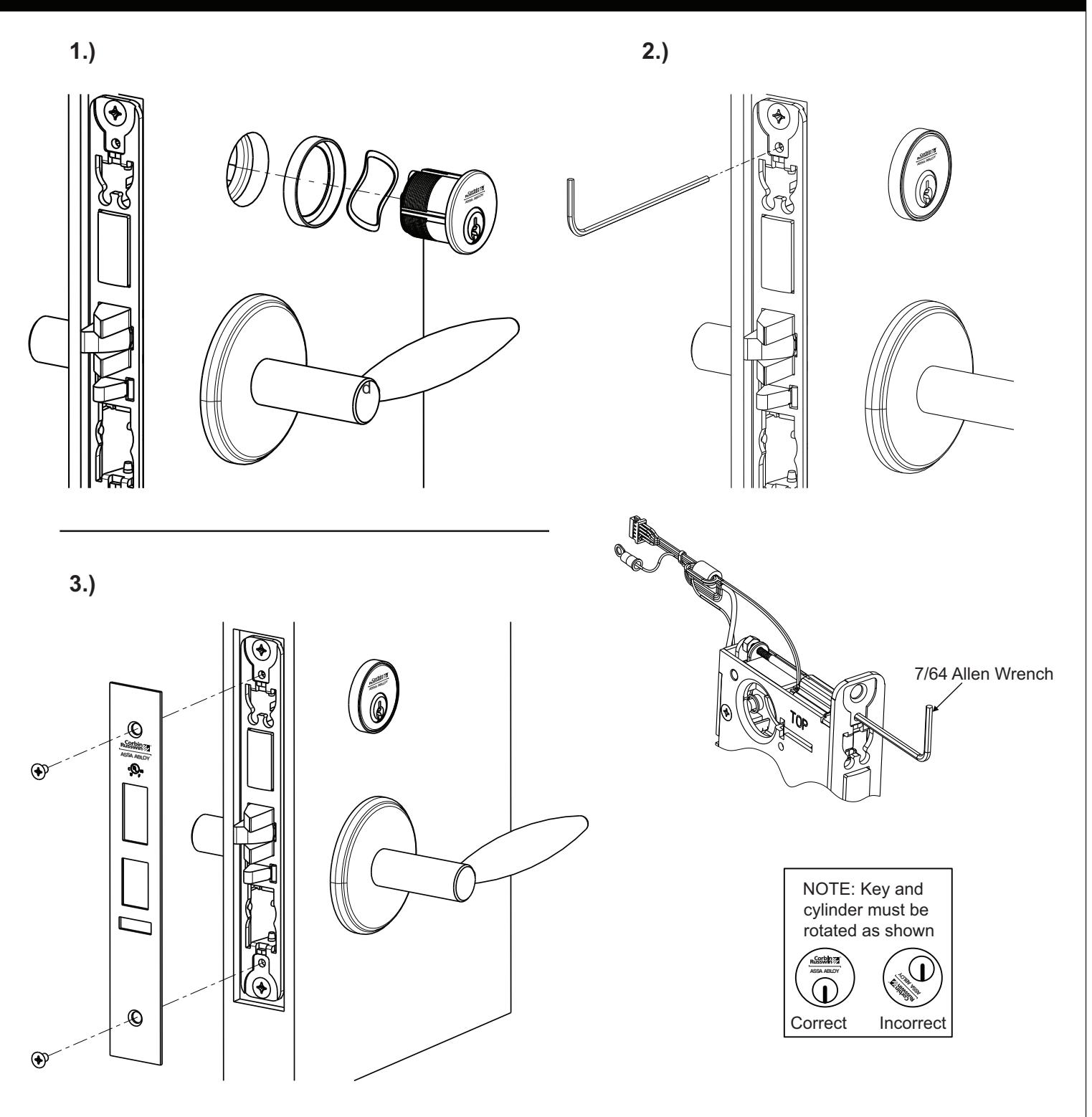

Cylinder & Scalp Installation ML20700 Series Mortise Lock

5 Install Outside Escutcheon and Inside Mounting Plate

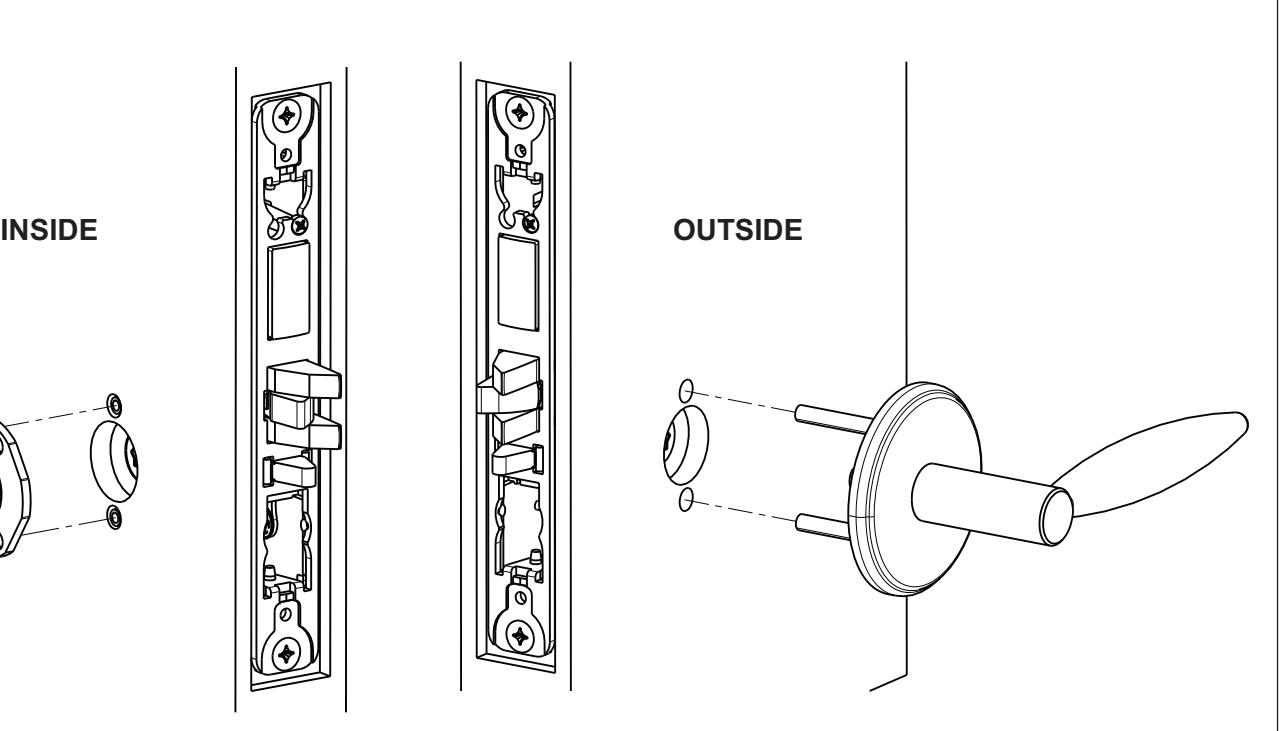

Feed wires as shown. Install four #8-32 machine screws and two #8 surface screws (required for fire rated doors). For exterior applications peel adhesive backing off gasket and stick to escutcheon prior to installation. (FIG 1)

5) Installation Instructions

Install Electronics Housing onto Mounting Plate 6

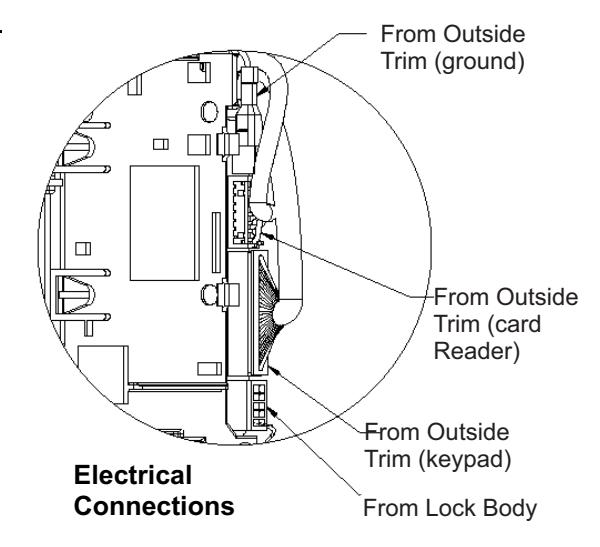

Snap in electronics, then make connections shown below.

IMPORTANT: Door must remain open during installation. Use door stop.

Battery/Battery Pack Installation 7

Place (6) "AA" alkaline batteries into battery pack being careful to align polarity (+/-) properly. Install battery pack as shown and make electrical connection.

Install Inside Escutcheon 8

Make sure DIP Switch (FIG 1) is set correctly before installing escutcheon. Install escutcheon using two #8-32 T20 Security Torx Screws. (Be careful not to pinch wires under escutcheon.)

END OF MECHANICAL INSTALLAT ION – Proceed With Persona TM Programming
