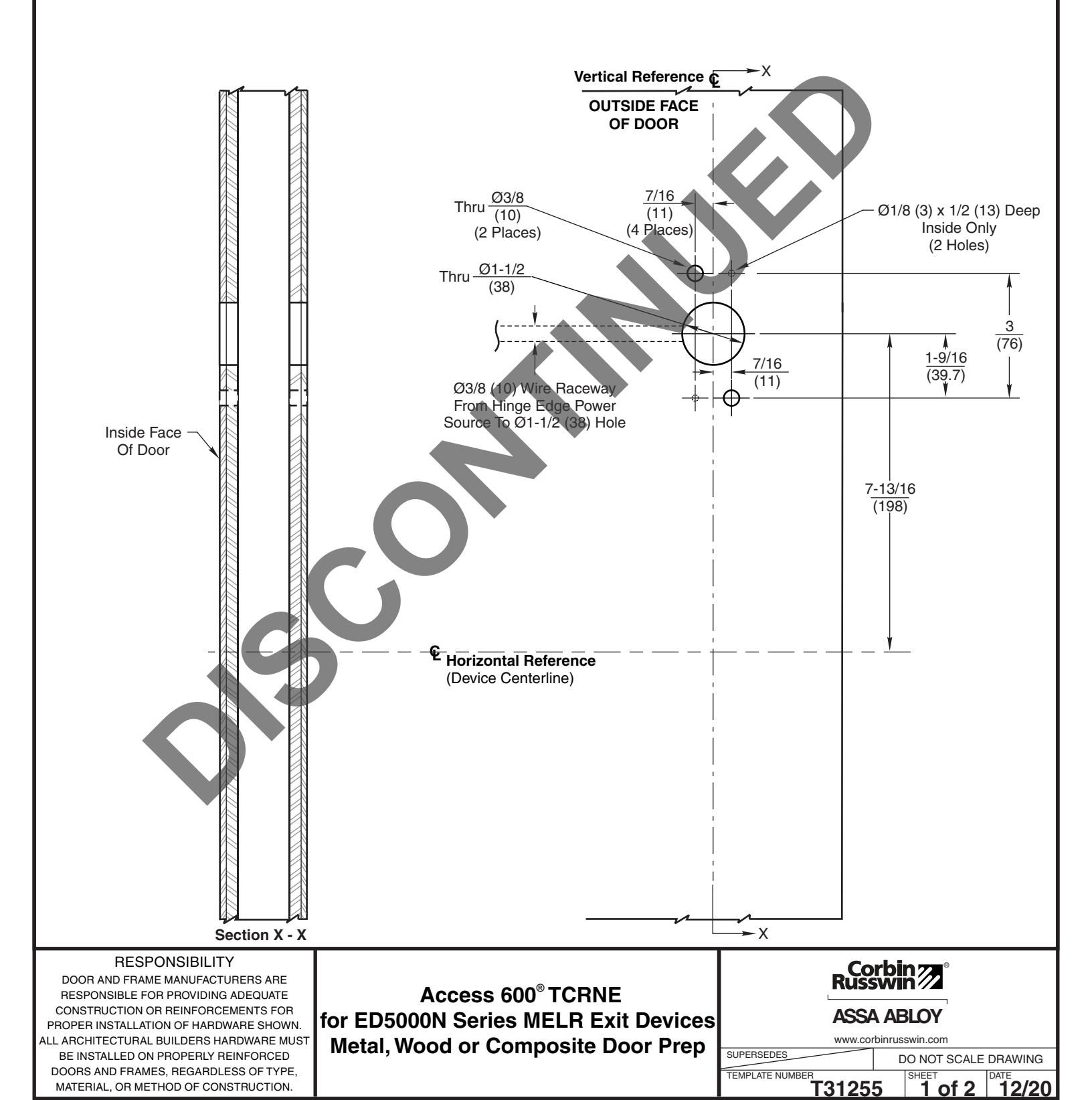

Corbin Russwin Access 600 TCRNE for ED5000N Series MELR Exit Devices Template_T31255

Open the original PDF document

View PDF

Notes:

  • This template is an addition to the device template. Locate centerlines using horizontal and vertical references on device template.
  • 2. Dimensions are in inches (mm).
  • 3. LHR door shown. (RHR opposite)
  • 4. For door reinforcement see template T30800.
  • Concealed Door Position Switch p/n:708F989 is included with this product. Use and installation location to be specified by others. See Access 600 installation instructions for details (FM294 or FM314).

LHR Door RHR Door Inside Face of Door ONLY

RESPONSIBILITY

DOOR AND FRAME MANUFACTURERS ARE RESPONSIBLE FOR PROVIDING ADEQUATE CONSTRUCTION OR REINFORCEMENTS FOR PROPER INSTALLATION OF HARDWARE SHOWN. ALL ARCHITECTURAL BUILDERS HARDWARE MUST BE INSTALLED ON PROPERLY REINFORCED DOORS AND FRAMES, REGARDLESS OF TYPE, MATERIAL, OR METHOD OF CONSTRUCTION.

® Access 600 TCRNE for ED5000N Series MELR Exit Devices Metal, Wood or Composite Door Prep

www.corbinrusswin.com

DO NOT SCALE DRAWING SUPERSEDES

TEMPLATE NUMBER SHEET DATE

T31255 2 of 2 12/20
