Corbin Russwin Access 600 RNE1 ML20600 Series Template_T31070

Open the original PDF document

View PDF

Notes:

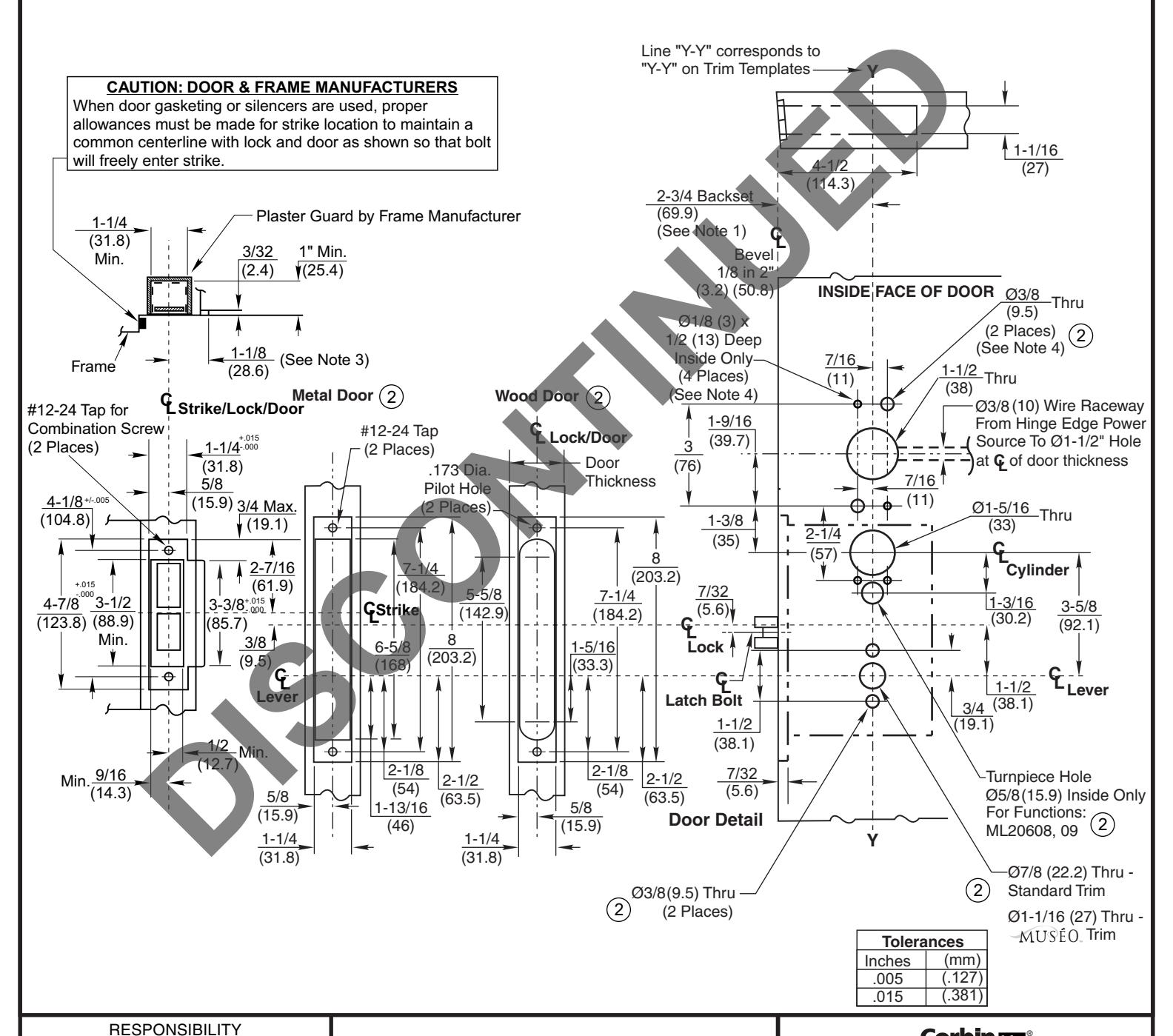

1. Backset is measured from centerline of bevel which is centerpoint of door thickness.
1-1/8 (28.6) strike lip suits frame for 1-3/4 (44.5) thick door, lip will vary for other door thicknesses.
3. Dimensions given in inches and (mm).

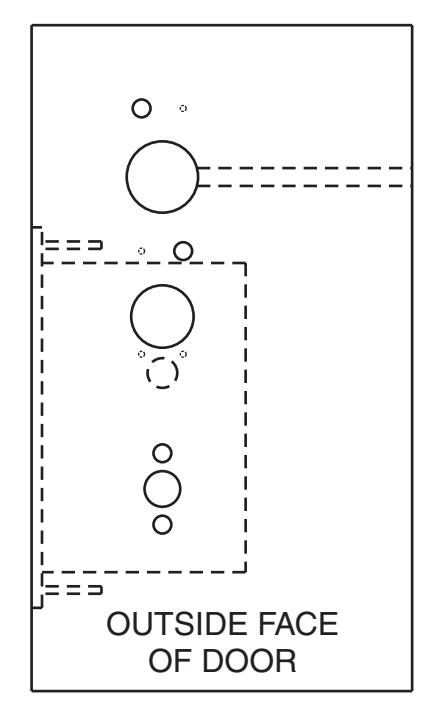

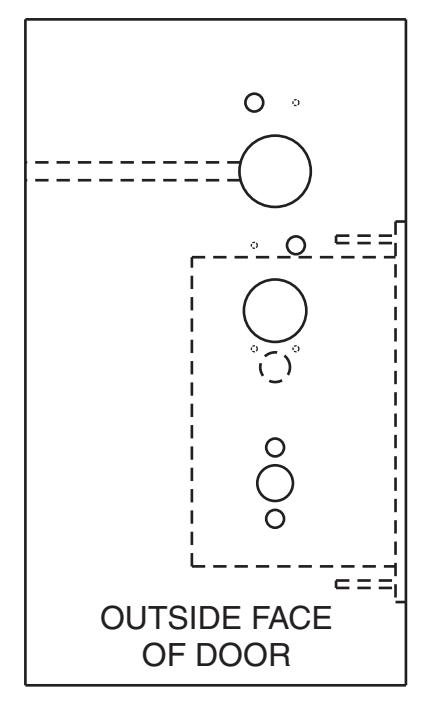

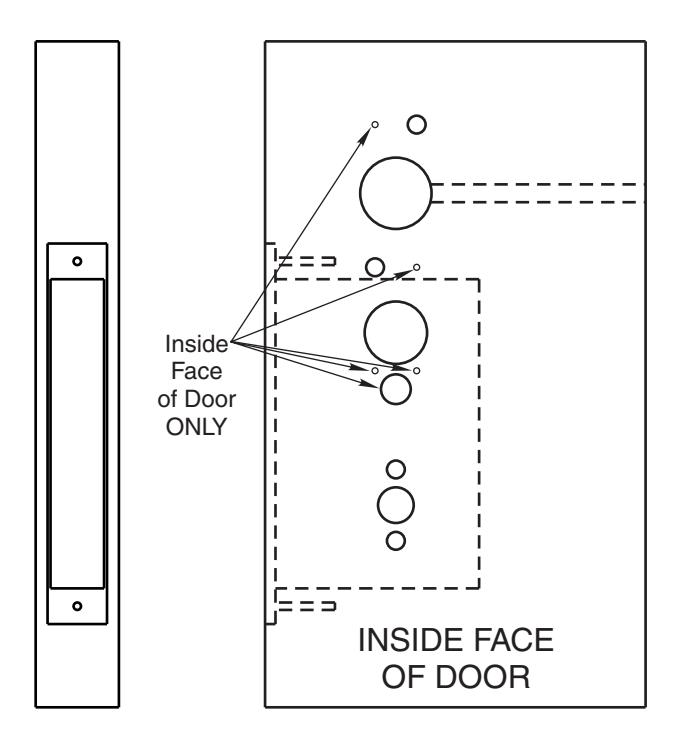

4. Sheet 2 shows how prep details are affected by door handing.

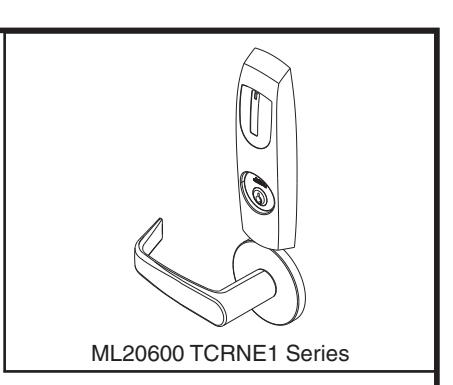

Access 600® TCRNE1

ML20600 Series

Mortise Lock

DOOR AND FRAME MANUFACTURERS ARE

RESPONSIBLE FOR PROVIDING ADEQUATE CONSTRUCTION OR REINFORCEMENTS FOR

PROPER INSTALL ATION OF HARDWARE SHOWN

ALL ARCHITECTURAL BUILDERS HARDWARE MUST

BE INSTALLED ON PROPERLY REINFORCED

DOORS AND FRAMES, REGARDLESS OF TYPE, MATERIAL. OR METHOD OF CONSTRUCTION.

SUPERSEDES

assa abloy

www.corbinrusswin.com

T31070-1

T31070-2

DO NOT SCALE DRAWING

of 2

LH/LHR DOORS

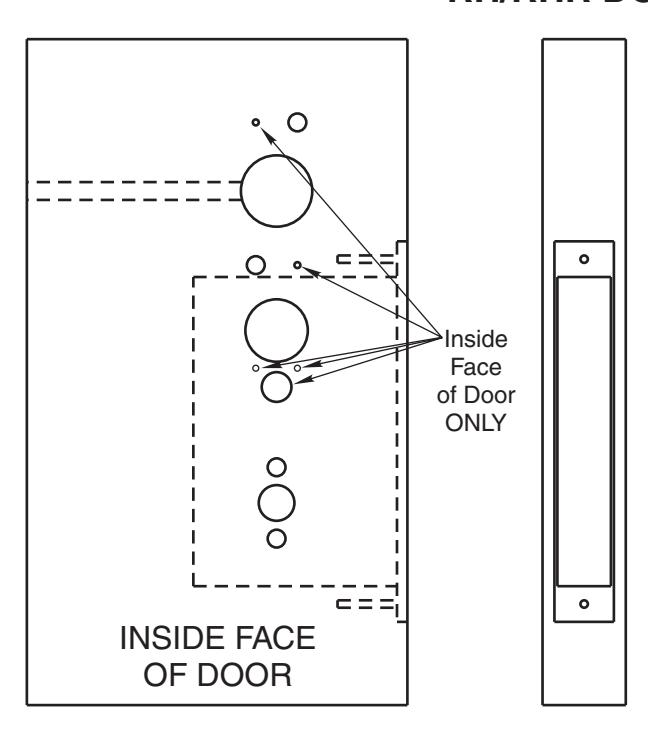

RH/RHR DOORS

RESPONSIBILITY

DOOR AND FRAME MANUFACTURERS ARE RESPONSIBLE FOR PROVIDING ADEQUATE CONSTRUCTION OR REINFORCEMENTS FOR PROPER INSTALLATION OF HARDWARE SHOWN. ALL ARCHITECTURAL BUILDERS HARDWARE MUST BE INSTALLED ON PROPERLY REINFORCED DOORS AND FRAMES, REGARDLESS OF TYPE, MATERIAL, OR METHOD OF CONSTRUCTION.

Access 600® TCRNE1 ML20600 Series Mortise Lock

Corbin Russwin ASSA ABLOY

www.corbinrusswin.com

PERSEDES T31070-1 DO NOT SCALE DRAWING MPLATE NUMBER T31070-2 SHEET DATE 10/14
