Corbin Russwin Access 600 RNE1 9M600 Series Trim Template_T31166

Open the original PDF document

View PDF

Notes:

  • This template is an addition to the device template. Locate centerlines using horizontal and vertical references on device template.
  • 2. Dimensions are in inches (mm).
  • 3. LHR door shown. (RHR opposite)
  • 4. Provide adequate structural support to maintain door integrity during operation.
  • 5. Prepare mounting holes when installing trim.
  • 6. Dimensions given about a centerline are symmetrical.
  • 7. Unspecified radius 1/8 (3.2) maximum.
  • 8. Concealed Door Position Switch p/n: 708F989 is included with this product. Use and installation location to be specified by others. See SE LP10 installation instructions for details (FM385).

Note: Lever design prefix does not affect door prep.

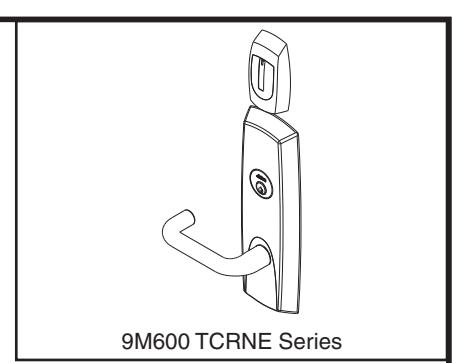

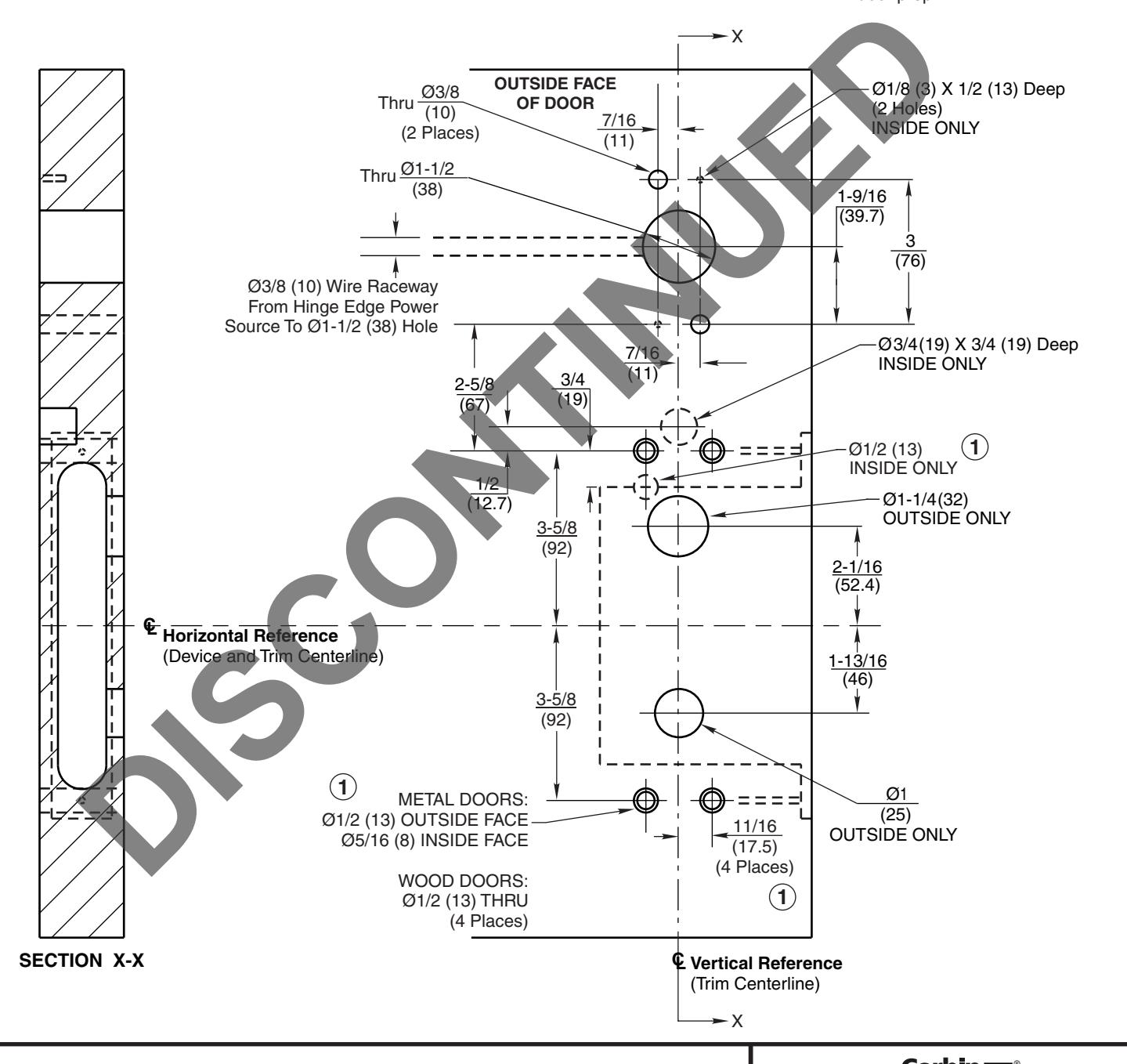

Access 600° TCRNE 9M600 Series Trim for ED5600N Series Exit Devices Wood, Composite or Metal Door Preparation

ASSA ABLOY www.corbinrusswin.com SUPERSEDES T31166 DO NOT SCALE DRAWING TEMPLATE NUMBER T31166-1 SHEET DATE T31166-1 T of 2 DATE T0-14
