Corbin Russwin Access 600 RNE1 9M600 Series Trim Template_T31165

Open the original PDF document

View PDF

Notes:

  • This template is an addition to the device template. Locate centerlines using horizontal and vertical references on device template.
  • 2. Dimensions are in inches (mm).
  • 3. LHR door shown. (RHR opposite)
  • 4. For door reinforcement see template T30800.
  • 5. Prepare mounting holes when installing trim.
  • Provide adequate internal support to prevent door deformation after trim is bolted to the device.
  • 7. Dimensions given about a centerline are symmetrical.
  • 8. Unspecified radius 1/8 maximum.

Note: Lever design prefix does not affect door prep.

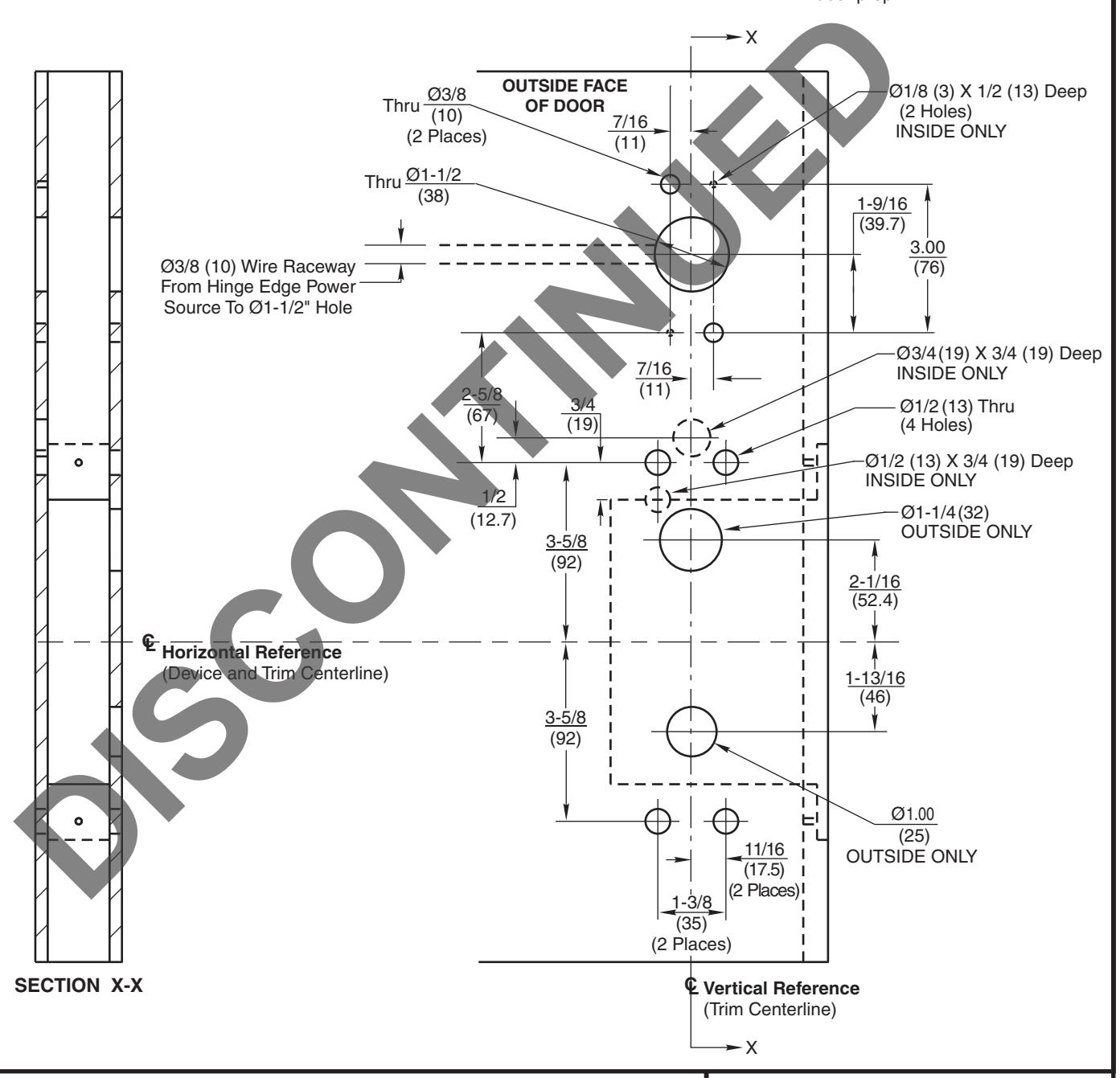

Access 600° TCRNE 9M600 Series Trim for ED5600N Series Exit Devices Metal Door Preparation

ASSA ABLOY www.corbinrusswin.com SUPERSEDES DO NOT SCALE DRAWING TEMPLATE NUMBER T31165 T of 2 T 10-09

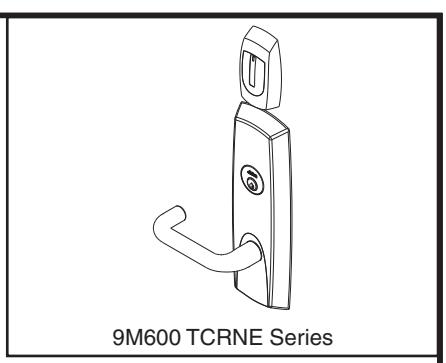

RHR Door LHR Door Inside <sup>1</sup> Face of Door ONLY Access 600® TCRNE 9M600 Series Trim ASSA ABLOY

SUPERSEDES

T31165

DO NOT SCALE DRAWING

10-09

for ED5600N Series Exit Devices

Metal Door Preparation
