Corbin Russwin Access 600 RNE1 9600 and 9S600 Series Trim Template_T31073

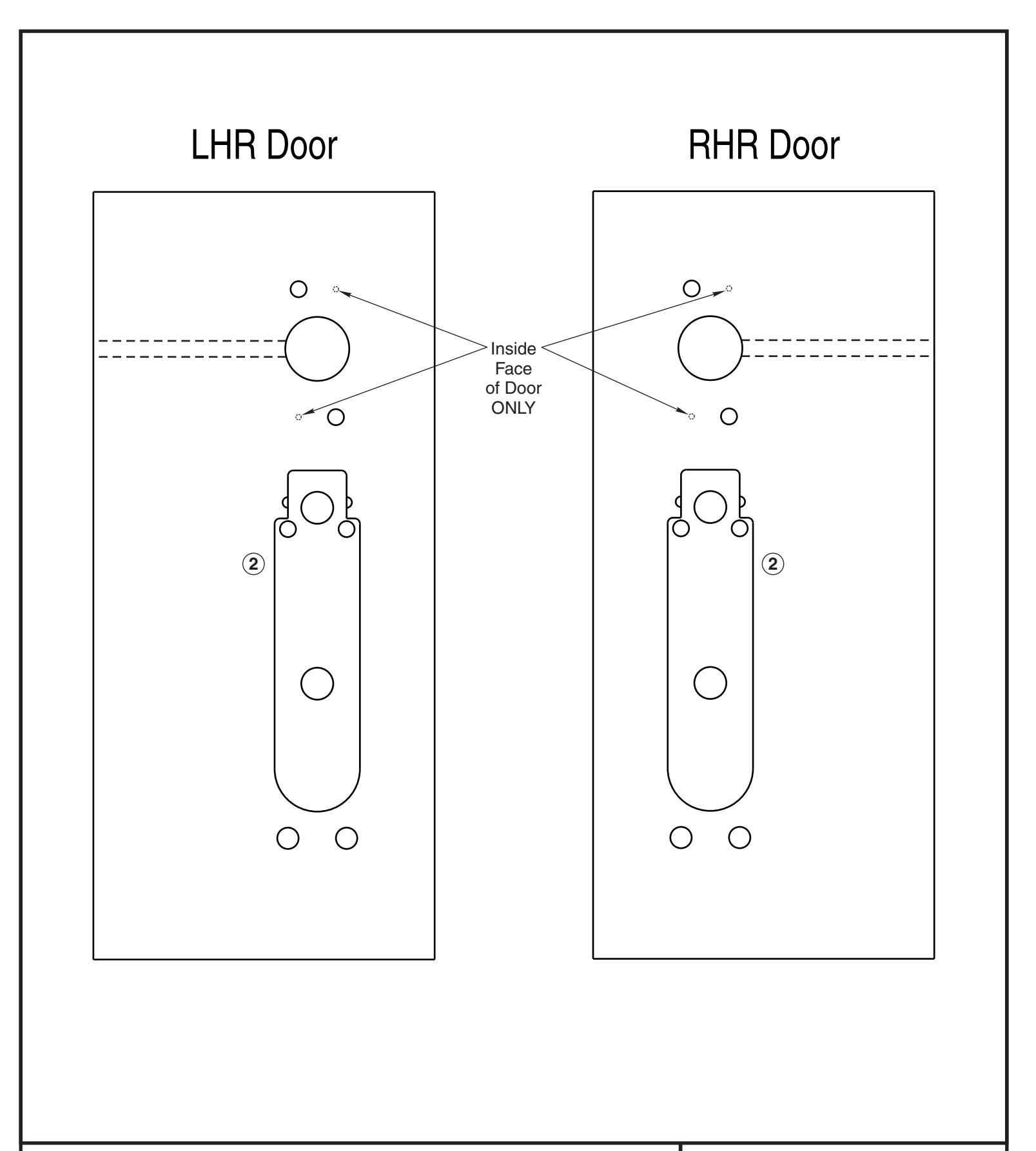

Notes: 1. This template is an addition to the device template. Locate centerlines using horizontal and vertical references on device template. 2. Dimensions are in inches (mm). 3. LHR door shown. (RHR opposite) 4. Provide adequate structural support to maintain door integrity during operation. 5. Prepare mounting holes when installing trim. 6. Dimensions given about a centerline are symmetrical. 7. Unspecified radius 1/8 maximum. 8. Concealed Door Position Switch p/n:708F989 is included with this product. Use and installation location to be specified by others. See Access 600 installation 9600/9S600 TCRNE Series instructions for details (FM294 or FM314). Note: Lever design prefix does not affect door prep. C Door C Vertical Reference (Trim Centerline) OUTSIDE FACE OF DOOR Outside Fac Inside Face Of Doo Of Door Thru Ø3/8 7/16 Ø1/8 (3) x 1/2 (13) Deep (11)(10)Inside Only (4 Places) (2 Places) (2 Holes) Ø3/8 (10) Wire Raceway From Hinge Edge Power Source To Ø1-1/2 (38) Hole 7/16 (39.7)Thru -3/8(35)1 - 3/8(35)5/8 R1/4 (6) x 1/4 (6) Deep (2) (2 Places) 3-5/8 (92)L Horizontal Reference (Device and Trim Centerline) 3/4 Dia. (19)3-5/8For Rim and SecureBolt Devices Only -Radius Trim Cutout (25)Outside Face <u>11/16</u> (2) 1/2 (13) Dia. 1-1/4(17.5)(32)Thru Door (4 Places) (4 Places) Χ Section X - X Access 600® TCRNE 9600 and 9S600 Series Trim assa abloy for ED5000N Series Exit Devices SUPERSEDES DO NOT SCALE DRAWING Wood or Composite Door Preparation T31073-1 T31073

Access 600® TCRNE 9600 and 9S600 Series Trim for ED5000N Series Exit Devices Wood or Composite Door Preparation
