Corbin Russwin Access 600 RNE1 9600 and 9S600 Series Trim Template_T31072

Notes:

• This template is an addition to the device template. Locate centerlines using horizontal and vertical references on device template.
• Dimensions are in inches (mm).

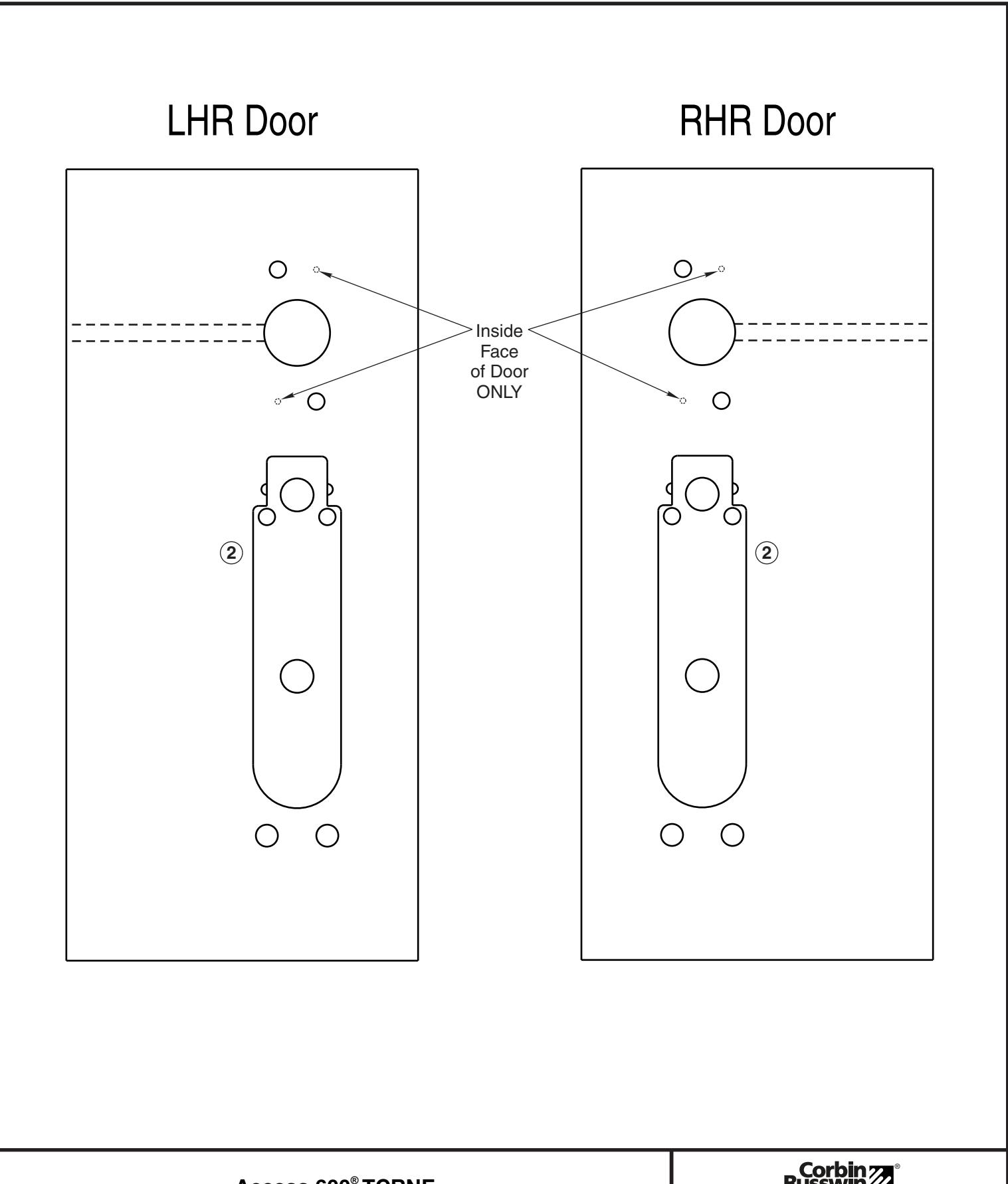

• 3. LHR door shown. (RHR opposite)
• 4. For door reinforcement see template T30800.
• 5. Prepare mounting holes when installing trim.
• Provide adequate internal support to prevent door deformation after trim is bolted to the device.
• 7. Dimensions given about a centerline are symmetrical.
• 8. Unspecified radius 1/8 maximum.

Concealed Door Position Switch p/n:708F989 is included with this product. Use and installation location to be specified by others. See Access 600 installation instructions for details (FM294 or FM314).

9600/9S600 TCRNE Series

Note: Lever design prefix does not affect door prep.

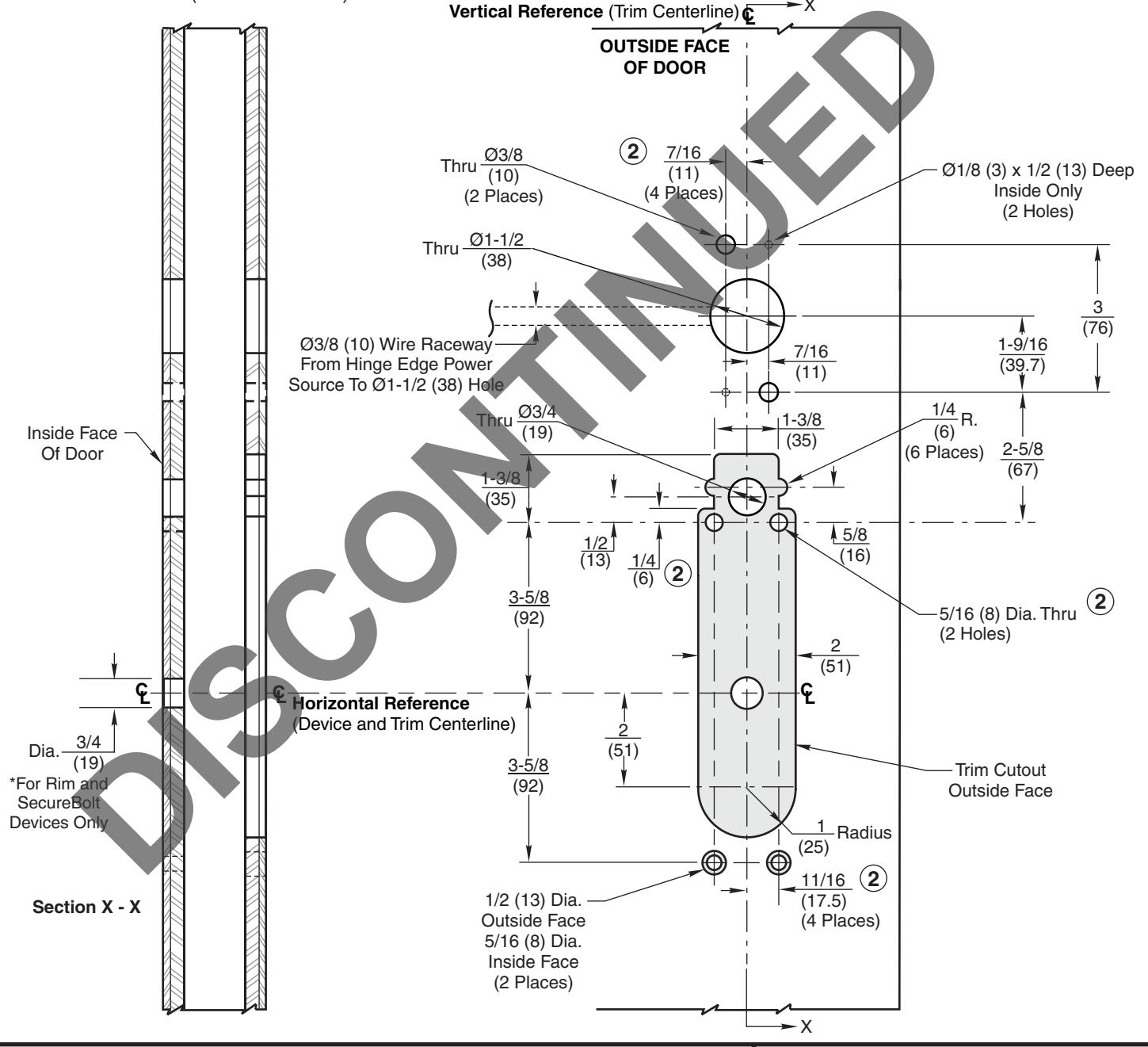

Access 600° TCRNE 9600 and 9S600 Series Trim for ED5000N Series Exit Devices Metal Door Preparation

ASSA ABLOY www.corbinrusswin.com SUPERSEDES T31072-1 DO NOT SCALE DRAWING TEMPLATE NUMBER T31072-2 SHEET 1 of 2 DATE T31072-2 T1 of 2 T0-14

Access 600° TCRNE 9600 and 9S600 Series Trim for ED5000N Series Exit Devices Metal Door Preparation

Corbin Russwin Samuel ASSA ABLOY www.corbinrusswin.com

SUPERSEDES T31072-1 DO NOT SCALE DRAWING

T31072-2 SHEET DATE 10-14
