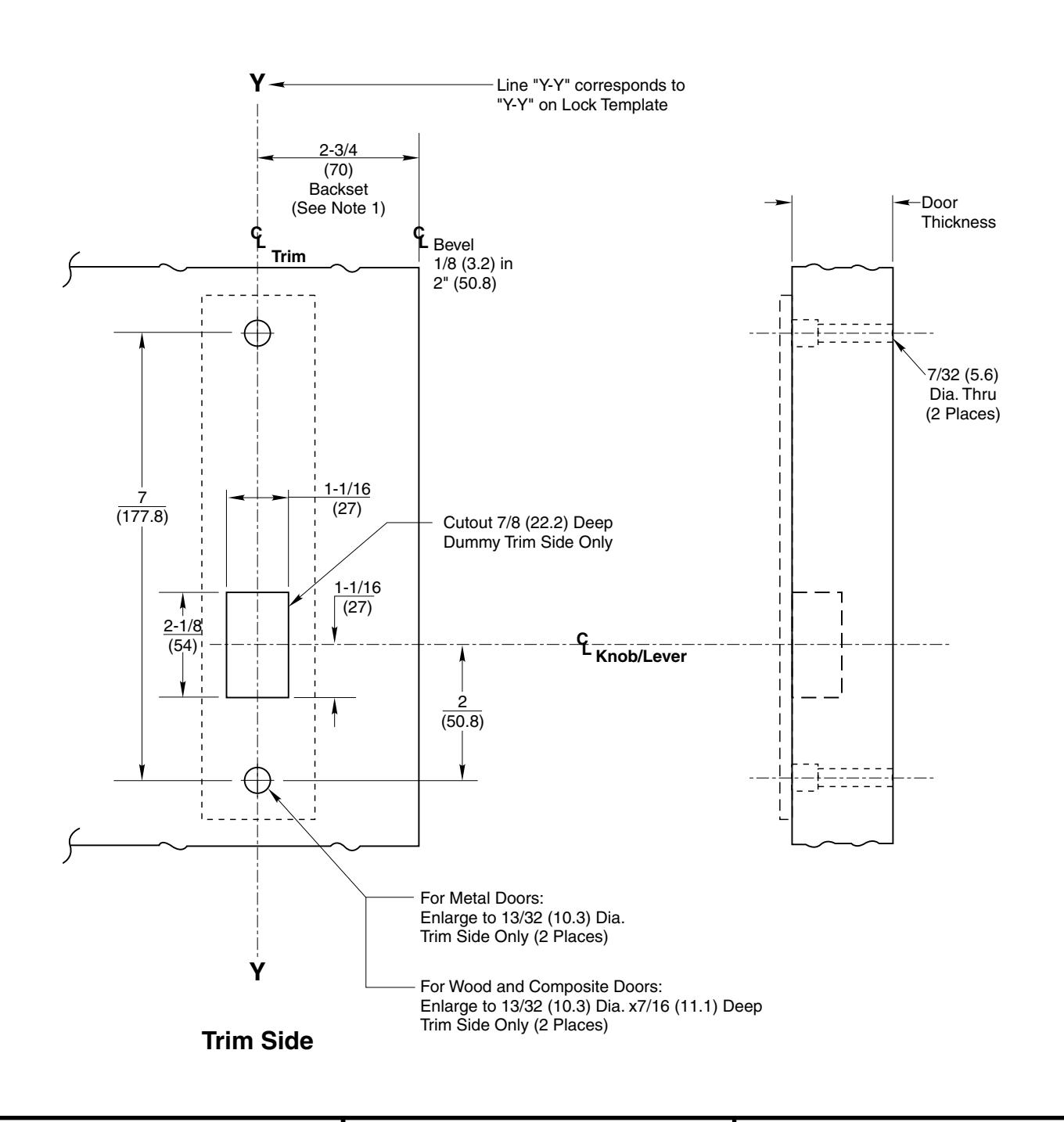

Corbin Russwin ASR and ZSL Trim Template_T30652

Notes:

• Backset is measured from centerline of bevel which is centerpoint of door thickness.
• 2. For Full Dummy Trim, refer to template T30651.
• 3. Dimensions given in inches and (mm).

RESPONSIBILITY

Door and Frame Manufacturers are responsible for providing adequate construction or reinforcements for proper installation of hardware shown. All architectural builders hardware must be installed on properly reinforced doors and frames, regardless of the type, material, or method of construction.

ASR FSL MSL RWR CSR GZR NSR TSL DSR LSR PSR YZR ESR LWR RSR ZSL

All MUSEO Levers x R/L-Esc Mortise Lock Escutcheon Half Dummy Trim

Corbin Russwin ASSA ABLOY

www.corbinrusswin.com

SUPERSEDES T30652-2 DO NOT SCALE DRAWING

T30652-3

3 DATE 01-19

3
