Corbin Russwin ASA and ZSG Trim Template_T30564

Notes:

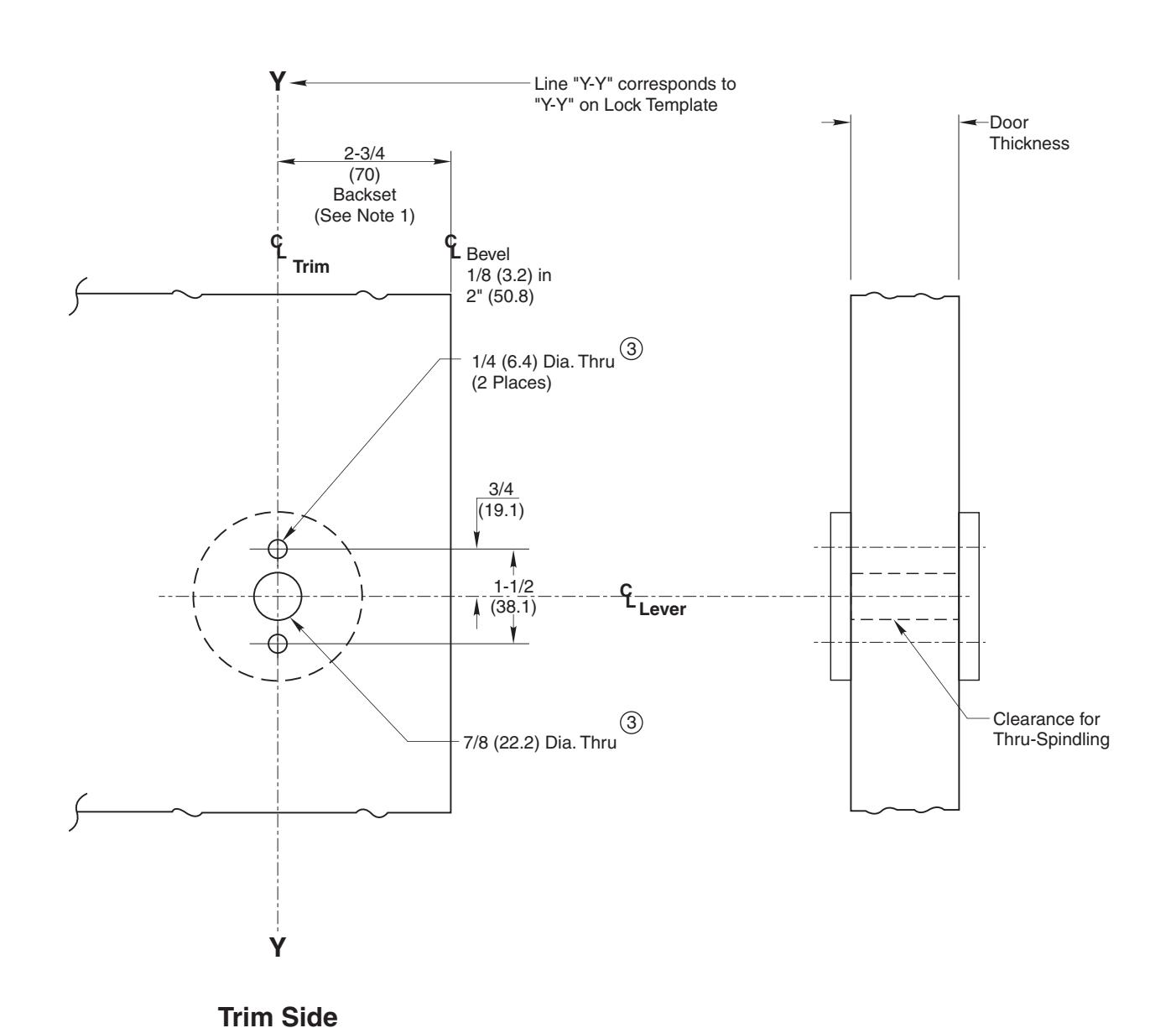

• 1. Backset is measured from centerline of bevel which is centerpoint of door thickness.
• 2. Dimensions given in inches and (mm).
• 3. For Rose by Lever Half Dummy Trim applications, refer to template T30563.

RESPONSIBILITY

Door and Frame Manufacturers are responsible for providing adequate construction or reinforcements for proper installation of hardware shown. All architectural builders hardware must be installed on properly reinforced doors and frames, regardless of the type, material, or method of construction.

ASA DSA LSA LWF PSB RSF ASB DSB LSB NSA PSF RWA NSB ASF DSF LSF RSA RWB CSA ESA LWA NSF RSB RWF CSB ESB LWB PSA ZSG FSG CSF ESF MSG TSG Mortise Lock Rose Full Dummy Trim

ASSA ABLOY

www.corbinrusswin.com SUPERSEDES

TEMPLATE NUMBER

T30564-2 DO NOT SCALE DRAWING T30564-3 07-14
