Corbin Russwin A610 and A659 Trim Template_T30949
Open the original PDF document
View PDFNotes:

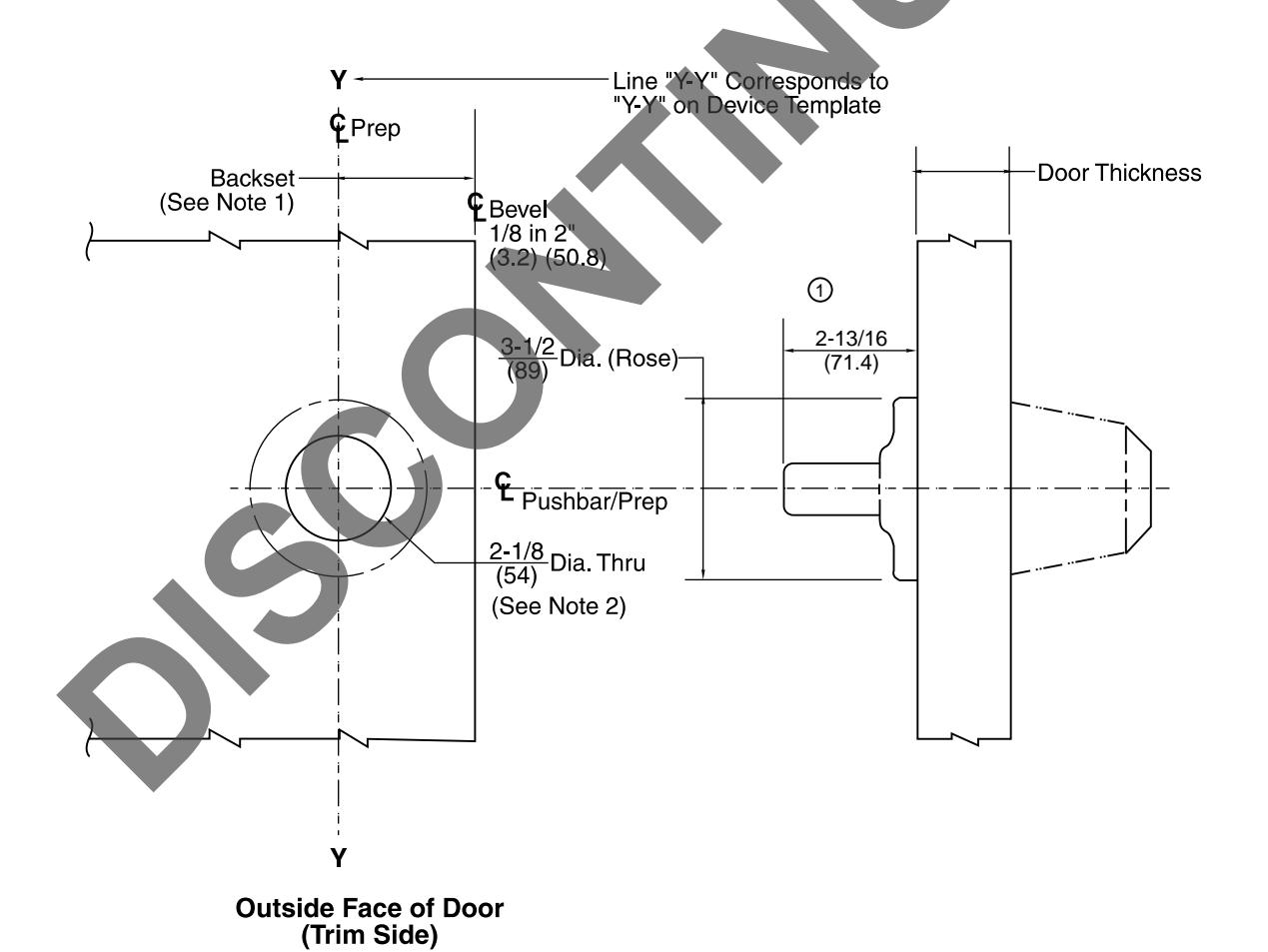

- Backset is measured from centerline of bevel which is centerpoint of door thickness. Refer to appropriate device template for backset dimension.
- Notching of 2-1/8 (54) diameter cutout per ANSI standards A115.2 (Steel) and A115.W2 (Wood) is permissible. Refer to appropriate ANSI A115 Standard for details.
| TEMPLATE CROSS REFERENCE | ||
|---|---|---|
| Device | Description | Template |
| Rim | ED8200 & ED8200B Series | T30436 |
| ED8200, ED8200B Series x M61 & M62 | T30491 | |
| ED8200A Series | T30465 | |
|
Vertical
Rod |
ED8400 Series | T30437 |
| ED8400A Series | T30467 |
3. Dimensions are in inches (mm).
LHR Shown RHR Opposite
| A610 | N610 | PR610 |
|---|---|---|
| A650 | N650 | PR650 |
| A655 | N655 | PR655 |
| A657 | N657 | PR657 |
| A659 | N659 | PR659 |
Lever by Rose Exit Trim For ED8000 Series Exit Devices
SUPERSEDES T30949 DO NOT SCALE DRAWING TEMPLATE NUMBER
10-<u>01</u> T30949-1
