Corbin Russwin 9M55 and 9M57 Trim for ED5600 Wide Stile Mortise with IK (INTELLIKEY) Wood or Composite Door Temp…_T30965

Open the original PDF document

View PDF

Notes:

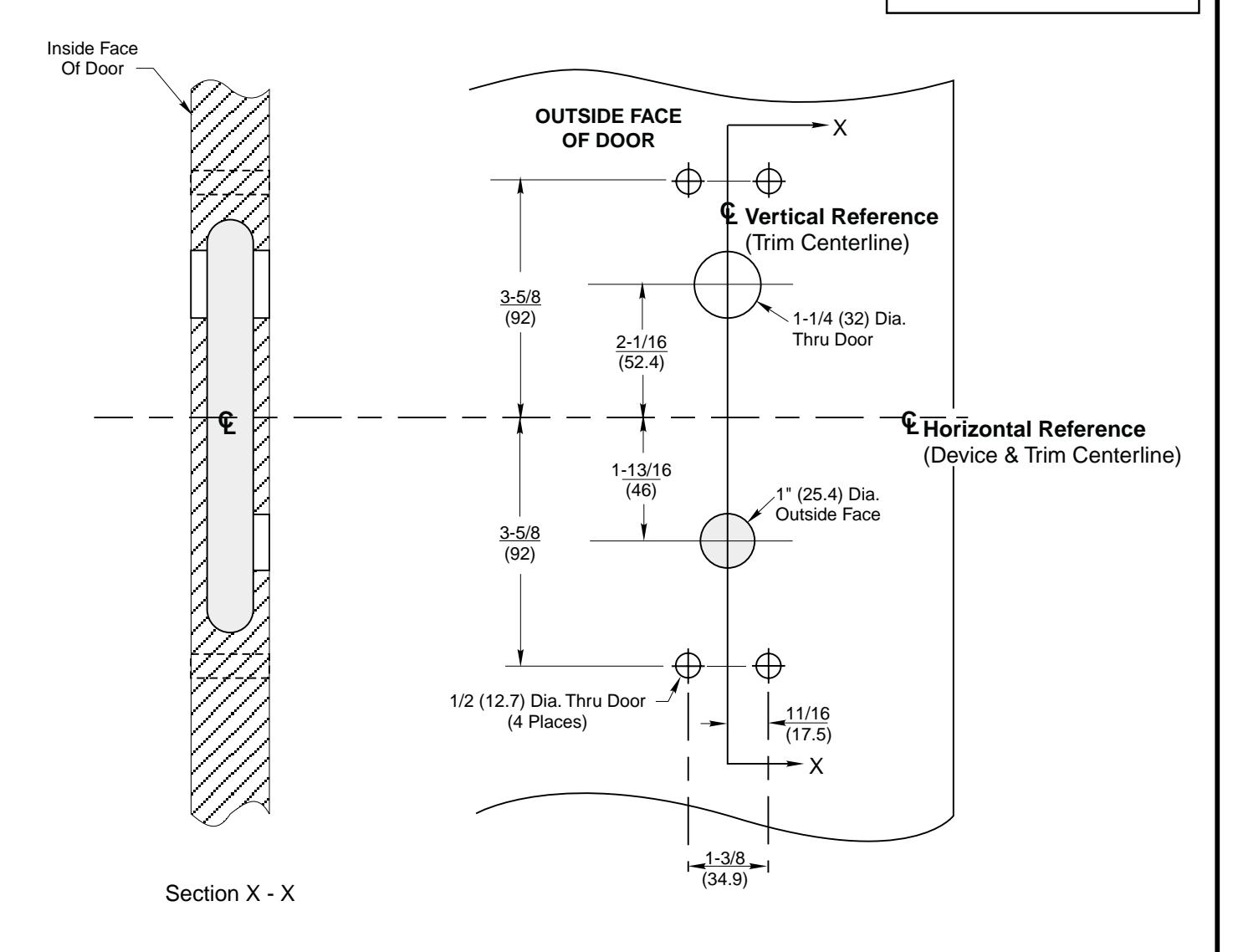

  • 1. This template is an addition to the device template. Locate centerlines using horizontal and vertical references on device template.
  • 2. Do not scale drawing.
  • 3. Dimensions are in inches (mm).
  • 4. LHR door shown. Preparation is typical for both door hands.
  • 5. Shaded area represents mortise lock cavity from device template.
  • 6. Prepare mounting holes when installing trim.
  • 7. Provide adequate structural support to maintain door integrity during operation.

Note: Lever and knob prefix does not affect door prep.

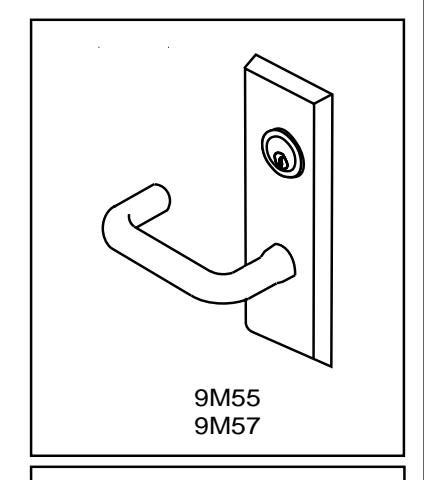

9M55 & 9M57 Series Trim For Use With IK (INTELLIKEY) Exit Devices Wood or Composite Door Preparation ED5600 Series Mortise Exit Devices

www.corbinrusswin.com

DO NOT SCALE DRAWING SUPERSEDES

T309 56 11-01 TEMPLATE NUMBER DATE
