Corbin Russwin 9M55 and 9M57 Trim for ED5600 Wide Stile Mortise with IK (INTELLIKEY) Metal Door Template_T30964

Open the original PDF document

View PDF

Notes:

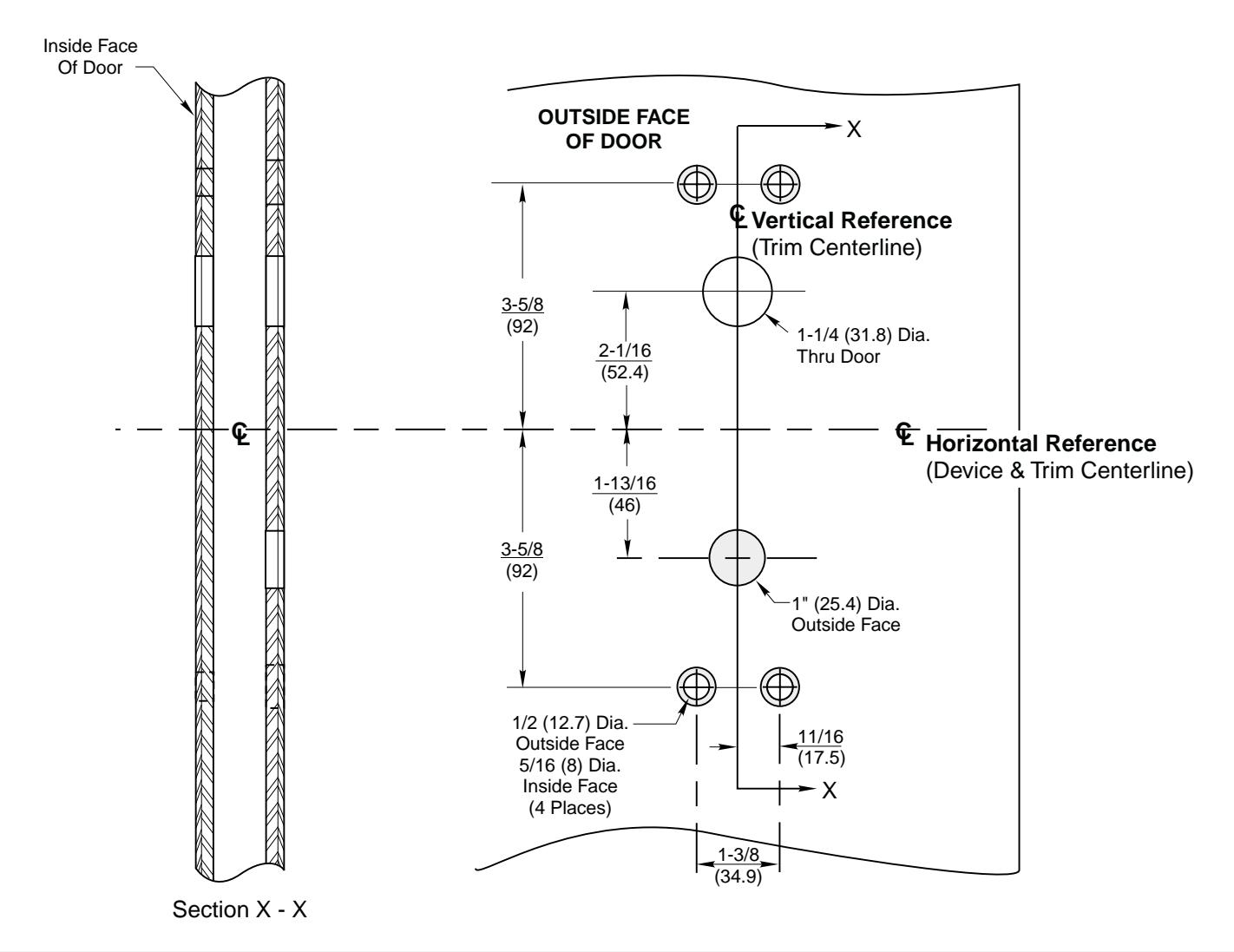

  • 1. This template is an addition to the device template. Locate centerlines using horizontal and vertical references on device template.
  • 2. Do not scale drawing.
  • 3. Dimensions are in inches (mm).
  • 4. LHR door shown. Preparation is typical for both door hands.
  • 5. For door reinforcement see template T30800.
  • 6. Prepare mounting holes when installing trim.
  • 7. Provide adequate internal support to prevent door deformation after trim is bolted to the device.

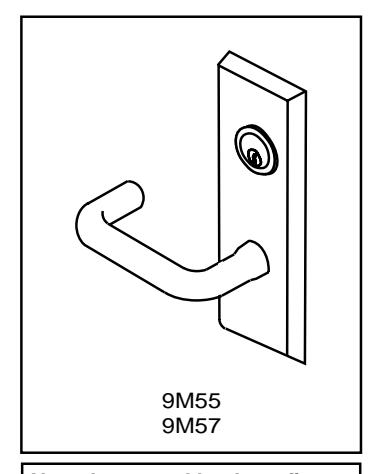

Note: Lever and knob prefix does not affect door prep.

9M55 & 9M57 Series Trim For Use With IK (INTELLIKEY) Exit Devices Metal Door Preparation ED5600 Series Mortise Exit Devices

DO NOT SCALE DRAWING SUPERSEDES

TEMPLATE NUMBER DATE T30964 11-01
