Notes:

  • 1. This template is an addition to the device template. Locate centerlines using horizontal and vertical references on device template.
  • 2. Do not scale drawing.
  • 3. Dimensions are in inches (mm).
  • 4. LHR door shown. Preparation is typical for both door hands.
  • 5. Provide adequate structural support to maintain door integrity during operation.
  • 6. Prepare mounting holes when installing trim.
  • 7. Dimensions given about a centerline are symmetrical.

Note: Lever and knob prefix does not affect door prep.

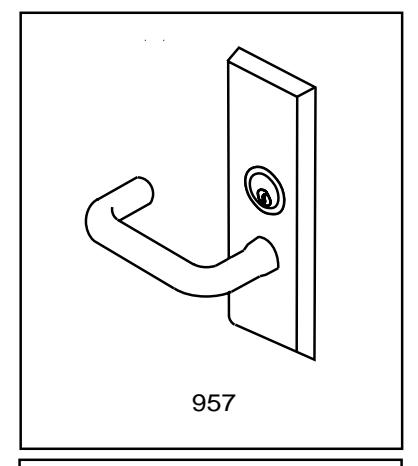

957 Trim For Use With IK (INTELLIKEY) Exit Devices ED5200, ED5400 or ED5800 Series Rim, SecureBolt, and Vertical Rod Exit Devices

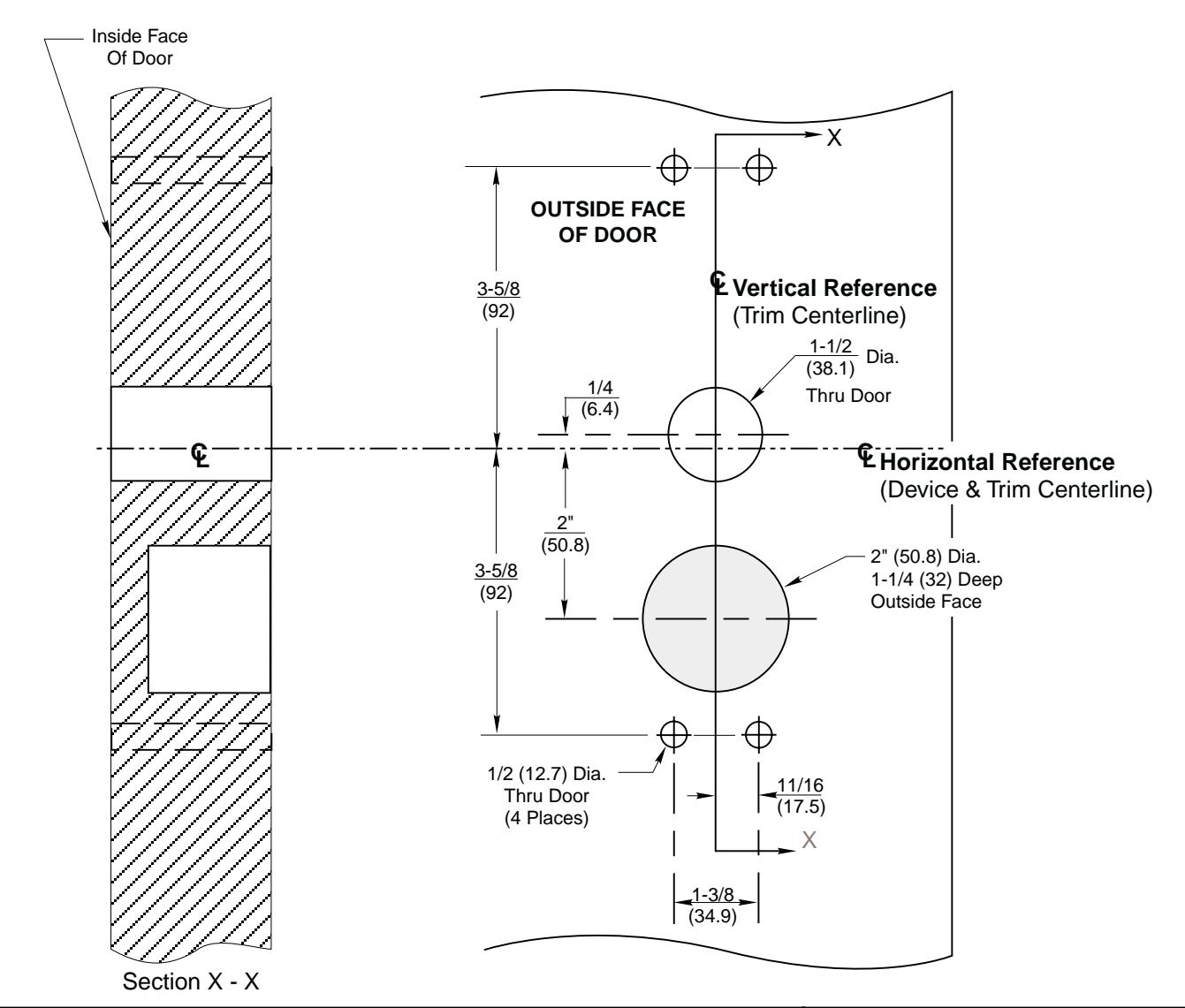

Wood or Composite Door Preparation

DO NOT SCALE DRAWING SUPERSEDES

TEMPLATE NUMBER DATE

T30961 11-01
